Non-touchscreen
86.7 inch Metal Optional speakers 3840*777 Stretched Bar LCD Monitor for Shelves
86.7 Inch Metal Stretched LCD Display Display area:2158.85*437mm Resolution:3840*777 Material:Metal、Tempered glass
86.7 Inch Bar LCD Display with Optional Speakers for Integrated Audio-Visual Digital Signage
As digital signage evolves beyond static visual advertising, businesses are increasingly looking for solutions that combine high-quality images with synchronized audio. An integrated audio-visual system captures attention more effectively, enhances brand storytelling, and delivers a richer customer experience. The 86.7-inch Bar LCD Display is designed to meet these needs by providing an ultra-wide commercial display with optional built-in speakers, making it an ideal choice for modern retail, transportation, hospitality, and public information projects.
With a 3840 × 777 ultra-wide resolution, the display delivers crisp graphics, smooth video playback, and excellent readability across long viewing distances. Its commercial-grade metal housing and flexible installation options allow it to integrate seamlessly into shelving systems, wall-mounted applications, or custom display structures.
For distributors, AV system integrators, retail solution providers, and OEM brands, this product offers a scalable platform for professional digital signage projects.
Why Integrated Audio-Visual Displays Improve Customer Engagement
Traditional digital displays rely only on visual content. By adding synchronized audio, businesses can create a more immersive communication experience that attracts attention and improves message retention.
An integrated Bar LCD Display can be used to:
- Introduce new product launches with promotional videos
- Play synchronized brand campaigns
- Broadcast public service announcements
- Deliver wayfinding instructions with voice guidance
- Present educational or training content
- Enhance interactive retail experiences
The optional speaker configuration allows customers to select the solution that best matches their project requirements.
86.7 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 86.7 inch | |
Resolution | 3840*777 | |
Brightness | 410 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Features Designed for Professional Applications
Ultra-Wide 3840 × 777 Resolution
The panoramic display format provides a continuous viewing experience, making it suitable for shelf systems, retail aisles, transportation facilities, and exhibition environments.
Commercial Metal Housing
A durable metal enclosure offers excellent structural strength and reliable heat dissipation, supporting long-term commercial operation.
Optional Integrated Speakers
Projects that require synchronized audio can be equipped with optional speakers, creating a complete audio-visual communication solution without additional external equipment.
Multimedia Playback
The display supports video, images, scrolling text, HTML content, and dynamic promotional graphics through Android, Windows, or customized operating systems.
OEM & ODM Manufacturing Services
ZXTLCD is a factory-direct manufacturer with extensive experience in commercial LCD display development.
Hardware Customization
- Custom ultra-wide dimensions
- High-brightness versions
- Capacitive touch options
- Metal housing customization
- Optional built-in speakers
- Open-frame designs
Software Integration
- Android, Windows, or Linux platforms
- Cloud CMS integration
- Remote content management
- API and SDK development
- Multi-screen synchronization
Brand Customization
- Private logo printing
- Custom packaging
- User interface design
- Product appearance customization
Our engineering team supports projects from concept and prototype development through volume production.

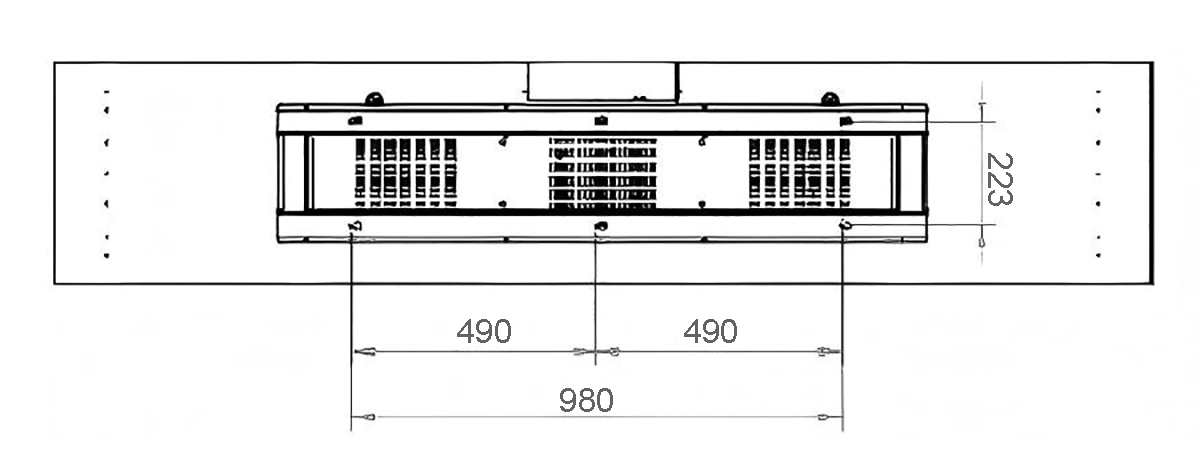

Product Dimension as follows:
Why Choose ZXTLCD
ZXTLCD specializes in manufacturing commercial LCD display products for global B2B customers.
Our advantages include:
- Factory-direct pricing
- Professional OEM & ODM services
- Experienced R&D engineers
- Stable production capacity
- Strict quality inspection
- Fast global delivery
- One-year warranty
- Reliable after-sales technical support
Whether your project requires standard products or fully customized commercial display solutions, ZXTLCD provides end-to-end engineering support.
Frequently Asked Questions
Q1: What is a Bar LCD Display used for?
A Bar LCD Display is widely used in retail stores, transportation hubs, exhibition centers, shopping malls, hospitality venues, and corporate environments where ultra-wide digital communication is required.
Q2: Are the speakers included as standard?
The speakers are available as an optional configuration, allowing customers to choose between display-only or integrated audio-visual solutions.
Q3: Can this display support remote content management?
Yes. It supports integration with cloud-based CMS platforms for centralized scheduling and remote content updates.
Q4: Does ZXTLCD offer OEM and ODM services?
Yes. We provide customized hardware, software, branding, enclosure design, and project-specific engineering services.
Q5: Is the display designed for continuous commercial use?
Yes. It uses commercial-grade LCD panels and industrial components engineered for long-term, continuous operation.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
