touchscreen
86 inch Shelf Stretched bar LCD Monitor 4K Remote Control Display for Supermarket Shop
86 Inch Hardware Stretched LCD Display Display area:2158*337mm Resolution:3840*600 Material:Hardware、Tempered glass Touch style:Multi-point Infrared TouchScreen
Specifications
- Screen Size
- 86 inch
- Resolution
- 3840*600
- Display area
- 2158*337mm
86 inch Shelf Stretched bar LCD Monitor 4K Remote Control Display for Supermarket Shop
4K Commercial Shelf Display Designed for Modern Retail Environments
The 86 inch ultra wide stretched bar LCD monitor is a professional display solution developed for supermarkets, hypermarkets, retail chains, convenience stores, and large-scale merchandising projects. Combining a 4K ultra-high-definition panel with remote content management capabilities, this commercial display helps retailers transform traditional shelf spaces into dynamic digital communication channels.
As retail competition continues to intensify, businesses are seeking more effective ways to capture shopper attention and influence purchasing decisions. An ultra-wide display positioned directly above products creates a highly visible communication platform that supports real-time promotions, branding campaigns, and customer engagement.
The front edge of the shelf features an embedded 86 inch stretched bar LCD monitor with a resolution of 3840*600. It can connect to supermarket ERP systems, enabling real-time synchronization of product prices with the backend, and automatically updating price tags and promotional information when promotional activities begin. This completely eliminates the need for manually changing paper price tags, saving over 3000 yuan per store in labor costs annually.
86 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 86 inch | |
Resolution | 3840*600 | |
Brightness | 350 | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Enhance Product Visibility Across Every Aisle
Traditional printed shelf signage often lacks flexibility and requires constant replacement. A digital shelf communication system enables retailers to update content instantly while maintaining a consistent visual experience throughout the store.
The stretched display format is particularly effective for:
- Product category identification
- Promotional advertising
- Brand campaigns
- Seasonal marketing activities
- Store navigation assistance
- New product announcements
- Price and promotion communication
- Cross-selling opportunities
By delivering relevant content directly at the point of purchase, retailers can improve customer interaction and strengthen merchandising performance.
Key Features of the 86 Inch Ultra Wide Stretched Bar LCD Monitor
Ultra-Wide 4K Commercial Display
The long-format screen delivers exceptional image clarity and vibrant visual performance, ensuring content remains highly visible even in busy retail environments.
Remote Content Control
The display supports centralized management, allowing operators to update promotional campaigns and advertising materials across multiple locations efficiently.
Commercial-Grade Reliability
Engineered for continuous commercial operation, the monitor is designed to deliver stable performance in demanding retail environments.
Flexible Multimedia Playback
Support for:
- Advertising videos
- Product images
- Promotional graphics
- Scrolling messages
- Brand storytelling content
- Multi-zone display layouts
Space-Saving Installation
The slim profile allows integration above shelves, aisles, refrigerated sections, promotional zones, and checkout areas without disrupting store layouts.

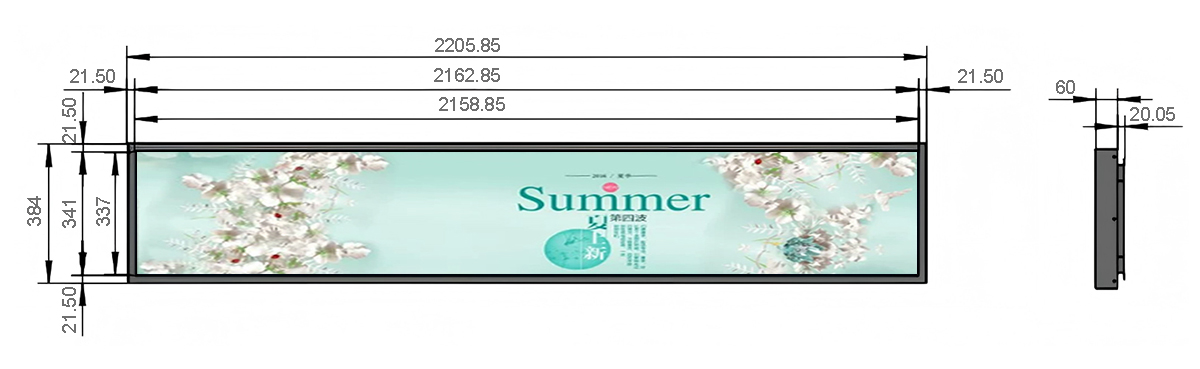

Product Dimension as follows:
Benefits of Digital Merchandising Displays
Retailers are increasingly replacing static signage with digital solutions due to their flexibility and efficiency.
Key advantages include:
- Faster campaign deployment
- Reduced printing costs
- Improved shopper engagement
- Consistent brand communication
- Centralized content management
- Real-time promotional updates
- Better product visibility
- Enhanced customer experience
The result is a smarter retail environment that supports both operational efficiency and revenue growth.
OEM & ODM Customization Services
As a professional commercial display manufacturer, ZXTLCD provides comprehensive OEM and ODM solutions for global distributors, system integrators, and retail technology providers.
Customization options include:
- Custom screen dimensions
- Android or Windows operating systems
- Touch-enabled configurations
- High-brightness display solutions
- Private label branding
- CMS software integration
- Network management platforms
- Custom hardware development
Our engineering team works closely with customers to create tailored solutions for specific retail and commercial projects.
Why Choose ZXTLCD
ZXTLCD has extensive experience in stretched display manufacturing and commercial digital signage solutions.
Our advantages include:
- Factory-direct production
- OEM & ODM customization
- Professional engineering support
- Strict quality inspection procedures
- Global export experience
- Fast production schedules
- One-year warranty
- Comprehensive after-sales service
We help retailers deploy reliable digital display systems that improve communication, strengthen branding, and support long-term business growth.
Frequently Asked Questions
What is an ultra wide stretched bar LCD monitor?
It is a long-format commercial display designed for shelf communication, retail advertising, product promotion, and digital merchandising applications.
Can the display be managed remotely?
Yes. The system supports centralized remote content management for multiple store locations.
Is 4K resolution available?
Yes. The display provides ultra-high-definition image quality suitable for premium retail environments.
Can the monitor be customized?
Yes. ZXTLCD offers complete OEM and ODM customization including hardware, software, branding, and mechanical design.
Is the display suitable for continuous operation?
Absolutely. It is designed for commercial applications and supports 24/7 operation.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
