Non-touchscreen

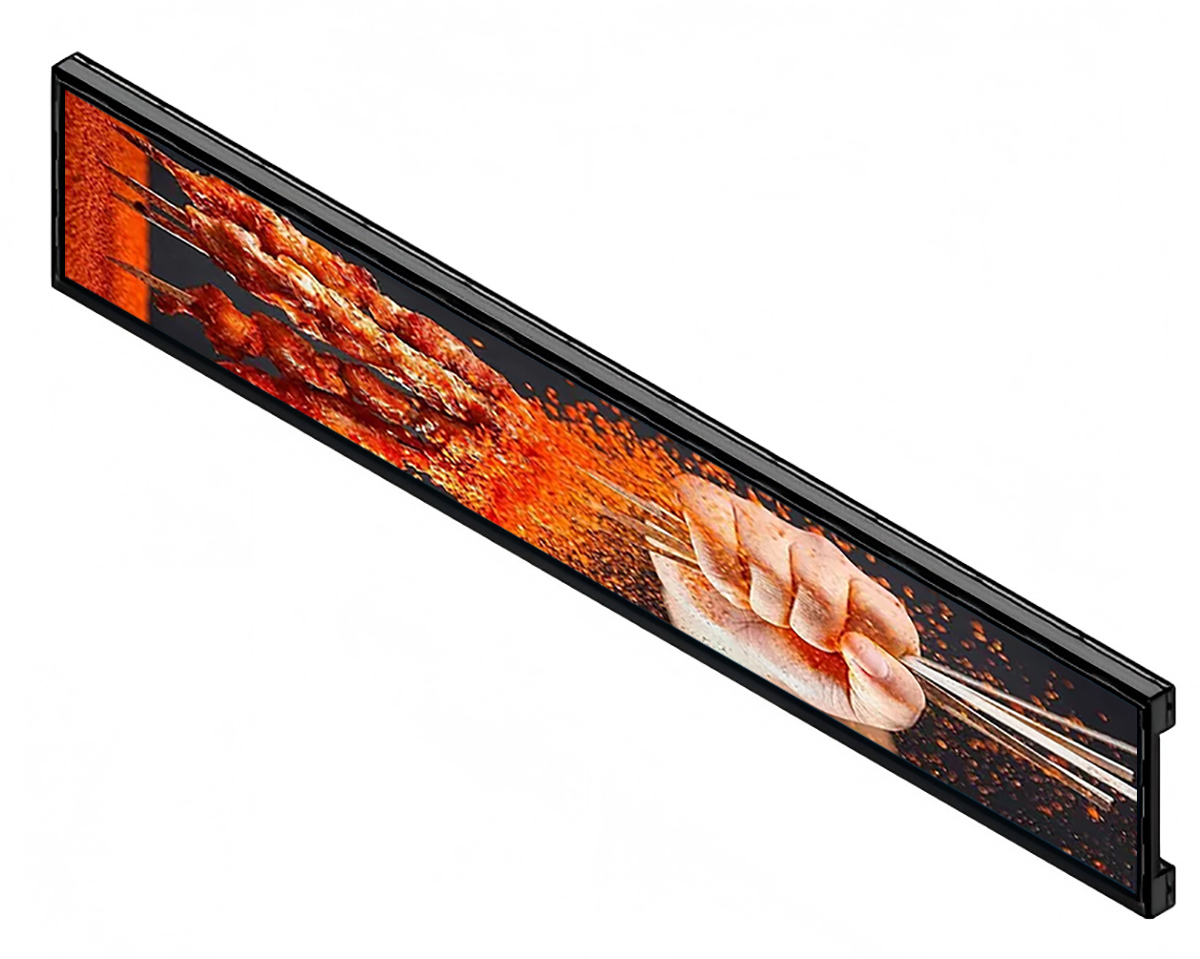

Large Stretched Bar Monitor – 86 Inch Ultra-Wide Commercial Display
Direct manufacturer of 86 inch ultra-wide standard ultra-wide bar display (3840*600, 350 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 86 Inch
- Resolution
- 3840*600
- Brightness
- 350 cd/㎡
- Interface
- HDMI / VGA
86 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 86 inch | |
Resolution | 3840*600 | |
Brightness | 350 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters
Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 86-inch stretched LCD monitor satisfies this requirement by providing 3840*600 native resolution across an active 86-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 3840*600 resolution, the 86-inch stretched monitor provides crisp panoramic visuals. Calibrated to 350 cd/㎡ with a 1200:1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
With a precision-machined metal housing, the 86-inch monitor offers structural rigidity and modern commercial styling. The durable exterior finish resists stains, scuffs, and ambient moisture in public venues.

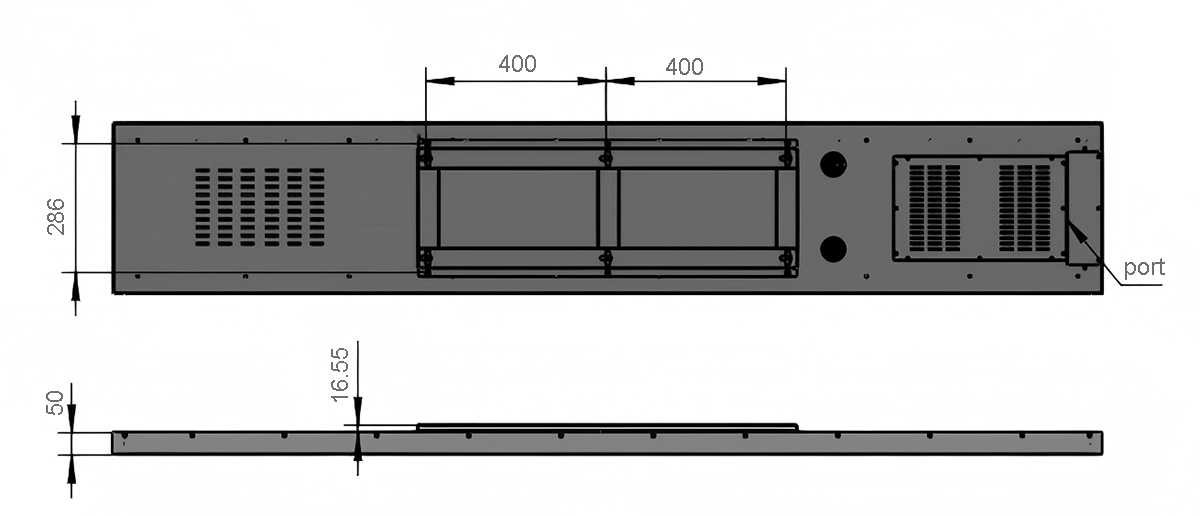

The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Hardware Integration: Direct Video Linking Without Specialized External Adapters
The display is equipped with HDMI, VGA video ports for direct connection to media players and embedded PCs. An audio connection is provided via a 3.5mm Audio Socket. The power supply accommodates standard 110V to 240V AC power input with an efficient power rating of ≤ 45w, operating reliably across temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Comprehensive electrical isolation safeguards video input ports against ground loop interference, ensuring hum-free audio and noise-free video signals in complex industrial AV setups.
Built-in over-voltage, over-current, and short-circuit protection circuits safeguard the monitor against unexpected electrical faults, preventing costly equipment damage during power grid surges.
Hardware-Agnostic Display Architecture via High-Definition Video
Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Strategic Venues: Airport Information Systems, Fast-Food Menus, and Factory Lines
With its specialized panoramic form factor, the 86-inch display serves diverse commercial sectors. It enhances retail product displays with dynamic video loops, informs public transit commuters with real-time route updates, monitors server rack metrics in data centers, and displays panoramic menus in restaurant chains.
Specialty pharmacy and health retail stores install this monitor along vitamin and personal care shelving. Nutritional information, product usage guides, and promotional discounts are presented at eye level to support informed customer purchasing decisions.
Commuter rail stations report smoother passenger boarding flows when deploying this display along platform boarding gates. Passengers waiting along platform edges can verify carriage layouts and arrival times at a single glance.
Turnkey and Modular Supply: Helping International Partners Scale Deployments
ZXT delivers factory-direct manufacturing for commercial stretched bar displays, offering competitive pricing, in-stock tooling, and 3-day sample turnaround. We provide complete technical support, including 2D/3D CAD models and modular SKD delivery to optimize international tariffs.
We partner with system integrators to build long-term commercial relationships, offering transparent volume-tiered pricing structures and dedicated account management for enterprise digital signage initiatives.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Project Consultation and Custom Quotation Inquiries
To evaluate a test sample of the 86-inch ultra-wide stretched bar LCD monitor, request detailed 2D/3D CAD mounting blueprints, or discuss high-volume OEM/ODM pricing tiers for upcoming commercial deployments, please contact our international technical sales department. Provide your target installation environment, anticipated order volume, and specific interface requirements, and our engineering team will provide a tailored hardware proposal and commercial quotation within two business hours.
