Non-touchscreen
86.7 Inch Panoramic Bar LCD Display for Control Rooms & Boardrooms
Direct manufacturer of 86.7 inch ultra-wide industrial sheet metal bar monitor (3840*777, 410 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 86.7 Inch
- Resolution
- 3840*777
- Brightness
- 410 cd/㎡
- Interface
- HDMI / VGA
86.7 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 86.7 inch | |
Resolution | 3840*777 | |
Brightness | 410 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Space Challenges: Overcoming Vertical Clearances with Panoramic Displays
Store fixture designers and transit architects frequently encounter spaces where traditional 16:9 displays cannot be accommodated. The 86.7-inch ultra-wide bar monitor resolves this challenge by providing a low-profile panoramic viewing format. Displaying 3840*777 native pixels across its 86.7-inch diagonal, it delivers continuous brand messaging, dynamic pricing, and route guidance along narrow architectural borders that would otherwise remain inactive.
Integrating panoramic hardware into commercial fixtures eliminates the visual clutter associated with standard monitors. The display becomes an organic part of the fixture, enhancing interior aesthetics while delivering essential information.
In busy transportation terminals, passengers require instant, intuitive visual cues. Overhead horizontal displays provide continuous sightline guidance that travelers can scan effortlessly while walking through crowded concourses.
Commercial Grade Panel Engineering: 24/7 Duty Cycle and Low Luminous Decay
Delivering high visual precision, the 86.7-inch stretched screen features a native resolution of 3840*777 and 410 cd/㎡ luminance. The 1200 :1 contrast ratio ensures clear text and dynamic visuals, while IPS ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles and a over 60,000 hours of continuous 24/7 commercial duty backlight lifespan support dependable 24/7 commercial operation.
Carefully tuned gamma curves ensure smooth shadow transitions and clean highlight separation, allowing subtle photographic details to shine in commercial promotional campaigns.
Wide-color-gamut phosphor LEDs provide vibrant red, green, and blue saturation, ensuring that food, apparel, and corporate branding assets render with striking visual fidelity and commercial appeal.
Structural Engineering: Low-Profile Framing and Standard VESA Compatibility
Engineered for high-reliability industrial use, the 86.7-inch sheet metal casing is fabricated from electro-galvanized steel with anti-scratch powder coating. The heavy-duty housing provides exceptional physical toughness, high vibration resistance, and comprehensive electronic shielding across noisy industrial environments.

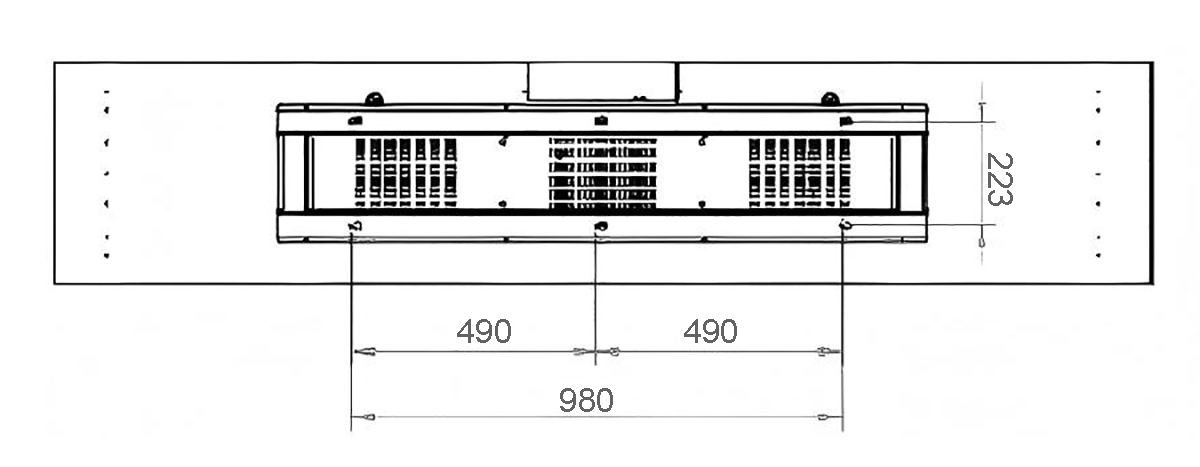

The unit features a fanless, solid-state cooling design that conducts thermal energy away from sensitive electronics directly to the outer casing. This passive cooling system ensures whisper-quiet operation and eliminates fan-related maintenance issues. Rear VESA mounting points and lateral slide channels provide straightforward installation across various mounting structures.
The chassis profile incorporates recessed rear connector pockets that protect HDMI and power plugs from accidental snags during maintenance. Right-angle cable routing channels allow the monitor to sit flush against flat architectural walls with zero gap.
Universal Power Conversion: Resilient Operation Across Commercial Mains Grids
With standard HDMI, VGA inputs, the display links easily to digital signage players and industrial computing equipment. An integrated 3.5mm Audio Socket provides audio output capability. The internal power converter accepts universal 100-240V commercial electrical mains mains with power consumption limited to ≤ 45w, rated for operating conditions of below10℃ ~ +50℃ and ≤ 85%RH.
The audio output circuitry supports synchronized stereo playback, enabling interactive kiosks to provide clear voice prompts and confirmation chimes during customer self-service transactions.
The low-voltage direct current output stage delivers ultra-clean power to the liquid crystal timing controller, eliminating horizontal line noise and visual ripple in sensitive commercial AV setups.
Open-Platform Display Flexibility: Zero Vendor Entanglement
Built specifically for professional system integrators who demand flexibility, this monitor operates without proprietary software locks or mandatory subscription ecosystems. By linking any standard Windows industrial PC, Android signage appliance, or Linux embedded computer through an HDMI connection, clients gain immediate access to an open-canvas display ready to run any specialized commercial or industrial software suite.
Deployment Vectors: Retail Shelves, Passenger Transoms, and Control Consoles
The 86.7-inch panoramic display excels in spaces where horizontal information delivery enhances operational efficiency. In smart supermarket aisles, it provides eye-level pricing and product promotions. In transit hubs, it serves as an overhead route indicator above passenger boarding gates. In corporate headquarters, it functions as an elegant architectural directory, while in industrial server rooms, it provides clear rack-mount telemetry feeds.
In luxury cosmetics and high-end department store showcases, the display functions as an elegant digital riser that highlights brand prestige. Subtle video animations and product feature breakdowns complement the physical merchandise, elevating retail aesthetics and customer dwell time.
High-end fashion boutiques and cosmetics flagship stores utilize the display as a luxury architectural accent. Seamlessly integrated into glass shelving and perfume risers, the screen elevates brand perception while presenting subtle, cinematic promotional footage.
B2B Production Excellence: 100% Factory Burn-In Testing and Direct Support
Direct factory procurement from ZXT ensures competitive pricing and reliable hardware delivery. We maintain in-stock extrusion tooling, offer 3-day sample dispatch, and support international partners with flexible delivery formats from finished displays to modular SKD kits.
Long-term component lifecycle management ensures that key panel models, driver boards, and mechanical dimensions remain stable across multi-year enterprise rollout phases, preventing unexpected redesigns.
Commercial Buyer FAQ & Technical Inquiries
**Q1: How does the display handle custom ultra-wide resolution timings?**
The onboard industrial A/D scalar automatically locks onto native ultra-wide timings via standard EDID handshakes, ensuring uncompressed pixel-for-pixel rendering without horizontal stretching or letterbox bars.
**Q2: What is the sample dispatch lead time for evaluation units?**
Because ZXT maintains in-stock inventories of standard aluminum extrusion profiles and stamping tooling, evaluation samples can be fully calibrated, burned-in, and dispatched within three working days.
**Q3: What video input interfaces are provided on this monitor?**
The standard configuration includes industrial HDMI and VGA video ports alongside a 3.5mm independent audio socket, allowing immediate plug-and-play connection to PCs, media sticks, and sound systems.
Initiate Custom Hardware Scoping and Sample Dispatch
Request a quote or order an evaluation sample for the 86.7-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
