Non-touchscreen
Rack Mount Stretched Monitor (86.4 Inch) for Surveillance & Command
Source factory supply of 86.4 inch industrial sheet metal bar monitor with 3840*712 resolution and 350 cd/㎡ luminous output. Engineered for continuous commercial duty in retail gondolas, vehicle headers, and control rooms. Fast 72-hour sample dispatch and modular SKD export kits.
Specifications
- Screen Size
- 86.4 Inch
- Resolution
- 3840*712
- Brightness
- 350 cd/㎡
- Interface
- HDMI / VGA
86.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 86.4 inch | |
Resolution | 3840*712 | |
Brightness | 350 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 3500 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Eliminating Structural Redesigns: Direct Integration into Linear Fascias
Linear visual communication is fundamentally transforming how brands and public operators engage with audiences. Where conventional displays dominate vertical walls and desktops, narrow architectural perimeters require an entirely different form factor. Standard monitors are simply too tall, obstructing customer views and complicating mechanical mounting. The 86.4-inch panoramic stretched bar LCD monitor meets these demands by packaging native 3840*712 resolution into an elongated 86.4-inch display profile, turning neglected architectural boundaries into dynamic customer touchpoints.
Modern grocery and department store merchandising demands dynamic storytelling right at the shelf edge. Panoramic digital screens capture shopper dwell time and drive impulse purchases by pairing high-definition video loops with clear pricing.
Retailers deploying digital shelf strips experience a significant reduction in pricing errors and promotional lag. Automated cloud updates ensure that promotional campaigns and regulatory price labels remain synchronized across entire store networks.
Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 86.4-inch panoramic display features 3840*712 resolution, 350 cd/㎡ brightness, and a 3500 :1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration
The 86.4-inch monitor features a ruggedized cold-rolled steel body designed for mission-critical deployments. Its electro-galvanized metal framework resists physical impact, protects sensitive liquid crystal layers from torsional strain, and ensures long-term structural alignment in mobile and stationary industrial installations.

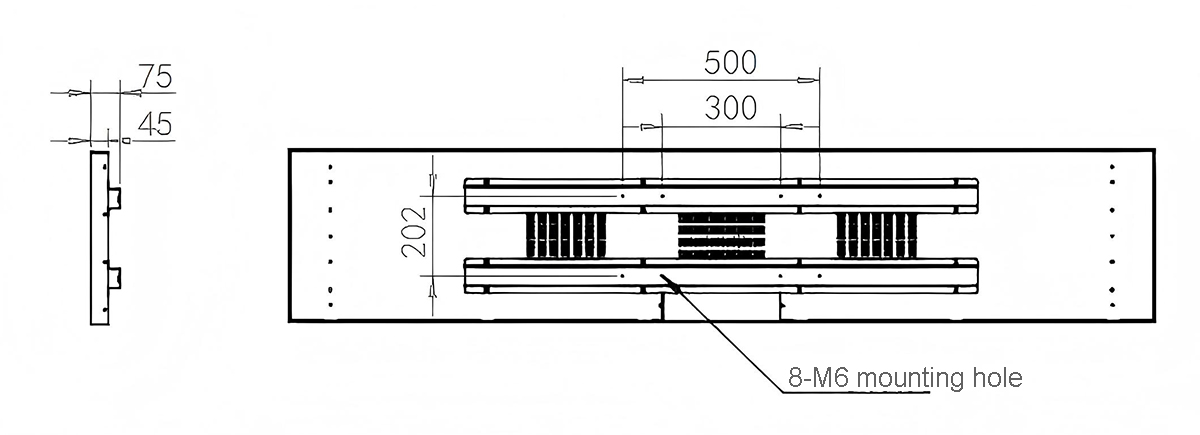

Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Controller Architecture: Seamless Audio-Video Synchronization and Native Scaling
The monitor features HDMI, VGA video inputs compatible with standard commercial and industrial video sources. Audio playback is supported through a 3.5mm Audio Socket. Operating on AC 100V~240V (50/60Hz) power with an efficient consumption of ≤ 45w, the unit functions dependably across temperatures from below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
High-efficiency switch-mode power supplies minimize wasted heat generation, allowing the display to operate comfortably within tight architectural cavities with restricted ventilation.
Dual video input provisions allow technicians to connect a primary media player alongside a secondary backup feed, providing redundant visual broadcasting capability for mission-critical transit wayfinding.
Unrestricted Cross-OS Compatibility for Enterprise Signage
Designed to serve as a versatile visual terminal, the display features native HDMI compatibility with all major operating systems, including Microsoft Windows, Google Android, and enterprise Linux distributions. IT departments can pair the screen with their preferred hardware platform to broadcast cloud-managed digital signage, execute custom interactive scripts, or display mission-critical telemetry without proprietary software licensing hurdles.
Real-World Scenarios: Maximizing Audience Engagement Across Key Sectors
The expansive architectural scale of the 86.4-inch stretched display delivers monumental visual impact across large-scale commercial facilities: 1. Command & Control Centers (CCTV / SOC / NOC): Serving as central panoramic video ribbons in security, emergency dispatch, and traffic control rooms without distracting bezel seams. 2. Airport Flight Information Display Systems (FIDS): Mounted across departure halls and check-in counters to present panoramic multi-gate flight schedules visible across long distances. 3. Corporate Executive Briefing Centers: Integrated into boardroom feature walls and museum exhibition pavilions to deliver continuous ultra-wide multimedia presentations. 4. Arena Concourse Digital Ribbons: Positioned along stadium entryways and VIP hospitality lounges for continuous live match scoring, sponsor branding, and venue directions.
Quick-service restaurants and urban cafes utilize this ultra-wide display above ordering counters to present dynamic panoramic menu selections. Vivid food photography, combo pricing, and real-time out-of-stock indicators help guide customer ordering choices, reducing counter queue wait times during peak hours.
Quick-service restaurants deploying panoramic digital menu strips experience faster order processing and reduced counter wait times. Clear combo photography and real-time out-of-stock indicators guide customer choices before they reach the ordering terminal.
The ZXT Manufacturing Advantage: 9+ Years of Industrial Display Leadership
ZXT offers direct factory sourcing for commercial stretched bar displays, supported by nearly a decade of manufacturing experience. We provide zero-tooling-fee deployments on standard sizes, 3-day sample turnaround, and complete OEM/ODM engineering support including CAD files and custom bracket design.
We provide comprehensive sample evaluation packages complete with power supplies, video cables, and mounting hardware, allowing technical teams to conduct thorough bench testing prior to volume commitment.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
Engineering Collaboration and Volume Pricing Assessment
Contact ZXT's international sales engineering group to discuss volume pricing, custom bracket options, or evaluation sample units for the 86.4-inch ultra-wide stretched display. Share your target installation parameters, interface needs, and expected delivery dates, and our technical specialists will prepare a comprehensive engineering proposal and quotation within two business hours.
