82.2 Inche Customized Stretched LCD Panel Digital Signage for Commercial Advertising Screen
82.2 Inch Metal Stretched LCD Display Display area:1895*878.4mm Resolution:3840*1780 Material:Metal、Tempered glass Touch style:Multi-point infrared touch screen
86.4 Inch Bar LCD Monitor for Smart Building and Campus Digital Communication
Digital communication has become an essential part of modern buildings and educational environments. Property managers, schools, universities, hospitals, and corporate facilities are replacing traditional bulletin boards with connected display systems that deliver real-time information efficiently. The 86.4-inch Bar LCD Monitor is designed for these environments, combining an ultra-wide commercial display with a customizable cloud-based CMS to simplify information management across multiple locations.
Its panoramic design fits naturally above elevator doors, hallway entrances, reception areas, and campus corridors where conventional displays cannot be installed efficiently. By integrating cloud content management with commercial-grade hardware, organizations can publish announcements, schedules, emergency notices, and promotional messages from a centralized platform while maintaining consistent communication throughout the facility.
For system integrators, digital signage distributors, and OEM partners, this display provides a reliable solution for smart building and educational communication projects.
Smart Communication for Modern Buildings
Building operators increasingly require digital systems that provide timely and consistent information to visitors, employees, students, and tenants. A commercial Bar LCD Monitor allows organizations to replace printed notices with dynamic digital content that can be updated instantly.
Common communication includes:
- Building announcements
- Elevator information
- Campus news
- Classroom schedules
- Visitor guidance
- Safety instructions
- Event promotions
- Emergency notifications
A cloud-based management platform enables administrators to distribute information across multiple displays from one central dashboard, improving efficiency while reducing maintenance costs.
82.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 82.2 inch | |
Resolution | 3840*1780 | |
Brightness | 350 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 3500 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Features Designed for Professional Digital Signage
Ultra-Wide Commercial Display
The elongated screen is ideal for narrow architectural spaces such as elevator entrances, corridors, reception areas, and educational facilities where traditional displays occupy too much space.
Customizable Cloud-Based CMS
The integrated CMS allows remote scheduling, playlist management, grouped device control, and real-time content publishing. Organizations can update multiple displays simultaneously without on-site maintenance.
High-Definition Visual Performance
The commercial LCD panel delivers sharp text, vibrant colors, and wide viewing angles, ensuring important information remains visible from different positions within public spaces.
Reliable Continuous Operation
Industrial-grade components support long daily operating hours, making the display suitable for schools, office buildings, hospitals, hotels, and commercial facilities.
Application Scenarios
Office Buildings
Display company announcements, visitor information, elevator guidance, and emergency notices throughout commercial office facilities.
Universities and Schools
Publish class schedules, campus activities, examination information, and educational announcements across teaching buildings.
Hospitals
Provide patient guidance, department information, queue updates, and public health messages in waiting areas and corridors.
Hotels
Display welcome messages, conference schedules, event information, and facility navigation in public areas.
Residential Buildings
Support property management with community notices, maintenance announcements, and safety reminders.
Government and Public Service Centers
Deliver public information, service guidance, and digital announcements to visitors in an efficient and organized manner.

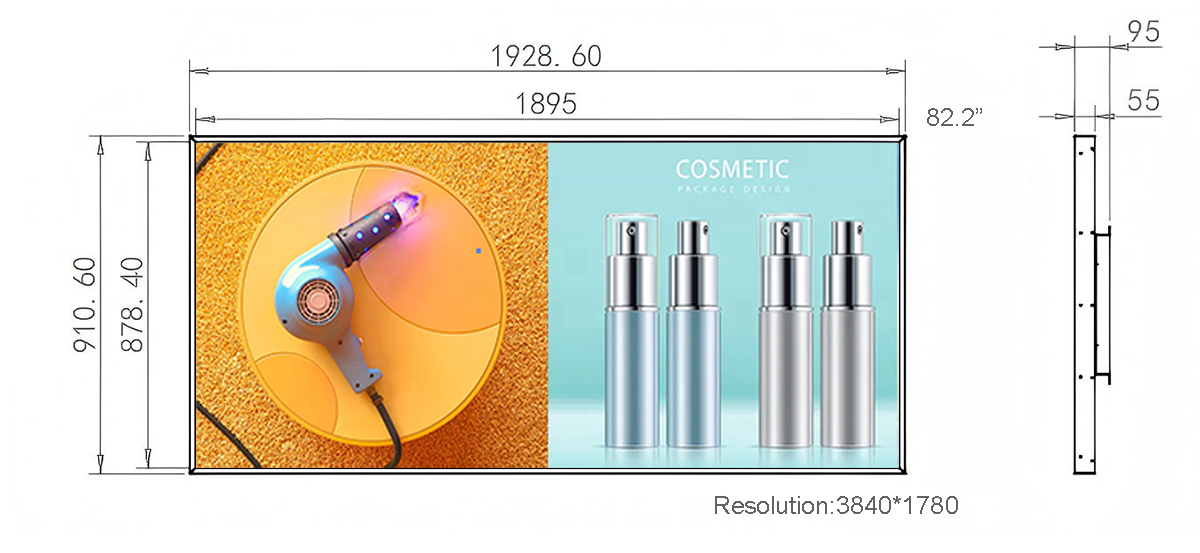

Product Dimension as follows:
Why Choose ZXTLCD
ZXTLCD has years of experience manufacturing commercial LCD display products for international distributors, AV integrators, and digital signage solution providers.
Our advantages include:
- Factory-direct manufacturing
- Flexible OEM & ODM services
- Experienced R&D engineering team
- Strict quality inspection
- Stable production capacity
- Global delivery support
- One-year warranty
- Professional after-sales technical service
Our goal is to help partners build reliable digital communication systems that support long-term commercial operation.
Frequently Asked Questions
Q1: What is a Bar LCD Monitor commonly used for?
It is widely used in office buildings, schools, universities, hospitals, hotels, elevators, and other commercial environments where ultra-wide digital communication is required.
Q2: Can multiple displays be managed remotely?
Yes. The cloud-based CMS supports centralized scheduling, remote content updates, and grouped management for multiple displays across different locations.
Q3: Does ZXTLCD offer OEM and ODM customization?
Yes. We provide customized hardware, operating systems, software integration, housing design, branding, and project-specific engineering services.
Q4: Is this display suitable for continuous operation?
Yes. It is built with commercial-grade components designed for reliable long-term use in demanding public environments.
Q5: Why purchase directly from ZXTLCD?
Working directly with ZXTLCD gives customers access to factory pricing, flexible customization, experienced engineering support, strict quality control, and dependable after-sales service.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
