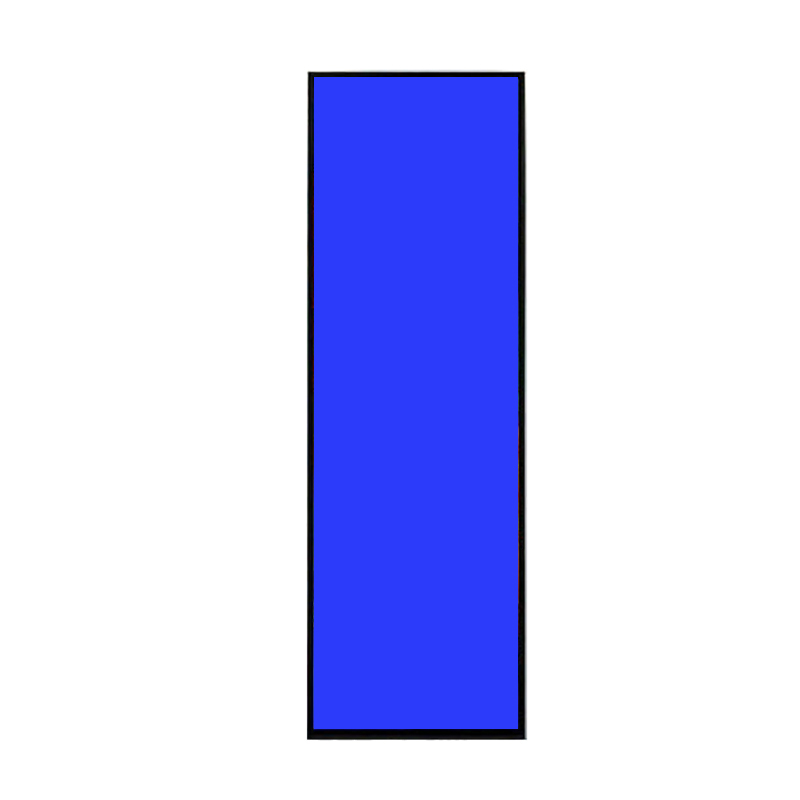

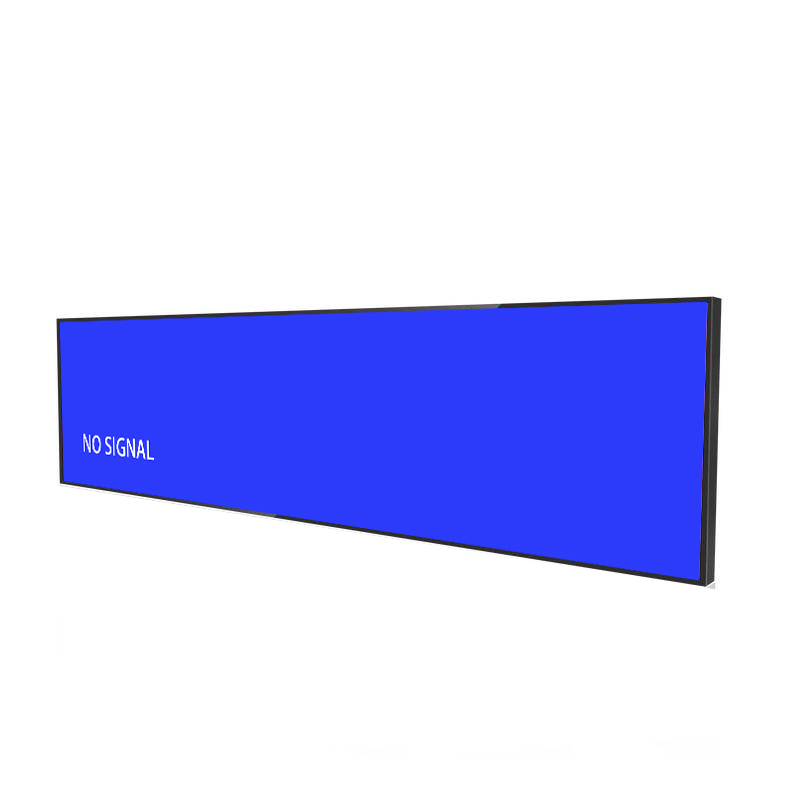

Panoramic Transit Signage: 80 Inch Large Format Stretched LCD Display
Wholesale 80 inch industrial sheet metal bar monitor featuring native 3840*1494 resolution and 500 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 80 Inch
- Resolution
- 3840*1494
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
80 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 80 inch | |
Resolution | 3840*1494 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Horizontal Form Factors: Purpose-Built Solutions for Narrow Physical Footprints

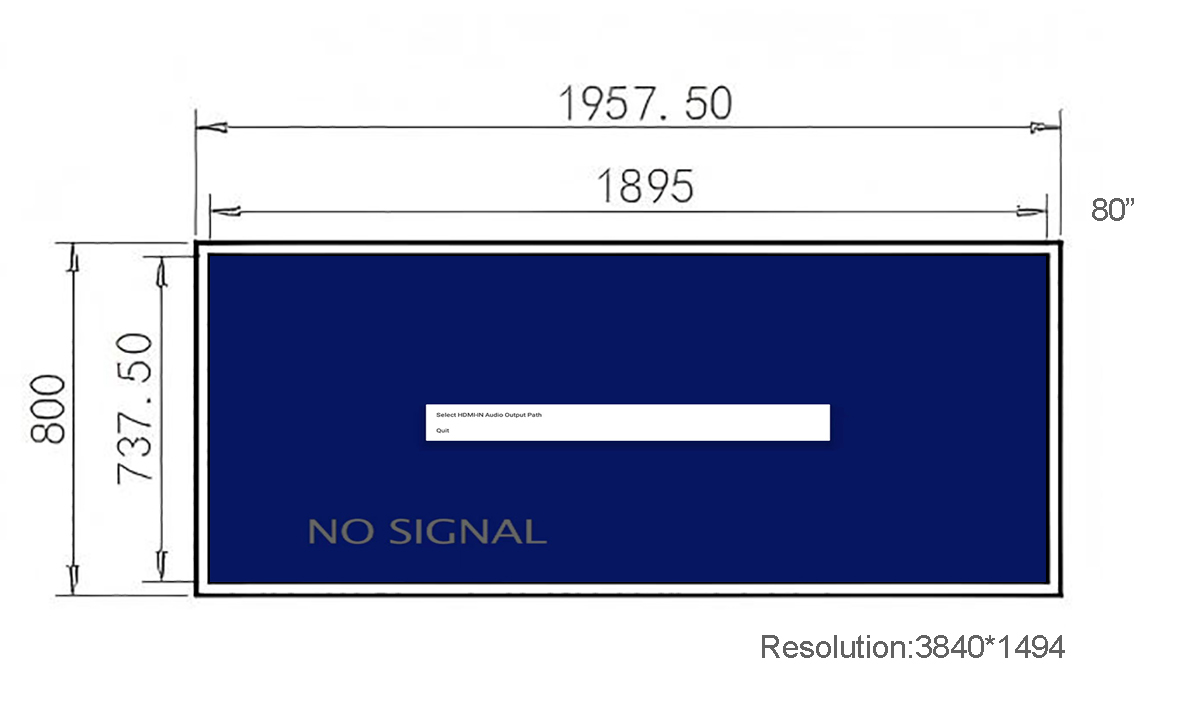

Maximizing spatial productivity is essential in high-density retail aisles, airport passenger corridors, and vehicle passenger cabins. Standard desktop-format screens obstruct customer views and complicate mechanical mounting due to their bulky vertical proportions. The 80-inch stretched commercial display addresses this spatial conflict through an ultra-wide form factor delivering native 3840*1494 resolution across an active 80-inch diagonal. This specialized geometry fits flush into horizontal headers, narrow shelving channels, and compact control desks, delivering vibrant graphics without demanding vertical headroom.
In high-traffic transit corridors, clear visual hierarchy is essential for passenger comfort. Panoramic displays mounted overhead deliver critical wayfinding data in an intuitive linear format that commuters can digest in seconds.
Commercial interiors increasingly emphasize clean, unobtrusive architectural lines. The slender profile of this display integrates organically into modern store designs, avoiding the bulky industrial look of conventional commercial monitors.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 3840*1494 resolution, the 80-inch stretched monitor provides crisp panoramic visuals. Calibrated to 500 cd/㎡ with a 1200 :1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Thermal Dissipation Engineering: Silent Conduction Without Moving Parts
To withstand continuous industrial operation, the 80-inch display is enclosed in a heavy-gauge galvanized steel shell with reinforced corner welding. This rigid construction prevents chassis twisting, dampens machine vibrations, and provides effective electromagnetic shielding against motor drives and high-voltage switchgear.
Engineered for continuous commercial operation, the display utilizes a fanless thermal architecture that dissipates heat naturally through its metal chassis. This design prevents mechanical failure and internal dust contamination, ensuring silent, reliable performance in retail and transportation settings. Mounting options include standard rear VESA patterns and versatile lateral mounting slots.
Integrated structural slide channels along the top and bottom edges permit tool-free adjustment when mounting multiple screens in a continuous horizontal line. This modular mechanical rail system cuts field installation labor by up to forty percent for large retail fit-outs.
Signal Integrity: Preventing Line Noise and Video Jitter in Industrial Plants
Onboard HDMI, VGA video ports provide flexible connectivity with external media players and embedded systems. Audio output is supported via a 3.5mm Audio Socket. The display operates on universal global 100~240V line voltage at 50/60Hz power with a maximum consumption of ≤ 45w, performing reliably across ambient temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Hardware-level EDID emulation ensures that connected host computers immediately recognize the custom stretched display resolution, streamlining remote software management and automated reboots.
Efficient passive thermal dissipation paths conduct heat away from the internal power module directly to the metal casing, preventing internal thermal buildup and maximizing component longevity.
Multi-OS Ecosystem Support via Standard Video Interface

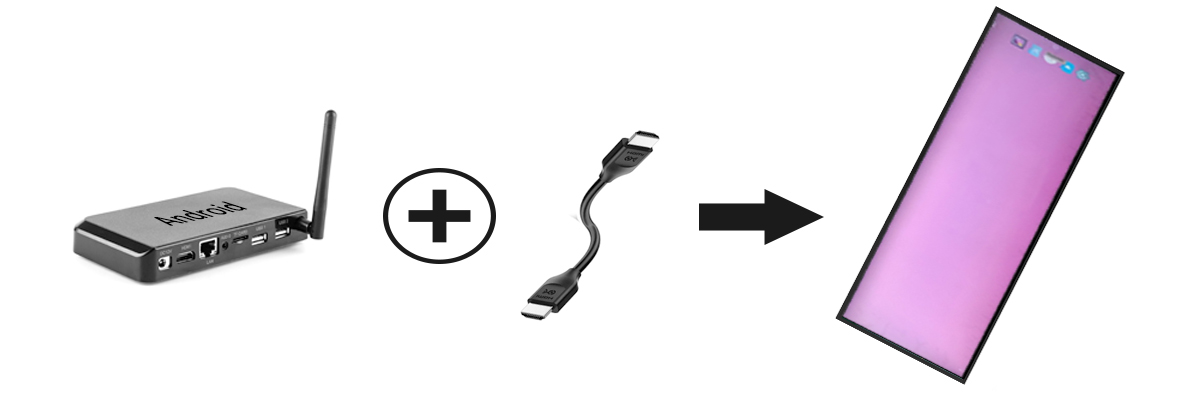

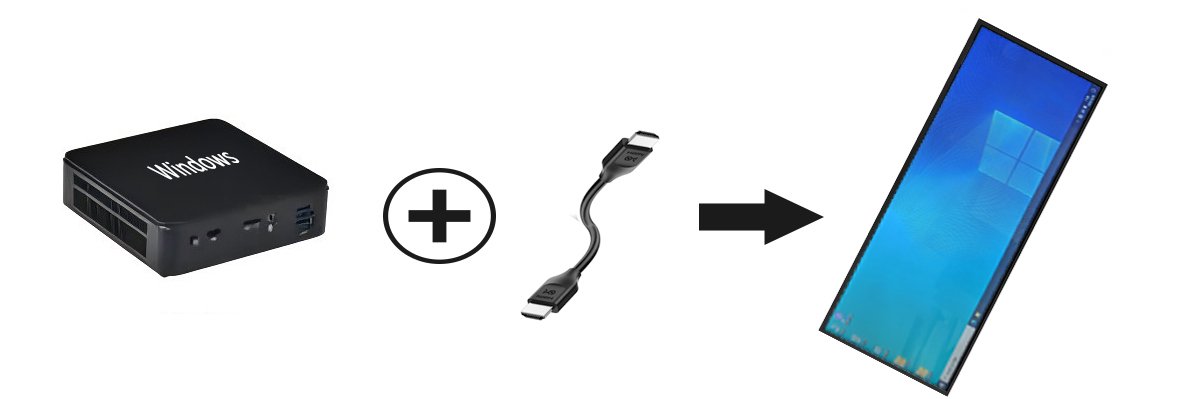

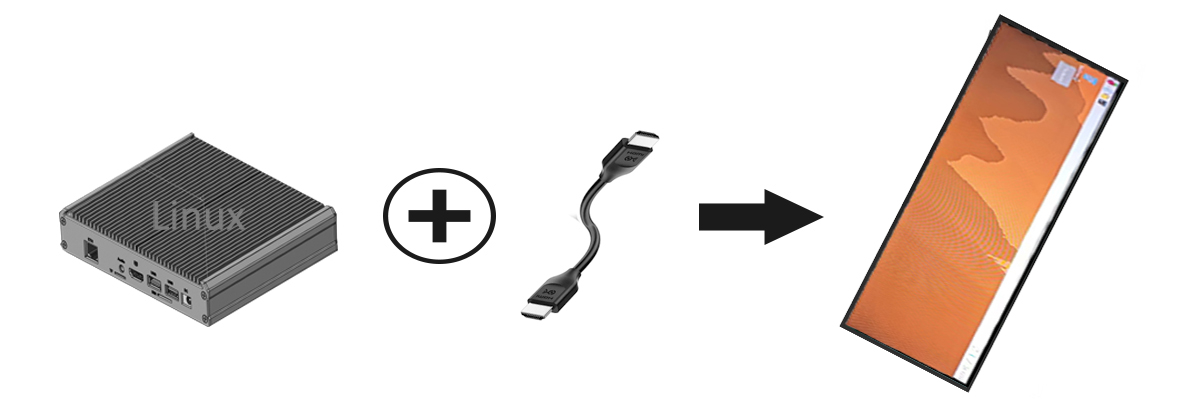

Eliminating the constraints of built-in proprietary player boards, this open-standard commercial monitor provides straightforward connectivity to external Windows, Android, and Linux controllers via HDMI. This decoupled design enables AV contractors to deploy specialized content management software, digital pricing applications, or real-time SCADA telemetry systems while maintaining the flexibility to swap media players at any future date.
Implementation Case Studies: Transforming In-Store and In-Vehicle Wayfinding
With commanding panoramic visibility, the 80-inch stretched display is engineered for high-throughput public transportation and retail infrastructure: 1. Rail Transit Metro Carriage Headers: Suspended above train doors and central aisles to display dynamic panoramic transit routes, bilingual station alerts, and safety notices. 2. Airport Concourse Wayfinding: Positioned above baggage carousels, customs lanes, and security checkpoints to provide continuous multi-lingual passenger guidance. 3. Flagship Retail Shopfront Ribbons: Built into luxury retail fascias and boutique feature walls for continuous panoramic fashion runway and brand video displays. 4. Industrial Production Line Tickers: Mounted in manufacturing plants to broadcast real-time production targets, safety metrics, and operational KPIs across broad factory spans.
In corporate data centers and industrial control rooms, the horizontal screen provides a continuous telemetry window without obstructing primary workstation monitors. Network engineers and equipment operators monitor real-time server loads, network traffic spikes, and manufacturing line metrics across a dedicated panoramic display strip.
Control room operators utilizing this display as a dedicated auxiliary telemetry ribbon report improved situational awareness. By dedicating the horizontal screen to continuous server load metrics and multi-camera status feeds, operators keep their primary workstation monitors clutter-free.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Procurement & Technical Verification FAQ
**Q1: Can this display be integrated into third-party kiosk cabinetry?**
Yes. The compact enclosure profile, standardized VESA mounting holes, and optional open-frame mounting ears make it exceptionally straightforward to integrate into self-service kiosks, vending machines, and ATMs.
**Q2: How does ZXT support overseas localized assembly?**
Through our established SKD/CKD programs, we provide tested sub-assemblies, detailed assembly process documentation, and technical support to assist overseas partners in establishing localized production.
**Q3: How do we initiate an engineering consultation for custom specifications?**
Simply contact our technical sales department with your target installation parameters, dimensional constraints, and order volumes, and our engineering team will provide a comprehensive proposal within two hours.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 80-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
