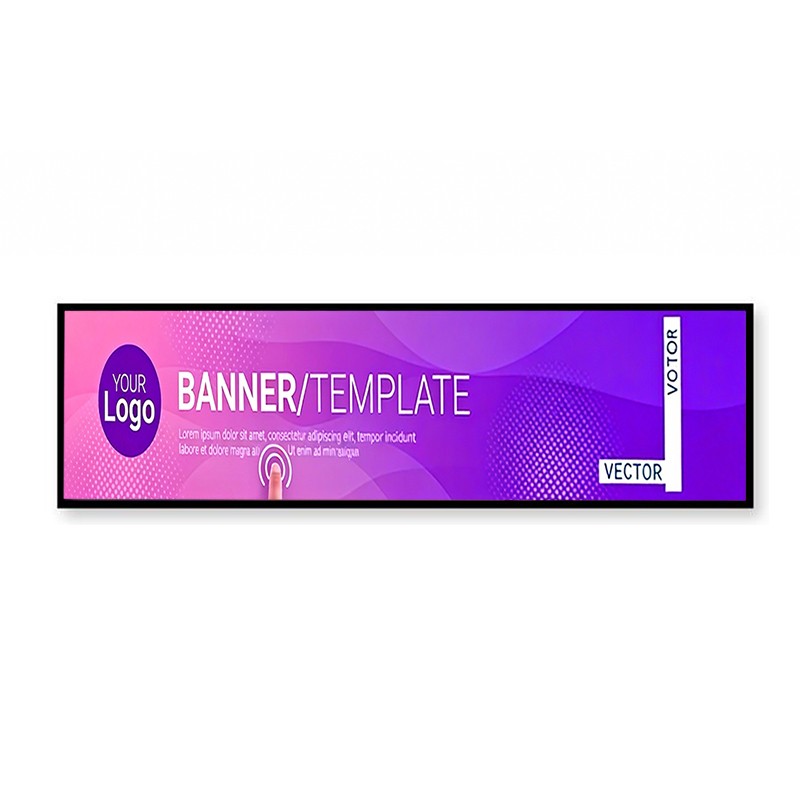

78.9 inch Android Touchscreen Stretched Bar LCD Advertising Monitor with Price Tag OEM Supplier
78.9 Inch Metal Stretched LCD Display Display area:1895*655mm Resolution:3840*1328 Material:Metal、Tempered glass Touch style:Multi-point infrared touch screen
78.9 Inch Stretched Display with Android Touchscreen for Interactive Shelf Communication
Retail environments are becoming increasingly interactive as businesses seek new ways to engage shoppers at the point of purchase. Static shelf labels and traditional promotional materials are gradually being replaced by intelligent display technologies that combine multimedia content, touch interaction, and real-time product information. The 78.9-inch Stretched Display is designed to support this evolution by integrating an Android touchscreen with an ultra-wide commercial LCD format, creating a flexible solution for interactive retail communication.
In addition to displaying promotional videos and product information, the system can be configured with digital price tag functionality, allowing retailers to present dynamic pricing, product specifications, and marketing content on a single platform. This combination improves operational efficiency while creating a more engaging shopping experience for customers.
As a factory-direct OEM supplier, ZXTLCD provides flexible customization services for retailers, distributors, system integrators, and commercial digital signage brands worldwide.
Transforming Retail Shelves into Interactive Information Centers
Today's shoppers expect instant access to accurate product information. By integrating touch functionality with digital shelf communication, retailers can provide customers with additional product details, promotional offers, technical specifications, and multimedia demonstrations directly at the shelf.
A commercial Stretched Display supports:
- Interactive product browsing
- Digital price presentation
- Promotional campaign playback
- Product comparison information
- Customer self-service inquiries
- Multimedia brand storytelling
- Dynamic promotional updates
Instead of simply displaying advertisements, the screen becomes an interactive communication tool that enhances the overall shopping experience.
78.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 78.9 inch | |
Resolution | 3840*1328 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
OEM & ODM Manufacturing Services
ZXTLCD specializes in commercial LCD display manufacturing with comprehensive OEM and ODM capabilities.
Hardware Customization
We offer:
- Custom screen sizes and aspect ratios
- High-brightness LCD options
- Capacitive touch integration
- Open-frame designs
- Customized metal enclosures
- Flexible installation solutions
Software Integration
Our engineering team supports:
- Android system customization
- Windows and Linux options
- Cloud CMS compatibility
- API and SDK development
- Remote device monitoring
- Multi-screen synchronization
Private Label Services
OEM & ODM services include:
- Logo customization
- Product packaging
- User interface design
- Industrial appearance optimization
- Complete engineering support from prototype to mass production
Why Choose ZXTLCD
ZXTLCD is a trusted commercial display manufacturer serving distributors, wholesalers, digital signage companies, and retail solution providers worldwide.
Our strengths include:
- Factory-direct pricing
- Professional OEM & ODM manufacturing
- Experienced R&D engineering team
- Stable production capacity
- Strict quality control
- Global shipping support
- One-year warranty
- Reliable after-sales technical service
We are committed to helping our partners build innovative retail display solutions with dependable quality and long-term support.

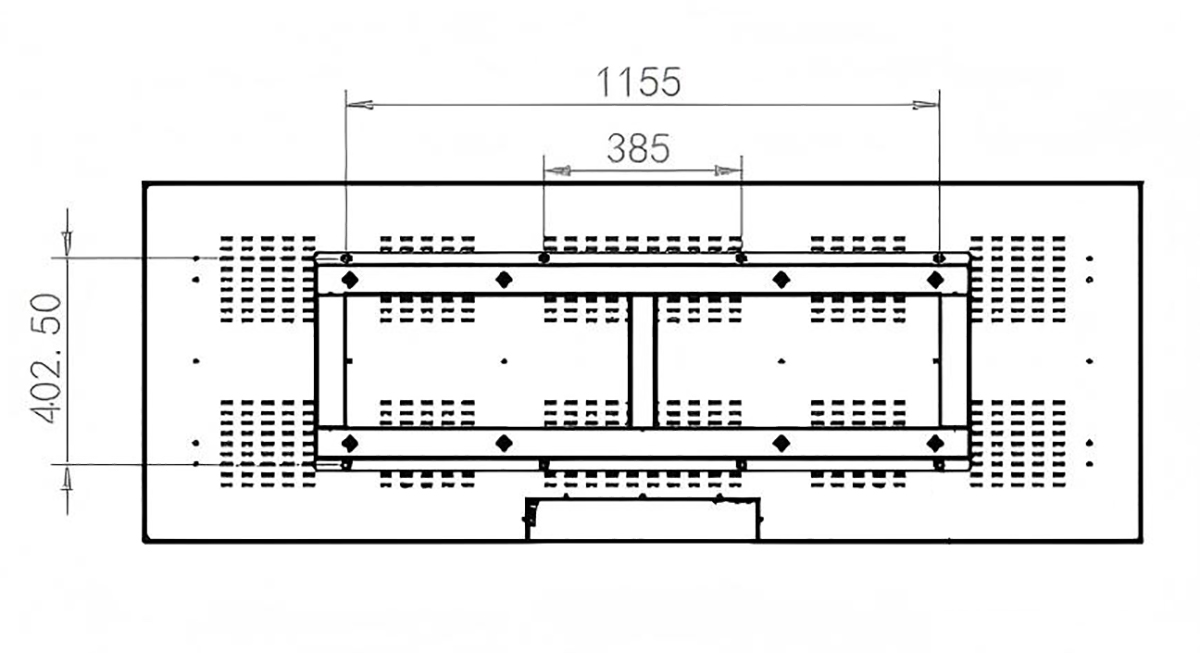

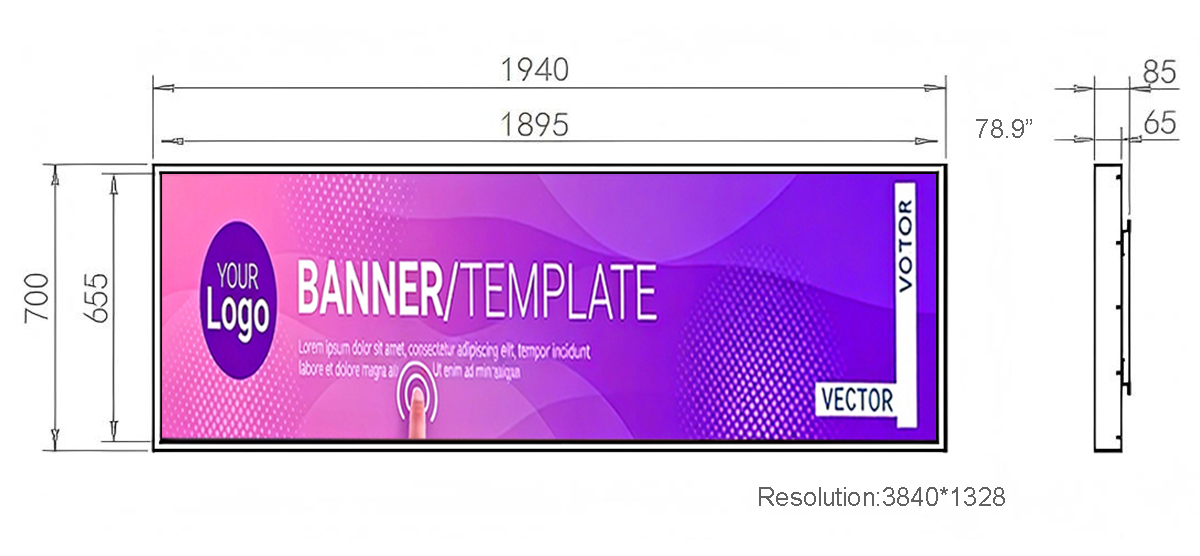

Product Dimension as follows:
Frequently Asked Questions
Q1: What is a Stretched Display used for?
A Stretched Display is an ultra-wide commercial LCD screen commonly used for retail shelving, digital pricing, promotional advertising, transportation guidance, and commercial information display.
Q2: Does the touchscreen support custom applications?
Yes. The Android platform allows integration with custom software, interactive applications, and cloud-based management systems.
Q3: Can pricing information be updated remotely?
Yes. When integrated with a compatible CMS or retail management platform, pricing and promotional content can be updated remotely.
Q4: Does ZXTLCD provide OEM and ODM customization?
Yes. We offer customized hardware, software integration, branding, industrial design, packaging, and project-specific engineering services.
Q5: Is the display suitable for continuous commercial use?
Absolutely. It is built with commercial-grade components designed for reliable long-term operation in demanding retail environments.
Driving Interactive Retail Through Intelligent Display Technology
As retailers continue to adopt digital transformation strategies, interactive shelf displays are becoming an essential tool for improving customer engagement and operational efficiency. By combining Android touch technology, digital pricing capabilities, and ultra-wide commercial displays, businesses can create a more informative and immersive shopping environment.
The 78.9-inch Stretched Display offers a flexible, customizable, and scalable solution for modern retail projects, supported by ZXTLCD's factory-direct manufacturing, OEM & ODM expertise, and comprehensive technical support.
