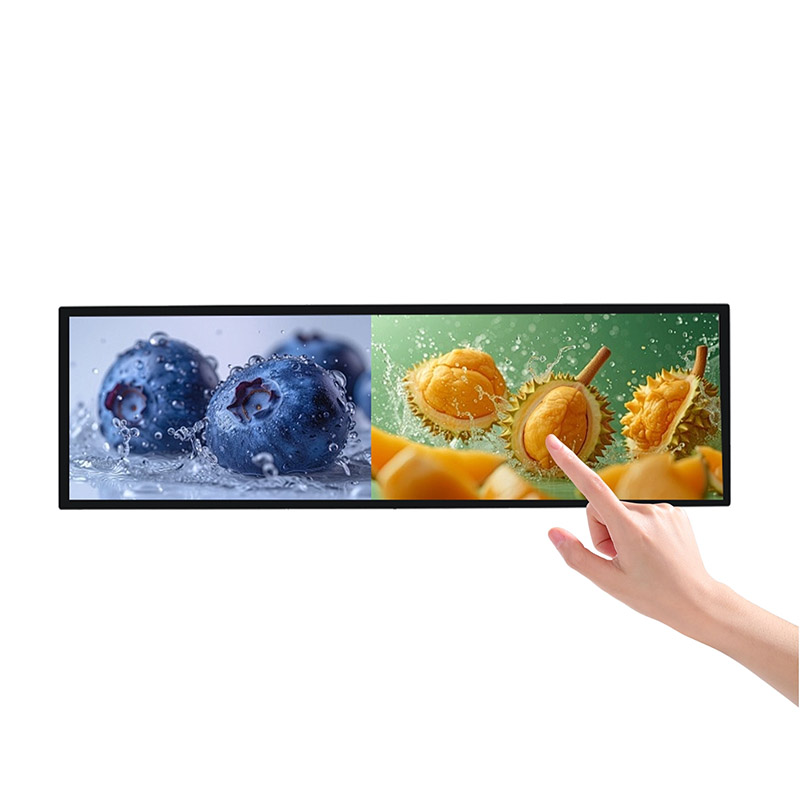

77.5 inch Ultra Wide Digital Shelf Edge Displays Stretch LCD Display Shelf Smart Advertise Panel
77.5 Inch Metal Stretched LCD Display Display area:1895*533mm Resolution:3840*1080 Material:Metal、Tempered glass Touch style:G+FF Capacitive Touch screen/Multi-point infrared touch screen
77.5 Inch Ultra Wide LCD Display for Efficient Information Delivery and Digital Shelf Applications
In commercial environments where installation space is limited but information needs are extensive, traditional displays often fail to provide an efficient solution. The 77.5-inch Ultra Wide LCD Display is designed to maximize visual communication within narrow spaces, making it ideal for shelf edges, retail fixtures, transportation facilities, exhibition halls, and other commercial environments requiring long-format digital content.
Its panoramic screen ratio enables businesses to display continuous information, promotional campaigns, navigation guidance, and branding messages without interrupting surrounding product layouts or architectural design. Whether installed in supermarkets or public facilities, the display delivers clear, high-impact content while maintaining a clean and professional appearance.
Manufactured by ZXTLCD, this commercial display is available with flexible OEM and ODM customization, supporting a wide range of global digital signage projects.
Why Choose an Ultra Wide LCD Display?
An Ultra Wide LCD Display provides significantly more horizontal viewing space than conventional screens. This unique format allows businesses to communicate information more naturally across long installation areas while improving overall visibility.
Key advantages include:
- Better use of narrow installation spaces
- Continuous information presentation
- Modern architectural integration
- Improved customer attention
- Flexible multimedia playback
- Reduced visual clutter
- Enhanced digital communication efficiency
Instead of dividing content across multiple screens, a single ultra-wide display creates a seamless viewing experience.
77.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 77.5 inch | |
Resolution | 3840*1080 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Features Built for Professional Projects
Panoramic Commercial LCD Panel
The commercial-grade LCD panel delivers high-definition images, stable brightness, accurate color reproduction, and wide viewing angles suitable for demanding commercial applications.
Slim Installation Design
Its elongated housing allows easy installation on shelf edges, walls, display fixtures, transportation corridors, and public information systems without occupying unnecessary space.
Intelligent Multimedia Playback
Compatible with Android or Windows platforms, the display supports videos, images, HTML pages, scrolling text, split-screen layouts, scheduled playlists, and cloud-based content management.
Reliable 24/7 Commercial Operation
Industrial-grade components are engineered for continuous operation, making the display suitable for long-term commercial deployments.
Application Scenarios
Retail Stores
Present promotional campaigns, product categories, and branding information along shelf edges or display racks.
Transportation Facilities
Display directional guidance, service announcements, and passenger information in airports, railway stations, and metro systems.
Warehouses
Provide picking guidance, inventory information, workflow instructions, and operational notices.
Museums and Exhibition Centers
Display exhibit descriptions, multilingual information, visitor guidance, and event schedules.
Corporate Offices
Present company announcements, meeting schedules, departmental information, and internal communications.
Educational Institutions
Support digital campus navigation, classroom information, and public notices.

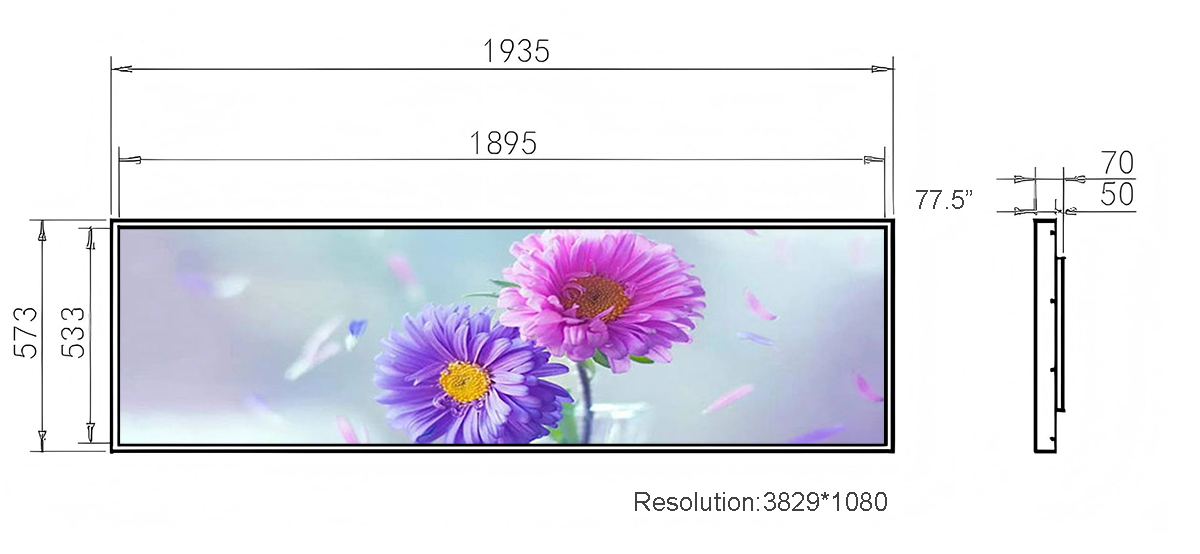

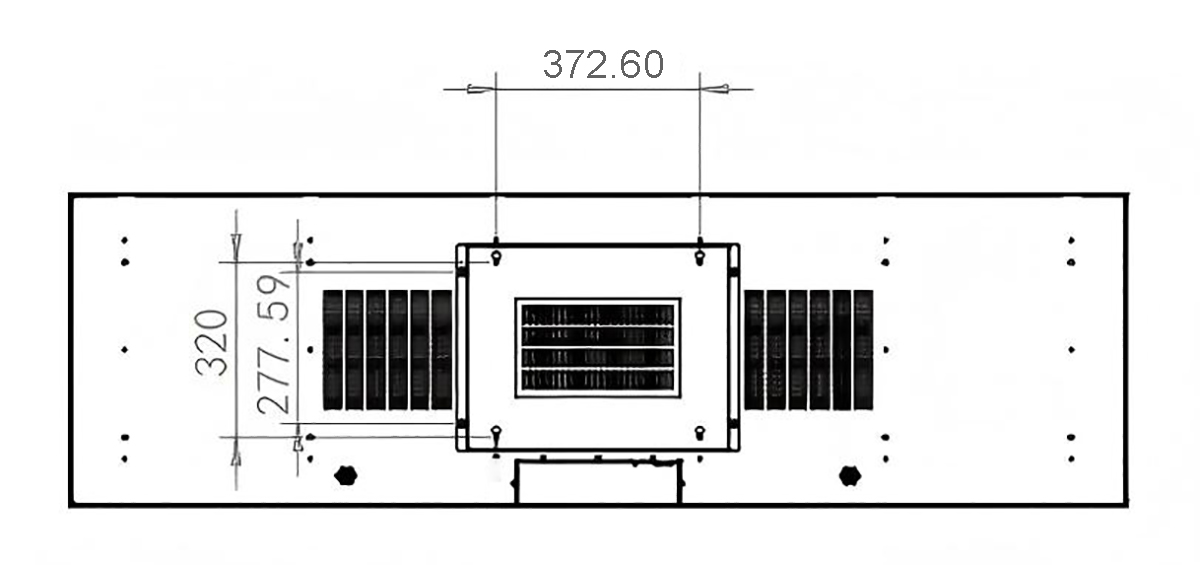

Product Dimension as follows:
Why Choose ZXTLCD?
ZXTLCD has extensive experience serving international distributors, wholesalers, retail technology companies, and digital signage solution providers.
Our advantages include:
- Factory-direct manufacturing
- Flexible OEM & ODM services
- Experienced engineering team
- Strict quality control
- Stable production capacity
- Worldwide logistics support
- One-year warranty
- Professional after-sales service
We help customers develop customized commercial display solutions for diverse industries and application environments.
Frequently Asked Questions
Q1: What is an Ultra Wide LCD Display?
An Ultra Wide LCD Display is a commercial display featuring an elongated aspect ratio designed for applications where traditional screens cannot efficiently utilize available installation space.
Q2: Can this display be customized?
Yes. ZXTLCD supports custom sizes, brightness levels, touch functionality, operating systems, housing designs, and branding services.
Q3: Is remote content management supported?
Yes. Compatible cloud CMS platforms allow centralized scheduling, remote publishing, and multi-device management.
Q4: Which industries commonly use Ultra Wide LCD Displays?
Retail, transportation, logistics, education, museums, corporate offices, hospitality, healthcare, and exhibition centers all benefit from ultra-wide display technology.
Q5: Why choose ZXTLCD as your supplier?
ZXTLCD offers factory-direct pricing, professional engineering, OEM & ODM customization, dependable quality control, and comprehensive technical support for global B2B customers.
