77.5 Inch Ultra-Thin Infrared Touch Screen LCD Display Advertising Stretched LCD Display for Sale
77.5 Inch Aluminum Stretched LCD Display Display area:1895*533mm Resolution:3840*1080 Material:Aluminum、Tempered glass Touch style:Multi-point Infrared TouchScreen
77.5 Inch Ultra-Thin Infrared Touch Screen LCD Display Advertising Stretched LCD Display for Sale
Ultra-Thin Touch Screen Solution for Smart Commercial Applications
The 77.5 inch stretched bar LCD display combines an ultra-wide display format with advanced infrared touch technology, creating an interactive communication platform for modern businesses. Designed for commercial environments where customer engagement and information accessibility are essential, this display offers an ideal solution for retail, transportation, hospitality, education, and public service applications.
With its ultra-thin design and responsive touch functionality, the display transforms traditional advertising screens into interactive digital experiences that encourage user participation and improve information delivery.
Interactive Technology for Modern Customer Engagement
Today's consumers expect more than passive advertising. Businesses increasingly rely on interactive digital signage to create memorable experiences and provide instant access to information.
The integrated infrared touch system enables users to:
- Browse product catalogs
- Access promotional information
- Navigate digital directories
- View interactive maps
- Explore service information
- Participate in self-service applications
- Engage with brand content
By allowing direct interaction, businesses can increase customer engagement while delivering more personalized information.
77.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 77.5 inch | |
Resolution | 3840*1080 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features of the 77.5 Inch Touch Screen Display
Ultra-Wide Stretched Bar LCD Display
The elongated screen format is ideal for installations where traditional displays are impractical, providing maximum visual impact while optimizing available space.
Infrared Multi-Touch Technology
The advanced touch system supports smooth, accurate interaction and can be integrated into a wide range of commercial applications.
Ultra-Thin Industrial Design
The slim enclosure enhances installation flexibility while maintaining a modern and professional appearance.
Commercial-Grade LCD Panel
The display delivers:
- High-definition image quality
- Wide viewing angles
- Sharp text readability
- Vivid color reproduction
- Stable long-term performance
Continuous Commercial Operation
Designed for professional environments, the system supports reliable 24/7 operation.
Ideal Applications
Smart Retail Stores
Provide interactive product information, promotional campaigns, and customer self-service experiences directly at the point of sale.
Shopping Mall Information Systems
Allow visitors to search stores, view promotions, and navigate complex shopping environments through intuitive touch interaction.
Transportation Facilities
Deliver route information, schedules, maps, and passenger services through an engaging touch-enabled interface.
Hospitality and Hotels
Provide guests with access to event schedules, facility information, local attractions, and concierge services.
Corporate Buildings
Support visitor registration, digital directories, and company information displays in reception areas.
Educational Institutions
Enable students and visitors to access campus information, schedules, and navigation tools through interactive displays.

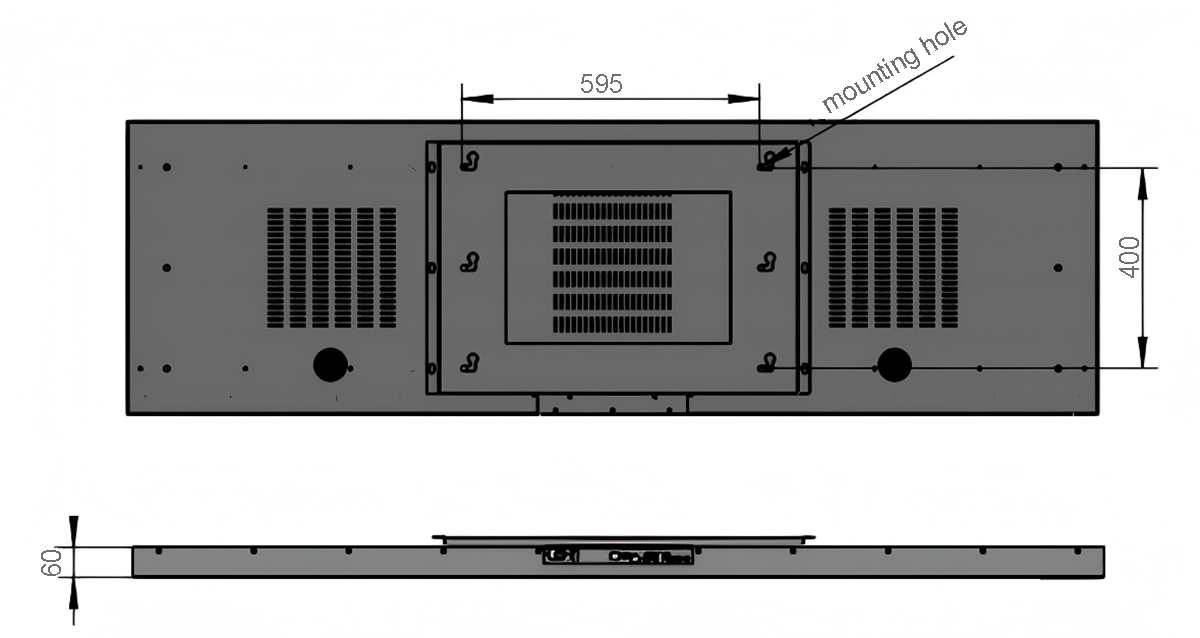

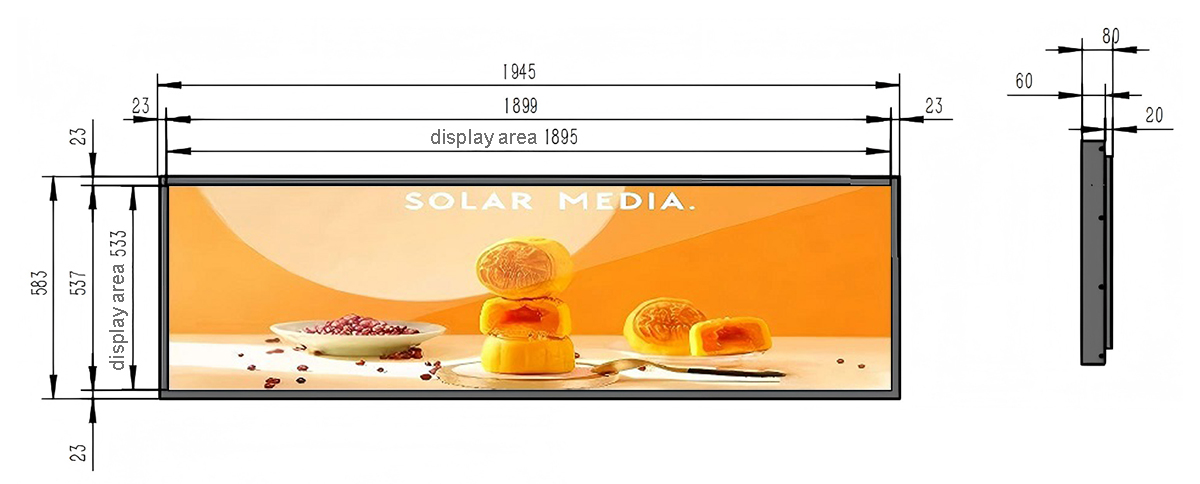

Product Dimension as follows:
Advantages of Infrared Touch Technology
Compared with conventional non-touch digital signage, infrared touch displays offer significant benefits:
- Enhanced user engagement
- Self-service functionality
- Improved information accessibility
- Faster customer interactions
- Modern user experience
- Reduced staffing requirements
- Flexible software integration
These advantages make touch-enabled stretched displays increasingly popular across commercial and public sectors.
OEM & ODM Customization Services
As a professional stretched LCD display manufacturer, ZXTLCD provides comprehensive OEM and ODM services for global customers.
Customization options include:
- Custom screen dimensions
- Touch point configuration
- Android or Windows operating systems
- Private label branding
- High-brightness display solutions
- Cloud CMS integration
- Custom enclosure design
- Industry-specific software integration
Our engineering team works closely with customers to develop customized interactive display solutions tailored to specific project requirements.
Why Choose ZXTLCD
ZXTLCD specializes in commercial stretched display manufacturing and interactive digital signage solutions.
Our strengths include:
- Factory-direct production
- OEM & ODM customization
- Professional engineering support
- Strict quality inspection procedures
- Global project experience
- Fast production schedules
- One-year warranty
- Comprehensive after-sales service
We help businesses deploy innovative touch display systems that improve customer engagement, information delivery, and operational efficiency.
Frequently Asked Questions
What is a stretched bar LCD display?
A stretched bar LCD display is an ultra-wide commercial screen designed for advertising, information delivery, and interactive applications where traditional displays cannot fit.
What are the benefits of infrared touch technology?
Infrared touch technology provides accurate multi-touch interaction, high durability, and excellent performance for commercial environments.
Can the display be customized?
Yes. ZXTLCD offers OEM and ODM services including hardware, software, branding, and touch functionality customization.
What industries commonly use interactive stretched displays?
Retail, transportation, hospitality, education, healthcare, and corporate environments are among the most common applications.
Is the display suitable for continuous operation?
Yes. The display is designed for commercial use and supports 24/7 operation.
