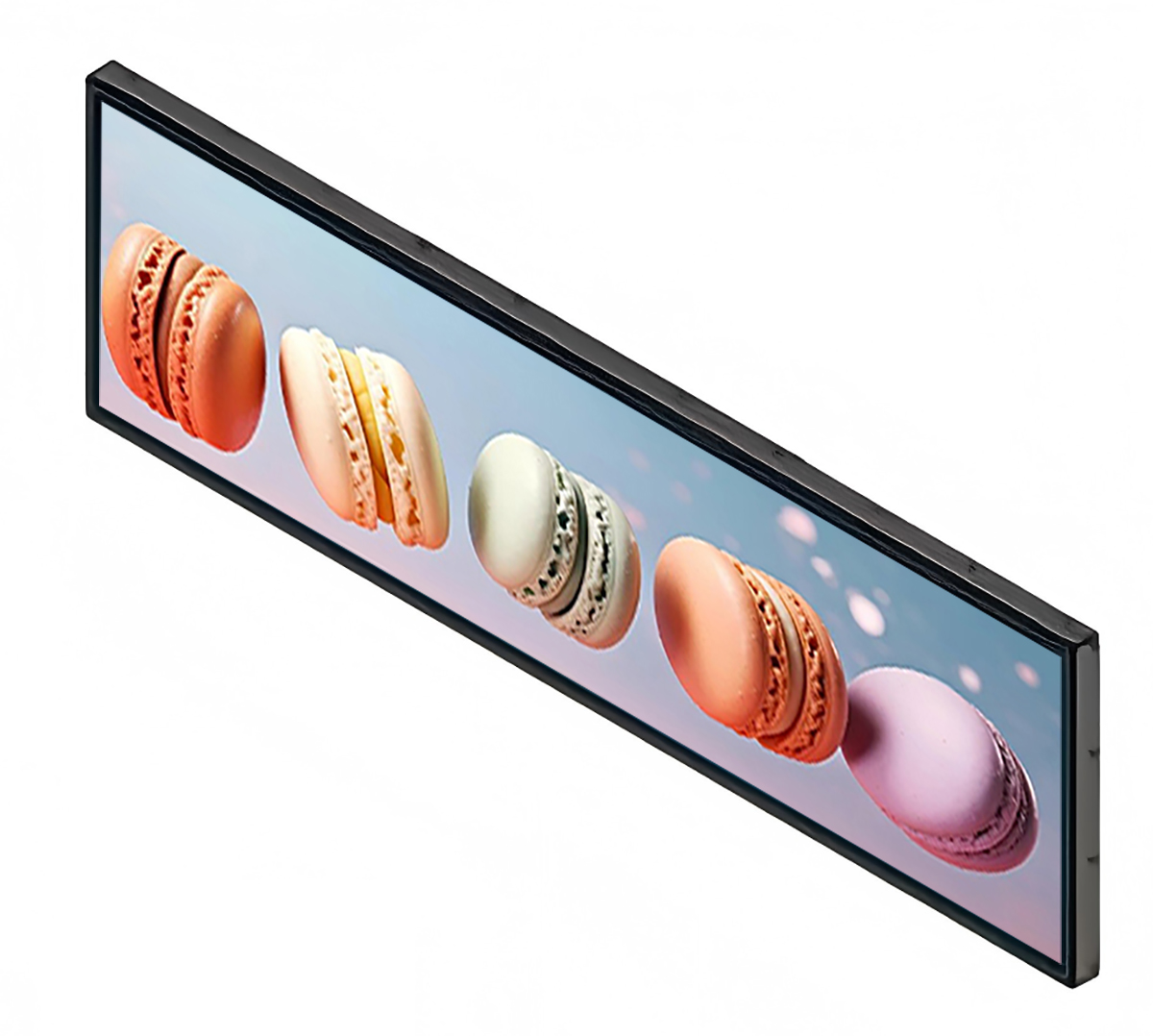

High-Impact 77.5 Inch Wall-Mounted Bar LCD Screen for Airport & Hubs
Source factory supply of 77.5 inch standard ultra-wide bar display with 3840*1080 resolution and 350 cd/㎡ luminous output. Engineered for continuous commercial duty in retail gondolas, vehicle headers, and control rooms. Fast 72-hour sample dispatch and modular SKD export kits.
Specifications
- Screen Size
- 77.5 Inch
- Resolution
- 3840*1080
- Brightness
- 350 cd/㎡
- Interface
- HDMI / VGA
77.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 77.5 inch | |
Resolution | 3840*1080 | |
Brightness | 350 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 187 days, 12:01:00 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Maximizing Visual Sightlines: Re-Engineering Display Ratios for Linear Margins
Modern public infrastructure demands streamlined visual integration. The 77.5-inch panoramic display is engineered to overcome vertical mounting constraints, delivering 3840*1080 resolution across an elongated 77.5-inch viewing area. It offers system integrators a reliable way to deploy dynamic digital content in tight architectural slots without visual compromise.
In smart retail environments, dynamic price changes and seasonal campaigns can be scheduled automatically. This operational flexibility eliminates manual re-labeling labor and ensures pricing accuracy across multi-store chains.
In public service environments such as healthcare intake desks and civic service counters, compact horizontal displays keep waiting citizens informed while preserving clear verbal and visual communication with desk staff.
Luminescence Engineering: Balancing Brightness Output with Thermal Efficiency
Designed for demanding commercial applications, the 77.5-inch stretched screen features 3840*1080 resolution and a 350 cd/㎡ luminance rating. With a 1000:1 contrast ratio, it renders sharp details and vivid colors. IPS technology delivers CR≥10 wide-angle IPS optical alignment viewing angles, backed by a solid-state LED backlight rated for more than 60,000 hours of maintenance-free illumination.
Intelligent thermal heat spreaders behind the LED arrays prevent localized backlight hotspots, ensuring that luminance remains uniform from edge to edge across the entire panoramic canvas.
The display matrix features high optical transmittance, allowing the backlight to operate at optimal efficiency while generating minimal internal heat, extending the operating life of surrounding driver electronics.
Vibration Resistance: Heavy-Gauge Enclosure Engineering for Transit and Industry
The 77.5-inch display utilizes a heavy-duty metallic frame designed for architectural and commercial signage. The scratch-resistant powder-coated finish preserves professional visual quality in high-footfall areas.

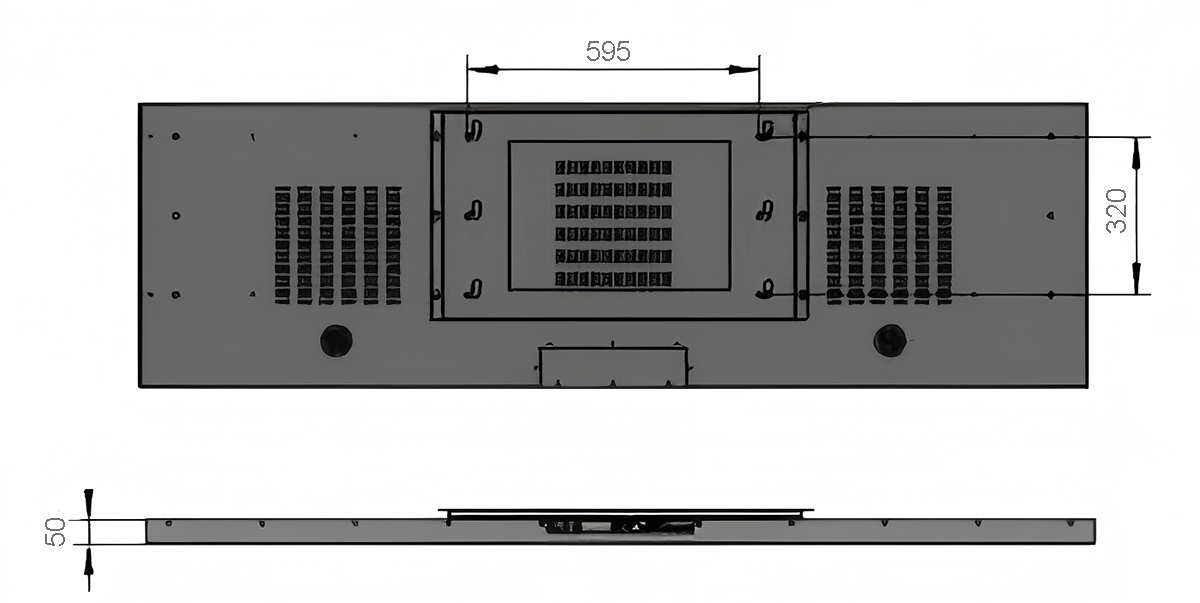

Thermal performance is optimized through passive conduction, using the external metal body to dissipate heat away from internal electronics. This fanless system ensures silent operation and protects internal circuits from dust. Rear VESA patterns and lateral slide channels support flexible mounting configurations.
The housing design includes dedicated cable strain-relief tie points that prevent video and power cords from vibrating loose over years of service. Accessible side-mounting screw holes facilitate quick integration into self-service kiosk fascias.
Universal Power Conversion: Resilient Operation Across Commercial Mains Grids
With standard HDMI, VGA inputs, the display links easily to digital signage players and industrial computing equipment. An integrated 3.5mm Audio Socket provides audio output capability. The internal power converter accepts universal 100-240V commercial electrical mains mains with power consumption limited to ≤ 45w, rated for operating conditions of below10℃ ~ +50℃ and ≤ 85%RH.
The audio output circuitry supports synchronized stereo playback, enabling interactive kiosks to provide clear voice prompts and confirmation chimes during customer self-service transactions.
The low-voltage direct current output stage delivers ultra-clean power to the liquid crystal timing controller, eliminating horizontal line noise and visual ripple in sensitive commercial AV setups.
Frictionless Cross-Platform Operation (Windows, Android, Linux)
Avoid the hidden costs and vendor lock-in associated with closed smart screen ecosystems. Featuring standard high-definition HDMI video interfacing, the display supports immediate cross-platform compatibility across Windows workstations, Android compute sticks, and industrial Linux appliances. Operators can switch host operating systems in seconds to match evolving CMS software, passenger information engines, or automated factory monitoring frameworks.
Field Deployment Breakdown: Retail Aisles, Train Doorways, and Datacenter Racks
The 77.5-inch stretched screen delivers valuable visual communication in linear spaces. Common deployment scenarios include supermarket shelf merchandising, bus and train passenger guidance, industrial machine tool telemetry, and corporate entrance architectural signage.
Automotive manufacturing plants and cleanroom testing facilities mount this display along inspection stations. Quality control technicians verify real-time tolerance data, assembly checklists, and defect alerts on a clean, wipe-down screen.
Pharmacy retail chains utilize the screen along personal care aisles to deliver educational health tips and seasonal promotions, assisting shoppers in making informed healthcare purchasing decisions right at the shelf.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Technical Selection & System Integration FAQ
**Q1: How do we switch between different operating systems on this display?**
Switching operating systems is frictionless: simply connect your chosen host computer (Windows PC, Android box, or Linux controller) via HDMI. The display adapts instantly without requiring internal firmware reconfiguration.
**Q2: What is the expected backlight service lifespan?**
The industrial-grade solid-state LED backlight is rated for an operational lifespan exceeding 60,000 hours, ensuring consistent chromatic performance and high luminance across multi-year commercial deployments.
**Q3: Does ZXT provide 2D and 3D CAD models for pre-engineering?**

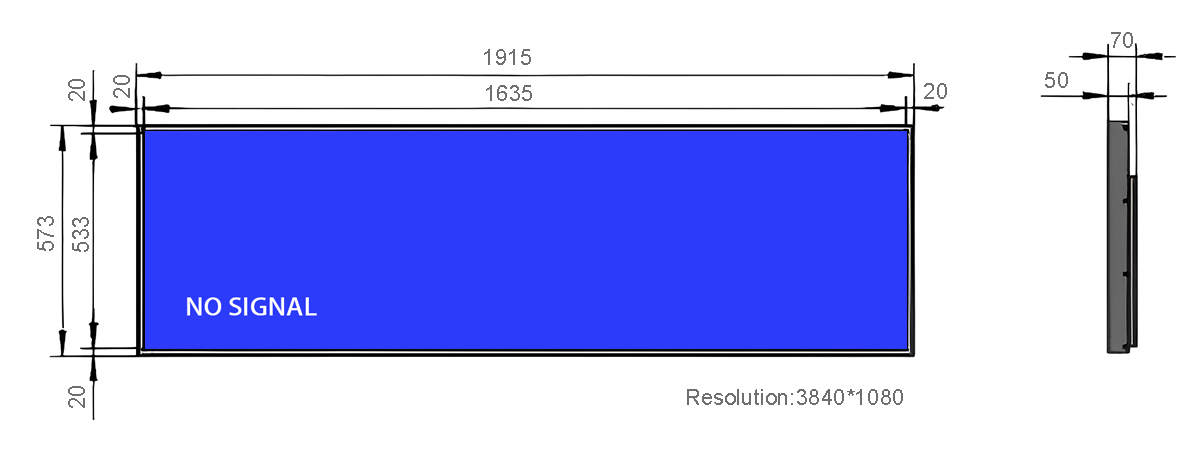

Yes. Our engineering department supplies comprehensive 2D dimensional PDF drawings and 3D STEP CAD files to assist your mechanical team with structural fixture and cabinet integration.
B2B Commercial Consultation and Engineering Support
Contact ZXT today to request 3D CAD blueprints, technical datasheets, or evaluation samples for the 77.5-inch stretched bar LCD monitor. Our technical sales team returns official factory proposals within two hours.
