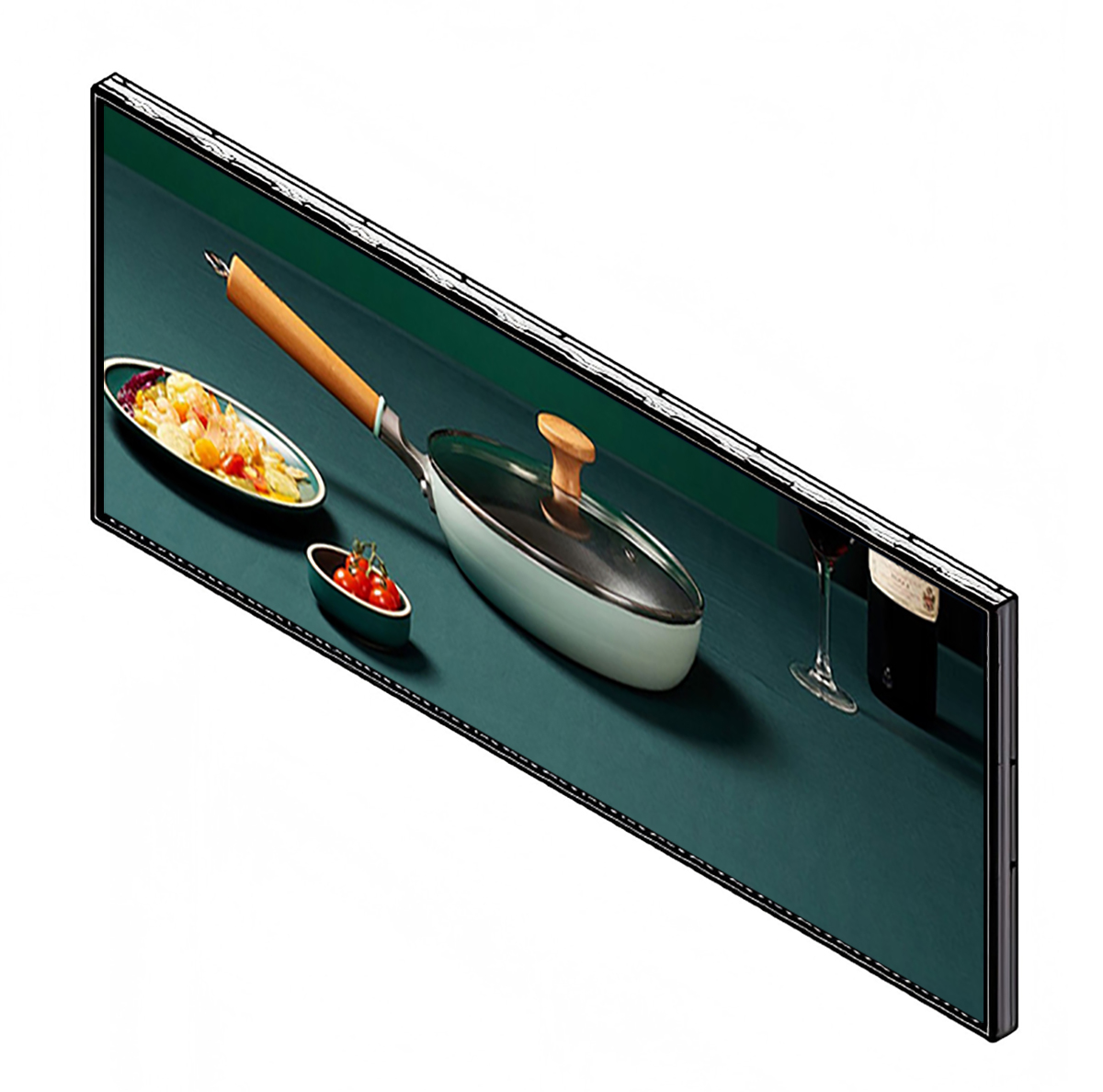

76.7 Inch Panoramic Bar LCD Display for Control Rooms & Boardrooms
Wholesale 76.7 inch standard ultra-wide bar display featuring native 3840*1557 resolution and 500 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 76.7 Inch
- Resolution
- 3840*1557
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
76.7 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 76.7 inch | |
Resolution | 3840*1557 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 76.7-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 3840*1557 resolution across an active 76.7-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.
Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Display Quality: Sharp Typography, Fine Graphic Detail, and Vibrant Colors
The 76.7-inch ultra-wide display offers 3840*1557 native resolution, paired with a 500 cd/㎡ brightness output and a 1200 :1 contrast ratio. The IPS optical layer provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, ensuring consistent visual clarity for viewers positioned at various angles, while the commercial backlight is rated for over 60,000 hours of continuous 24/7 commercial duty of duty.
The display's wide viewing angle architecture ensures that passenger information tickers and pricing tables remain clearly legible to pedestrians walking past at rapid speeds from various approach vectors.
Carefully tuned gamma correction curves produce balanced shadow detail and smooth color gradations, allowing intricate advertising graphics and photographic assets to reproduce with true-to-life vibrancy.
Mechanical Design: Protecting Internal Electronics in Demanding Environments
Engineered for long-term commercial duty, the 76.7-inch monitor features a rigid metal housing with corrosion-resistant finishing. Its sleek profile integrates cleanly into high-end retail and corporate settings.

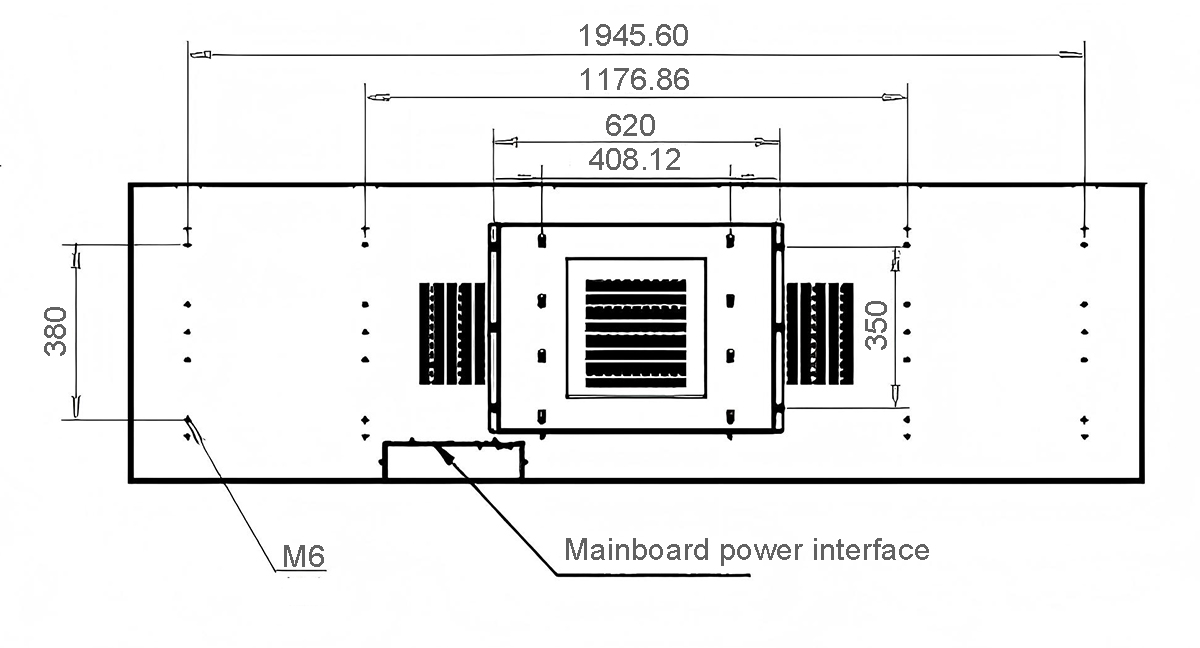

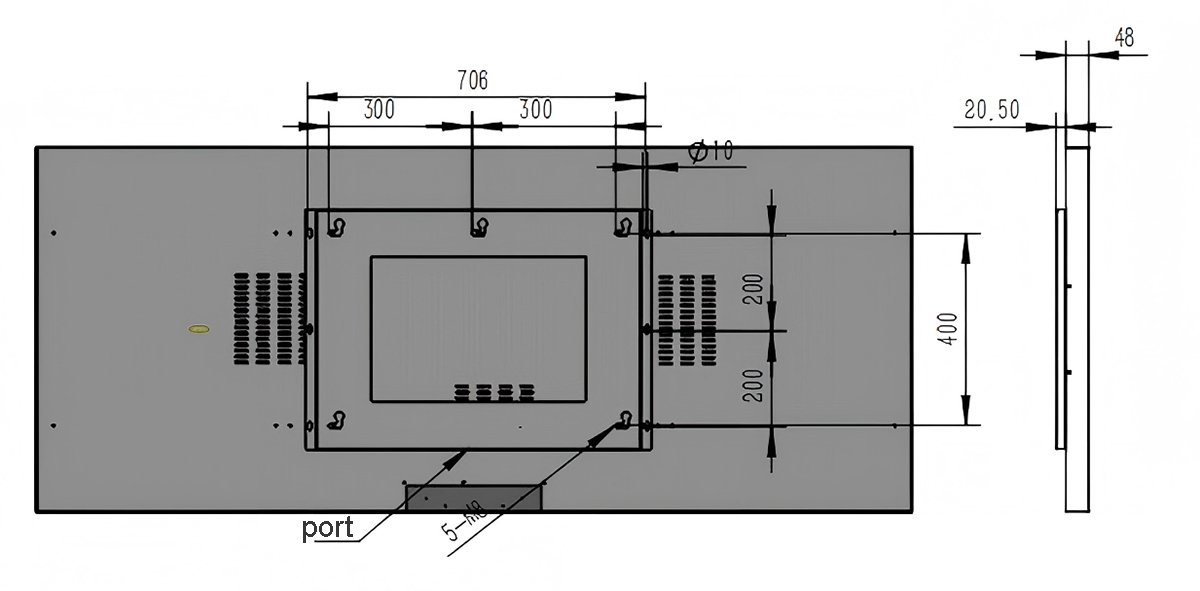

Solid-state thermal engineering allows the display to operate continuously without internal cooling fans, preventing dust accumulation and eliminating acoustic noise. The mechanical chassis features standardized VESA rear mounting patterns alongside adjustable lateral slide grooves for easy integration.
Architectural integration is streamlined by an ultra-low-profile mounting depth that complies with international building code corridor protrusion limits. Flush-mount wall brackets allow the display to integrate smoothly into elevator lobbies and narrow hallways.
Controller Architecture: Seamless Audio-Video Synchronization and Native Scaling
The monitor features HDMI, VGA video inputs compatible with standard commercial and industrial video sources. Audio playback is supported through a 3.5mm Audio Socket. Operating on AC 100V~240V (50/60Hz) power with an efficient consumption of ≤ 45w, the unit functions dependably across temperatures from below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
High-efficiency switch-mode power supplies minimize wasted heat generation, allowing the display to operate comfortably within tight architectural cavities with restricted ventilation.
Dual video input provisions allow technicians to connect a primary media player alongside a secondary backup feed, providing redundant visual broadcasting capability for mission-critical transit wayfinding.
Open-Architecture Computing: Universal Operating System Flexibility
Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Venue Integration: Enhancing Customer Navigation and Merchandise Turnover
Engineered for versatile commercial use, the 76.7-inch stretched display provides panoramic visual delivery in space-constrained settings. Retailers utilize it for shelf-edge advertising, transit operators install it for passenger wayfinding, and industrial engineers use it for equipment monitoring.
In sports arenas and stadium concourse passages, the display functions as a continuous digital ribbon above concession stands. Live match scores, sponsor logos, and beverage menu specials keep spectators engaged throughout tournament games.
Cleanroom pharmaceutical facilities rely on the display's sealed, wipe-clean housing to monitor batch processing parameters. Quality control operators verify real-time environmental data without compromising sterile room protocols.
Direct Factory Sourcing: Reducing Procurement Costs and Engineering Lead Times
ZXT provides source-factory manufacturing for commercial stretched displays, eliminating third-party markups. Our in-stock tooling ensures zero mold charges on standard sizes, supported by fast 3-day sample dispatch and modular SKD shipping options for international clients.
Factory-direct warranty coverage is backed by responsive technical assistance and available spare parts kits, ensuring that deployed displays maintain continuous commercial service year after year.
Procurement & Integration FAQ
**Q1: Does this display generate fan noise during operation?**
No. The monitor utilizes a 100% passive fanless conduction cooling architecture that dissipates heat naturally through the metallic chassis, operating in total acoustic silence while preventing internal dust accumulation.
**Q2: Are touch screen options available for this stretched format?**
Yes. We offer optional projected capacitive (PCAP) 10-point multi-touch overlays with Morse 7 explosion-proof tempered glass and optical bonding, as well as infrared (IR) touch frames for specialized kiosk builds.
**Q3: Can overseas partners order this monitor in SKD or CKD format?**
Yes. To help international contractors reduce customs tariffs and air freight expenses, ZXT supplies complete knocked-down (CKD) or semi-knocked-down (SKD) kits including tested LCD panels, driver boards, and raw casings.
Inquire for Factory-Direct Terms and CAD Files
Connect with our commercial display specialists to discuss custom bracket finishing, sample availability, or volume pricing for the 76.7-inch stretched bar monitor. We provide comprehensive quotes within two hours.
