75.3 Inch Lcd bar ultra Wide Screen for Supermarket Advertising Digital Shelf
75.3 Inch Metal Stretched LCD Display Display area:1895*215mm Resolution:3840*436 Material:Metal
75.3 Inch Bar Type LCD for Smarter Retail Shelf Operations
Retail stores are under constant pressure to improve operational efficiency while delivering a better shopping experience. Traditional paper signage often creates additional workload because promotions, pricing, and product information must be updated manually. A digital solution simplifies these daily tasks while keeping information accurate and visually consistent.
The 75.3 Inch Bar Type LCD is designed specifically for commercial shelf environments. Its ultra-wide format fits neatly along supermarket shelves, display racks, and promotional aisles, allowing retailers to communicate with shoppers without occupying valuable product space. More importantly, it helps store managers distribute information faster, reduce maintenance costs, and create a more modern retail environment.
Whether you are a supermarket chain, retail equipment supplier, or digital signage integrator, ZXTLCD offers factory-direct manufacturing with flexible OEM and ODM services to support projects of all sizes.
Why Retailers Are Replacing Printed Shelf Signage
Printed shelf labels require frequent replacement whenever prices, promotions, or seasonal campaigns change. This process consumes labor, increases printing expenses, and often leads to inconsistent information between stores.
A Bar Type LCD provides a digital alternative that allows retailers to publish new content instantly while maintaining the same visual standard across every location.
Benefits include:
- Faster promotional updates
- Reduced printing costs
- Consistent brand presentation
- Centralized content control
- Better use of shelf space
- Improved operational efficiency
Instead of replacing hundreds of paper signs, marketing teams can update multiple displays from a single management platform.
75.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 75.3 inch | |
Resolution | 3840*436 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Designed for High-Performance Retail Environments
Long-Format Commercial Display
The elongated LCD screen is optimized for shelf-edge installations, making full use of narrow spaces while maintaining excellent visibility for shoppers.
Clear Multimedia Communication
Support for images, promotional videos, scrolling text, and scheduled campaigns enables retailers to communicate product information in a more engaging way than static signage.
Stable Commercial Operation
Industrial-grade components are engineered for extended daily use, ensuring reliable performance in supermarkets, convenience stores, and commercial retail environments.
Flexible Customization for B2B Projects
Every retail project has different technical requirements. ZXTLCD provides flexible customization services for distributors, wholesalers, and system integrators.
Hardware Options
Available customization includes:
- Screen size adjustments
- High-brightness versions
- Capacitive touch integration
- Open-frame design
- Custom housing colors
- Mounting accessories
Software Integration
Customers can choose Android or Windows platforms, cloud CMS integration, remote content management, SDK/API development, and customized application software according to project requirements.

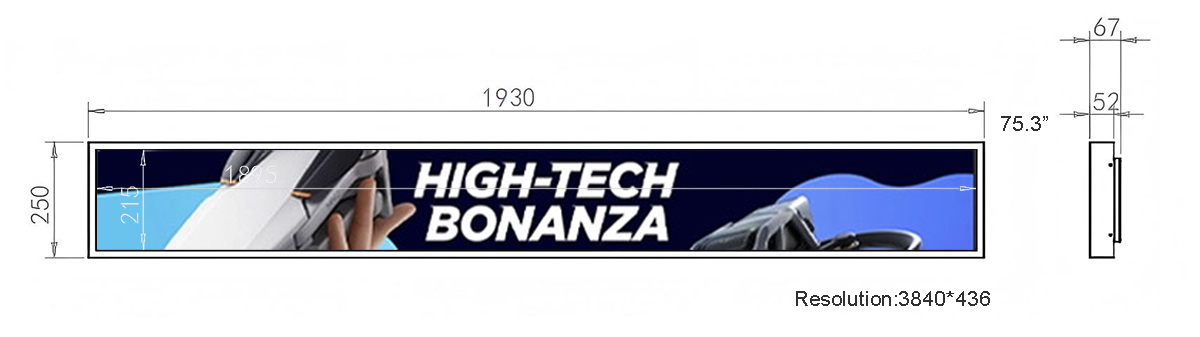

Product Dimension as follows:
Why International Buyers Choose ZXTLCD
ZXTLCD has extensive experience supplying commercial LCD displays to customers worldwide.
Our advantages include:
- Factory-direct manufacturing
- Professional OEM & ODM services
- Experienced R&D engineers
- Strict quality inspection
- Stable production capacity
- Global logistics support
- Fast technical response
- Reliable after-sales service
From prototype development to large-volume production, our engineering team works closely with customers to ensure every project meets commercial requirements.
Frequently Asked Questions
Q1: What is a Bar Type LCD?
A Bar Type LCD is a commercial display with an elongated aspect ratio designed for installations where standard screens cannot fit, such as shelf edges, retail fixtures, transportation systems, and public information displays.
Q2: Can this display be integrated with existing CMS software?
Yes. It supports integration with compatible cloud-based content management systems for centralized scheduling and remote updates.
Q3: Does ZXTLCD provide OEM and ODM services?
Yes. We offer complete hardware customization, software integration, branding, packaging, and engineering support for global B2B customers.
Q4: Is this display suitable for continuous commercial use?
Yes. The display uses commercial-grade LCD panels and industrial components designed for long operating hours in demanding retail environments.
Q5: Which industries commonly use Bar Type LCD displays?
Besides supermarkets, Bar Type LCD displays are widely used in convenience stores, pharmacies, airports, railway stations, shopping malls, exhibition centers, and corporate information systems.
