Non-touchscreen

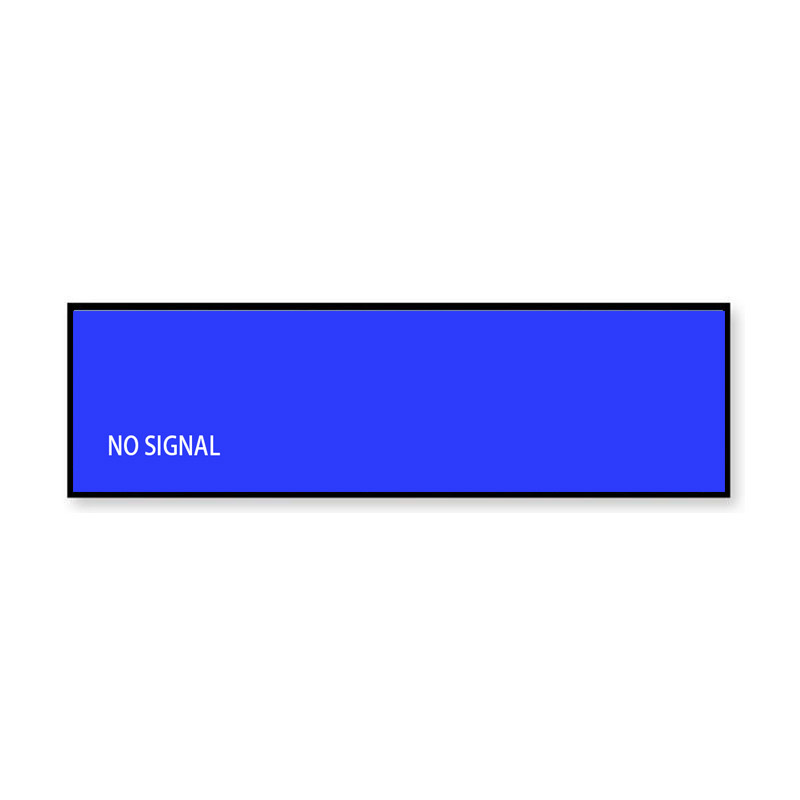

75.3 Inch Panoramic Bar LCD Display for Control Rooms & Boardrooms
Source manufacturer supply of 75.3 inch industrial sheet metal bar monitor with 3840*436 resolution and 500 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- 75.3 Inch
- Resolution
- 3840*436
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
75.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 75.3 inch | |
Resolution | 3840*436 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 75.3-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 3840*436 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
True IPS Technology: Wide Symmetrical Viewing Angles Without Chromatic Drift
Engineered for clarity and longevity, the 75.3-inch panoramic display features a native resolution of 3840*436 and a brightness rating of 500 cd/㎡. The anti-glare surface minimizes ambient reflections, while the 1200 :1 contrast ratio and IPS symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angles ensure optimal image quality from all perspectives. The backlight is rated for over 60,000+ operational hours of 24/7 commercial performance.
The LED backlight system incorporates premium phosphor coatings that deliver a broad, balanced color spectrum, ensuring that dynamic video sequences render with lifelike warmth and accurate saturation.
The IPS alignment layer ensures that contrast and color saturation remain virtually identical across the entire 178-degree viewing cone, allowing passersby approaching from sharp angles to read information effortlessly.

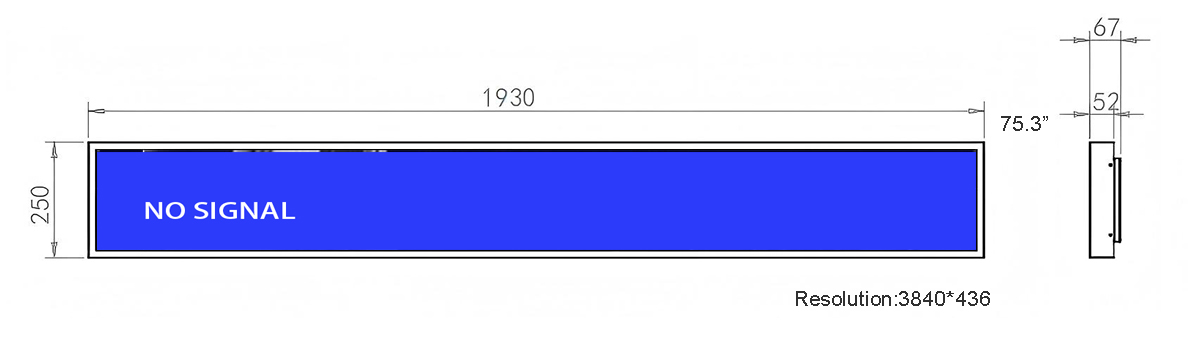

Installation Engineering: Lateral Slide-Tracks and Universal Mounting Provisions

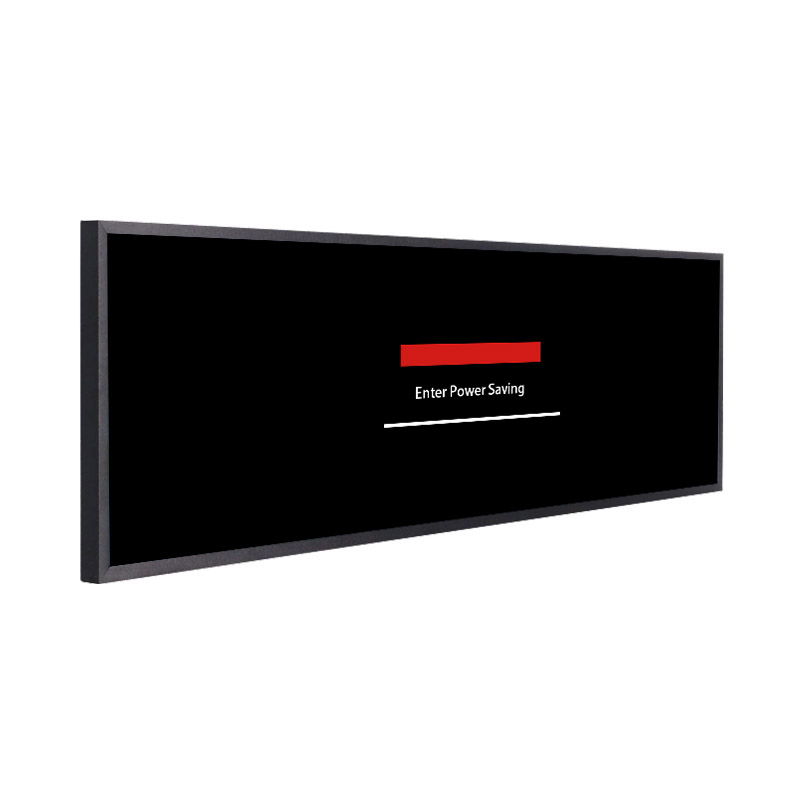

The 75.3-inch sheet metal housing is constructed from precision-formed galvanized steel plates, offering superior structural stiffness and impact defense. The robust chassis protects display electronics from mechanical shocks in harsh industrial and transit deployments.
Passive thermal dissipation through the metallic housing ensures stable operating temperatures without the need for mechanical cooling fans. The enclosure includes standardized VESA mounting provisions and lateral slide channels for straightforward installation.
Flexible mounting hardware options include top-suspension hanging brackets, recessed cabinet clips, and articulated wall mounts. All structural fasteners are fabricated from stainless steel to resist atmospheric corrosion in semi-outdoor venues.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a 3.5mm Audio Socket, while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 45w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Universal OS Adaptability: Freedom from Proprietary Lock-In
Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Strategic Venues: Airport Information Systems, Fast-Food Menus, and Factory Lines
With its specialized panoramic form factor, the 75.3-inch display serves diverse commercial sectors. It enhances retail product displays with dynamic video loops, informs public transit commuters with real-time route updates, monitors server rack metrics in data centers, and displays panoramic menus in restaurant chains.
Specialty pharmacy and health retail stores install this monitor along vitamin and personal care shelving. Nutritional information, product usage guides, and promotional discounts are presented at eye level to support informed customer purchasing decisions.
Commuter rail stations report smoother passenger boarding flows when deploying this display along platform boarding gates. Passengers waiting along platform edges can verify carriage layouts and arrival times at a single glance.
Procuring From The Source: Verified Commercial Quality and Transparent Pricing
Sourcing directly from ZXT provides commercial display buyers with verified factory pricing, established extrusion tooling, and rapid turnaround. Backed by nine-plus years of manufacturing experience, we offer standard sample dispatch within three days, zero tooling fees on standard sizes, and comprehensive 2D/3D CAD engineering support for international project developers.
Our modular SKD and CKD export programs empower international partners to assemble displays locally, qualifying for favorable regional tariff classifications and reducing international freight costs.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 75.3-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
