Non-touchscreen

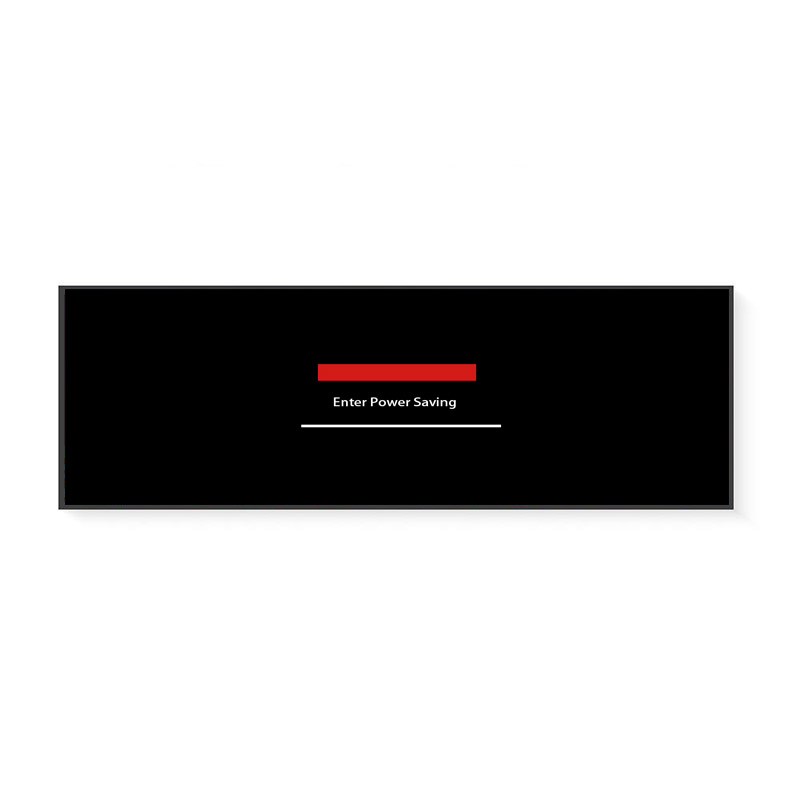

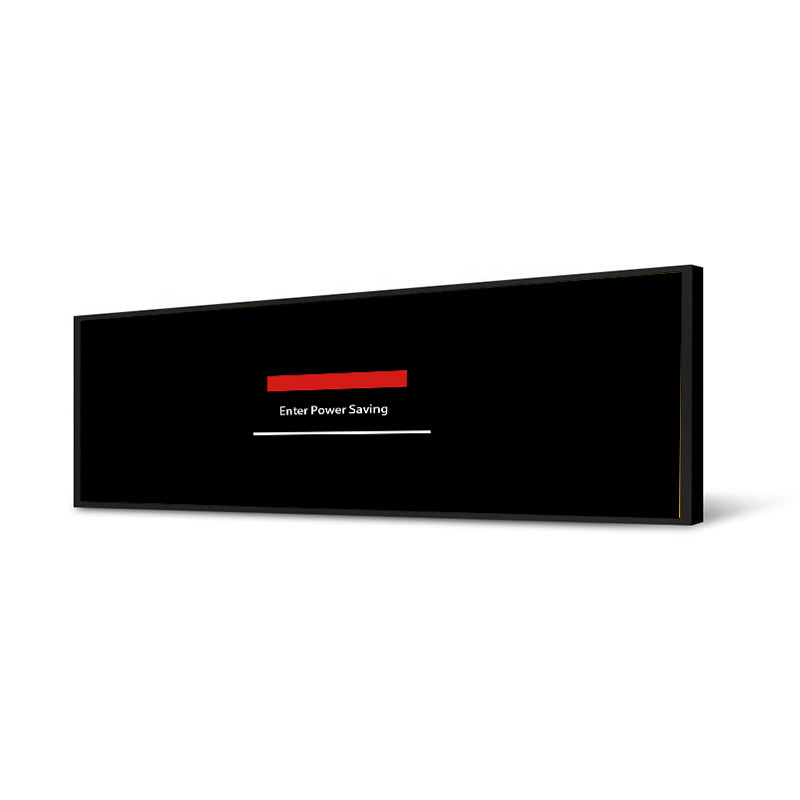

Rack Mount Stretched Monitor (74.9 Inch) for Surveillance & Command
Factory-direct 74.9 inch industrial sheet metal bar monitor with 3840*336 panoramic resolution and 500 cd/㎡ luminance. Ideal for supermarket shelf-edges, passenger wayfinding, and industrial consoles. Turnkey monitors and CKD/SKD assembly packs available.
Specifications
- Screen Size
- 74.9 Inch
- Resolution
- 3840*336
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
74.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 74.9 inch | |
Resolution | 3840*336 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Panoramic Engineering: Delivering Wide Visual Feeds in Restricted Vertical Slots
Engineered for installations where standard 16:9 monitors are too tall, the 74.9-inch stretched display delivers 3840*336 resolution across an active 74.9-inch diagonal. It allows commercial operators to deploy vibrant promotional content and operational alerts along narrow horizontal headers with zero space waste.
By turning dormant perimeter spaces into dynamic visual assets, venues maximize the commercial value of their existing architecture. Every square inch of wall or shelf space contributes actively to customer engagement.
Enterprise clients benefit from a consistent hardware aesthetic across diverse venue locations. The standardized linear enclosure provides a cohesive visual signature whether installed in boutique shops or transit hubs.
Engineered Optics: High Pixel Density and Glare Suppression for Public Spaces
Equipped with an industrial-grade liquid crystal matrix, the 74.9-inch stretched monitor delivers native 3840*336 resolution and a luminous output of 500 cd/㎡. It provides crisp, high-contrast imagery backed by a 1200 :1 contrast ratio, ensuring text and graphics remain readable under intense interior lighting. True IPS technology provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, while the backlight system is rated for over 60,000 hours of continuous 24/7 commercial duty of dependable operation.
Optical bonding technology minimizes internal air gaps between the cover glass and liquid crystal cell, virtually eliminating internal light refraction and delivering crisp, surface-printed visual clarity.
Fast liquid crystal transition times prevent image blurring and ghosting during high-speed promotional video animations, ensuring that fast-moving product footage appears fluid and natural.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
Constructed from high-tensile cold-rolled steel, the 74.9-inch monitor casing delivers outstanding mechanical durability. The galvanized metal enclosure provides robust impact resistance and internal component protection in heavy-duty commercial and transit applications.
The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Power Supply Architecture: Wide-Voltage Regulation and Energy Conservation
System integrators will appreciate the plug-and-play connectivity engineered into this commercial display. Featuring standard HDMI, VGA video connections, the display links directly to external digital media players, embedded box PCs, and workstation graphic cards. The internal scaling processor automatically configures custom wide-aspect raster timings, ensuring hassle-free software configuration during site commissioning. Audio integration is facilitated via a 3.5mm Audio Socket, giving installers the flexibility to connect local directional audio speakers, auxiliary sound bars, or central PA routing systems for synchronized broadcasts. Operating across a wide input voltage range of global 100~240V line voltage at 50/60Hz, the internal power supply provides stable electrical isolation against power surges, voltage drops, and harmonic line noise. Active operational power consumption is constrained to ≤ 45w, while environmental durability is certified across ambient temperatures of below10℃ ~ +50℃ and humidity levels reaching ≤ 85%RH.
Industrial-grade capacitors and solid-state power components ensure dependable electrical performance across wide ambient temperature swings, preventing unexpected restarts or power-cycling issues.
Wide-range AC input tolerance ensures stable display operation in regions with unstable electrical grids, absorbing line surges, voltage drops, and brownouts without interrupting continuous public broadcasts.
Universal Video Ingestion Across Leading Operating Systems
This display adopts a clean, open hardware topology that welcomes external video input from Windows, Android, and Linux compute engines alike. A single HDMI connection delivers seamless pixel mapping and audio-video pass-through, giving digital signage operators and kiosk engineers the latitude to implement custom CMS platforms, automated queue software, or industrial SCADA consoles without artificial hardware constraints.
Sector Implementation: Passenger Route Displays and Shelf-Edge Video Banners
The 74.9-inch stretched monitor delivers high visual authority in narrow mounting footprints. It is widely utilized for supermarket shelf-edge branding, rail transit passenger information systems, server room equipment monitoring, and QSR restaurant menu displays, providing reliable performance across demanding commercial settings.
Interactive self-service kiosks and automated parcel lockers embed this horizontal display in top fascias. Intuitive visual prompts and animated status bars guide users through transaction steps, speeding up user checkout and package pickup cycles.
Commercial office towers utilizing panoramic displays above elevator transoms report positive tenant feedback. Dynamic building notices, public transit alerts, and local weather updates are broadcast in an unobtrusive, contemporary format.
Source Factory Authority: In-Stock Tooling, SKD Export, and Zero NRE Costs
Partnering directly with ZXT connects your project team straight to our manufacturing floor, bypassing intermediary markups and communication delays. With over nine years of dedicated display engineering and 300+ commercial projects worldwide, we maintain permanent in-stock inventories of standard aluminum extrusion profiles and stamping molds. This in-stock tooling advantage allows our clients to deploy custom stretched hardware without expensive initial NRE tooling charges, backed by fast 3-day sample dispatch for standard configurations. To support overseas display brands, repair facilities, and volume contractors seeking to optimize import tariffs and international shipping costs, we offer complete flexibility in delivery formats. Choose from fully assembled turnkey displays, open-frame kits for cabinet integration, or modular SKD/CKD component bundles including factory-tested LCD glass, matched A/D driver boards, and precision-stamped chassis hardware. Our engineering team provides comprehensive design support, delivering 2D engineering blueprints, 3D STEP CAD files, and connector pinout schematics.
Every production unit undergoes comprehensive factory burn-in testing under elevated temperature and humidity conditions, ensuring exceptional out-of-the-box reliability for overseas project deployments.
Commercial Buyer FAQ & Technical Inquiries
**Q1: How does the display handle custom ultra-wide resolution timings?**
The onboard industrial A/D scalar automatically locks onto native ultra-wide timings via standard EDID handshakes, ensuring uncompressed pixel-for-pixel rendering without horizontal stretching or letterbox bars.
**Q2: What is the sample dispatch lead time for evaluation units?**
Because ZXT maintains in-stock inventories of standard aluminum extrusion profiles and stamping tooling, evaluation samples can be fully calibrated, burned-in, and dispatched within three working days.
**Q3: What video input interfaces are provided on this monitor?**
The standard configuration includes industrial HDMI and VGA video ports alongside a 3.5mm independent audio socket, allowing immediate plug-and-play connection to PCs, media sticks, and sound systems.
Commercial Quotation and Production Scheduling
Contact our technical sales team to request mechanical drawings, discuss volume pricing, or arrange a 3-day sample dispatch for the 74.9-inch panoramic stretched monitor. We deliver prompt factory-direct quotations and technical support.
