73.5 Inch Android TFT Embedded Tempered Glass Stretched Bar LCD Monitor
73.5 Inch Metal Stretched LCD Display Display area:1805.76*464mm Resolution:3840*988 Material:Metal、Tempered glass
Stretched LCD Monitor Factory – 73.5 Inch Embedded Android Bar Display for Commercial Projects
Commercial display projects often require more than a standard monitor. Integrators and equipment manufacturers need displays that fit seamlessly into kiosks, retail fixtures, transportation systems, and self-service terminals while maintaining long-term reliability. As a professional Stretched LCD Monitor Factory, ZXTLCD develops embedded commercial displays designed specifically for these demanding environments.
The 73.5-inch Android TFT Stretched Bar LCD Monitor combines an ultra-wide commercial LCD panel with an embedded installation structure and durable tempered glass protection. Rather than functioning as a standalone advertising screen, it is engineered to become an integral part of larger commercial equipment, making it an ideal choice for OEM, ODM, and system integration projects.
Why Embedded Displays Are Becoming the Preferred Choice
As digital signage evolves, more businesses are moving away from externally mounted screens toward integrated display systems. Embedded displays create a cleaner appearance, improve equipment protection, and simplify installation for manufacturers.
For commercial projects, an embedded stretched LCD monitor offers several advantages:
- Better equipment integration
- Improved installation stability
- Enhanced product appearance
- Reduced maintenance risks
- Increased display protection
- Longer commercial service life
These advantages make embedded displays particularly valuable for high-traffic public environments.
73.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 73.5 inch | |
Resolution | 3840*988 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Engineered for Professional Commercial Equipment
Embedded Installation Design
The display is designed for flush mounting inside kiosks, cabinets, retail fixtures, ticketing systems, and industrial enclosures. This allows equipment manufacturers to create compact and modern product designs.
Tempered Glass Protection
A reinforced tempered glass surface protects the LCD panel from accidental impact, dust, and daily wear while maintaining excellent optical clarity. This feature is especially beneficial in public locations where durability is essential.
Android Smart Platform
The integrated Android operating system supports multimedia playback, cloud-based content management, web applications, and customized commercial software without requiring an external media player.
Commercial TFT LCD Panel
The commercial-grade TFT panel delivers stable brightness, wide viewing angles, accurate colors, and reliable performance during long operating hours.
Manufacturing Capabilities That Support OEM Projects
ZXTLCD works closely with international customers developing customized commercial equipment.
Mechanical Customization
We offer flexible manufacturing services including:
- Custom display dimensions
- Open-frame construction
- Embedded mounting structures
- Customized bezels
- Housing color options
- Interface configuration
Electrical & Software Integration
Engineering support includes:
- Android system customization
- Windows compatibility
- Cloud CMS integration
- SDK and API development
- Remote device management
- Customized startup interface
Production & Quality Assurance
Every project benefits from:
- Factory-direct manufacturing
- Strict quality inspection
- Aging tests before shipment
- Stable production capacity
- Export-ready packaging
- Reliable delivery schedules

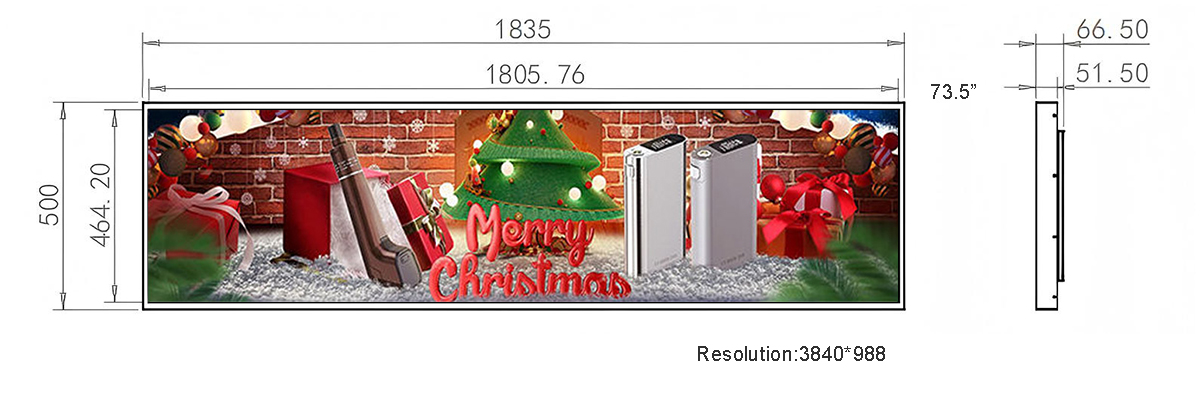

Product Dimension as follows:
Why Global Customers Choose ZXTLCD as Their Stretched LCD Monitor Factory
Choosing a manufacturing partner is about more than purchasing hardware. It is about finding a supplier capable of supporting product development throughout the project lifecycle.
ZXTLCD provides:
- Factory-direct production
- Professional OEM & ODM services
- Experienced engineering team
- Flexible product customization
- Commercial-grade quality standards
- Stable manufacturing capacity
- International logistics experience
- Responsive after-sales technical support
From concept design to mass production, we help customers transform product ideas into reliable commercial display solutions.
Frequently Asked Questions
Q1: What makes an embedded stretched LCD monitor different from a standard display?
An embedded display is designed to be integrated into equipment rather than mounted externally. It provides a cleaner appearance, better structural stability, and greater protection for commercial applications.
Q2: Can the tempered glass be customized?
Yes. Different glass thicknesses, surface treatments, and protective solutions can be provided according to project requirements.
Q3: Does ZXTLCD support OEM and ODM manufacturing?
Absolutely. We offer customized hardware, software, branding, packaging, and engineering services for distributors, equipment manufacturers, and system integrators.
Q4: Which operating systems are supported?
Android is the standard platform, while Windows and customized operating systems are available for specific commercial projects.
Q5: Is this monitor suitable for continuous operation?
Yes. The commercial TFT LCD panel and industrial electronic components are designed for extended daily operation in demanding commercial environments.
