Non-touchscreen

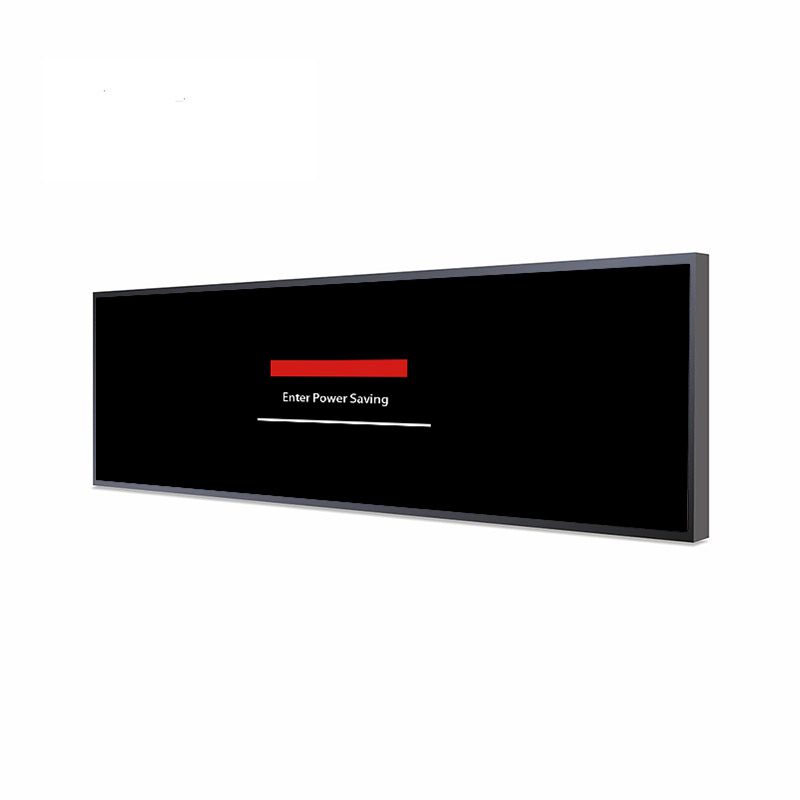

Large Stretched Bar Monitor – 73.5 Inch Ultra-Wide Commercial Display
Direct manufacturer of 73.5 inch ultra-wide industrial sheet metal bar monitor (3840*988, 500 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 73.5 Inch
- Resolution
- 3840*988
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
73.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 73.5 inch | |
Resolution | 3840*988 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Linear Digital Communication: Overcoming Traditional Screen Placement Barriers
Standard monitors often prove impractical when mounting displays along narrow retail shelves or vehicle door bulkheads. The 73.5-inch stretched display overcomes these geometric limitations, presenting 3840*988 resolution across an active 73.5-inch diagonal to deliver clear, uncompressed digital visuals in tight horizontal spaces.
Retailers can highlight high-margin products and limited-time offers directly where purchasing decisions occur. Eye-level digital animation captures customer attention far more effectively than static shelf tags.
In transit vehicle design, maintaining passenger headroom and complying with safety clearance standards is mandatory. The ultra-slim vertical depth of this display ensures compliance while maximizing information display area.
High-Definition Visual Delivery: Color Purity, Contrast, and Viewing Geometry
The 73.5-inch display is powered by an industrial-grade LCD panel designed for high-resolution panoramic visualization. With a native resolution of 3840*988, it presents sharp, detailed imagery that ensures promotional campaigns, digital price updates, and public transport schedules are legible and visually compelling at all times. Luminance is calibrated at 500 cd/㎡, delivering clear, crisp visuals in well-lit commercial spaces without generating uncomfortable glare for nearby customers. Backed by a 1200 :1 contrast ratio, the display produces rich color tones, clean white highlights, and deep shadows. True IPS wide-angle technology provides an expansive symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angle, while the solid-state LED backlight system is rated for an industrial-grade operational life of 60,000+ operational hours.
High panel transmission efficiency allows the display to achieve striking luminous output while maintaining low internal thermal dissipation, safeguarding delicate electronic components from excessive heat aging.
A resilient anti-glare surface treatment diffuses incoming light rays at microscopic angles, preventing harsh specular reflections from blinding nearby shoppers or transit operators under overhead LED lighting.
Mechanical Design: Protecting Internal Electronics in Demanding Environments
Fabricated from heavy-gauge electro-galvanized steel, the 73.5-inch enclosure provides excellent physical protection and structural rigidity. The metal casing resists mechanical shock, prevents chassis flex, and shields internal driver electronics from ambient electrical noise.
Solid-state thermal engineering allows the display to operate continuously without internal cooling fans, preventing dust accumulation and eliminating acoustic noise. The mechanical chassis features standardized VESA rear mounting patterns alongside adjustable lateral slide grooves for easy integration.
Architectural integration is streamlined by an ultra-low-profile mounting depth that complies with international building code corridor protrusion limits. Flush-mount wall brackets allow the display to integrate smoothly into elevator lobbies and narrow hallways.
Signal Compatibility: Plug-and-Play Synchronicity with Industrial Controllers
The electronic architecture of this display emphasizes compatibility, signal fidelity, and energy efficiency. Engineered with standard HDMI, VGA interfaces, the A/D controller board accepts standard graphic inputs from industrial computers, media player appliances, and network broadcast controllers. Integrated auto-sensing firmware accurately locks onto custom panoramic timings, rendering incoming video streams pixel-for-pixel without graphical distortion. Sound synchronization is enabled through a dedicated 3.5mm Audio Socket, allowing system builders to connect shelf-edge directional sound transponders or external speaker bars. The display incorporates a robust power conditioning module designed for universal 100-240V commercial electrical mains inputs. With an energy-conserving power rating of ≤ 45w, large supermarket chains and metro networks deploying hundreds of screens benefit from substantially lower electricity bills and reduced thermal footprints. Engineered to withstand challenging commercial and transportation environments, the unit functions reliably across operating temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
Automatic video timing detection instantly synchronizes incoming graphic signals from media players or industrial PCs, eliminating the need for manual resolution adjustments or complex display driver installation.
The internal switch-mode power converter features robust electromagnetic interference (EMC) shielding that prevents high-frequency noise from radiating into sensitive nearby industrial or telecommunications equipment.
Unrestricted Cross-OS Compatibility for Enterprise Signage
Designed to serve as a versatile visual terminal, the display features native HDMI compatibility with all major operating systems, including Microsoft Windows, Google Android, and enterprise Linux distributions. IT departments can pair the screen with their preferred hardware platform to broadcast cloud-managed digital signage, execute custom interactive scripts, or display mission-critical telemetry without proprietary software licensing hurdles.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 73.5-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Procurement & Technical Verification FAQ
**Q1: Can this display be integrated into third-party kiosk cabinetry?**
Yes. The compact enclosure profile, standardized VESA mounting holes, and optional open-frame mounting ears make it exceptionally straightforward to integrate into self-service kiosks, vending machines, and ATMs.
**Q2: How does ZXT support overseas localized assembly?**
Through our established SKD/CKD programs, we provide tested sub-assemblies, detailed assembly process documentation, and technical support to assist overseas partners in establishing localized production.
**Q3: How do we initiate an engineering consultation for custom specifications?**
Simply contact our technical sales department with your target installation parameters, dimensional constraints, and order volumes, and our engineering team will provide a comprehensive proposal within two hours.
Contact Our International Display Engineering Desk
Connect directly with ZXT's display engineering specialists to review specifications, request 2D/3D CAD blueprints, or schedule a sample dispatch for the 73.5-inch stretched bar LCD monitor. Provide your target application details, interface requirements, and volume goals, and our factory team will provide a comprehensive proposal and competitive commercial quotation within two hours.
