Non-touchscreen
69.4 Inch IP65 Dustproof Text SDK Stretched Bar LCD Display All-In-One for Elevator
The 69.4 Inch Stretched LCD Screen has a built-in storage chip that supports power-off memory. After an unexpected power outage, it automatically resumes the playback state and progress as before the power failure. No manual resetting is required, ensuring continuous operation in unattended scenarios. It is particularly suitable for 24-hour convenience stores, gas stations, and similar locations, reducing maintenance workload.
Specifications
- Screen Size
- 69.4 Inch
- Resolution
- 3840*1440
- Display area
- 1649.7*618mm
69.4 Inch IP65 Dustproof Text SDK Stretched LCD Screen All-In-One for Elevator
Heavy-Duty 69.4 Inch IP65 Stretched LCD Display for Elevator and Industrial Applications
The 69.4 Inch IP65 Dustproof Text SDK Stretched LCD Screen All-in-One for Elevator is a professional-grade industrial digital signage solution designed for elevator cabins, commercial buildings, smart facilities, and public information systems.
With its ultra-wide stretched design and rugged IP65 protection structure, this Elevator Stretched LCD Sreen delivers stable performance in demanding environments where dust resistance, durability, and continuous operation are required.
As a factory-direct LCD display manufacturer, ZXTLCD provides full OEM and ODM customization services for global elevator system integrators and commercial display solution providers.
IP65 Dustproof & Waterproof Industrial Protection
This All-in-One Elevator LCD Display is engineered with IP65-rated protection, ensuring reliable operation in environments exposed to dust, humidity, and frequent passenger flow.
Key protection features include:
- IP65 dustproof and waterproof front panel
- Sealed industrial-grade housing design
- Anti-dust internal structure protection
- Stable operation in public environments
- Suitable for long-term elevator installation
IP65-rated stretched displays are widely used in transportation and industrial environments due to their enhanced durability and resistance to environmental interference.
69.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.4 inch | |
Resolution | 3840*1440 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Stretched Bar LCD Technology for Elevator Systems
The 69.4-inch ultra-wide format uses a stretched LCD panel architecture, optimized for vertical and panoramic content display inside elevators.
Advantages include:
- Ultra-wide panoramic display format
- High visibility in narrow elevator spaces
- Ideal for advertising and information display
- Supports dynamic content playback
- Strong visual impact for passengers
Stretched bar LCD displays are commonly used in elevator systems because they maximize limited space while delivering clear and engaging content.
All-in-One Integrated Digital Signage System
This model integrates display hardware and control system into a unified structure, reducing installation complexity and improving stability.
Core system advantages:
- Built-in media player system (SDK supported)
- Plug-and-play operation
- Remote content management support
- USB / network update options
- Stable 24/7 continuous operation
- Smart scheduling and playback control
This makes it suitable for smart building management and elevator advertising networks.

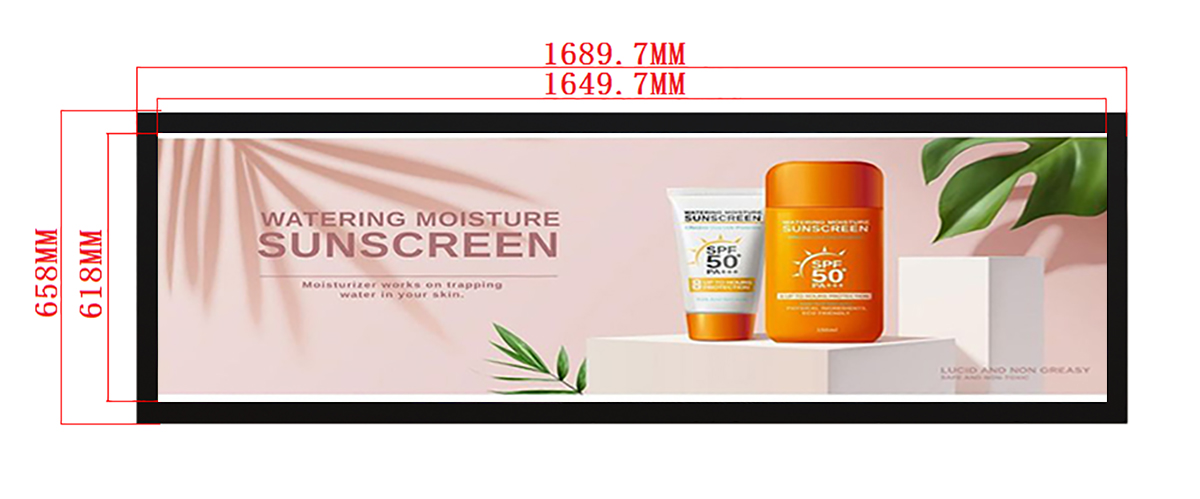

Product Dimension as follows:
Partner with a Trusted Elevator LCD Display Manufacturer
If you are looking for a reliable IP65 Elevator LCD Display Manufacturer, Industrial Stretched Bar Display Supplier, or OEM Smart Elevator Signage Factory, ZXTLCD provides complete solutions tailored to your project needs.
From hardware engineering to software integration and global delivery, we help clients build stable and high-performance elevator advertising systems.
Contact ZXTLCD today for OEM/ODM customization or technical consultation.
Frequently Asked Questions
What is an IP65 elevator LCD display?
It is a dustproof and waterproof digital signage screen designed for elevator and industrial environments.
Can it run 24/7?
Yes. It is designed for continuous commercial operation.
Is it suitable for elevator installation?
Yes. It is specifically designed for elevator cabin environments.
What is SDK support?
SDK allows developers to integrate custom software and control the display system.
Do you support OEM customization?
Yes. We provide full OEM and ODM services including hardware, software, and enclosure customization.
