69.3 Inch Full Color Infrared TouchScreen Floor Standing Player Digital Signage
69.3 Inch Vertical Full-Screen Advertising Display Display area:1649.66*617mm Resolution:3840*1436 Material:Aluminum、Tempered glass、Caster base Touch style：Multi-point infrared touch screen
69.3 Inch Full Color Infrared Touchscreen Floor Standing Digital Signage for Advanced Digital Signage Solutions in Commercial Environments
The 69.3 inch full color infrared touchscreen floor standing digital signage is a high-performance interactive display solution designed for shopping malls, corporate buildings, transportation hubs, hotels, and public service areas. Featuring advanced infrared touch technology and a large full-color display, it delivers a seamless interactive experience for users in high-traffic environments.
As businesses worldwide transition toward intelligent communication systems, demand for professional digital signage solutions continues to increase rapidly.
Why Infrared Touch Floor Kiosk Is Essential in Digital Signage Solutions
Traditional static signage cannot meet the demands of modern interactive environments. Infrared touchscreen kiosks provide accurate, fast, and multi-user interaction capabilities, making them ideal for public information systems.
The digital signage solutions powered by infrared touch kiosks offer key advantages:
- Multi-user interactive experience
- High touch accuracy and responsiveness
- Real-time information access
- Improved customer engagement
- Reduced operational workload
- Enhanced information delivery efficiency
This makes it a core device in modern smart city infrastructure.
69.3 Inch Vertical Full-Screen Advertising Display | ||
Display Specifications | ||
Screen Size | 69.3 inch | |
Resolution | 3840*1436 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Applications of Digital Signage Solutions
The digital signage solutions using infrared touchscreen kiosks are widely applied in:
Shopping Malls
Used for navigation, store directories, and promotional content.
Corporate Buildings
Displays announcements, branding, and visitor information.
Transportation Hubs
Provides schedules, directions, and real-time updates.
Hospitals
Used for patient guidance and department navigation.
Hotels
Displays guest services and event information.
Public Service Centers
Used for government and public information systems.
Benefits of Infrared Touch Digital Kiosk Systems
Compared with traditional signage, this system provides:
- Higher user engagement
- Better information accessibility
- Real-time content updates
- Reduced staffing requirements
- Stronger communication efficiency
- Scalable deployment options
It is a key component of modern smart city digital infrastructure.
OEM & ODM Customization Services
As a professional LCD manufacturer, we provide full OEM & ODM customization services.
Customization options include:
- Custom screen sizes
- Android / Windows system integration
- Cloud CMS content management system
- Infrared touch sensitivity tuning
- Private label branding
- High brightness options
- Network remote control system
We support global interactive kiosk deployment projects.

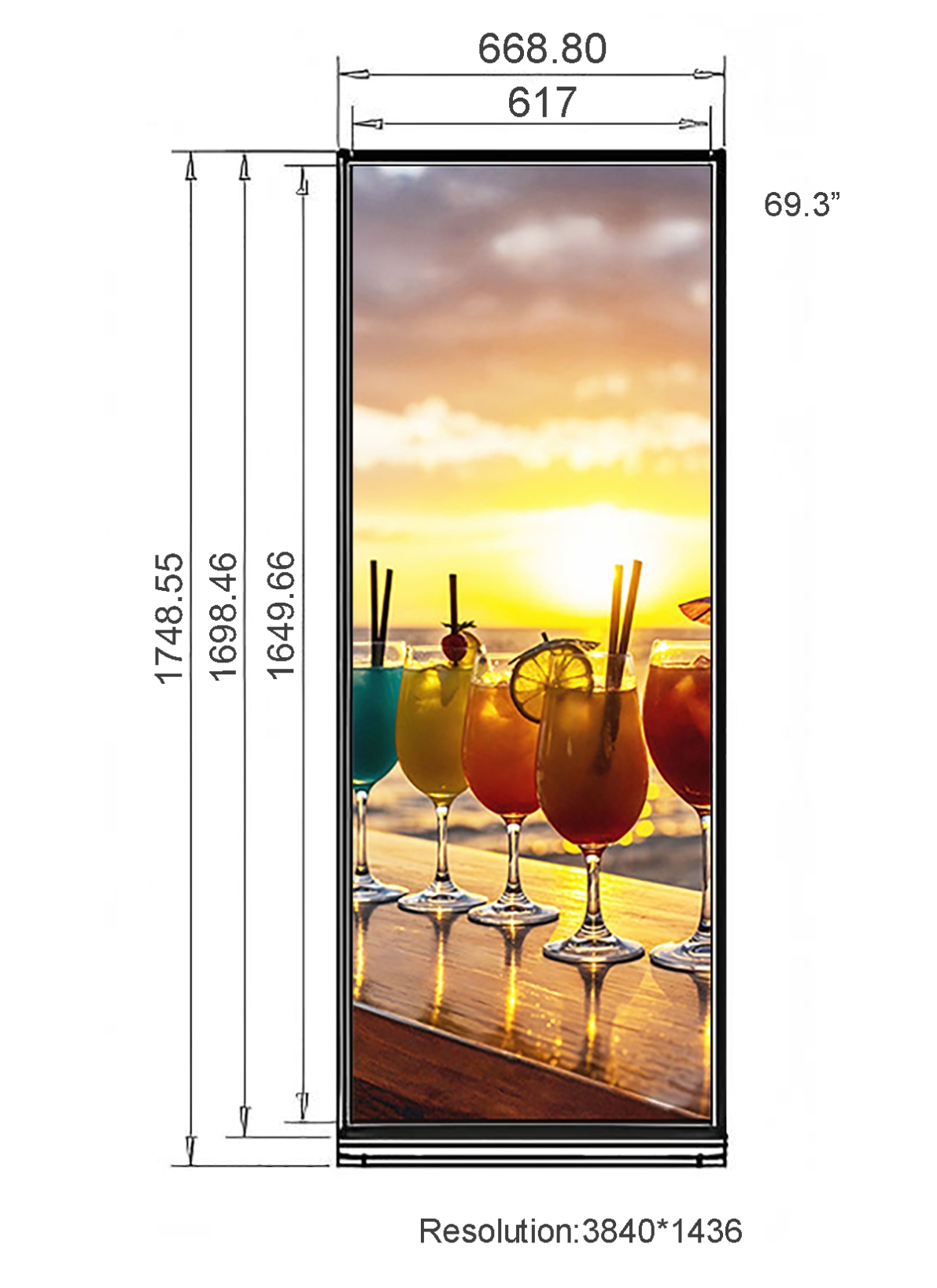

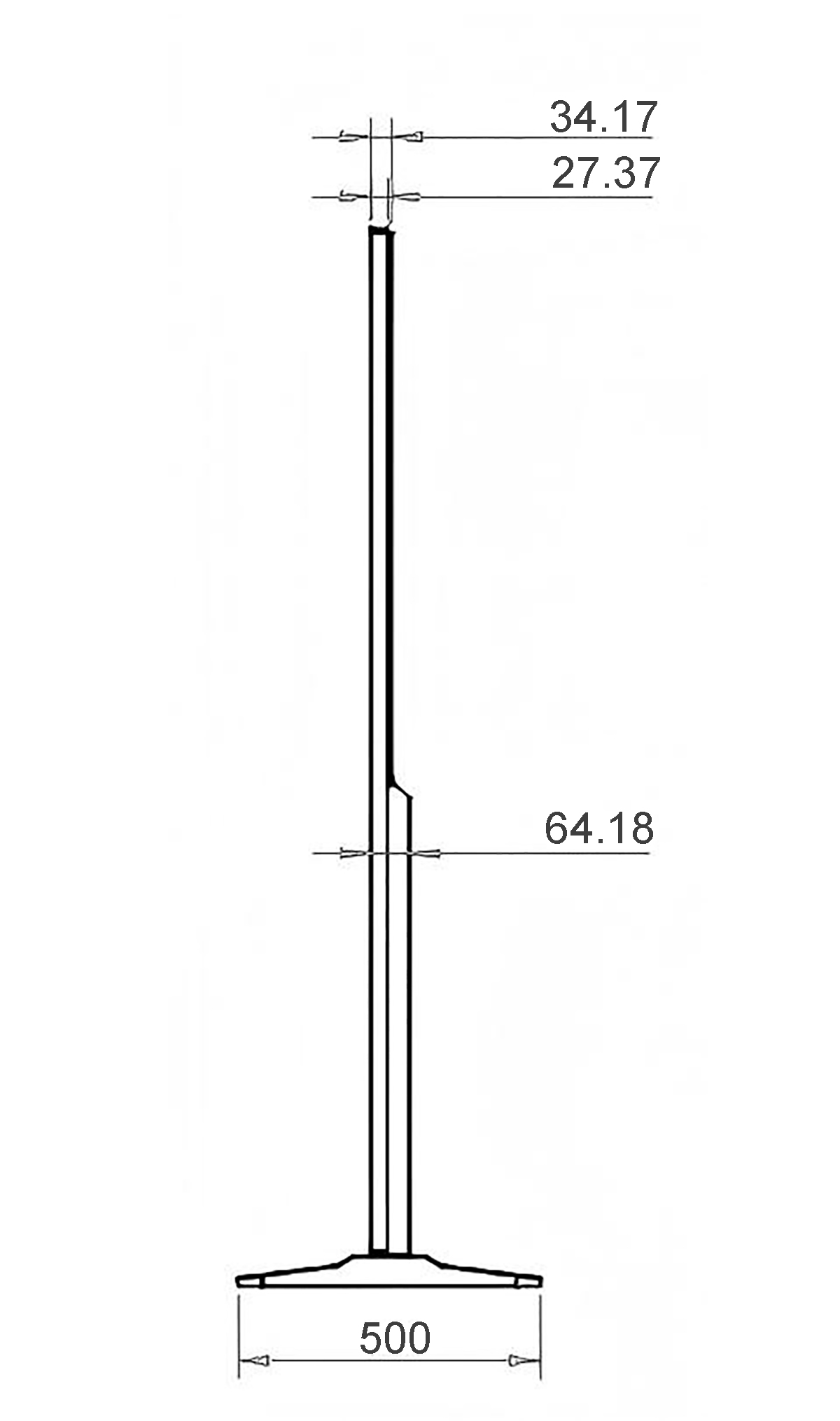

Product Dimension as follows:
FAQ – Digital Signage Solutions
Q1: What is infrared touchscreen digital signage used for?
It is used for interactive information display, navigation, advertising, and public service systems.
Q2: How does infrared touch work?
It detects touch through infrared light grid interruption, enabling accurate multi-touch interaction.
Q3: Can it be used in shopping malls?
Yes, it is widely used in malls for navigation and advertising.
Q4: Does it support 24/7 operation?
Yes, it is designed for continuous commercial use.
Q5: Do you offer OEM customization?
Yes, full OEM & ODM customization is available.
