touchscreen
69.3 Inch 2K Ultra Wide Stretched Bar LCD Monitor for Bar Restaurant Menu Shelf
69.3 Inch Aluminum Stretched LCD Display Display area:1649.66*617mm Resolution:3840*1436 Material:Aluminum Touch style:Multi-point infrared touch screen
How an LCD Strip Display Helps Bars and Restaurants Modernize Customer Communication
Restaurants and bars are constantly looking for better ways to present menus, promote seasonal offers, and improve customer engagement. Traditional printed menu boards require frequent replacement, while standard digital screens often occupy too much space or fail to match modern interior designs.
A professional LCD Strip Display offers an alternative that combines an ultra-wide format with commercial reliability. Designed specifically for narrow installation areas, the 69.3-inch 2K stretched bar LCD monitor enables hospitality businesses to display menus, promotional content, and brand messaging in a clean and visually appealing way.
Manufactured by ZXTLCD, this commercial display is developed for restaurants, cafés, bars, food courts, and hospitality projects that require customized digital signage solutions with long-term stability.
Why the Hospitality Industry Is Choosing Ultra-Wide Digital Displays
Digital transformation is changing the way restaurants communicate with customers. Instead of relying on static posters or manually updated menu boards, businesses can instantly publish new pricing, limited-time offers, and multimedia content.
For restaurant operators, an LCD Strip Display provides several operational benefits:
- Instant menu updates
- Consistent brand presentation
- Reduced printing costs
- Better use of narrow wall space
- Dynamic promotional campaigns
- Enhanced customer experience
The elongated screen format is particularly effective above service counters, beverage stations, and ordering areas where traditional displays may not fit.
69.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.3 inch | |
Resolution | 3840*1436 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Designed for Modern Food Service Environments
Ultra-Wide 2K Resolution
The 69.3-inch display delivers crisp text and vivid graphics, ensuring that menu items, prices, and promotional visuals remain easy to read even from a distance.
Commercial-Grade Performance
Built for continuous daily operation, the monitor uses industrial-quality components that provide stable performance in busy restaurants and commercial environments.
Flexible Multimedia Playback
Support for images, videos, scrolling text, and scheduled playlists allows businesses to adapt marketing content throughout the day—for example, breakfast menus in the morning, lunch specials at noon, and happy-hour promotions in the evening.
Slim and Professional Design
The narrow profile blends naturally into modern restaurant interiors without overwhelming the surrounding décor, making it suitable for premium hospitality spaces.
From Single Locations to Multi-Store Restaurant Chains
Every hospitality project has different requirements. ZXTLCD offers OEM and ODM manufacturing services to support independent restaurants, franchise brands, and digital signage integrators.
Hardware Customization
Available options include:
- Customized screen sizes
- High-brightness versions
- Touch functionality
- Open-frame structures
- Mounting accessories
- Interface configuration
Software Integration
Customers can select Android or Windows platforms, cloud-based CMS compatibility, remote content management, and customized applications for centralized menu updates across multiple locations.

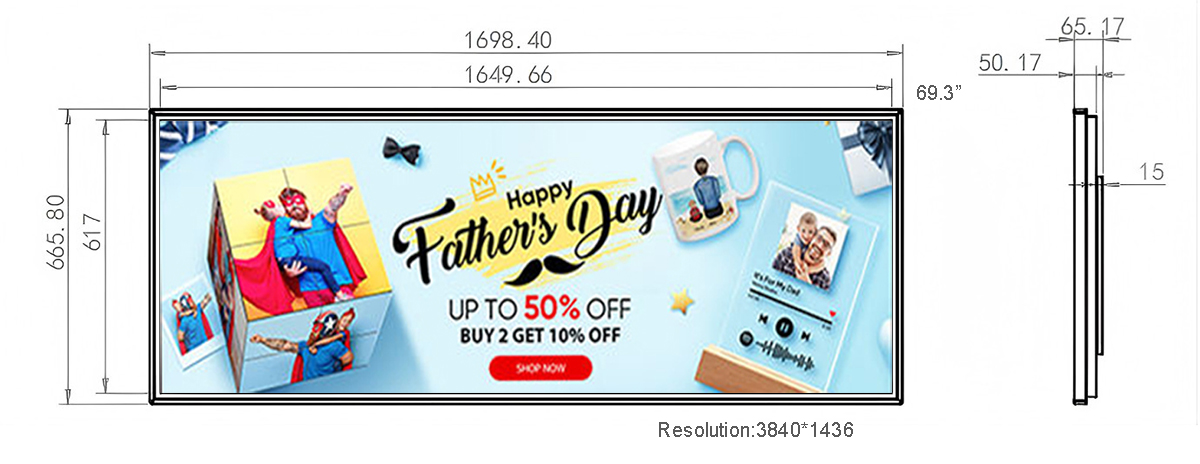

Product Dimension as follows:
Real-World Application Scenarios
Bars
Display cocktail menus, happy-hour promotions, and live event announcements above the counter.
Restaurants
Present digital food menus, chef recommendations, and seasonal promotions while maintaining a clean dining environment.
Coffee Shops
Highlight beverages, desserts, loyalty programs, and limited-time offers in a visually engaging format.
Food Courts
Guide customers with dynamic menu displays that can be updated instantly during peak business hours.
Hotel Dining Areas
Integrate digital menu boards into restaurants, lounges, and breakfast buffets to improve operational efficiency and brand consistency.
Convenience Food Stores
Promote ready-to-eat meals, beverages, and daily specials using compact digital displays that fit limited wall space.
Why Global Buyers Partner with ZXTLCD
As a factory-direct manufacturer, ZXTLCD works with distributors, restaurant equipment suppliers, and digital signage solution providers around the world.
Our advantages include:
- Factory-direct production
- OEM & ODM customization
- Experienced R&D engineers
- Commercial-grade quality control
- Stable production capacity
- International export experience
- Responsive technical support
- Reliable after-sales service
Whether you are developing a new restaurant concept or upgrading an existing digital signage network, we provide tailored solutions that support long-term business growth.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
