69.1 inch Factory Customization Hanging LCD Stretched Bar Digital Signage for Advertising Equipment
69.1 Inch Metal Stretched LCD Display Display area:1649.66*600mm Resolution:3840*1397 Material:Metal、Tempered glass
Shelf Advertising Display Solutions for Modern Visual Merchandising
In today's competitive retail environment, attracting customer attention requires more than attractive products. Retailers are investing in visual merchandising strategies that combine intelligent digital displays with creative store layouts to increase engagement and influence purchasing decisions. A professionally designed Shelf Advertising Display has become an important tool for delivering promotions, guiding shoppers, and strengthening brand identity.
The 69.1-inch hanging stretched LCD display from ZXTLCD is engineered for commercial advertising equipment where space efficiency and visibility are equally important. Its suspended installation design allows businesses to communicate with customers above product aisles, promotional zones, or service counters without occupying valuable floor space. Combined with factory customization services, this display is an ideal solution for global distributors, retail fixture manufacturers, and digital signage integrators.
What Makes a Hanging Shelf Advertising Display Different?
Better Visibility Without Occupying Floor Space
Suspended displays make full use of overhead space, allowing retailers to present advertisements or product information while keeping shopping aisles open and organized.
Flexible Store Layout Integration
The slim stretched format blends naturally into supermarket aisles, shopping malls, department stores, and exhibition halls without disrupting the overall interior design.
Dynamic Multimedia Communication
The display supports videos, images, scrolling text, and scheduled promotional content, enabling marketing teams to adjust campaigns quickly according to different business periods.
Commercial-Grade Durability
Built with industrial-quality LCD panels, the display is designed for reliable daily operation in demanding commercial environments.
69.1 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.1 inch | |
Resolution | 3840*1397 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Factory Customization for Global B2B Projects
Every commercial project requires different specifications. As a professional manufacturer, ZXTLCD offers flexible OEM and ODM solutions for customers worldwide.
Mechanical Customization
Available customization options include:
- Screen size variations
- Hanging structures
- Custom housings
- Mounting accessories
- High-brightness versions
- Interface selection
Software & System Integration
We support:
- Android operating systems
- Windows platforms
- Cloud CMS integration
- Remote content scheduling
- SDK/API development
- Multi-screen synchronization
Private Label Manufacturing
OEM customers can customize logos, packaging, startup interfaces, and user manuals to match their own brand identity.
Recommended Application Scenarios
Supermarkets
Install above product aisles to promote featured items, seasonal campaigns, and category information.
Shopping Malls
Create suspended promotional displays that improve brand visibility while maintaining open public spaces.
Department Stores
Highlight luxury brands, fashion collections, and limited-time promotions in premium retail environments.
Electronics Retailers
Display product comparisons, launch events, and promotional videos above demonstration areas.
Exhibition Centers
Provide overhead navigation, exhibitor advertising, and event information for visitors.
Airports and Transportation Hubs
Deliver advertising, passenger guidance, and public announcements in areas where wall or floor installation is limited.

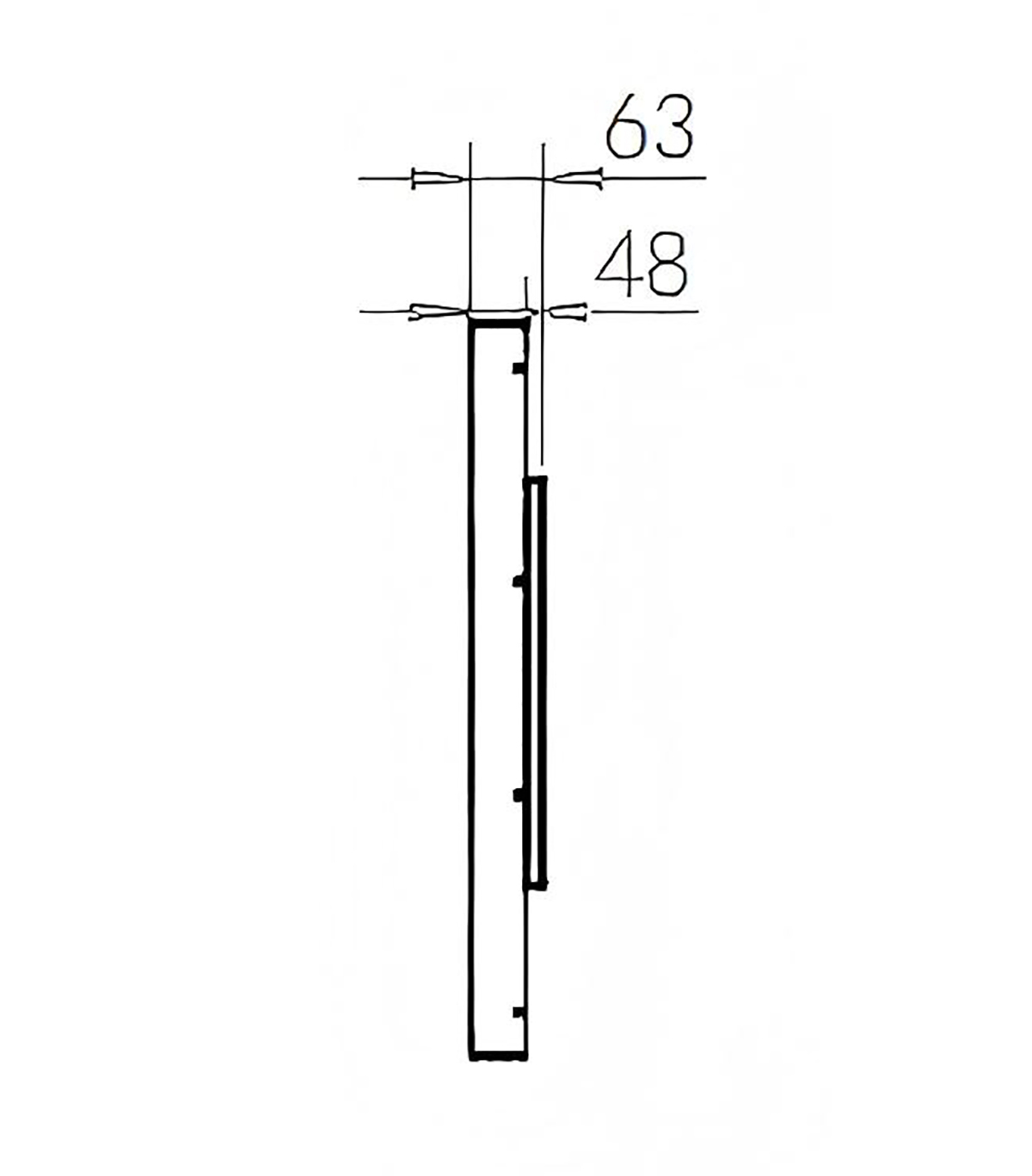

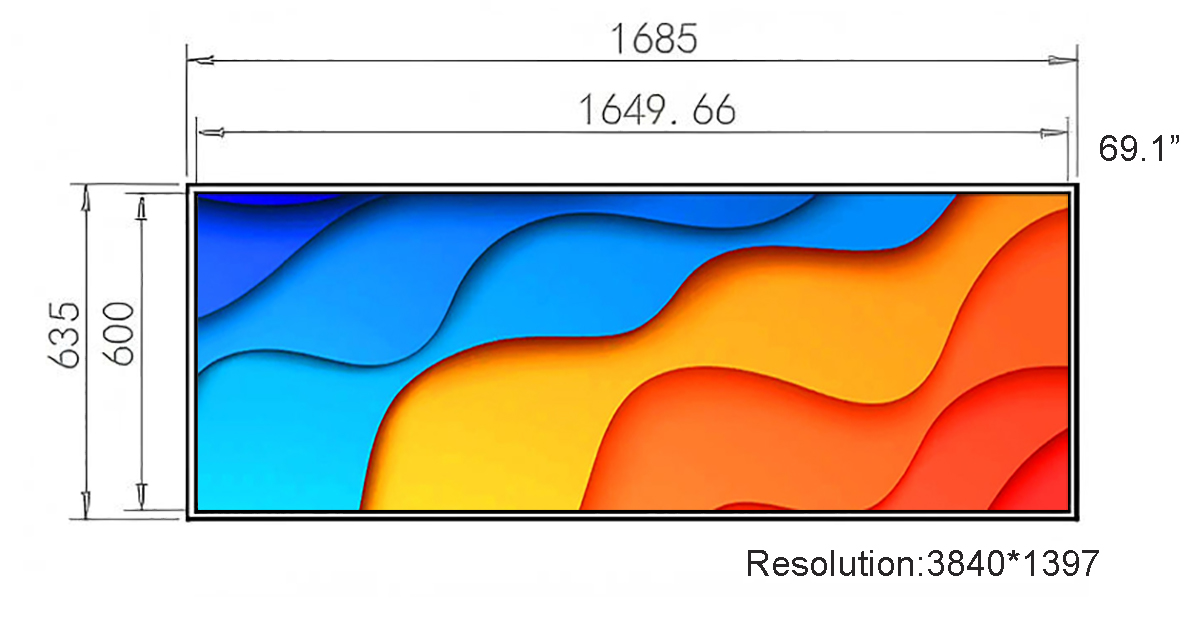

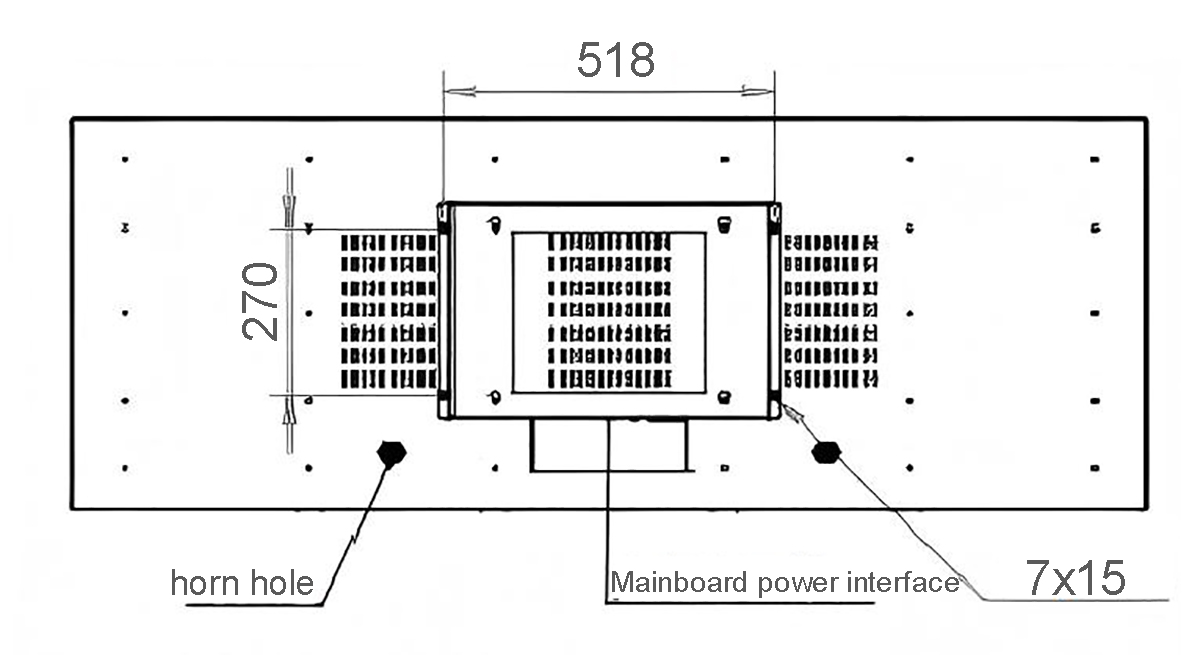

Product Dimension as follows:
Why Choose ZXTLCD as Your Manufacturing Partner?
ZXTLCD has extensive experience supporting international B2B customers with customized commercial LCD display solutions.
Our capabilities include:
- Factory-direct manufacturing
- OEM & ODM development
- Professional engineering consultation
- Strict quality management
- Stable production capacity
- Export experience across global markets
- Flexible project customization
- Reliable after-sales technical support
Whether your project involves a single retail installation or a nationwide digital signage deployment, our engineering team works closely with you from concept to mass production.
Frequently Asked Questions
Q1: What is a Shelf Advertising Display?
A Shelf Advertising Display is a commercial digital signage solution used to promote products, pricing, and brand messaging within retail environments. Hanging models maximize visibility while preserving valuable floor space.
Q2: Can the hanging structure be customized?
Yes. ZXTLCD provides customized suspension systems, mounting accessories, and mechanical designs to meet different installation requirements.
Q3: Is this display suitable for chain retail stores?
Absolutely. It supports centralized content management, making it easy to synchronize promotional campaigns across multiple store locations.
Q4: Do you offer OEM and ODM services?
Yes. We provide complete customization, including hardware design, software integration, branding, packaging, and engineering support.
Q5: Which industries commonly use this display?
The display is widely used in supermarkets, shopping malls, department stores, exhibition centers, airports, convenience stores, and commercial advertising projects.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
