Non-touchscreen
Rack Mount Stretched Monitor (69 Inch) for Surveillance & Command
Direct from manufacturer: 69 inch standard ultra-wide bar display (3840*1440, 500 cd/㎡). High-density panoramic visual solution for space-constrained architectural perimeters. Zero NRE mold fees, fast 3-day sampling, and custom OEM/ODM support.
Specifications
- Screen Size
- 69 Inch
- Resolution
- 3840*1440
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
69 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69 inch | |
Resolution | 3840*1440 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Addressing Narrow Mounting Footprints in High-Density Retail and Public Transit
The physical layout of modern retail gondolas and public transit carriages leaves little room for bulky consumer-style displays. The 69-inch stretched bar screen provides an elegant alternative, delivering native 3840*1440 resolution within an ultra-thin vertical envelope. It enables dynamic multimedia advertising and passenger wayfinding to operate in spaces where standard screens simply cannot fit.
From corporate reception desks to boutique retail showcases, linear digital screens elevate brand perception. High-resolution panoramic graphics create a modern, tech-forward atmosphere that distinguishes premium venues from competitors.
By delivering panoramic visual authority in spaces measuring just a few inches in height, this hardware unlocks dynamic promotional channels along architectural boundaries that traditional AV hardware simply cannot reach.
Long-Term Optical Durability: Solid-State LED Backlight Lifespan Engineering
Featuring an industrial A-grade LCD panel, the 69-inch stretched monitor delivers 3840*1440 resolution and 500 cd/㎡ brightness. The optical stack achieves a 4000 :1 contrast ratio for sharp text and vibrant color saturation. Wide-angle IPS technology ensures true IPS 178-degree wide visual cone visibility, supported by an energy-efficient LED backlight system rated for an industrial service life exceeding 60,000 hours of continuous service.
A durable surface polariser repels static dust accumulation and resists surface scratches, preserving pristine optical transparency in busy public environments with heavy foot traffic.
Solid-state LED backlights utilize efficient thermal conductive substrates, keeping diode junction temperatures low to prevent premature luminous decay and chromatic drift over extended commercial service.
Structural Framing: Rigid Metallic Construction with Flush Architectural Fit
The 69-inch commercial display chassis is constructed from durable metal alloys with a protective matte finish. The slim enclosure fits smoothly into narrow architectural headers, resisting public wear and tear.
The display enclosure is engineered for efficient passive heat dissipation, utilizing internal thermal spreaders and the outer metallic frame to cool internal components. This fanless design ensures silent, maintenance-free performance. Standard VESA mounting provisions and lateral channels provide versatile installation options.

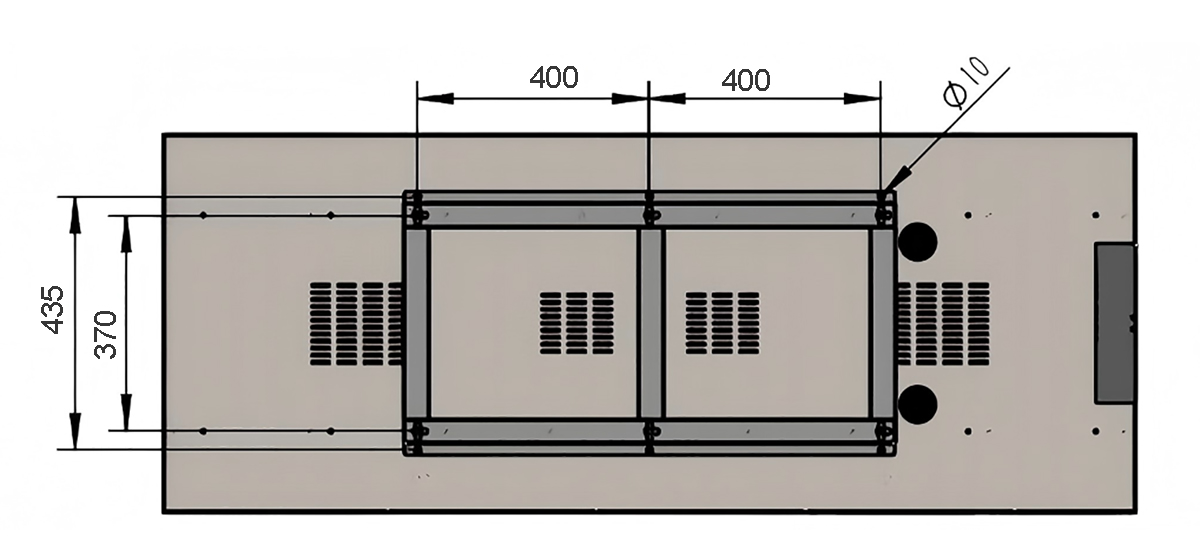

The rear panel incorporates standardized VESA hole arrays with reinforced internal backing plates to support heavy articulated commercial wall arms. Lateral slide-nut channels provide additional anchoring points for custom security locks.
Signal Integrity: Preventing Line Noise and Video Jitter in Industrial Plants
Onboard HDMI, VGA video ports provide flexible connectivity with external media players and embedded systems. Audio output is supported via a 3.5mm Audio Socket. The display operates on universal global 100~240V line voltage at 50/60Hz power with a maximum consumption of ≤ 150w, performing reliably across ambient temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Hardware-level EDID emulation ensures that connected host computers immediately recognize the custom stretched display resolution, streamlining remote software management and automated reboots.
Efficient passive thermal dissipation paths conduct heat away from the internal power module directly to the metal casing, preventing internal thermal buildup and maximizing component longevity.
Seamless Multi-OS Switching via HDMI (Windows / Android / Linux)
Engineered as an open-architecture commercial display without proprietary hardware lock-in. By simply connecting an external Windows PC box, Android media player, or Linux industrial controller via a standard HDMI cable, you can achieve effortless operating system switching tailored to your digital signage CMS, interactive software, or industrial monitoring platform.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 69-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
Agile OEM/ODM Solutions: Custom Paint Finishes, Logo Printing, and Optical Bonding
With over nine years of specialized display manufacturing experience, ZXT supports international system integrators with factory-direct pricing and rapid fulfillment. We offer in-stock tooling, 3-day sample dispatch, and complete engineering documentation including 3D CAD models.
Our engineering staff possesses deep expertise in international compliance standards, assisting partners in meeting CE, FCC, RoHS, and specialized railway or retail electrical safety certifications.
Commercial Buyer FAQ & Technical Inquiries
**Q1: How does the display handle custom ultra-wide resolution timings?**
The onboard industrial A/D scalar automatically locks onto native ultra-wide timings via standard EDID handshakes, ensuring uncompressed pixel-for-pixel rendering without horizontal stretching or letterbox bars.
**Q2: What is the sample dispatch lead time for evaluation units?**
Because ZXT maintains in-stock inventories of standard aluminum extrusion profiles and stamping tooling, evaluation samples can be fully calibrated, burned-in, and dispatched within three working days.
**Q3: What video input interfaces are provided on this monitor?**
The standard configuration includes industrial HDMI and VGA video ports alongside a 3.5mm independent audio socket, allowing immediate plug-and-play connection to PCs, media sticks, and sound systems.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 69-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
