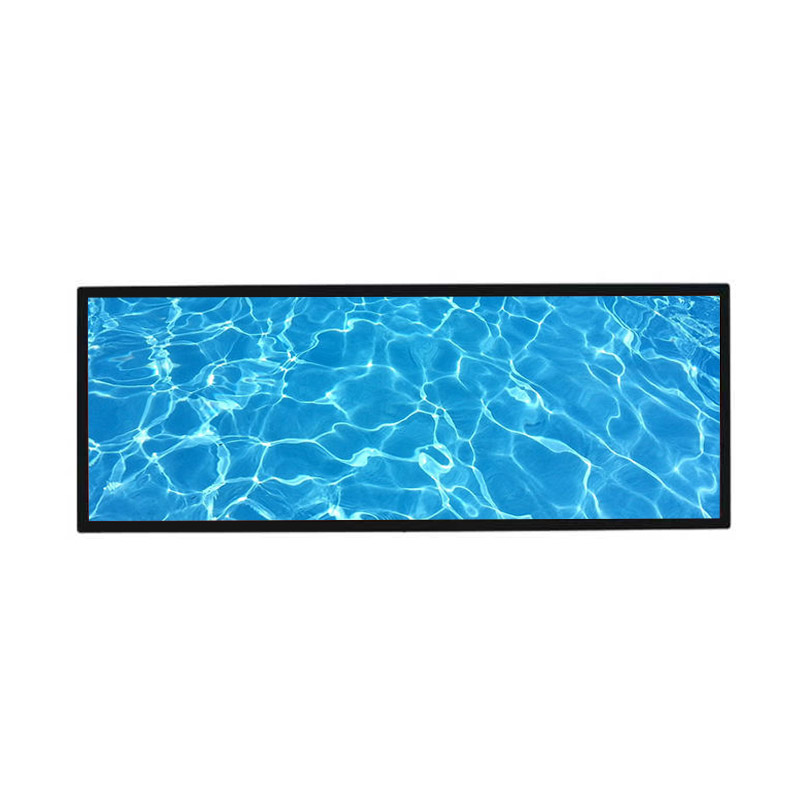

69 Inch or Other Size Ultra Wide Infrared Touch Stretched LCD Monitor Digital Signage
69 Inch Aluminum Stretched LCD Display Display area:1635.84*633.89mm Resolution:3840*1488 Material:Aluminum Touch style:Multi-point Infrared TouchScreen
Commercial Stretched LCD Display with Infrared Touch for Interactive Digital Signage
Interactive technology is becoming an essential part of modern commercial environments. Retailers, transportation hubs, educational institutions, and corporate facilities are increasingly adopting touch-enabled displays to provide information, improve customer engagement, and simplify self-service experiences. A Commercial Stretched LCD Display equipped with infrared touch technology combines the visual impact of an ultra-wide screen with responsive interaction, creating a practical solution for a wide range of professional applications.
The 69-inch stretched LCD monitor from ZXTLCD is designed for projects that require both dynamic digital content and intuitive user interaction. Unlike conventional advertising screens, this model supports infrared touch, allowing users to browse information, select content, or interact with applications directly on the display. In addition, multiple size options are available, making it easier to integrate the display into customized commercial installations.
As a factory-direct manufacturer, ZXTLCD provides comprehensive OEM and ODM services, helping distributors, system integrators, and brand owners develop tailored commercial display solutions.
Key Features Designed for Commercial Projects
Infrared Touch Technology
Infrared touch supports accurate and responsive interaction without requiring physical pressure. It accommodates finger touch, gloves, and various pointing devices, making it suitable for public environments with frequent user interaction.
Ultra-Wide Commercial Display
The stretched aspect ratio efficiently utilizes narrow installation spaces such as retail shelving, exhibition booths, transportation terminals, and reception areas while maintaining excellent content visibility.
Multiple Size Options
Besides the standard 69-inch version, ZXTLCD can customize different display sizes to match project-specific installation requirements, reducing design limitations for OEM customers.
Commercial-Grade Stability
Industrial-quality LCD panels and reliable electronic components are engineered for extended operating hours, ensuring stable performance in demanding commercial environments.
69 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69 inch | |
Resolution | 3840*1488 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
OEM & ODM Services for Customized Projects
ZXTLCD supports businesses seeking unique display solutions for commercial deployment.
Hardware Customization
Customers can choose:
- Custom screen sizes
- Infrared or capacitive touch
- High-brightness LCD panels
- Open-frame designs
- Customized enclosures
- Flexible mounting methods
Software Integration
Development services include:
- Android and Windows operating systems
- Cloud-based CMS compatibility
- API and SDK integration
- Interactive application development
- Remote content management
- Multi-display synchronization
Private Branding
OEM services include logo printing, customized packaging, interface design, and complete private-label manufacturing.
Application Scenarios
Retail Stores
Provide interactive product information, promotional campaigns, and digital shelf communication.
Shopping Malls
Offer touch-enabled directories, promotional displays, and visitor navigation systems.
Transportation Hubs
Display route information, schedules, and public announcements while allowing passengers to search destinations interactively.
Museums and Exhibition Centers
Create immersive exhibits where visitors can explore multimedia content through intuitive touch interaction.
Educational Institutions
Support campus information systems, digital notice boards, and interactive learning applications.
Corporate Buildings
Improve visitor management with interactive reception displays, meeting room information, and company directories.

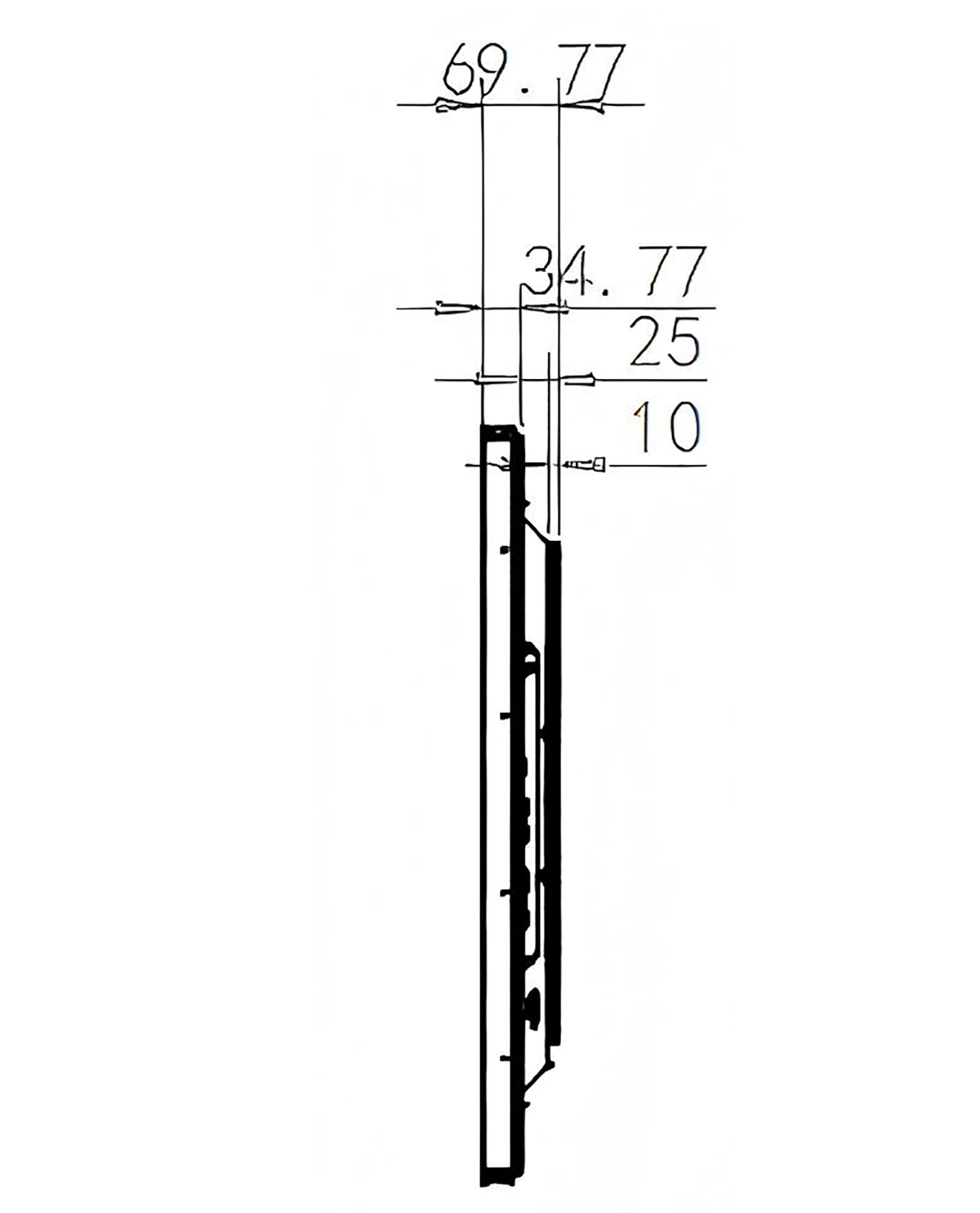

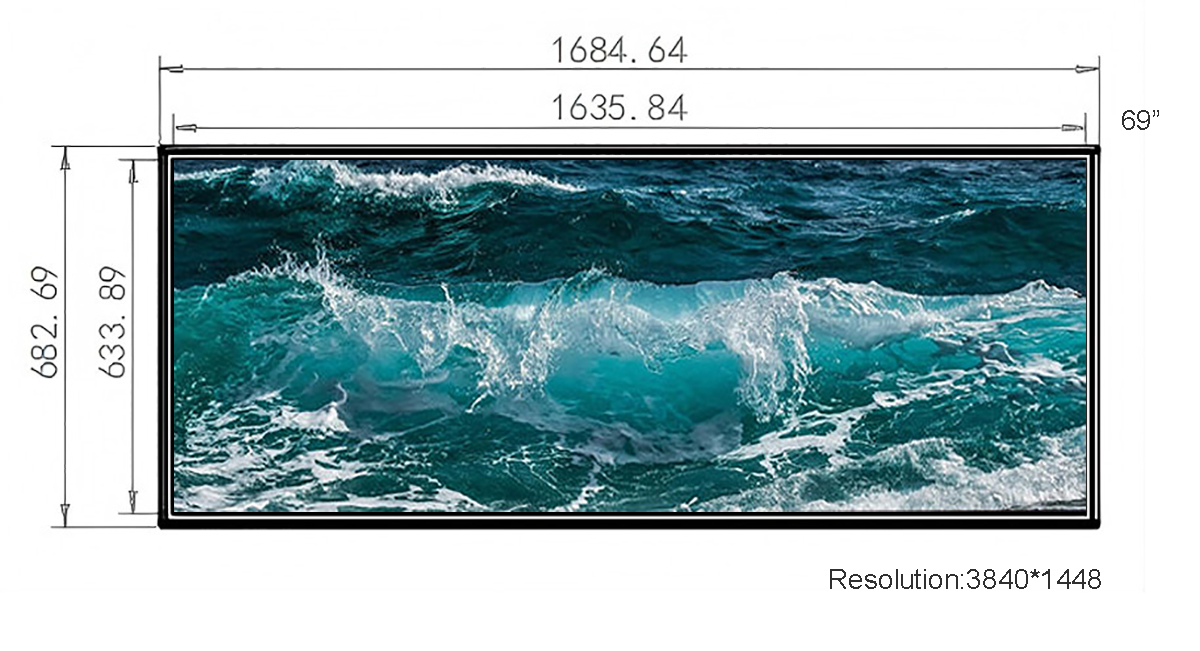

Product Dimension as follows:
Why Work with ZXTLCD?
ZXTLCD specializes in commercial LCD display manufacturing for international B2B customers.
Our strengths include:
- Factory-direct production
- OEM & ODM engineering support
- Experienced R&D team
- Strict quality control
- Flexible customization
- Stable manufacturing capacity
- Global export experience
- Reliable after-sales technical service
We work closely with distributors, project contractors, and digital signage solution providers to deliver dependable commercial display products.
Frequently Asked Questions
Q1: What is a Commercial Stretched LCD Display?
A Commercial Stretched LCD Display is an ultra-wide commercial monitor designed for professional environments where conventional displays cannot efficiently fit. It is widely used in retail, transportation, hospitality, education, and public information systems.
Q2: What are the advantages of infrared touch?
Infrared touch offers high accuracy, excellent durability, and supports operation with fingers, gloves, or stylus devices, making it suitable for high-traffic commercial environments.
Q3: Can different screen sizes be customized?
Yes. ZXTLCD provides multiple display sizes and project-based customization to accommodate different installation requirements.
Q4: Does the display support remote content management?
Yes. It can be integrated with compatible cloud-based CMS platforms for centralized scheduling, content updates, and device management.
Q5: Does ZXTLCD offer OEM and ODM services?
Absolutely. We provide complete hardware customization, software development, private labeling, packaging, and engineering support for commercial display projects.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
