Non-touchscreen
69 Inch Double Sided Digital Signage Subway Passenger Information Stretched Bar LCD Display
69 Inch Hardware Stretched LCD Display Display area:1649.66*618mm Resolution:3840*1440 Material:Hardware、Tempered glass

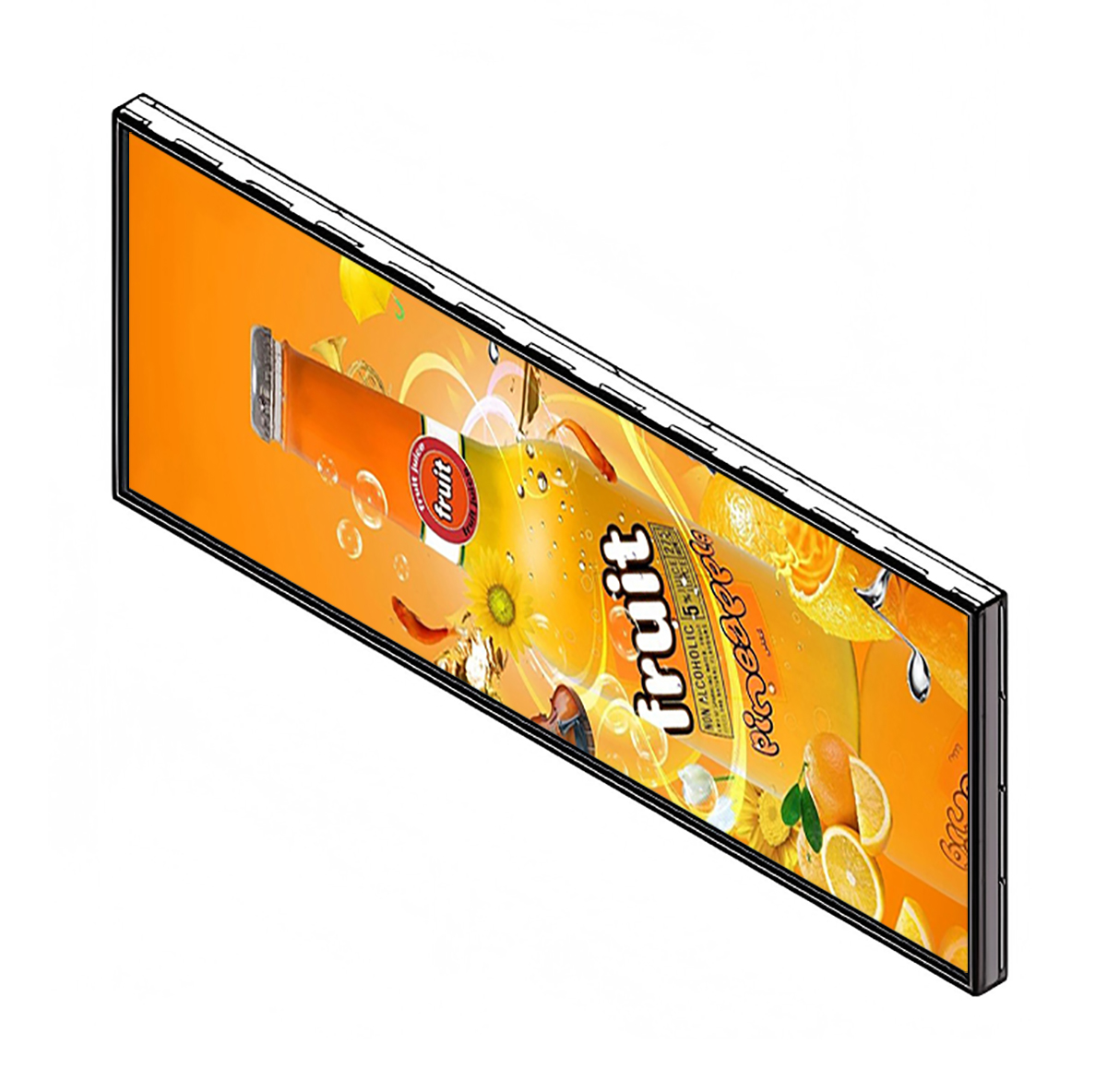

69 Inch Double Sided Digital Signage Subway Passenger Information Stretched Bar LCD Display
Smart Transportation Display Solution for Modern Rail Transit Networks
The 69 inch double-sided stretched bar LCD monitor is a professional commercial display designed for subway systems, railway stations, transit hubs, and public transportation networks. Featuring dual-screen visibility and an ultra-wide display format, this solution enables operators to deliver real-time passenger information, advertising content, and transportation updates efficiently in high-traffic environments.
As urban mobility infrastructure continues to evolve, transportation authorities require intelligent display systems that improve communication, enhance passenger experiences, and support digital transformation initiatives. This double-sided display provides a highly effective platform for both information delivery and revenue-generating advertising.
Dual-Sided Visibility for Maximum Communication Efficiency
Unlike traditional single-sided displays, a double-sided stretched bar LCD monitor can present content in two directions simultaneously, making it ideal for busy transportation environments.
The display can be used to show:
- Train arrival and departure schedules
- Platform information
- Route guidance
- Passenger announcements
- Emergency notifications
- Service updates
- Commercial advertising
- Public information messages
This dual-screen configuration improves visibility while maximizing the value of installation space.
69 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69 inch | |
Resolution | 3840*1440 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features of the 69 Inch Double-Sided Display
Double-Sided Commercial LCD Design
Both sides of the display can present synchronized or independent content, providing greater flexibility for transportation operators and advertisers.
Ultra-Wide Stretched Screen Format
The panoramic display structure is optimized for timetable information, directional guidance, and transportation-related communications.
High-Definition Visual Performance
The commercial LCD panel delivers:
- Sharp text readability
- Clear route information
- High-resolution graphics
- Wide viewing angles
- Stable image quality
Continuous 24/7 Operation
Built for mission-critical environments, the display supports reliable round-the-clock performance.
Intelligent Content Management
Compatible with centralized management systems, the display enables operators to distribute updates and announcements across multiple locations in real time.
Ideal Applications
Subway Passenger Information Systems
Provide passengers with real-time train schedules, route updates, platform guidance, and operational announcements.
Railway Stations
Display departure information, arrival times, service notifications, and station guidance content.
Metro Transit Networks
Support passenger communication and navigation across large transportation systems.
Bus and Intermodal Terminals
Deliver route information, transfer guidance, and public service announcements.
Smart City Transportation Projects
Integrate with urban mobility infrastructure to improve public communication and operational efficiency.
Station Advertising Networks
Generate additional revenue through digital advertising displayed alongside transportation information.

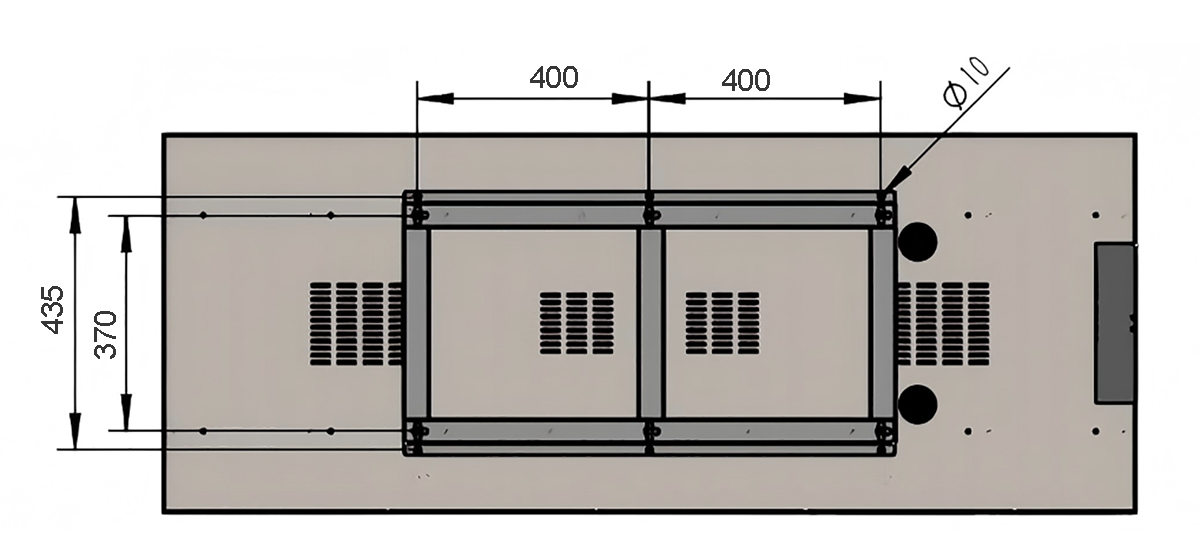

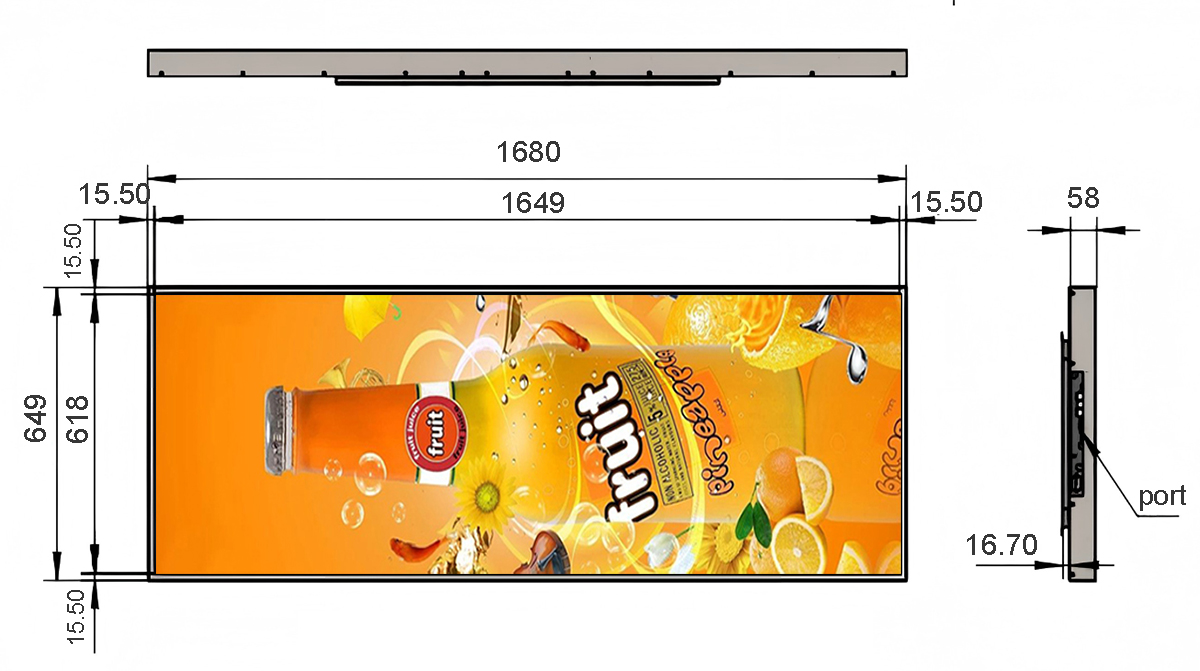

Product Dimension as follows:
OEM & ODM Transportation Display Solutions
As a professional stretched LCD display manufacturer, ZXTLCD provides customized OEM and ODM services for transportation authorities, system integrators, and infrastructure contractors.
Customization options include:
- Custom display sizes
- Double-sided or single-sided configurations
- Android or Windows operating systems
- High-brightness outdoor solutions
- Network management integration
- Passenger information software compatibility
- Custom branding
- Project-specific hardware development
Our engineering team works closely with customers to deliver tailored transportation display systems that meet the requirements of rail, metro, and smart city projects.
Why Choose ZXTLCD
ZXTLCD specializes in commercial stretched display manufacturing and intelligent transportation display solutions.
Our advantages include:
- Factory-direct production
- OEM & ODM customization
- Transportation project experience
- Professional engineering support
- Strict quality control standards
- Fast production schedules
- One-year warranty
- Comprehensive after-sales service
We help transportation operators and system integrators build reliable passenger information systems that improve communication efficiency and support smart mobility initiatives.
Frequently Asked Questions
What is a stretched bar LCD monitor used for?
A stretched bar LCD monitor is commonly used for passenger information systems, transportation signage, digital advertising, wayfinding, and public communication applications.
Why use a double-sided display?
Double-sided displays maximize visibility by presenting content in two directions simultaneously, making them ideal for transportation hubs and crowded public spaces.
Can the display integrate with passenger information systems?
Yes. The display can be integrated with transportation management platforms and real-time information systems.
Do you offer OEM and ODM services?
Yes. ZXTLCD provides complete customization solutions including hardware, software, branding, and system integration.
Is the display suitable for continuous operation?
Absolutely. It is designed for commercial transportation environments and supports 24/7 operation.
Request a Quote
Looking for a reliable stretched bar LCD monitor manufacturer for subway, railway, and smart transportation projects? ZXTLCD provides factory-direct pricing, OEM & ODM customization, and professional engineering support for passenger information display systems worldwide.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
