69 inch 3840*1488 high brightness 600 nit subway Wall-mounted stretched lcd display for sale
69 Inch Aluminum Stretched LCD Display Display area:1635.84*633.89mm Resolution:3840*1488 Material:Aluminum、Tempered glass Touch style:G+FF Capacitive Touch screen
Open Frame Stretched LCD for Transportation and Public Information Systems
Modern transportation networks rely on digital displays to deliver accurate information, improve passenger guidance, and create more efficient public spaces. From metro stations and railway platforms to airports and bus terminals, display technology has become an essential component of intelligent infrastructure. An Open Frame Stretched LCD is particularly suited to these environments because it can be seamlessly integrated into custom enclosures, wall-mounted systems, and architectural installations.
The 69-inch high-brightness stretched LCD from ZXTLCD is developed for transportation projects that demand reliable operation, clear visibility, and flexible installation. Featuring a 3840 × 1488 resolution, 600-nit brightness, and an open-frame design, this display is engineered for long-term commercial use in high-traffic environments while offering OEM and ODM customization for large-scale projects.
Why Open Frame Displays Are Preferred in Infrastructure Projects
Unlike conventional enclosed displays, an open-frame stretched LCD is designed to become part of a larger system. System integrators can install the display inside kiosks, wall recesses, ticketing machines, or custom-built cabinets while maintaining a clean architectural appearance.
This approach offers several practical advantages:
- Easier equipment integration
- Flexible enclosure design
- Simplified maintenance access
- Better heat management
- Reduced installation footprint
- Consistent visual appearance across public facilities
These benefits make open-frame displays a popular choice for transportation, smart city, and public information projects.
69 Inch Stretched LCD (Aluminum) | ||
Display Specifications | ||
Screen Size | 69 inch | |
Resolution | 3840*1488 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Features That Support Professional System Integration
High-Brightness Performance
With a brightness level of 600 nits, the display delivers clear images and readable content in brightly lit indoor environments such as subway stations, airport terminals, and shopping concourses.
Ultra-Wide High Resolution
The 3840 × 1488 resolution provides sharp text and detailed graphics across the elongated screen, allowing operators to present route information, advertisements, emergency notices, and multilingual announcements simultaneously.
Open-Frame Construction
The open-frame structure allows manufacturers and engineering teams to integrate the display into custom housings without redesigning the entire display system, reducing project complexity.
Commercial-Grade Reliability
Industrial-quality components support long operating hours and stable performance, meeting the demands of continuous commercial operation.
Application Scenarios
Subway and Metro Stations
Display train schedules, platform guidance, service alerts, and commercial advertising in confined architectural spaces.
Railway Terminals
Provide passengers with real-time departure information, route maps, and public announcements.
Airports
Integrate the display into information walls, gate areas, and passenger guidance systems where wide-format content improves readability.
Smart City Installations
Support municipal information systems, public service announcements, and interactive digital infrastructure.
Shopping Centers
Install inside architectural walls or custom display structures for wayfinding, promotional messaging, and event information.
Corporate Campuses
Deliver visitor guidance, internal communication, and building information through integrated digital signage systems.

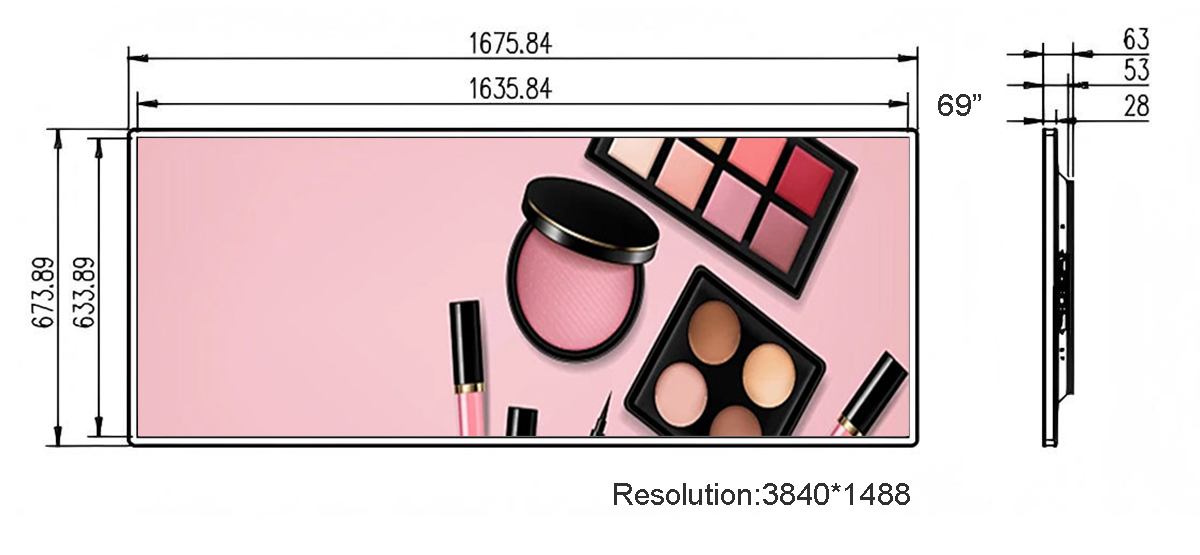

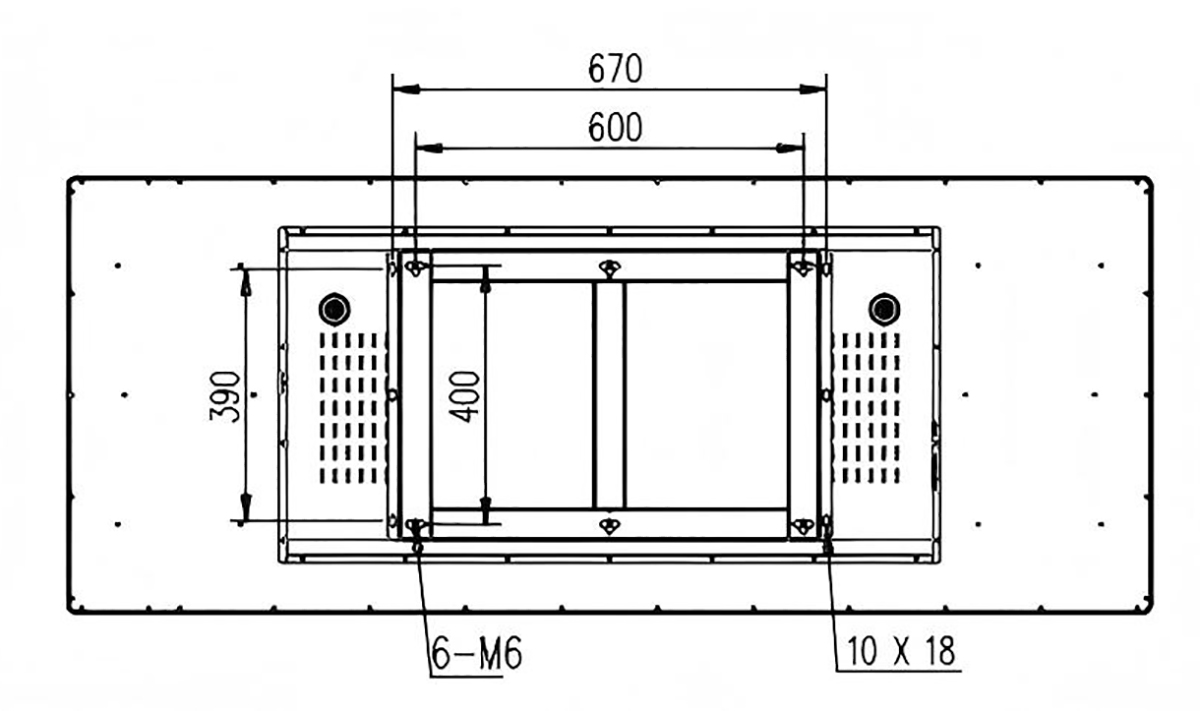

Product Dimension as follows:
Frequently Asked Questions
Q1: What is an Open Frame Stretched LCD?
An Open Frame Stretched LCD is a commercial display without an external decorative enclosure, allowing it to be integrated directly into kiosks, architectural structures, transportation equipment, or custom-built digital signage systems.
Q2: Is 600 nits sufficient for transportation environments?
Yes. A 600-nit display provides excellent visibility for most indoor transportation facilities such as subway stations, airports, and railway terminals with strong ambient lighting.
Q3: Can the display be customized for specific infrastructure projects?
Yes. ZXTLCD offers customization of dimensions, brightness, touch technology, mechanical structures, interfaces, and software integration to meet project requirements.
Q4: Does the display support remote content management?
Yes. It is compatible with Android or Windows systems and can be integrated with cloud-based CMS platforms for centralized content scheduling and monitoring.
Q5: Does ZXTLCD provide OEM and ODM manufacturing?
Absolutely. We support hardware customization, software development, branding, packaging, and complete project-based manufacturing for global B2B customers.
Supporting the Future of Intelligent Transportation
As transportation systems continue to evolve toward smarter infrastructure, integrated digital displays play an increasingly important role in delivering information efficiently and enhancing passenger experiences. The 69-inch Open Frame Stretched LCD combines high resolution, commercial durability, and flexible integration, making it a dependable solution for transportation authorities, system integrators, and digital signage providers.
With factory-direct production, experienced engineering teams, and comprehensive OEM & ODM services, ZXTLCD is committed to helping partners develop reliable display systems for the next generation of public information networks.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
