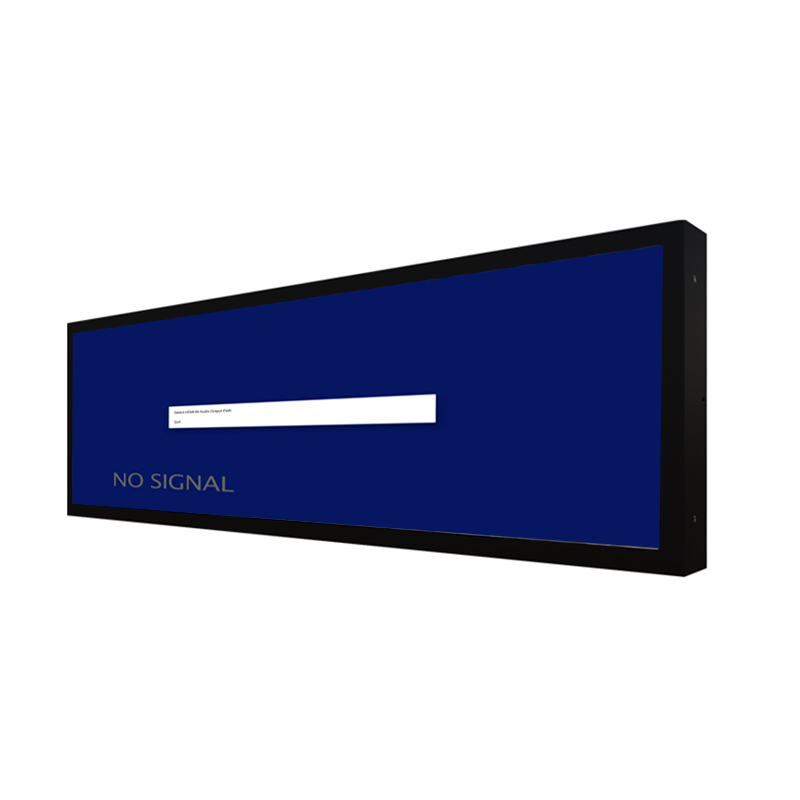

Panoramic Transit Signage: 69.4 Inch Large Format Stretched LCD Display
Specialized 69.4 inch industrial sheet metal bar monitor (3840*1440, 500 cd/㎡) direct from Shenzhen manufacturing facility. Engineered for space-limited commercial installations with robust metal housing. Fast 3-day evaluation samples available.
Specifications
- Screen Size
- 69.4 Inch
- Resolution
- 3840*1440
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
69.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.4 inch | |
Resolution | 3840*1440 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Horizontal Form Factors: Purpose-Built Solutions for Narrow Physical Footprints
Maximizing spatial productivity is essential in high-density retail aisles, airport passenger corridors, and vehicle passenger cabins. Standard desktop-format screens obstruct customer views and complicate mechanical mounting due to their bulky vertical proportions. The 69.4-inch stretched commercial display addresses this spatial conflict through an ultra-wide form factor delivering native 3840*1440 resolution across an active 69.4-inch diagonal. This specialized geometry fits flush into horizontal headers, narrow shelving channels, and compact control desks, delivering vibrant graphics without demanding vertical headroom.
In high-traffic transit corridors, clear visual hierarchy is essential for passenger comfort. Panoramic displays mounted overhead deliver critical wayfinding data in an intuitive linear format that commuters can digest in seconds.
Commercial interiors increasingly emphasize clean, unobtrusive architectural lines. The slender profile of this display integrates organically into modern store designs, avoiding the bulky industrial look of conventional commercial monitors.
Visual Integrity: Deep Black Levels, High Contrast, and Chromatic Consistency
The optical configuration of the 69.4-inch stretched screen combines 3840*1440 resolution with 500 cd/㎡ calibrated brightness. Featuring a 4000 :1 contrast ratio, the panel delivers rich colors and deep blacks. IPS wide-viewing optics ensure consistent CR≥10 wide-angle IPS optical alignment visibility without color shifting, while the commercial-grade LED backlight delivers an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
Factory color calibration ensures that multi-screen video ribbon installations display identical chromatic balance and brightness levels, creating a cohesive, professional appearance across extended display walls.
Optical clarity is maintained across years of continuous operation thanks to high-grade polarising films that resist ultraviolet degradation and discoloration caused by prolonged ambient exposure.
Structural Framing: Rigid Metallic Construction with Flush Architectural Fit
The 69.4-inch monitor is enclosed in a durable cold-rolled steel chassis designed for continuous industrial use. Its reinforced metal frame absorbs physical impacts and track vibration, ensuring long-term operational stability in demanding public transit and factory settings.
The display enclosure is engineered for efficient passive heat dissipation, utilizing internal thermal spreaders and the outer metallic frame to cool internal components. This fanless design ensures silent, maintenance-free performance. Standard VESA mounting provisions and lateral channels provide versatile installation options.
The rear panel incorporates standardized VESA hole arrays with reinforced internal backing plates to support heavy articulated commercial wall arms. Lateral slide-nut channels provide additional anchoring points for custom security locks.
Universal Power Conversion: Resilient Operation Across Commercial Mains Grids
With standard HDMI, VGA inputs, the display links easily to digital signage players and industrial computing equipment. An integrated 3.5mm Audio Socket provides audio output capability. The internal power converter accepts universal 100-240V commercial electrical mains mains with power consumption limited to ≤ 150w, rated for operating conditions of below10℃ ~ +50℃ and ≤ 85%RH.
The audio output circuitry supports synchronized stereo playback, enabling interactive kiosks to provide clear voice prompts and confirmation chimes during customer self-service transactions.
The low-voltage direct current output stage delivers ultra-clean power to the liquid crystal timing controller, eliminating horizontal line noise and visual ripple in sensitive commercial AV setups.
Decoupled Open-Architecture Display for Multi-OS Environments
Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Application Blueprints: Deploying Stretched Bar Displays for Maximum Return
The 69.4-inch stretched bar monitor is optimized for linear architectural installations. It provides dynamic shelf-edge pricing in retail stores, route progress alerts in public transit vehicles, equipment status feeds in control centers, and directory listings in commercial office buildings.
High-speed commuter rail platform gates utilize this display as an overhead platform indicator. Passengers waiting along boarding zones can check real-time train arrival times, car carriage layouts, and safety instructions at a single glance.
Financial trading desks and professional creative workstations benefit from the display's ultrawide auxiliary utility. Traders and video editors keep critical communications and timeline trackers visible without sacrificing main desktop workspace.
Factory Direct Capabilities: Rapid Prototyping and Modular Assembly Formats
ZXT operates as an authentic source manufacturer of industrial commercial displays, eliminating third-party trading intermediaries to provide direct engineering collaboration and transparent factory pricing. Over nine years of research, development, and production have yielded an extensive library of proven tooling designs. For our clients, this means zero tooling costs on standard sizes and expedited sample delivery within three business days. To accommodate diverse global import regulations and assembly preferences, we deliver hardware in turnkey finished packages or modular SKD/CKD formats. Supplying matched panel cells, pre-configured driver motherboards, wiring harnesses, and chassis components allows international partners to assemble locally, dramatically cutting air freight expenses and tariff burdens. Our design engineers work directly with your technical personnel, providing 3D CAD modeling files, structural tolerance consultations, and customized interface configurations.
Maintaining extensive raw glass cell inventories and pre-machined aluminum extrusions enables our factory to fulfill volume orders with rapid turnaround, minimizing project schedule risks for international contractors.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
Contact Our International Display Engineering Desk
Connect directly with ZXT's display engineering specialists to review specifications, request 2D/3D CAD blueprints, or schedule a sample dispatch for the 69.4-inch stretched bar LCD monitor. Provide your target application details, interface requirements, and volume goals, and our factory team will provide a comprehensive proposal and competitive commercial quotation within two hours.
