Non-touchscreen

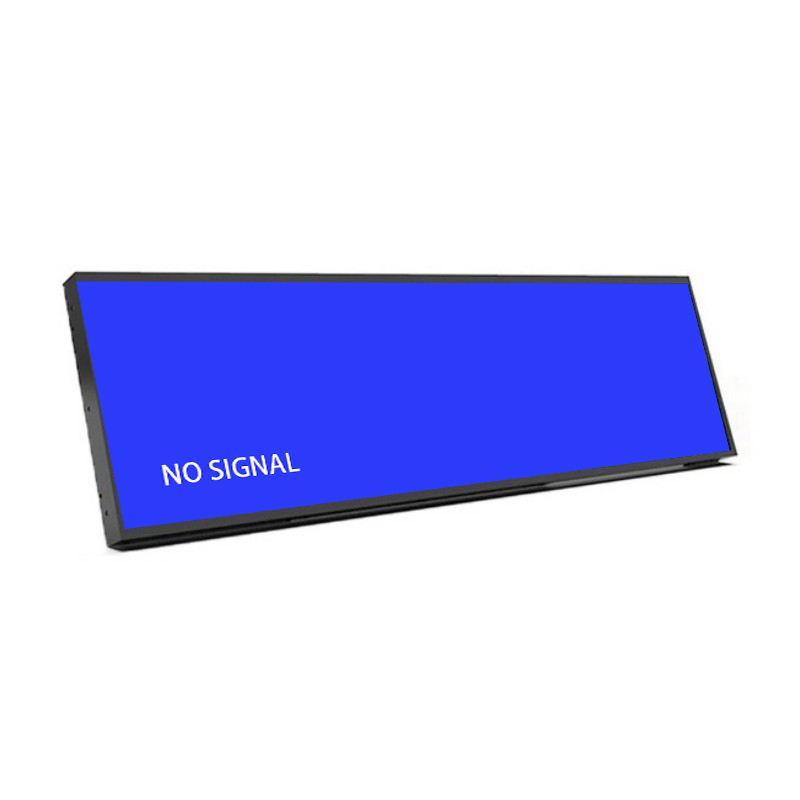

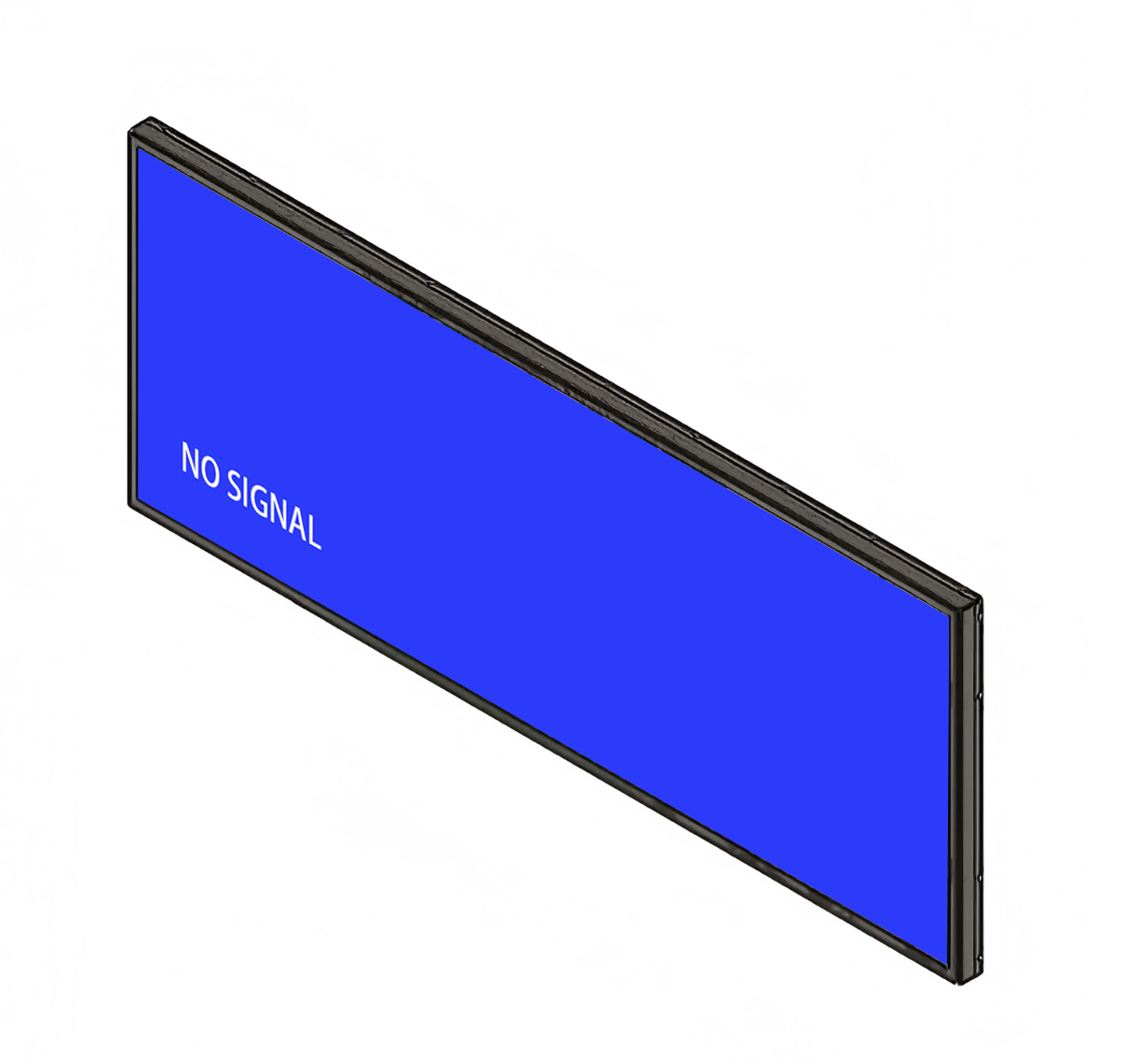

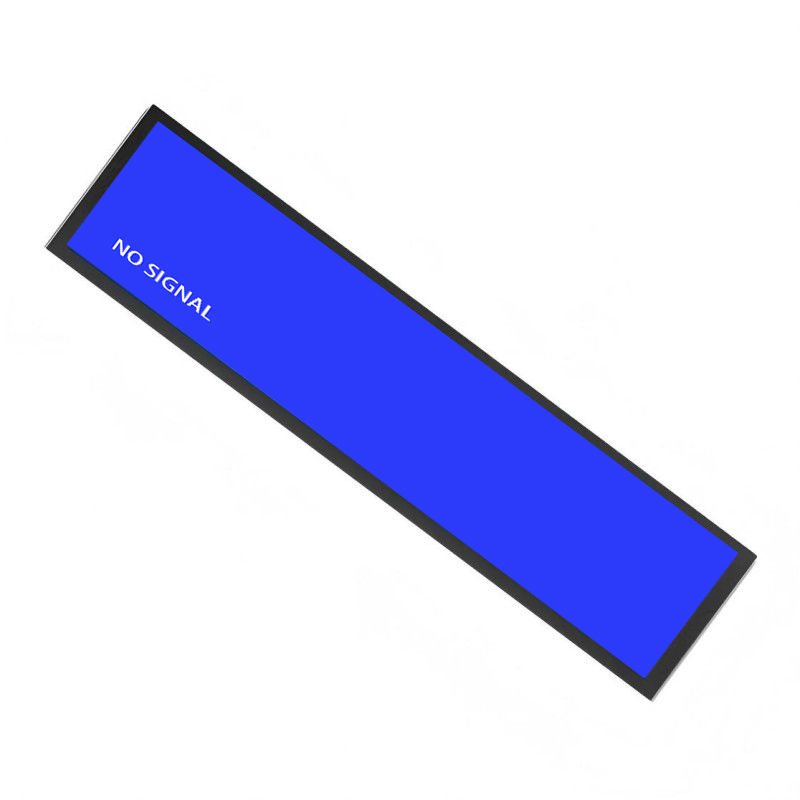

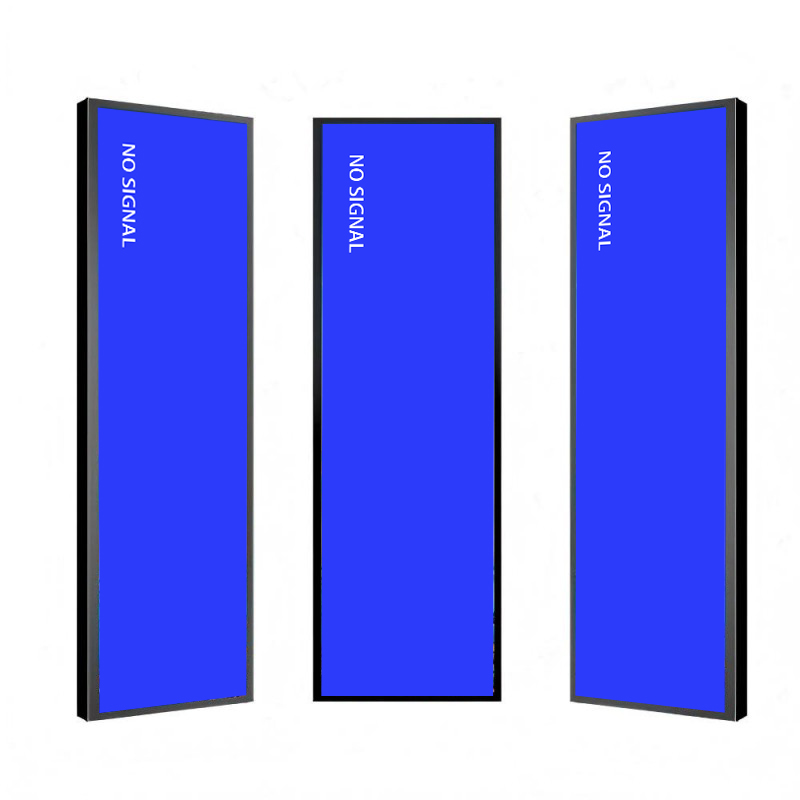

Panoramic Transit Signage: 69.3 Inch Large Format Stretched LCD Display
Factory-direct 69.3 inch industrial sheet metal bar monitor with 3840*1440 panoramic resolution and 300~400 cd/㎡ luminance. Ideal for supermarket shelf-edges, passenger wayfinding, and industrial consoles. Turnkey monitors and CKD/SKD assembly packs available.
Specifications
- Screen Size
- 69.3 Inch
- Resolution
- 3840*1440
- Brightness
- 300~400 cd/㎡
- Interface
- HDMI / VGA
69.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.3 inch | |
Resolution | 3840*1440 | |
Brightness | 300~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Linear Digital Communication: Overcoming Traditional Screen Placement Barriers
Standard monitors often prove impractical when mounting displays along narrow retail shelves or vehicle door bulkheads. The 69.3-inch stretched display overcomes these geometric limitations, presenting 3840*1440 resolution across an active 69.3-inch diagonal to deliver clear, uncompressed digital visuals in tight horizontal spaces.
Retailers can highlight high-margin products and limited-time offers directly where purchasing decisions occur. Eye-level digital animation captures customer attention far more effectively than static shelf tags.
In transit vehicle design, maintaining passenger headroom and complying with safety clearance standards is mandatory. The ultra-slim vertical depth of this display ensures compliance while maximizing information display area.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 3840*1440 across the 69.3-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 300~400 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 4000 :1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Thermal Dissipation Engineering: Silent Conduction Without Moving Parts
To withstand continuous industrial operation, the 69.3-inch display is enclosed in a heavy-gauge galvanized steel shell with reinforced corner welding. This rigid construction prevents chassis twisting, dampens machine vibrations, and provides effective electromagnetic shielding against motor drives and high-voltage switchgear.

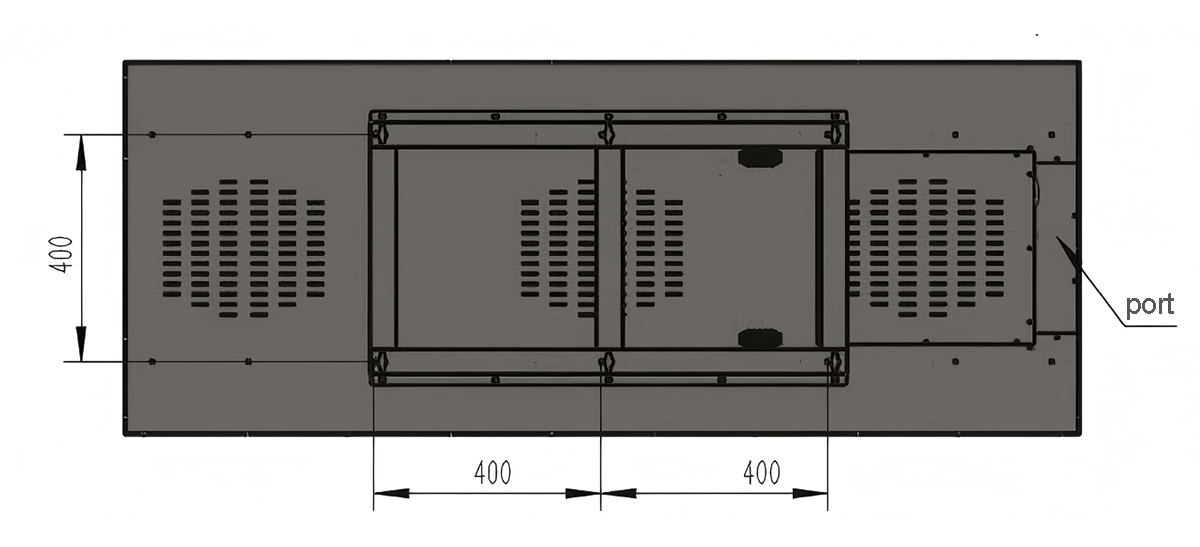

Engineered for continuous commercial operation, the display utilizes a fanless thermal architecture that dissipates heat naturally through its metal chassis. This design prevents mechanical failure and internal dust contamination, ensuring silent, reliable performance in retail and transportation settings. Mounting options include standard rear VESA patterns and versatile lateral mounting slots.
Integrated structural slide channels along the top and bottom edges permit tool-free adjustment when mounting multiple screens in a continuous horizontal line. This modular mechanical rail system cuts field installation labor by up to forty percent for large retail fit-outs.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated 3.5mm Audio Socket supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 150w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.
Vendor-Neutral Display Architecture with Plug-and-Play Video

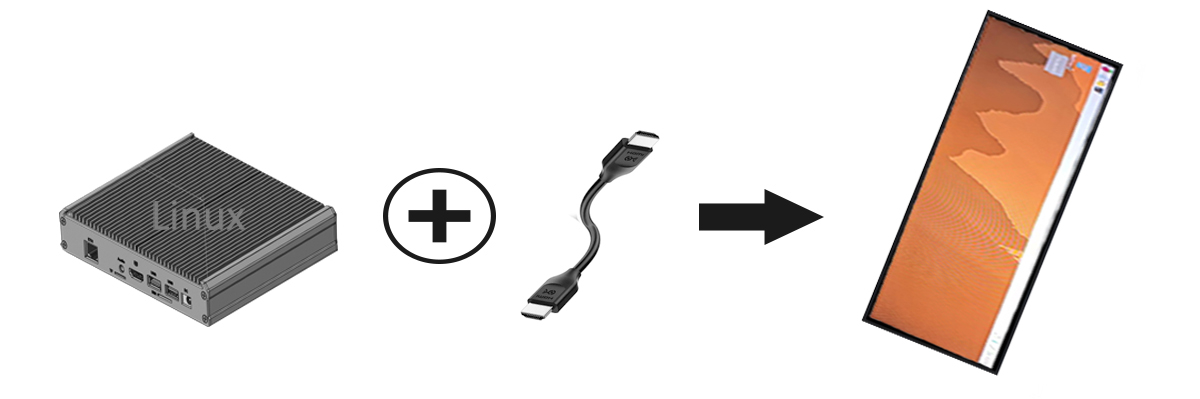

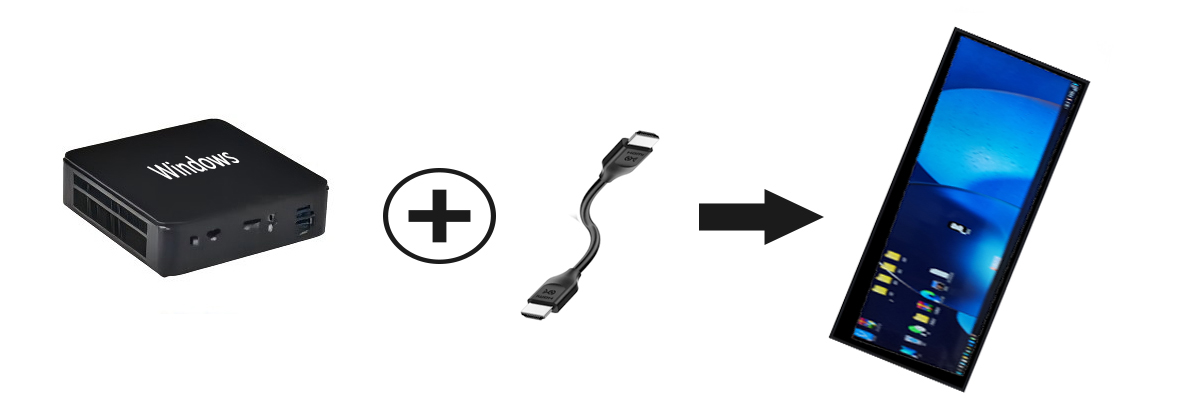

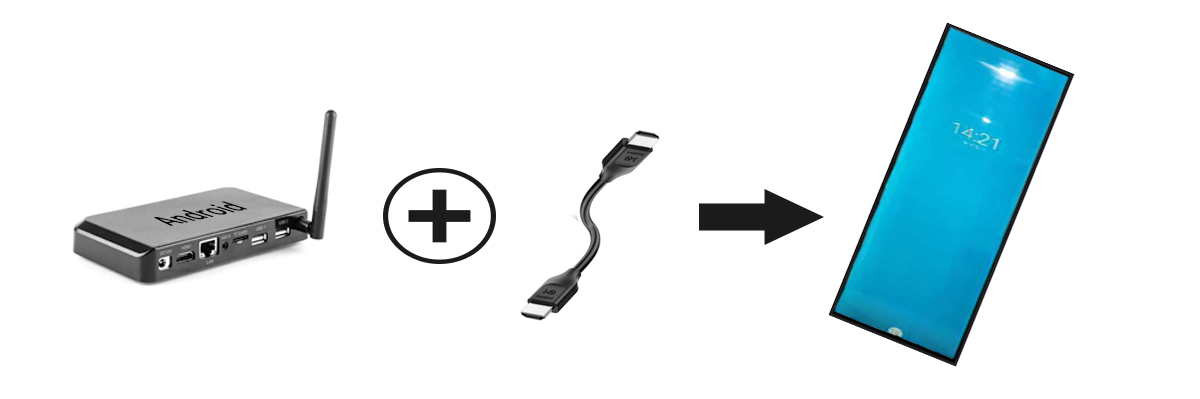

Protect your technology investment against proprietary software dead-ends. Engineered with universal HDMI input standards, the screen communicates flawlessly with external computing hardware running Windows, Android, or Linux. System integrators maintain full autonomy to select, configure, and upgrade their media software, interactive touch applications, and remote device monitoring tools without restrictive third-party platform limitations.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 69.3-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
B2B Production Excellence: 100% Factory Burn-In Testing and Direct Support
Direct factory procurement from ZXT ensures competitive pricing and reliable hardware delivery. We maintain in-stock extrusion tooling, offer 3-day sample dispatch, and support international partners with flexible delivery formats from finished displays to modular SKD kits.
Long-term component lifecycle management ensures that key panel models, driver boards, and mechanical dimensions remain stable across multi-year enterprise rollout phases, preventing unexpected redesigns.
Display Integration & Technical FAQ
**Q1: Can we control the display power state remotely?**
Yes. The monitor supports standard HDMI CEC power synchronization and automated signal-sensing sleep modes, allowing connected media players to wake or sleep the display automatically according to operating schedules.
**Q2: What is the operating temperature range for this hardware?**
The display is engineered for wide-temperature commercial stability, operating reliably across ambient environments from -10°C to +50°C (with optional extended wide-temperature packages from -20°C to +70°C).
**Q3: How does ZXT guarantee consistent quality across volume production?**
Every production run undergoes 100% factory burn-in testing under elevated temperature and humidity conditions, optical colorimeter calibration, and rigorous mechanical vibration screening before packaging.
Inquire for Factory-Direct Terms and CAD Files
Connect with our commercial display specialists to discuss custom bracket finishing, sample availability, or volume pricing for the 69.3-inch stretched bar monitor. We provide comprehensive quotes within two hours.
