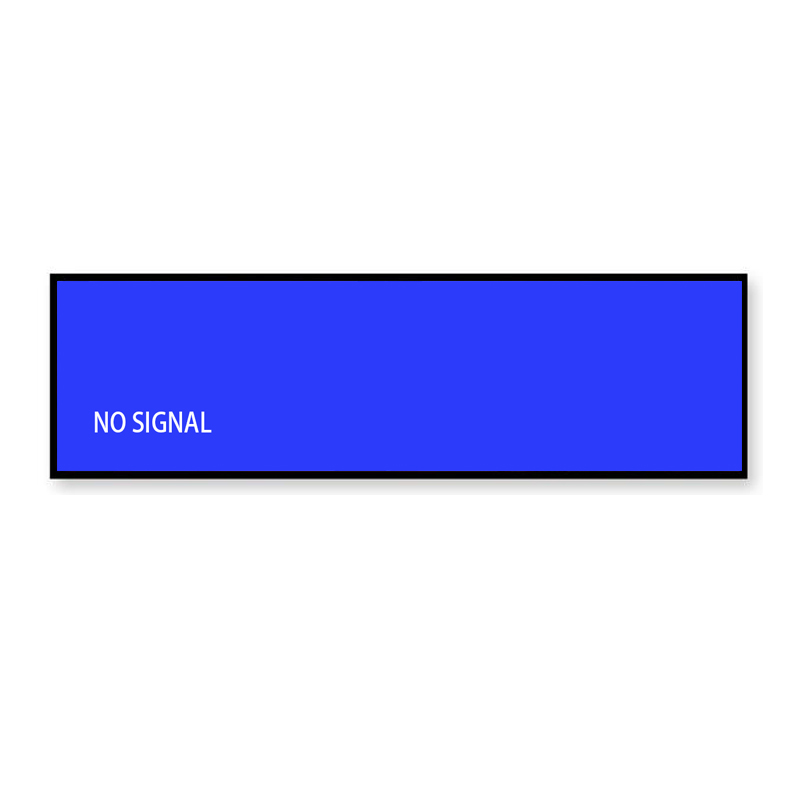

High-Impact 69.1 Inch Wall-Mounted Bar LCD Screen for Airport & Hubs
Source factory supply of 69.1 inch industrial sheet metal bar monitor with 3840*1397 resolution and 500 cd/㎡ luminous output. Engineered for continuous commercial duty in retail gondolas, vehicle headers, and control rooms. Fast 72-hour sample dispatch and modular SKD export kits.
Specifications
- Screen Size
- 69.1 Inch
- Resolution
- 3840*1397
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
69.1 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.1 inch | |
Resolution | 3840*1397 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Solving The Height Limitation: Engineering Custom Aspect Ratio Displays

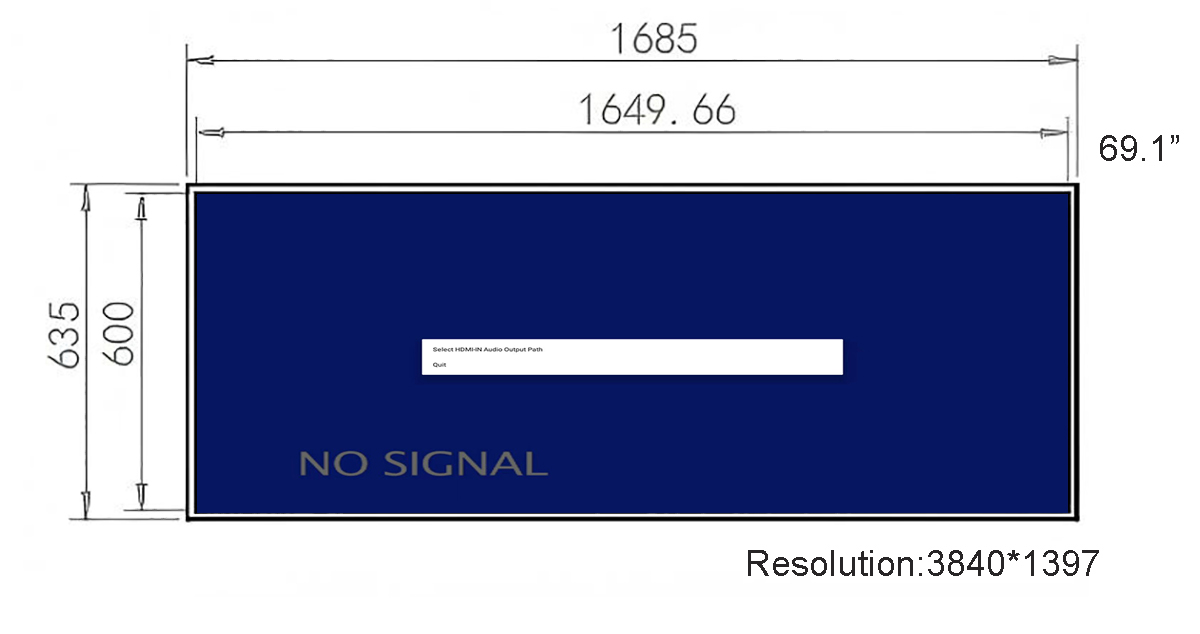

The 69.1-inch ultra-wide bar monitor is designed specifically for environments where vertical space is tightly constrained. Delivering 3840*1397 native resolution across its active 69.1-inch diagonal, it enables operators to present continuous promotional video loops, pricing updates, and transit announcements along narrow architectural surfaces.
Transportation authorities can broadcast synchronized route announcements and public service alerts in real time. The clear horizontal layout allows commuters to track their journey progress at a glance.
Replacing printed vinyl banners with dynamic digital strips allows shopping mall operators to monetize linear architectural surfaces, creating new advertising revenue streams across corridors and escalator bulkheads.
Visual Physics: Maintaining Sharp Image Definition Under Ambient Lighting
At the heart of this display is an industrial-grade A-grade liquid crystal cell engineered for continuous commercial duty. Featuring a native 3840*1397 resolution, the 69.1-inch screen provides high-definition clarity that ensures intricate graphic assets, dynamic video commercials, and multi-line transit schedules remain razor-sharp from standard viewing distances. Boasting an engineered luminous output of 500 cd/㎡, the panel overcomes the visual washout typical of consumer screens in bright commercial lighting. Paired with a 4000 :1 native contrast ratio, the optical stack produces deep black levels and vibrant chromatic saturation. The display's IPS panel structure ensures wide optical visibility with CR≥10 wide-angle IPS optical alignment viewing angles, while the solid-state LED backlight is rated for a continuous operational life of more than 60,000 hours of maintenance-free illumination.
An optimized polarising matrix prevents color inversion and contrast degradation when the screen is viewed from steep vertical or lateral perspectives, preserving image fidelity in tight corridor passages.
High static contrast performance ensures that deep blacks remain rich and text characters stand out sharply, maximizing legibility in low-light transit tunnels as well as brightly illuminated department stores.
Structural Framing: Rigid Metallic Construction with Flush Architectural Fit

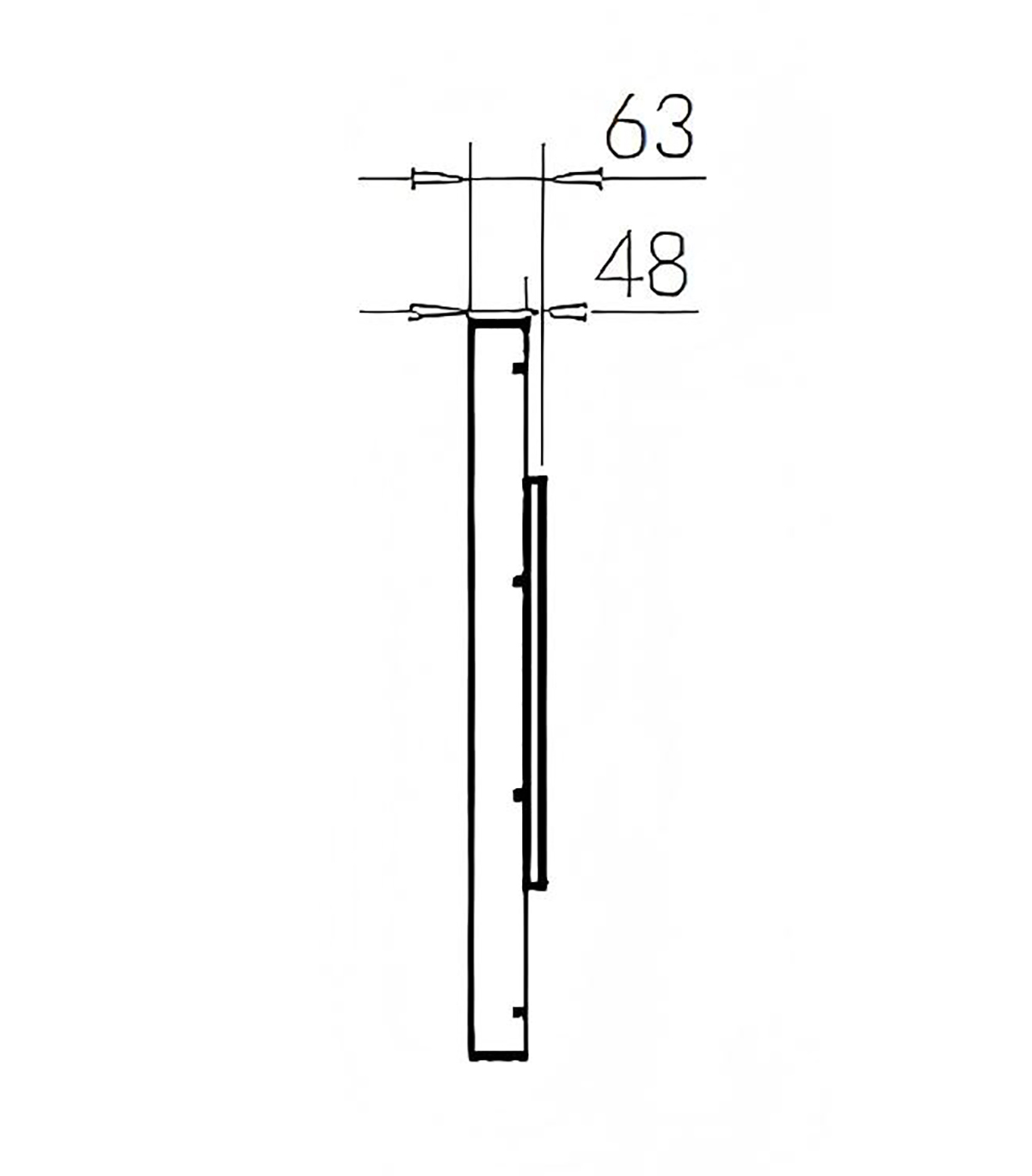

The 69.1-inch monitor is enclosed in a durable cold-rolled steel chassis designed for continuous industrial use. Its reinforced metal frame absorbs physical impacts and track vibration, ensuring long-term operational stability in demanding public transit and factory settings.
The display enclosure is engineered for efficient passive heat dissipation, utilizing internal thermal spreaders and the outer metallic frame to cool internal components. This fanless design ensures silent, maintenance-free performance. Standard VESA mounting provisions and lateral channels provide versatile installation options.

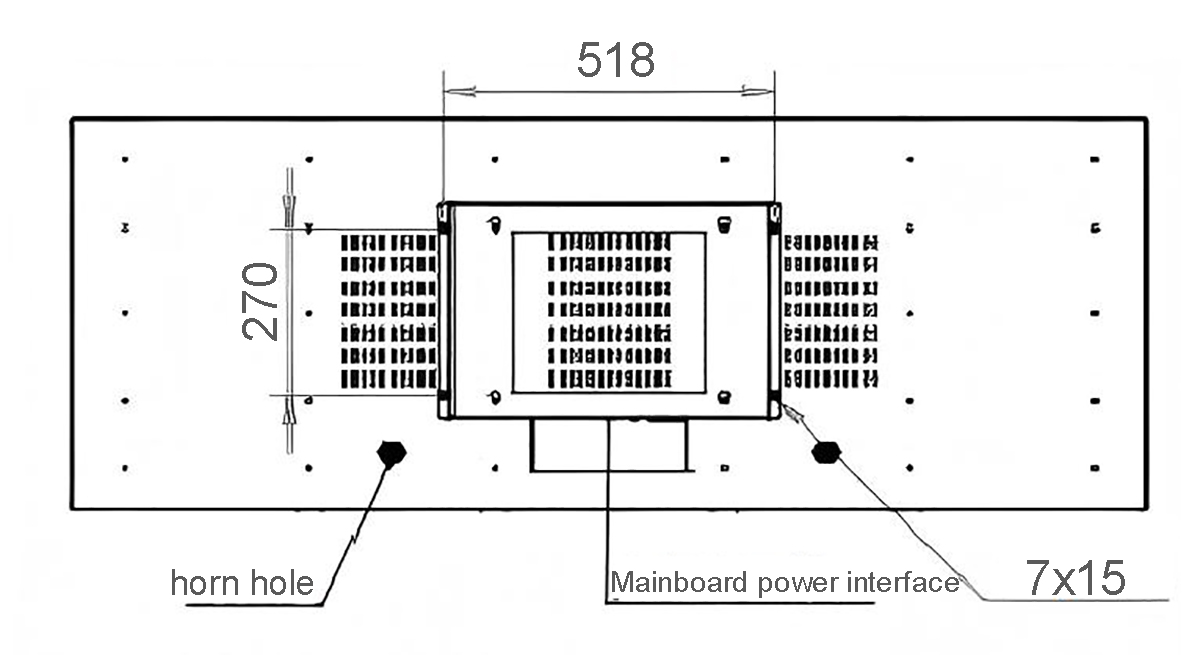

The rear panel incorporates standardized VESA hole arrays with reinforced internal backing plates to support heavy articulated commercial wall arms. Lateral slide-nut channels provide additional anchoring points for custom security locks.
Electronic Interfacing: Video Signal Paths and Automated Raster Scaling
Seamless electronic integration into existing computing infrastructures is achieved through versatile signal interface provisions. The monitor motherboard incorporates standard HDMI, VGA video inputs, allowing immediate plug-and-play communication with standard digital signage media players, x86 industrial PCs, Android embedded compute sticks, and programmable logic controller output boards. Video signal scaling circuitry automatically synchronizes with custom ultra-wide timings, ensuring proper native scaling without horizontal image squeezing or letterboxing artifacts. Audio playback is supported via an integrated 3.5mm Audio Socket, facilitating straightforward connection to external sound bars, shelf-mounted directional audio speakers, or centralized PA amplification equipment. Operating from a universal switch-mode power supply accepting AC 100V~240V (50/60Hz), the internal power converter delivers stable low-ripple direct current to sensitive driver ICs while providing resilient protection against electrical surges and line fluctuations commonly encountered in industrial complexes. Energy efficiency remains a central engineering priority: overall operational power consumption is constrained to ≤ 150w, minimizing thermal loading and dramatically reducing total operational utility costs across large-scale multi-screen installations. The hardware is qualified for continuous operation across an ambient operating temperature range of below10℃ ~ +50℃ alongside non-condensing relative humidity levels of ≤ 85%RH.
Internal power conversion circuitry incorporates multi-stage surge suppression and electromagnetic interference filtering, shielding sensitive driver chips from electrical spikes and voltage sag on noisy commercial circuits.
Industrial-grade signal conditioning chips filter incoming video inputs to eliminate pixel jitter and timing mismatch, guaranteeing rock-solid graphical synchronization when driven by commercial digital signage players.
Multi-OS Ecosystem Support via Standard Video Interface

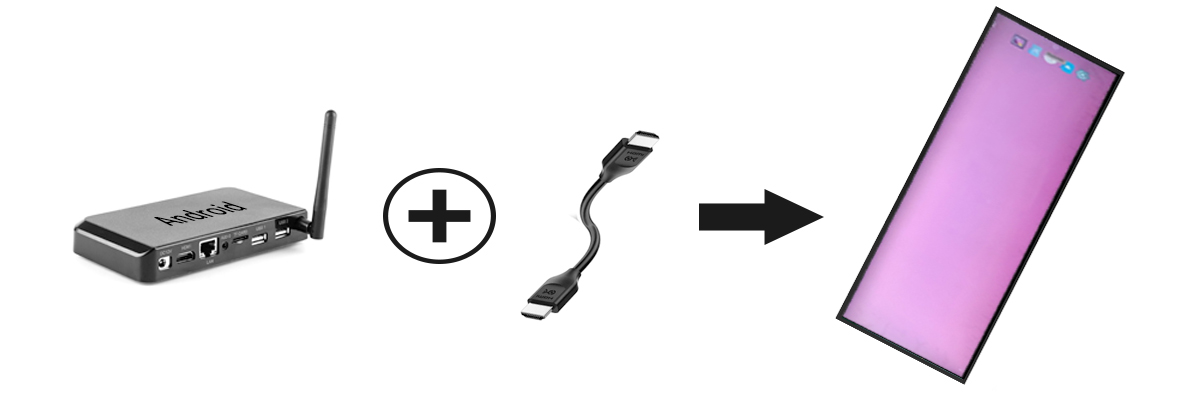

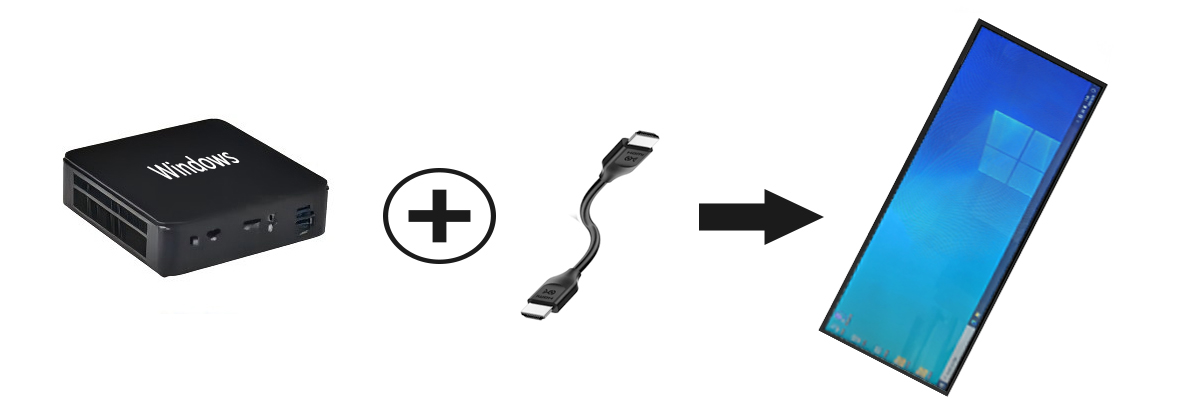

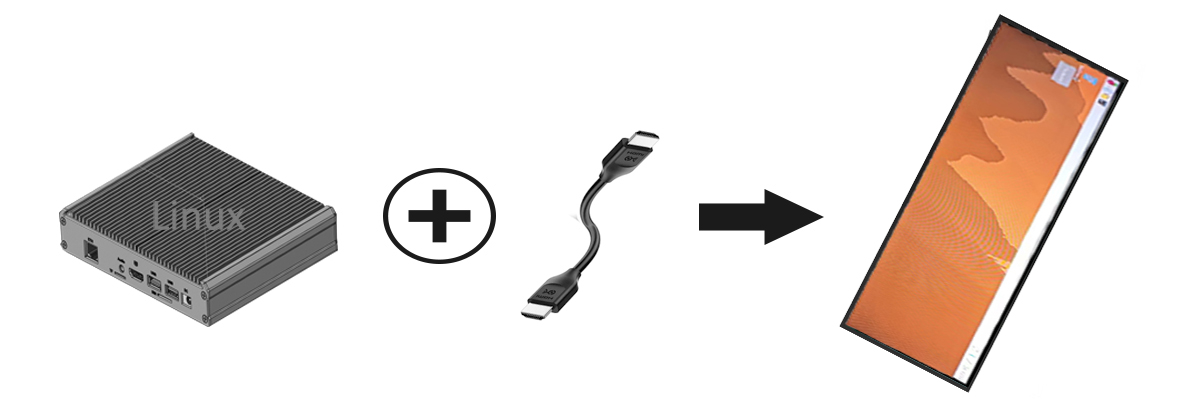

Eliminating the constraints of built-in proprietary player boards, this open-standard commercial monitor provides straightforward connectivity to external Windows, Android, and Linux controllers via HDMI. This decoupled design enables AV contractors to deploy specialized content management software, digital pricing applications, or real-time SCADA telemetry systems while maintaining the flexibility to swap media players at any future date.
Industry Solutions: Retail Gondola Headers, Metro Doorways, and 19-Inch Racks
Designed to maximize linear visual space, the 69.1-inch display delivers clear commercial benefits across several industries. Retailers install it on shelf fascias to boost brand engagement. Transit authorities mount it in rail carriages for dynamic passenger route guidance. Control rooms use it as an auxiliary telemetry monitor, and corporate facilities integrate it into reception headers.
In banking branches and public administrative centers, the display streamlines customer queue flow. Mounted above service windows or teller partitions, it displays clear ticket calling numbers, teller status indicators, and financial service advisories in a space-saving linear footprint.
Automated manufacturing plants utilize this monitor along assembly lines to broadcast real-time production quotas and machine alerts. The wide horizontal format allows line supervisors and operators to monitor factory floor status from across large plant bays.
Direct Factory Sourcing: Reducing Procurement Costs and Engineering Lead Times
ZXT provides source-factory manufacturing for commercial stretched displays, eliminating third-party markups. Our in-stock tooling ensures zero mold charges on standard sizes, supported by fast 3-day sample dispatch and modular SKD shipping options for international clients.
Factory-direct warranty coverage is backed by responsive technical assistance and available spare parts kits, ensuring that deployed displays maintain continuous commercial service year after year.
Display Sourcing & Engineering FAQ
**Q1: Does the display produce electromagnetic interference with nearby equipment?**
No. Internal electronics are enclosed within a grounded metallic chassis with integrated EMI filtering circuitry, complying with commercial Class A and Class B electromagnetic compatibility standards.
**Q2: Can we test sample units before placing a volume project order?**
Yes. We strongly encourage evaluation testing and provide sample units complete with power supplies, video cables, and CAD mounting guides, ready for dispatch within three working days.
**Q3: What optical surface treatments are applied to the screen?**
The display panel features an industrial-grade anti-glare (AG) polarized surface treatment with hard-coat scratch resistance, minimizing reflections while repelling dust and environmental smudges.
Direct Commercial Inquiry and Specification Review
Initiate your project consultation for the 69.1-inch stretched bar display by contacting our international technical sales team. We are prepared to provide 2D/3D mechanical drawings, verify electrical interfaces, and expedite 3-day evaluation samples for your team. Submit your project scope and quantities today for a prompt factory quotation within two business hours.
