Non-touchscreen
67 inch Tft Ips Slim 4K Full Hd Stretched Bar Lcd Screen Module
67 Inch Metal Stretched LCD Display Display area:1649.66*420mm Resolution:3840*978 Material:Metal、Tempered glass
Android Stretched LCD Module for Next-Generation Smart Display Integration
As Android becomes the preferred operating platform for commercial display equipment, manufacturers are seeking display modules that combine high image quality, flexible integration, and long-term reliability. An Android Stretched LCD module is more than just a screen—it is the visual core of intelligent kiosks, retail equipment, transportation systems, and industrial terminals.
The 67-inch TFT IPS slim 4K stretched LCD module from ZXTLCD is engineered for OEM and ODM projects that require an ultra-wide display with excellent color performance and seamless Android compatibility. Rather than functioning as a standalone advertising player, this module is designed to be integrated into custom equipment, giving manufacturers the freedom to create differentiated commercial products.
Why Android Has Become the Preferred Platform for Commercial Displays
Android offers a flexible ecosystem for digital signage, interactive kiosks, and embedded commercial equipment. Compared with proprietary systems, it provides easier software development, lower deployment costs, and broad compatibility with cloud-based applications.
For equipment manufacturers, combining Android with a stretched LCD module creates several advantages:
- Faster application development
- Flexible multimedia support
- Easy CMS integration
- Remote software updates
- Simplified maintenance
- Scalability for future upgrades
This makes Android an ideal platform for businesses developing customized digital display solutions.
67 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 67 inch | |
Resolution | 3840*978 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Technologies Behind the 67-Inch Stretched LCD Module
TFT IPS Panel Technology
The industrial-grade TFT IPS panel delivers accurate colors, wide viewing angles, and consistent image quality, ensuring that content remains clear in commercial environments where displays are viewed from multiple directions.
Slim Module Design
The ultra-slim construction allows the module to be embedded into kiosks, retail fixtures, transportation equipment, and custom enclosures without increasing the overall equipment footprint.
High-Resolution Visual Performance
With 4K-class image capability, the display provides sharp graphics, readable text, and detailed multimedia content that enhances professional digital signage applications.
Android System Compatibility
The module is designed to integrate smoothly with Android-based mainboards, enabling developers to build customized applications, cloud-connected digital signage, and intelligent information systems.
Built for OEM and Product Development
Unlike finished advertising displays, this stretched LCD module is intended for manufacturers creating their own commercial equipment.
Flexible Hardware Customization
ZXTLCD offers:
- Custom display dimensions
- High-brightness versions
- Touch integration
- Open-frame structures
- Interface customization
- Mechanical modifications
Software and Engineering Support
To simplify development, our engineering team provides:
- Android platform compatibility
- Windows support
- SDK and API assistance
- Cloud CMS integration
- Customized firmware
- Multi-display synchronization
Manufacturing Collaboration
From concept validation to mass production, we support customers with prototype development, quality testing, production planning, and export logistics.

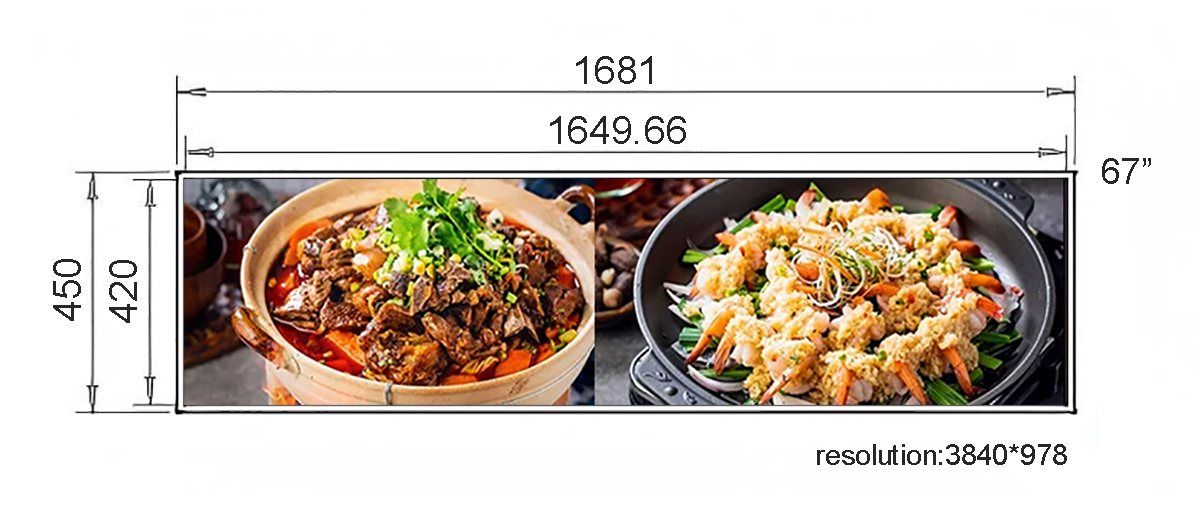

Product Dimension as follows:
Frequently Asked Questions
Q1: What is an Android Stretched LCD module?
An Android Stretched LCD module is an ultra-wide display designed to work with Android-based hardware platforms, enabling manufacturers to develop customized commercial display equipment.
Q2: Is this a complete digital signage player?
No. This product is a display module intended for OEM integration into custom devices and systems.
Q3: Can the module be customized?
Yes. ZXTLCD offers customization of size, brightness, touch functionality, interfaces, mechanical design, and firmware support.
Q4: Which industries commonly use stretched LCD modules?
Retail, transportation, healthcare, hospitality, industrial automation, smart city infrastructure, and self-service equipment manufacturers all benefit from this type of display.
Q5: Does ZXTLCD support OEM and ODM projects?
Yes. We provide complete engineering support, prototype development, hardware customization, software integration, and private-label manufacturing.
Empower Smarter Equipment with Android Stretched LCD Technology
The future of commercial display equipment depends on flexible hardware that integrates easily with intelligent software platforms. The 67-inch Android Stretched LCD module combines TFT IPS technology, ultra-wide design, and OEM-ready engineering to help manufacturers create reliable, modern, and scalable display solutions.
Backed by factory-direct production, professional customization services, and years of experience in commercial LCD manufacturing, ZXTLCD supports global partners in developing innovative products for the next generation of digital communication.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
