Non-touchscreen
67 Inch Sheet Metal Stretched Bar LCD Monitor
Wholesale 67 inch industrial sheet metal bar monitor featuring native 3840*978 resolution and 500 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 67 Inch
- Resolution
- 3840*978
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
67 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 67 inch | |
Resolution | 3840*978 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Compact Geometry: Transforming Narrow Overhead Lintels into Information Corridors

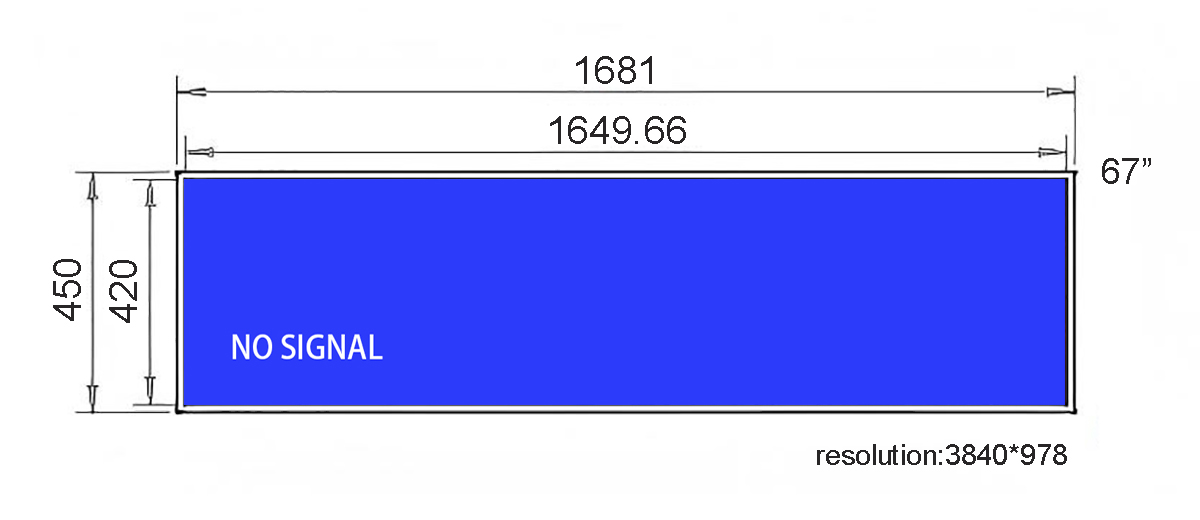

Installing dynamic video signage in space-constrained commercial settings requires hardware engineered for narrow margins. The 67-inch stretched bar monitor delivers 3840*978 resolution across an active 67-inch diagonal, allowing enterprise clients to deploy high-impact digital messaging in locations where standard displays cannot be mounted.
Modern architectural interiors prioritize minimalist, uncluttered design. Panoramic stretched monitors align perfectly with contemporary linear aesthetics, providing high-tech visual delivery in an understated package.
Industrial automation facilities require high-density status visualization that does not block machine operators' view of the production floor. This low-profile monitor delivers comprehensive line telemetry in an unobtrusive format.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 67-inch panoramic display utilizes a commercial-grade LCD cell with a native 3840*978 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 500 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 1200:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Built with an industrial-grade steel housing, the 67-inch display provides robust mechanical protection for heavy machinery and transport consoles. The electro-galvanized cold-rolled metal construction ensures high rigidity and effective electromagnetic interference defense.

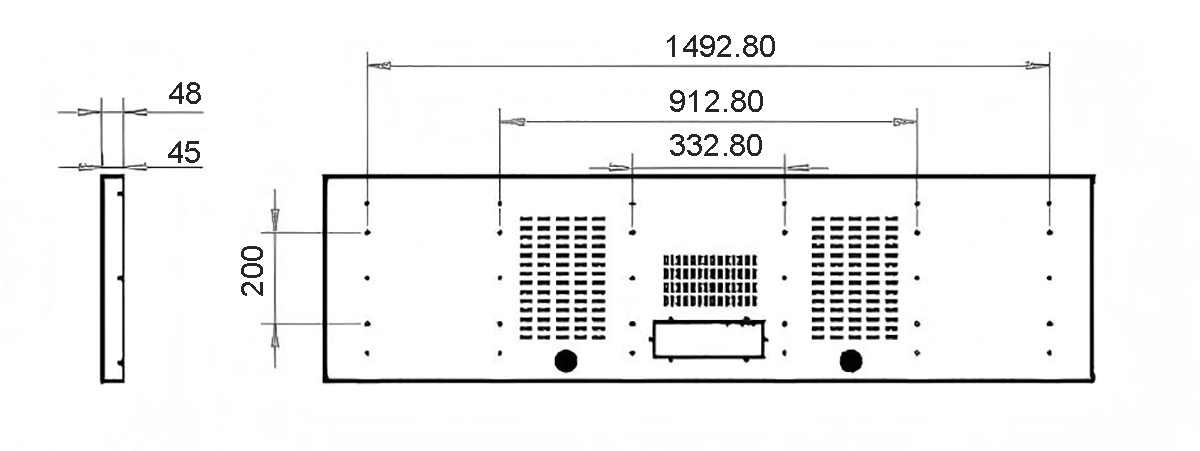

A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a 3.5mm Audio Socket. Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 150w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.
Vendor-Neutral Display Architecture with Plug-and-Play Video

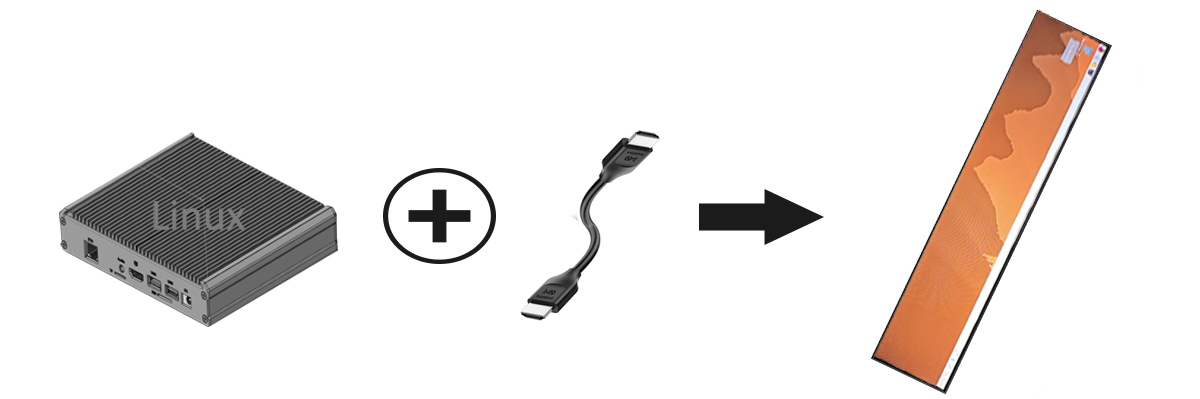

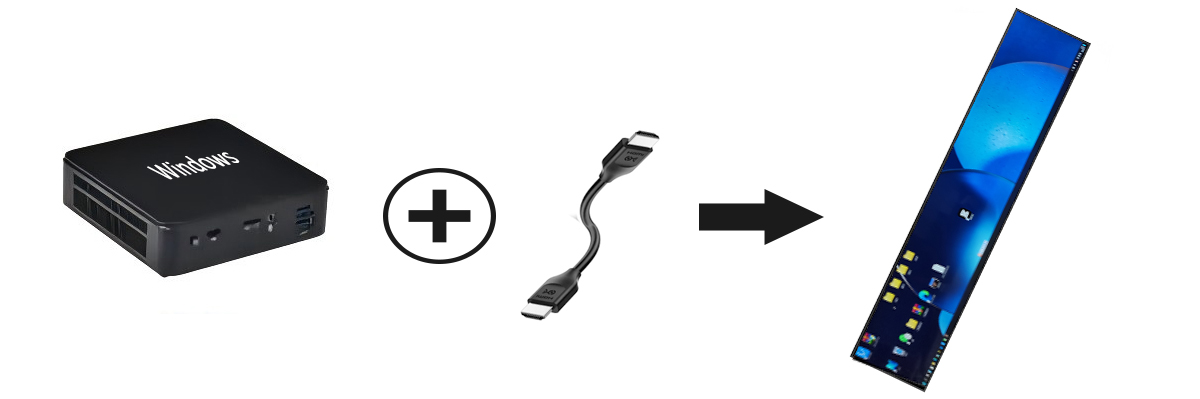

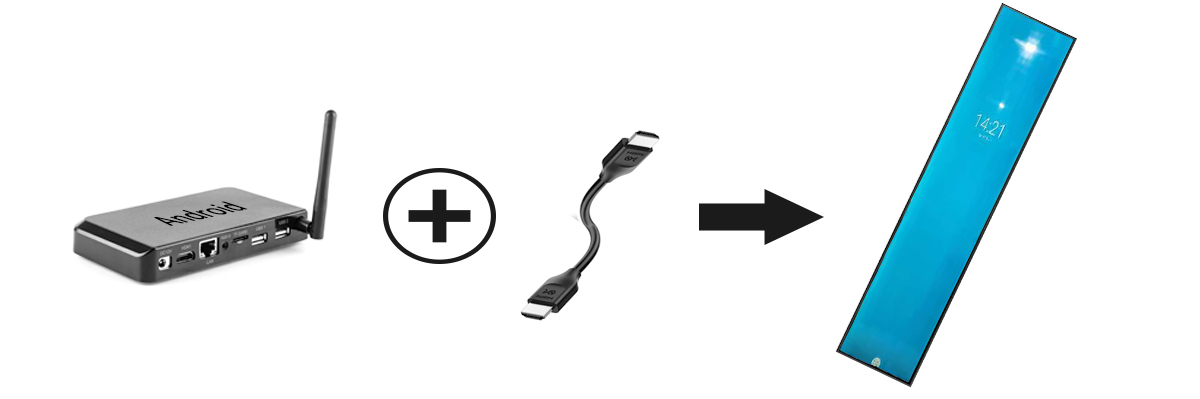

Protect your technology investment against proprietary software dead-ends. Engineered with universal HDMI input standards, the screen communicates flawlessly with external computing hardware running Windows, Android, or Linux. System integrators maintain full autonomy to select, configure, and upgrade their media software, interactive touch applications, and remote device monitoring tools without restrictive third-party platform limitations.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 67-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
Agile OEM/ODM Solutions: Custom Paint Finishes, Logo Printing, and Optical Bonding
With over nine years of specialized display manufacturing experience, ZXT supports international system integrators with factory-direct pricing and rapid fulfillment. We offer in-stock tooling, 3-day sample dispatch, and complete engineering documentation including 3D CAD models.
Our engineering staff possesses deep expertise in international compliance standards, assisting partners in meeting CE, FCC, RoHS, and specialized railway or retail electrical safety certifications.
Commercial Rollout FAQ
**Q1: What cable lengths are supported for HDMI video feeds?**
Standard passive high-speed HDMI cables support connections up to 10 meters, while active optical HDMI cables or standard HDMI-over-CAT6 extenders can be utilized for long-distance media player placement.
**Q2: How does the display handle unexpected power outages?**
The monitor features automatic power-recovery logic. Once electrical power is restored, the display powers on instantly and resumes active video broadcasting without requiring manual button intervention.
**Q3: Can we schedule a factory technical video consultation with ZXT engineers?**
Yes. Our international technical sales team can coordinate direct video conferences with our hardware design engineers to review CAD drawings, project requirements, and customized production timelines.
Initiate Custom Hardware Scoping and Sample Dispatch
Request a quote or order an evaluation sample for the 67-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
