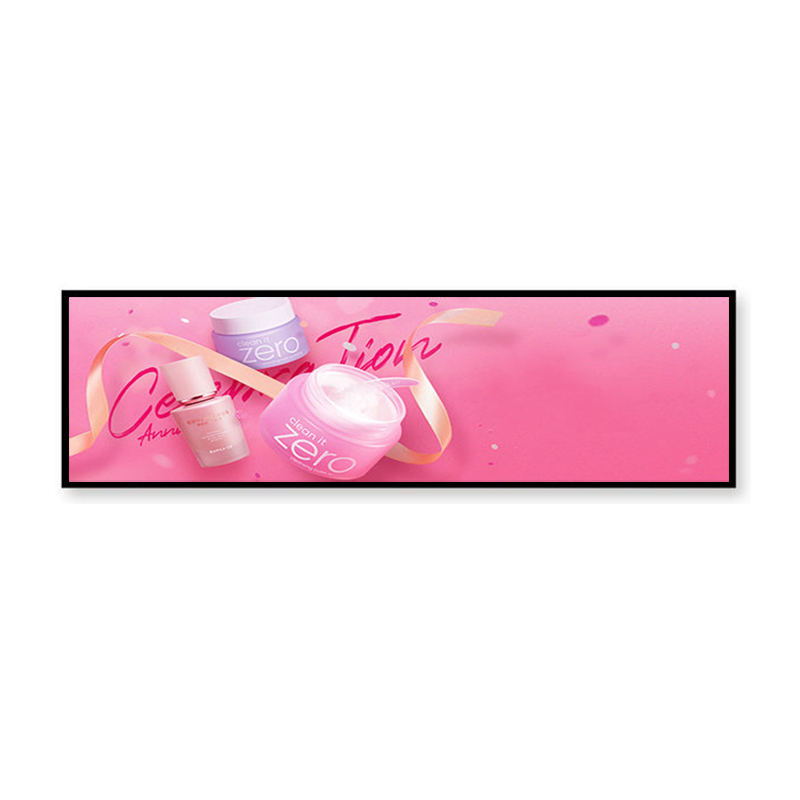

66.2-Inch 3840*954 Stretched Bar LCD Digital Signage Outdoor High Brightness Advertising Modules
66.2 Inch Metal Stretched LCD Display Display area:1649.66*324mm Resolution:3840*954 Material:Metal Touch style:Infrared TouchScreen
How a Stretched LCD Display Manufacturer Designs Commercial Displays for Outdoor Digital Signage
Outdoor digital signage has become an essential communication tool for transportation hubs, shopping districts, commercial buildings, and smart city projects. However, creating a display that performs reliably in demanding environments requires much more than assembling electronic components. Every stage—from panel selection to thermal management and mechanical engineering—directly influences long-term performance.
As an experienced Stretched LCD Display Manufacturer, ZXTLCD develops commercial display modules that balance image quality, durability, and customization. The 66.2-inch stretched LCD advertising module is designed for outdoor and semi-outdoor installations where high brightness, reliable operation, and flexible integration are critical requirements.
Rather than supplying a standard display, we focus on helping OEM partners, system integrators, and digital signage solution providers build products that match the needs of their specific markets.
Every Commercial Display Begins with the Right Panel Selection
The foundation of a reliable outdoor display is the LCD panel itself. A commercial-grade stretched panel provides better image stability, longer operational life, and improved resistance to continuous daily use compared with consumer-grade alternatives.
For outdoor advertising applications, the display must also maintain excellent readability under strong ambient lighting while delivering consistent color performance across the entire ultra-wide screen.
By selecting industrial-grade TFT technology and optimizing panel performance, manufacturers can ensure dependable operation in transportation facilities, retail storefronts, and public information systems.
66.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 66.2 inch | |
Resolution | 3840*954 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Mechanical Design Is Just as Important as Image Quality
Commercial projects often require displays to fit into custom kiosks, smart city infrastructure, or architectural installations. As a result, the mechanical design of the display module plays a major role in project success.
The slim stretched structure allows the module to integrate into:
Outdoor Information Kiosks
Ideal for displaying public announcements, maps, and service information.
Smart Transportation Equipment
Suitable for bus stations, railway platforms, and airport guidance systems.
Building Entrance Displays
Support visitor information, advertising, and digital wayfinding.
Customized Digital Signage Cabinets
Enable OEM manufacturers to design proprietary commercial equipment around a reliable display platform.
High Brightness Supports Reliable Outdoor Communication
Outdoor environments expose displays to changing light conditions throughout the day. A commercial stretched LCD module with high brightness helps ensure that advertising, navigation information, and public announcements remain clearly visible.
This makes the display suitable for:
- Retail storefront advertising
- Outdoor shopping centers
- Public transportation systems
- Smart city projects
- Campus information displays
- Commercial property management
Combined with appropriate enclosure design and environmental protection, high-brightness technology significantly improves user experience.

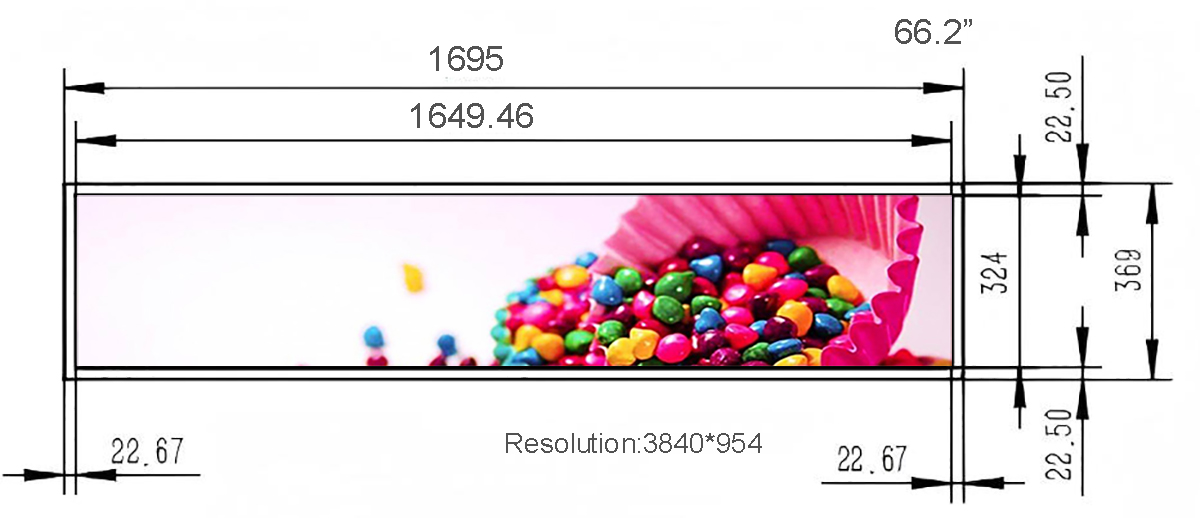

Product Dimension as follows:
Manufacturing Flexibility Creates Better OEM Products
Every customer has unique product requirements. Instead of offering a one-size-fits-all solution, ZXTLCD works closely with customers during product development.
Available customization services include:
Display Engineering
- Customized dimensions
- Brightness adjustment
- Touchscreen integration
- Open-frame construction
- Mechanical modifications
- Interface selection
Intelligent Platform Integration
Support is available for:
- Android systems
- Windows platforms
- Linux-based applications
- Cloud CMS platforms
- SDK/API development
- Remote management systems
Brand Customization
OEM customers can customize logos, startup interfaces, packaging, labels, and product documentation to match their own market positioning.
Manufacturing Quality Extends Beyond Production
A professional Stretched LCD Display Manufacturer focuses not only on production efficiency but also on product consistency throughout the entire manufacturing process.
ZXTLCD applies strict quality management across:
- Incoming material inspection
- Assembly accuracy
- Image quality verification
- Aging tests
- Functional testing
- Packaging inspection
- Export quality control
These procedures help ensure that every display delivered to customers meets commercial performance standards before shipment.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
