Non-touchscreen
Panoramic Transit Signage: 66.4 Inch Large Format Stretched LCD Display

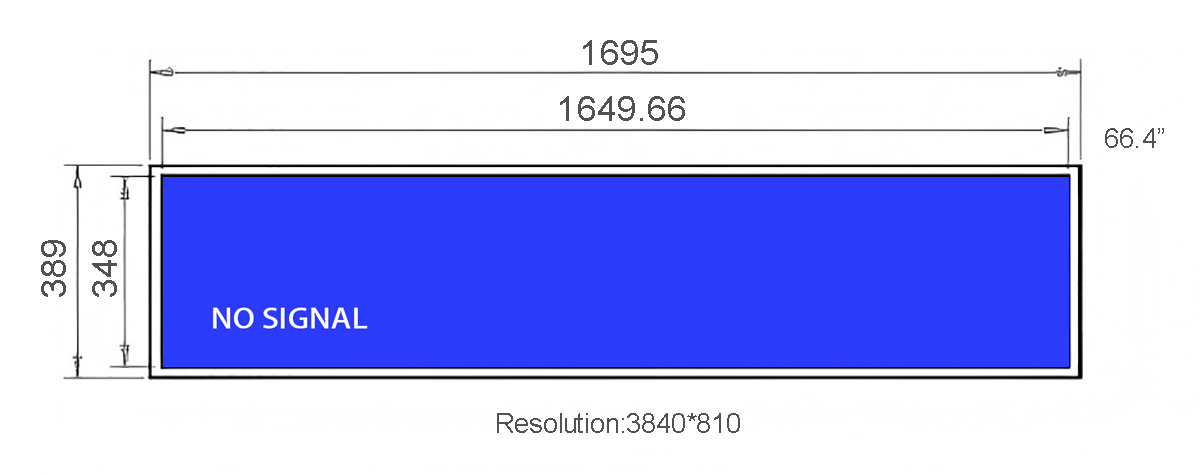

Commercial 66.4 inch industrial sheet metal bar monitor with 3840*810 native resolution and 500 cd/㎡ brightness. Built for continuous operation across transport networks, retail aisles, and industrial facilities. Rapid global fulfillment from Shenzhen.
Specifications
- Screen Size
- 66.4 Inch
- Resolution
- 3840*810
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
66.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 66.4 inch | |
Resolution | 3840*810 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Maximizing Visual Sightlines: Re-Engineering Display Ratios for Linear Margins
Modern public infrastructure demands streamlined visual integration. The 66.4-inch panoramic display is engineered to overcome vertical mounting constraints, delivering 3840*810 resolution across an elongated 66.4-inch viewing area. It offers system integrators a reliable way to deploy dynamic digital content in tight architectural slots without visual compromise.
In smart retail environments, dynamic price changes and seasonal campaigns can be scheduled automatically. This operational flexibility eliminates manual re-labeling labor and ensures pricing accuracy across multi-store chains.
In public service environments such as healthcare intake desks and civic service counters, compact horizontal displays keep waiting citizens informed while preserving clear verbal and visual communication with desk staff.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 3840*810 across the 66.4-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 500 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 1200:1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Fanless Heat Spreading: Extending Electronic Lifespan Through Solid-State Cooling
Formed from heavy-duty cold-rolled steel, the 66.4-inch chassis is designed to survive demanding transport and control room environments. Its rigid metal construction delivers superior shock absorption and electromagnetic immunity, safeguarding driver circuits against industrial interference.

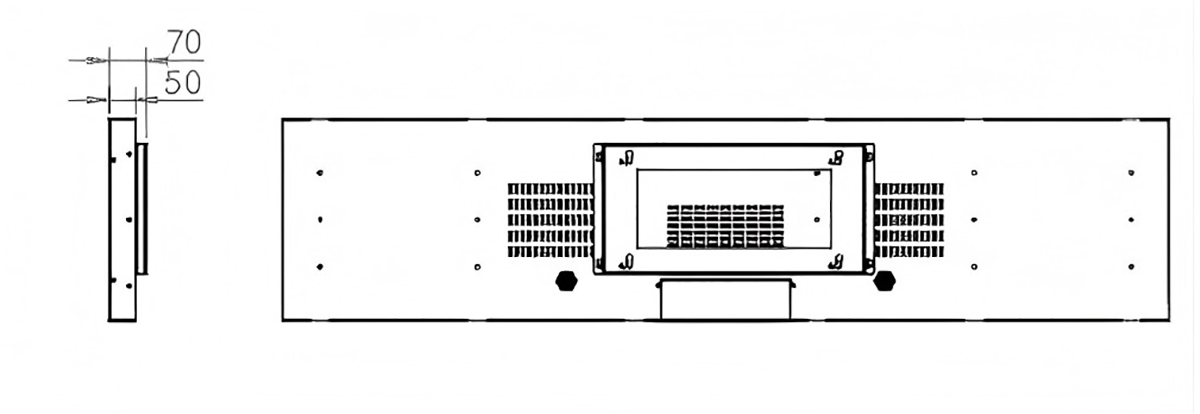

Built without mechanical cooling fans, the display relies on efficient conductive thermal paths through its metallic housing to maintain optimal operating temperatures. This silent, dust-free design maximizes operational longevity, while standardized rear VESA patterns and lateral slide channels support versatile installation.
Designed with multi-axis mounting versatility, the rear housing accommodates custom ceiling drop-poles, articulated wall brackets, and desktop tilt-stands. Heavy-duty internal mounting studs prevent thread stripping during repeated installation cycles.
Hardware Integration: Direct Video Linking Without Specialized External Adapters
The display is equipped with HDMI, VGA video ports for direct connection to media players and embedded PCs. An audio connection is provided via a 3.5mm Audio Socket. The power supply accommodates standard 110V to 240V AC power input with an efficient power rating of ≤ 150w, operating reliably across temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Comprehensive electrical isolation safeguards video input ports against ground loop interference, ensuring hum-free audio and noise-free video signals in complex industrial AV setups.
Built-in over-voltage, over-current, and short-circuit protection circuits safeguard the monitor against unexpected electrical faults, preventing costly equipment damage during power grid surges.
Open Signal Integration for Multi-Platform Computing
This commercial monitor operates on a strictly non-proprietary hardware baseline, ensuring seamless compatibility with global computing standards. Whether your project utilizes x86 Windows PCs for high-performance interactive 3D media, compact Android boxes for lightweight cloud signage, or Linux controllers for hardened industrial telemetry, a single HDMI link delivers pristine native-resolution rendering across your chosen operating environment.
Deployment Vectors: Retail Shelves, Passenger Transoms, and Control Consoles
The 66.4-inch panoramic display excels in spaces where horizontal information delivery enhances operational efficiency. In smart supermarket aisles, it provides eye-level pricing and product promotions. In transit hubs, it serves as an overhead route indicator above passenger boarding gates. In corporate headquarters, it functions as an elegant architectural directory, while in industrial server rooms, it provides clear rack-mount telemetry feeds.
In luxury cosmetics and high-end department store showcases, the display functions as an elegant digital riser that highlights brand prestige. Subtle video animations and product feature breakdowns complement the physical merchandise, elevating retail aesthetics and customer dwell time.
High-end fashion boutiques and cosmetics flagship stores utilize the display as a luxury architectural accent. Seamlessly integrated into glass shelving and perfume risers, the screen elevates brand perception while presenting subtle, cinematic promotional footage.
The ZXT Manufacturing Advantage: 9+ Years of Industrial Display Leadership
ZXT offers direct factory sourcing for commercial stretched bar displays, supported by nearly a decade of manufacturing experience. We provide zero-tooling-fee deployments on standard sizes, 3-day sample turnaround, and complete OEM/ODM engineering support including CAD files and custom bracket design.
We provide comprehensive sample evaluation packages complete with power supplies, video cables, and mounting hardware, allowing technical teams to conduct thorough bench testing prior to volume commitment.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 66.4-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
