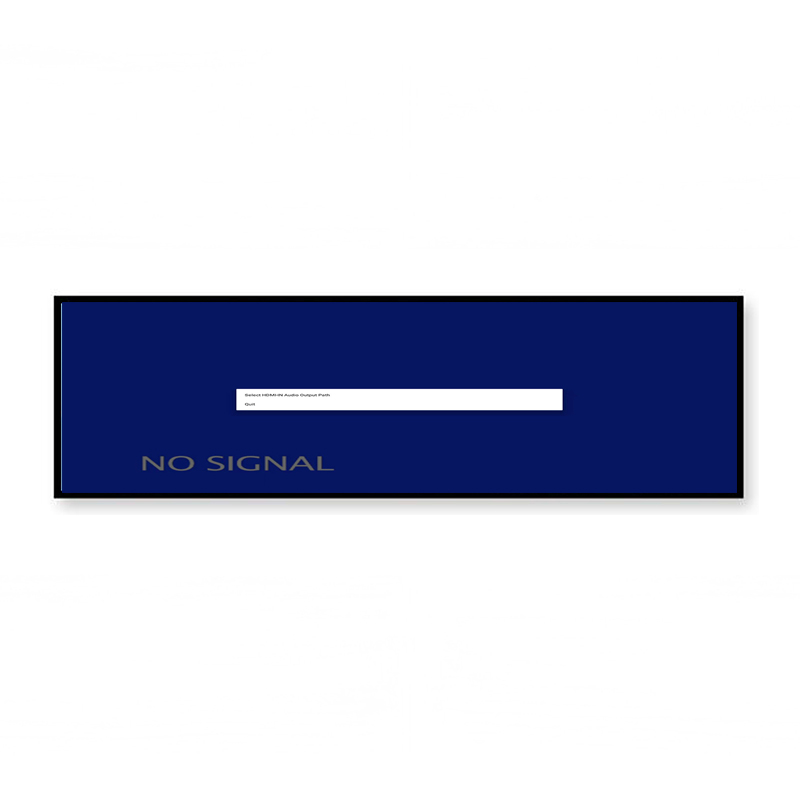

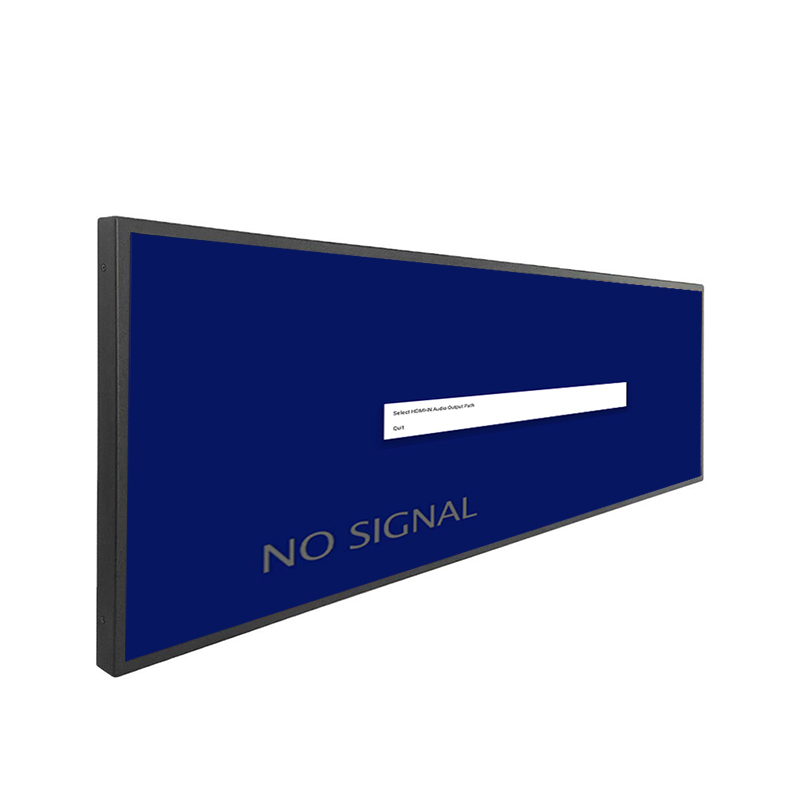

Large Stretched Bar Monitor – 65.7 Inch Ultra-Wide Commercial Display
Factory-direct 65.7 inch industrial sheet metal bar monitor delivering 3840*578 panoramic display resolution and 500 cd/㎡ brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 65.7 Inch
- Resolution
- 3840*578
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
65.7 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 65.7 inch | |
Resolution | 3840*578 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 65.7-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 3840*578 resolution across an active 65.7-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.
Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Visual Precision: Eliminating Distortion Across Ultra-Wide Active Areas
Engineered for commercial visibility, the 65.7-inch stretched bar screen delivers 3840*578 resolution and 500 cd/㎡ calibrated luminance. A 1200:1 contrast ratio ensures rich image depth, supported by symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours commercial backlight service rating.
Solid-state LED illumination provides instantaneous full-brightness startup, ensuring that commercial displays resume vivid visual operation immediately following scheduled power cycles.
Instantaneous solid-state power-on response ensures that display networks resume vibrant visual broadcasting immediately following automated overnight power cycles or utility power restoration.
Chassis Robustness: Built to Endure High-Footfall Public and Industrial Wear
The 65.7-inch industrial monitor utilizes a reinforced sheet steel enclosure engineered to endure harsh shopfloor conditions. The electro-galvanized casing provides high impact resistance and structural integrity, protecting display electronics from mechanical vibration and physical abuse.
Passive thermal engineering ensures dependable heat dissipation without noisy mechanical fans, preventing airborne contaminants from entering the chassis. The enclosure includes standard VESA mounting patterns and lateral adjustment tracks to facilitate quick, secure mechanical integration into commercial cabinetry or transit headers.
Precision-stamped mounting ears allow the unit to drop directly into standard 19-inch equipment racks and instrument control panels. Secure front-fastening screws ensure the monitor remains firmly locked in place during transport and factory operation.
Universal Power Conversion: Resilient Operation Across Commercial Mains Grids
With standard HDMI, VGA inputs, the display links easily to digital signage players and industrial computing equipment. An integrated 3.5mm Audio Socket provides audio output capability. The internal power converter accepts universal 100-240V commercial electrical mains mains with power consumption limited to ≤ 150w, rated for operating conditions of below10℃ ~ +50℃ and ≤ 85%RH.
The audio output circuitry supports synchronized stereo playback, enabling interactive kiosks to provide clear voice prompts and confirmation chimes during customer self-service transactions.
The low-voltage direct current output stage delivers ultra-clean power to the liquid crystal timing controller, eliminating horizontal line noise and visual ripple in sensitive commercial AV setups.
Universal OS Adaptability: Freedom from Proprietary Lock-In
Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Real-World Scenarios: Maximizing Audience Engagement Across Key Sectors
The expansive architectural scale of the 65.7-inch stretched display delivers monumental visual impact across large-scale commercial facilities: 1. Command & Control Centers (CCTV / SOC / NOC): Serving as central panoramic video ribbons in security, emergency dispatch, and traffic control rooms without distracting bezel seams. 2. Airport Flight Information Display Systems (FIDS): Mounted across departure halls and check-in counters to present panoramic multi-gate flight schedules visible across long distances. 3. Corporate Executive Briefing Centers: Integrated into boardroom feature walls and museum exhibition pavilions to deliver continuous ultra-wide multimedia presentations. 4. Arena Concourse Digital Ribbons: Positioned along stadium entryways and VIP hospitality lounges for continuous live match scoring, sponsor branding, and venue directions.
Quick-service restaurants and urban cafes utilize this ultra-wide display above ordering counters to present dynamic panoramic menu selections. Vivid food photography, combo pricing, and real-time out-of-stock indicators help guide customer ordering choices, reducing counter queue wait times during peak hours.
Quick-service restaurants deploying panoramic digital menu strips experience faster order processing and reduced counter wait times. Clear combo photography and real-time out-of-stock indicators guide customer choices before they reach the ordering terminal.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Commercial Hardware Selection FAQ
**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
Project Consultation and Custom Quotation Inquiries

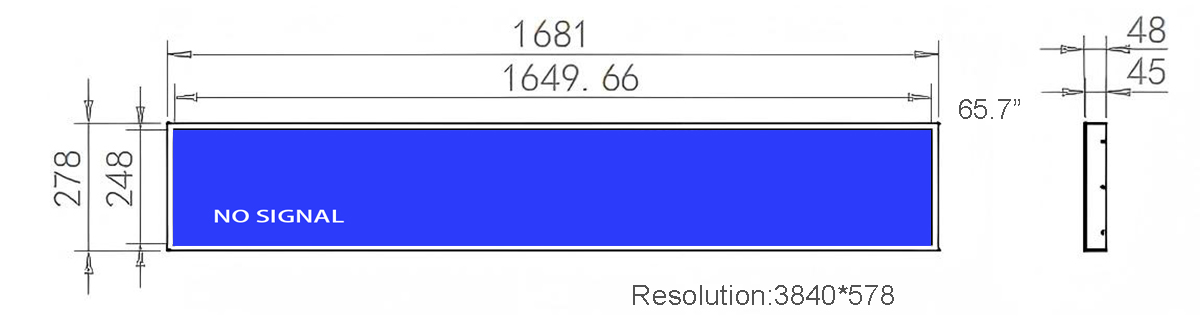

To evaluate a test sample of the 65.7-inch ultra-wide stretched bar LCD monitor, request detailed 2D/3D CAD mounting blueprints, or discuss high-volume OEM/ODM pricing tiers for upcoming commercial deployments, please contact our international technical sales department. Provide your target installation environment, anticipated order volume, and specific interface requirements, and our engineering team will provide a tailored hardware proposal and commercial quotation within two business hours.
