Non-touchscreen

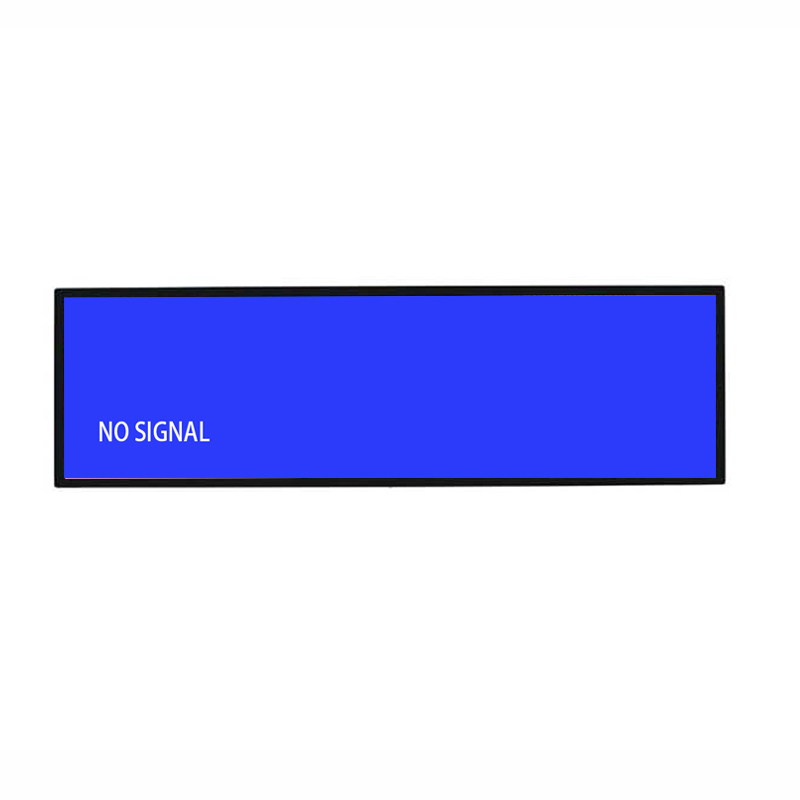

Rack Mount Stretched Monitor (61.9 Inch) for Surveillance & Command
Specialized 61.9 inch industrial sheet metal bar monitor (3840*808, 500 cd/㎡) direct from Shenzhen manufacturing facility. Engineered for space-limited commercial installations with robust metal housing. Fast 3-day evaluation samples available.
Specifications
- Screen Size
- 61.9 Inch
- Resolution
- 3840*808
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
61.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 61.9 inch | |
Resolution | 3840*808 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Space Challenges: Overcoming Vertical Clearances with Panoramic Displays
Store fixture designers and transit architects frequently encounter spaces where traditional 16:9 displays cannot be accommodated. The 61.9-inch ultra-wide bar monitor resolves this challenge by providing a low-profile panoramic viewing format. Displaying 3840*808 native pixels across its 61.9-inch diagonal, it delivers continuous brand messaging, dynamic pricing, and route guidance along narrow architectural borders that would otherwise remain inactive.
Integrating panoramic hardware into commercial fixtures eliminates the visual clutter associated with standard monitors. The display becomes an organic part of the fixture, enhancing interior aesthetics while delivering essential information.
In busy transportation terminals, passengers require instant, intuitive visual cues. Overhead horizontal displays provide continuous sightline guidance that travelers can scan effortlessly while walking through crowded concourses.
Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 61.9-inch panoramic display features 3840*808 resolution, 500 cd/㎡ brightness, and a 1200:1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.
Thermal Dissipation Engineering: Silent Conduction Without Moving Parts
To withstand continuous industrial operation, the 61.9-inch display is enclosed in a heavy-gauge galvanized steel shell with reinforced corner welding. This rigid construction prevents chassis twisting, dampens machine vibrations, and provides effective electromagnetic shielding against motor drives and high-voltage switchgear.
Engineered for continuous commercial operation, the display utilizes a fanless thermal architecture that dissipates heat naturally through its metal chassis. This design prevents mechanical failure and internal dust contamination, ensuring silent, reliable performance in retail and transportation settings. Mounting options include standard rear VESA patterns and versatile lateral mounting slots.
Integrated structural slide channels along the top and bottom edges permit tool-free adjustment when mounting multiple screens in a continuous horizontal line. This modular mechanical rail system cuts field installation labor by up to forty percent for large retail fit-outs.
Electrical Efficiency: Low-Ripple DC Regulation and Thermal Load Reduction
Engineered with HDMI, VGA inputs, the monitor connects effortlessly to commercial media players and industrial computing devices. Audio output is routed through a 3.5mm Audio Socket. The power module supports universal standard 110V to 240V AC power input inputs with an efficient power draw of ≤ 150w, while environmental resilience is rated for below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
The internal power regulation subsystem maintains steady direct current output even during sudden commercial utility voltage fluctuations, ensuring uninterrupted screen operation during peak hours.
The motherboard includes native EDID emulation that automatically communicates the display's custom panoramic resolution to connected PCs, simplifying operating system display setup and driver configuration.

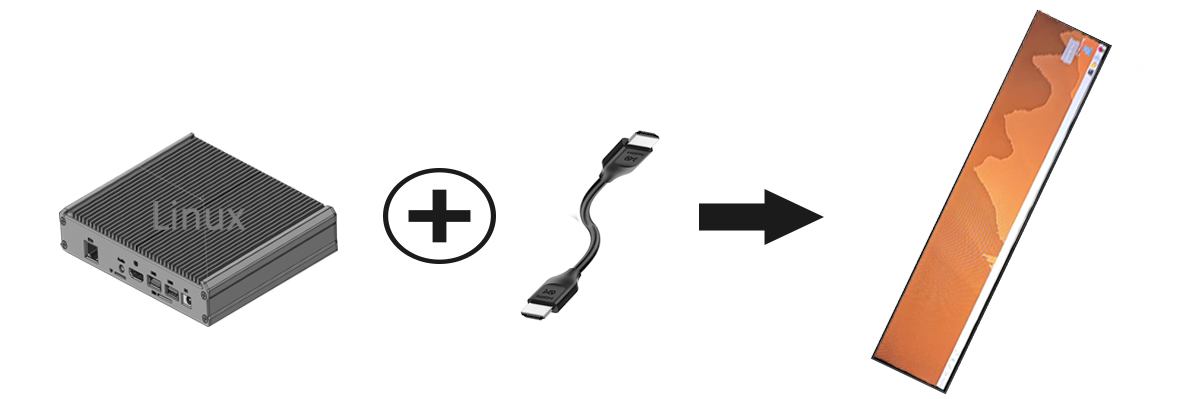

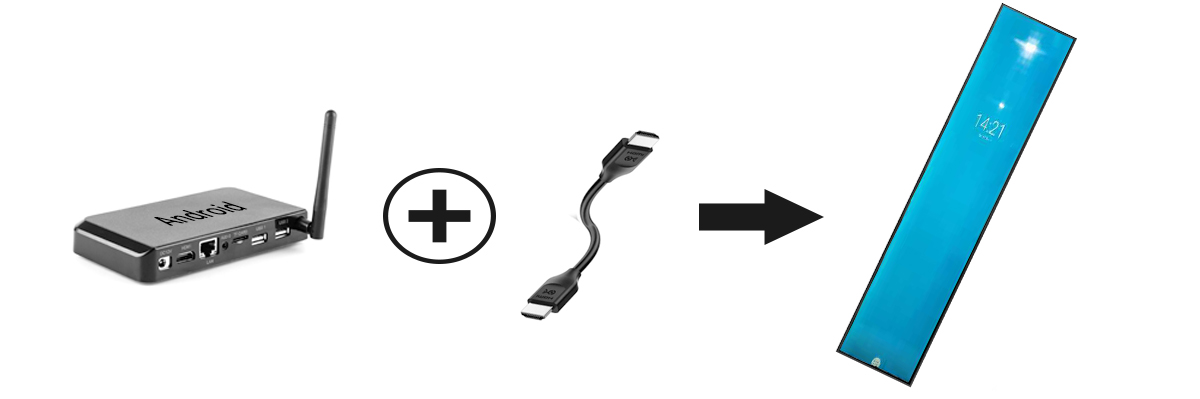

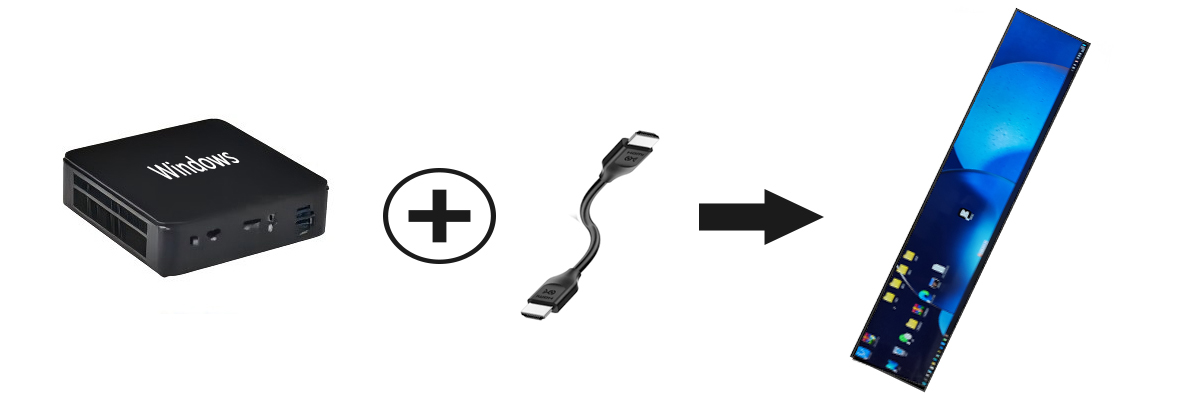

Open-Architecture Computing: Universal Operating System Flexibility
Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Sector Deployment Profiles: High-Footfall Commercial and Public Venues
The unique compact proportions of the 61.9-inch stretched bar monitor make it exceptionally versatile across tight commercial footprints: 1. Smart Retail Shelf Strips: Mounted on cosmetic counters, liquor shelving, and pharmacy displays to showcase real-time digital pricing, product benefits, and QR promotions. 2. Workstation & PC Secondary Telemetry: Positioned beneath primary monitors on gaming and creator desks for real-time CPU/GPU telemetry, chat streams, and audio timelines. 3. 1U/2U Server Rack & Industrial Consoles: Integrated into standard equipment racks and CNC machine panels to provide continuous system status and telemetry feeds. 4. Service Counter & Queue Indicators: Installed at bank teller counters and hospital intake stations to present queue ticket numbers and service status updates.
In smart grocery retail chains, this display format streamlines shelf-edge marketing by replacing static paper shelf tags with dynamic video loops. Supermarket category managers can schedule price changes, promote brand stories, and push limited-time discounts right at the point of decision, driving noticeable increases in retail basket size and impulse item turnover.
Field performance data demonstrates that integrating dynamic panoramic video loops into supermarket shelf headers drives measurable sales lift across featured product categories. Shoppers browsing grocery aisles spend more time engaging with product selections when dynamic pricing and brand storytelling are presented at eye level.
Manufacturer Agility: Permanent Tooling Inventories and Custom Bracket Finishing
ZXT delivers source-factory reliability for global display integrators. Our in-house manufacturing facilities maintain extensive tooling inventories, eliminating NRE mold charges and enabling 3-day sample shipping. We support overseas clients with fully assembled monitors or modular SKD kits designed to lower import duties and freight costs.
Strict quality management systems govern every stage of production, from incoming optical inspection of open-cell panels to computerized colorimeter calibration and vibration table testing.
Field Application & Installation FAQ
**Q1: How does this monitor connect to external audio systems?**
The display extracts audio from the incoming HDMI stream and routes it through an onboard 3.5mm audio socket, allowing installers to link external sound systems for synchronized promotional announcements.
**Q2: What mounting standards are supported on the rear chassis?**
The rear casing incorporates industry-standard VESA mounting patterns alongside adjustable lateral slide-nut tracks, supporting wall brackets, ceiling drop-poles, articulated arms, and custom cabinet cutouts.
**Q3: Can ZXT adjust panel brightness for semi-outdoor or sunlit storefronts?**
Yes. In addition to standard commercial luminance ratings, we offer custom high-brightness LED backlight configurations reaching up to 1000+ nits, equipped with automatic ambient light dimming sensors.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 61.9-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
