Non-touchscreen

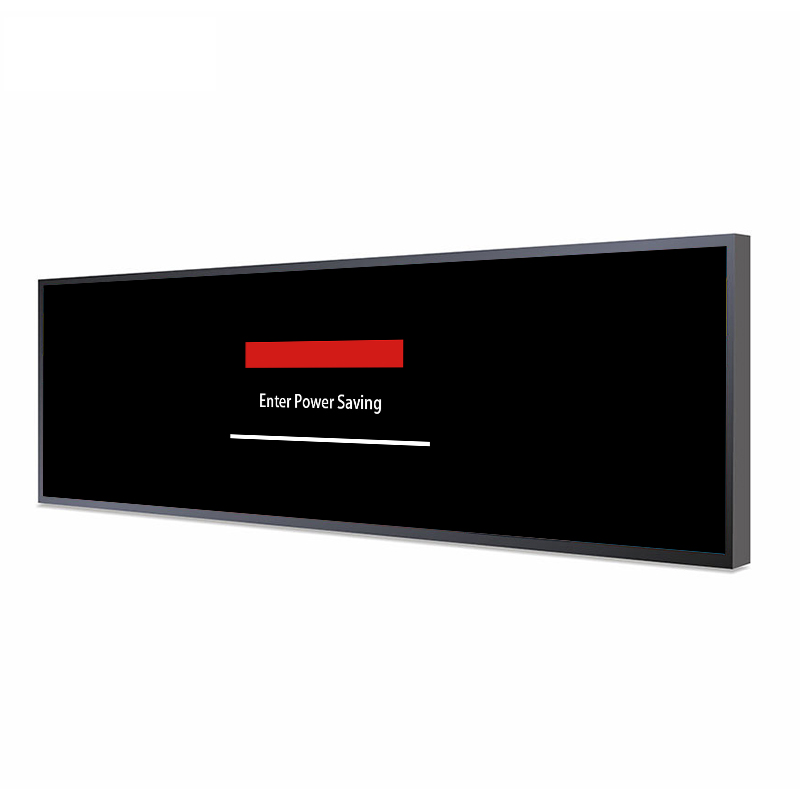

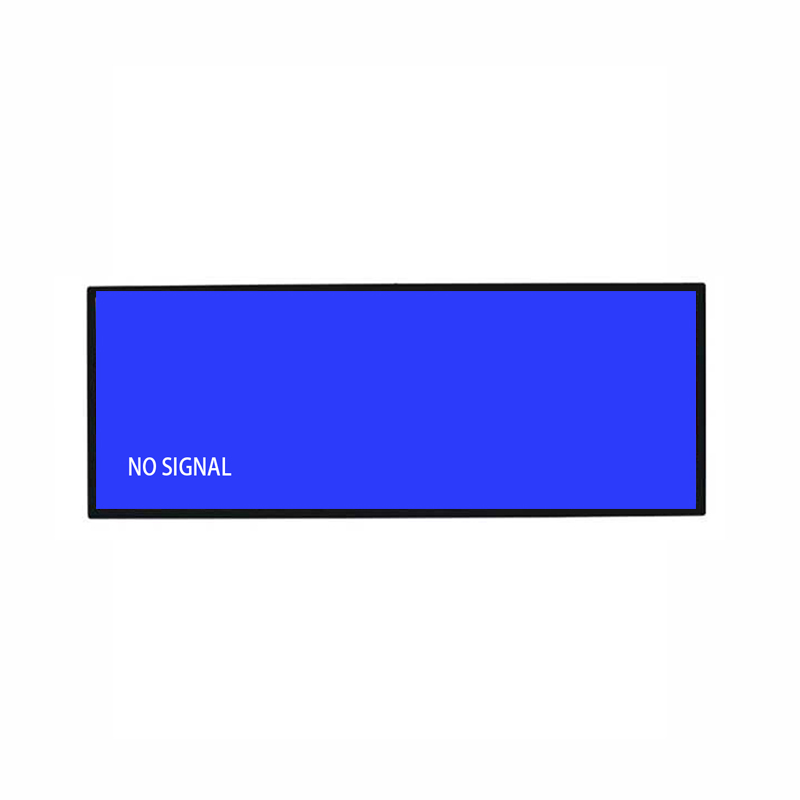

Panoramic Transit Signage: 60.6 Inch Large Format Stretched LCD Display
Commercial-grade 60.6 inch industrial sheet metal bar monitor delivering 3840*786 resolution and 500 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 60.6 Inch
- Resolution
- 3840*786
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA
60.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 60.6 inch | |
Resolution | 3840*786 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Eliminating Structural Redesigns: Direct Integration into Linear Fascias
Linear visual communication is fundamentally transforming how brands and public operators engage with audiences. Where conventional displays dominate vertical walls and desktops, narrow architectural perimeters require an entirely different form factor. Standard monitors are simply too tall, obstructing customer views and complicating mechanical mounting. The 60.6-inch panoramic stretched bar LCD monitor meets these demands by packaging native 3840*786 resolution into an elongated 60.6-inch display profile, turning neglected architectural boundaries into dynamic customer touchpoints.
Modern grocery and department store merchandising demands dynamic storytelling right at the shelf edge. Panoramic digital screens capture shopper dwell time and drive impulse purchases by pairing high-definition video loops with clear pricing.
Retailers deploying digital shelf strips experience a significant reduction in pricing errors and promotional lag. Automated cloud updates ensure that promotional campaigns and regulatory price labels remain synchronized across entire store networks.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 3840*786 resolution, the 60.6-inch stretched monitor provides crisp panoramic visuals. Calibrated to 500 cd/㎡ with a 1200:1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Chassis Architecture: Shock Absorption, Shielding, and Mounting Versatility
Housed in an industrial cold-rolled steel enclosure, the 60.6-inch monitor delivers high structural durability for demanding plant and transit environments. The corrosion-treated steel casing provides robust impact protection, shielding internal A/D boards and power converters from workshop debris and mechanical shocks.
The mechanical enclosure incorporates solid-state passive thermal dissipation, transferring heat away from internal components through high-conductivity internal heat spreaders. By eliminating mechanical fans, the unit operates in complete silence and prevents dust buildup inside the chassis. The rear casing includes standard VESA mounting points and adjustable side mounting channels for flexible installation on walls, poles, or custom fixtures.
Engineered for rapid field deployment, the chassis includes adjustable side-mounting flange ears that secure the display into custom metal cabinetry or wooden millwork. Vibration-damped rubber grommets isolate the display structure from external mechanical shocks in heavy machinery setups.
Input Versatility: Connecting to Industrial IPCs, Android Boxes, and Controllers
The display provides HDMI, VGA video connectivity for straightforward integration with digital signage systems and industrial computers. An integrated 3.5mm Audio Socket enables external sound connectivity. Power is supplied via universal universal 100-240V commercial electrical mains mains, with energy consumption rated at ≤ 150w. Reliable operation is maintained across temperatures of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
Robust input connector soldering and reinforced chassis anchor points prevent loose cable connections caused by mechanical vibration in mobile transit vehicles and vibrating factory machinery.
High-reliability solid-state capacitors and premium inductors prevent power supply failure, ensuring dependable continuous operation across multi-year commercial deployment schedules.
Seamless Multi-OS Switching via HDMI (Windows / Android / Linux)
Engineered as an open-architecture commercial display without proprietary hardware lock-in. By simply connecting an external Windows PC box, Android media player, or Linux industrial controller via a standard HDMI cable, you can achieve effortless operating system switching tailored to your digital signage CMS, interactive software, or industrial monitoring platform.
Application Blueprints: Deploying Stretched Bar Displays for Maximum Return
The 60.6-inch stretched bar monitor is optimized for linear architectural installations. It provides dynamic shelf-edge pricing in retail stores, route progress alerts in public transit vehicles, equipment status feeds in control centers, and directory listings in commercial office buildings.
High-speed commuter rail platform gates utilize this display as an overhead platform indicator. Passengers waiting along boarding zones can check real-time train arrival times, car carriage layouts, and safety instructions at a single glance.
Financial trading desks and professional creative workstations benefit from the display's ultrawide auxiliary utility. Traders and video editors keep critical communications and timeline trackers visible without sacrificing main desktop workspace.
Procuring From The Source: Verified Commercial Quality and Transparent Pricing
Sourcing directly from ZXT provides commercial display buyers with verified factory pricing, established extrusion tooling, and rapid turnaround. Backed by nine-plus years of manufacturing experience, we offer standard sample dispatch within three days, zero tooling fees on standard sizes, and comprehensive 2D/3D CAD engineering support for international project developers.
Our modular SKD and CKD export programs empower international partners to assemble displays locally, qualifying for favorable regional tariff classifications and reducing international freight costs.
Enterprise Signage & Procurement FAQ
**Q1: Does this display require proprietary cloud subscriptions?**
No. The monitor functions as an open commercial display without mandatory software licensing or ongoing platform fees, leaving you completely free to select any commercial or open-source digital signage CMS.
**Q2: What viewing angles does the display support?**
Equipped with true IPS wide-angle optical alignment, the screen delivers symmetrical 178-degree (89°/89°/89°/89°) viewing cones without color shifting, contrast degradation, or visual washout.
**Q3: Can this display be installed in both horizontal and vertical orientations?**
Yes. The commercial-grade liquid crystal panel and fanless thermal design support both landscape horizontal banners and portrait vertical totem installations with equal reliability.
Connect with ZXT Technical Sales Specialists

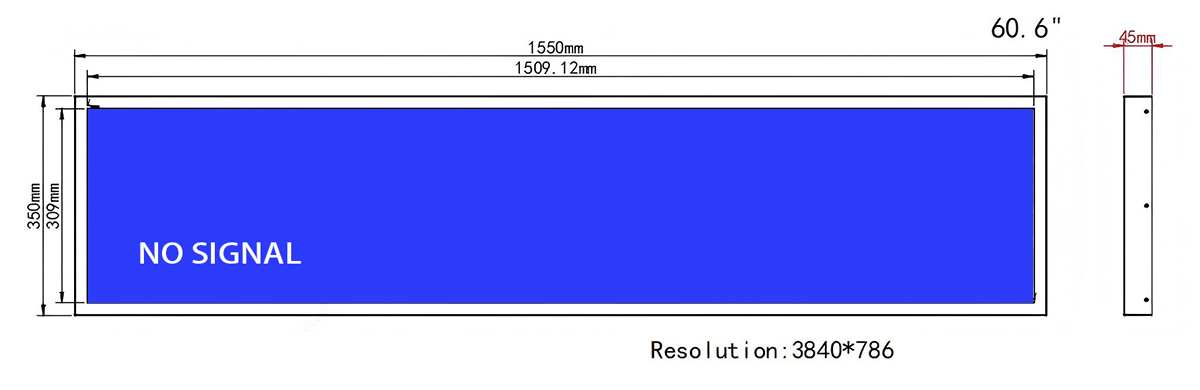

Contact our technical sales group to receive 2D dimensional drawings, 3D CAD files, and competitive factory-direct pricing for the 60.6-inch stretched bar LCD monitor. We provide rapid responses within two business hours.
