Non-touchscreen
58.4 Inch Panoramic Bar LCD Display for Control Rooms & Boardrooms
Source-factory 58.4 inch aluminum profile stretched display delivering native 1920*540/3840*1080 resolution and 800 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 58.4 Inch
- Resolution
- 1920*540/3840*1080
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA
58.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 58.4 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Addressing Narrow Mounting Footprints in High-Density Retail and Public Transit
The physical layout of modern retail gondolas and public transit carriages leaves little room for bulky consumer-style displays. The 58.4-inch stretched bar screen provides an elegant alternative, delivering native 1920*540/3840*1080 resolution within an ultra-thin vertical envelope. It enables dynamic multimedia advertising and passenger wayfinding to operate in spaces where standard screens simply cannot fit.
From corporate reception desks to boutique retail showcases, linear digital screens elevate brand perception. High-resolution panoramic graphics create a modern, tech-forward atmosphere that distinguishes premium venues from competitors.
By delivering panoramic visual authority in spaces measuring just a few inches in height, this hardware unlocks dynamic promotional channels along architectural boundaries that traditional AV hardware simply cannot reach.
Display Quality: Sharp Typography, Fine Graphic Detail, and Vibrant Colors
The 58.4-inch ultra-wide display offers 1920*540/3840*1080 native resolution, paired with a 800 cd/㎡ brightness output and a 1200:1 contrast ratio. The IPS optical layer provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, ensuring consistent visual clarity for viewers positioned at various angles, while the commercial backlight is rated for over 60,000 hours of continuous 24/7 commercial duty of duty.
The display's wide viewing angle architecture ensures that passenger information tickers and pricing tables remain clearly legible to pedestrians walking past at rapid speeds from various approach vectors.
Carefully tuned gamma correction curves produce balanced shadow detail and smooth color gradations, allowing intricate advertising graphics and photographic assets to reproduce with true-to-life vibrancy.
Vibration Resistance: Heavy-Gauge Enclosure Engineering for Transit and Industry
Featuring an ultra-thin architectural aluminum frame, the 58.4-inch display offers a borderless appearance along retail product displays. The rigid alloy extrusion ensures mechanical stability while keeping weight to a minimum.
Thermal performance is optimized through passive conduction, using the external metal body to dissipate heat away from internal electronics. This fanless system ensures silent operation and protects internal circuits from dust. Rear VESA patterns and lateral slide channels support flexible mounting configurations.
The housing design includes dedicated cable strain-relief tie points that prevent video and power cords from vibrating loose over years of service. Accessible side-mounting screw holes facilitate quick integration into self-service kiosk fascias.
Hardware Integration: Direct Video Linking Without Specialized External Adapters
The display is equipped with HDMI, VGA video ports for direct connection to media players and embedded PCs. An audio connection is provided via a 3.5mm Audio Socket. The power supply accommodates standard 110V to 240V AC power input with an efficient power rating of ≤ 120w, operating reliably across temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Comprehensive electrical isolation safeguards video input ports against ground loop interference, ensuring hum-free audio and noise-free video signals in complex industrial AV setups.
Built-in over-voltage, over-current, and short-circuit protection circuits safeguard the monitor against unexpected electrical faults, preventing costly equipment damage during power grid surges.
Unrestricted Cross-OS Compatibility for Enterprise Signage

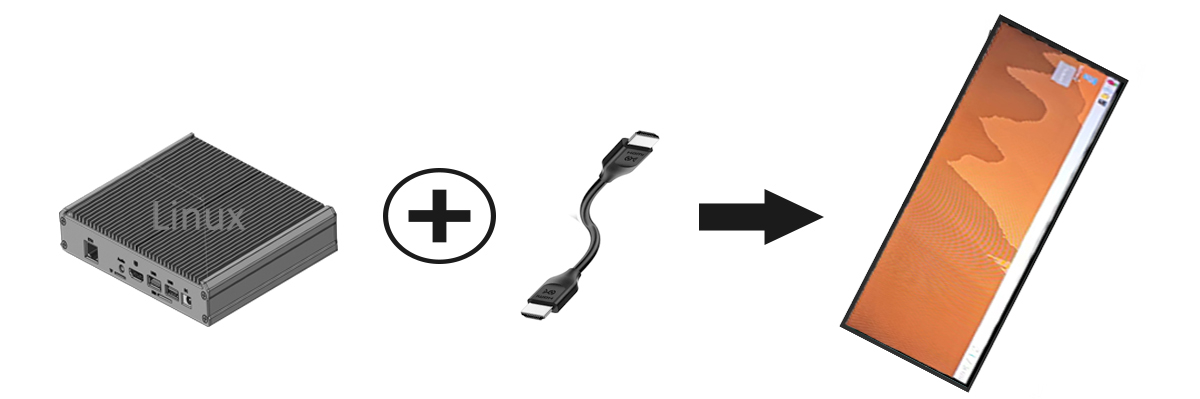

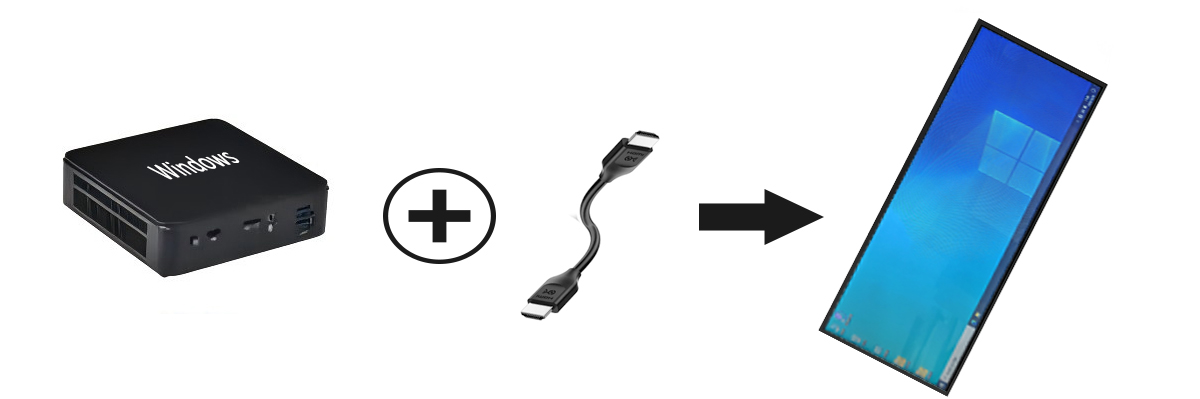

Designed to serve as a versatile visual terminal, the display features native HDMI compatibility with all major operating systems, including Microsoft Windows, Google Android, and enterprise Linux distributions. IT departments can pair the screen with their preferred hardware platform to broadcast cloud-managed digital signage, execute custom interactive scripts, or display mission-critical telemetry without proprietary software licensing hurdles.
Application Blueprints: Deploying Stretched Bar Displays for Maximum Return
The 58.4-inch stretched bar monitor is optimized for linear architectural installations. It provides dynamic shelf-edge pricing in retail stores, route progress alerts in public transit vehicles, equipment status feeds in control centers, and directory listings in commercial office buildings.
High-speed commuter rail platform gates utilize this display as an overhead platform indicator. Passengers waiting along boarding zones can check real-time train arrival times, car carriage layouts, and safety instructions at a single glance.
Financial trading desks and professional creative workstations benefit from the display's ultrawide auxiliary utility. Traders and video editors keep critical communications and timeline trackers visible without sacrificing main desktop workspace.
Direct Manufacturer Partnership: Eliminating Intermediary Markups and Delays
Choosing ZXT as your hardware manufacturing partner provides direct access to high-precision display engineering at true source-factory pricing. Our Shenzhen manufacturing facility houses specialized production lines backed by nearly a decade of commercial display expertise. Because we maintain extensive inventories of standard extrusion profiles and tooling dies, our clients avoid costly tooling fees and long tooling lead times, enabling rapid prototype evaluation with standard sample turnaround in just three business days. We understand international logistics and tariff structures. To help overseas integrators and distributors minimize shipping volume and customs duties, we supply displays in multiple production states: fully assembled plug-and-play monitors, drop-in open-frame modules, or semi-knocked-down (SKD) kits for local assembly. Every sub-assembly undergoes rigorous factory testing before shipment to ensure high out-of-the-box yield rates. Our in-house technical department supports your project from initial design to site deployment.
Our in-house mechanical design team collaborates directly with client engineers to develop customized mounting brackets, specialized cable harnesses, and branded bezel silkscreening tailored to specific project needs.
Commercial Hardware Selection FAQ

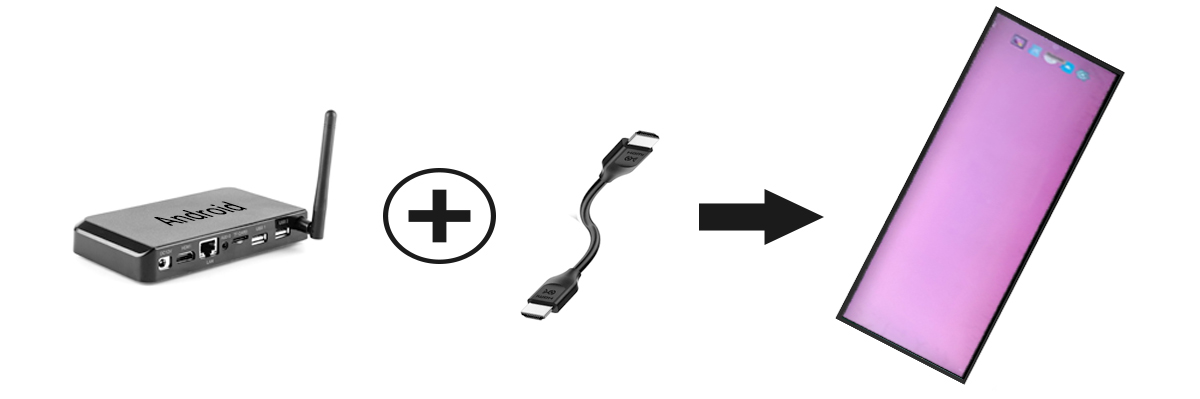

**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
Initiate Custom Hardware Scoping and Sample Dispatch
Request a quote or order an evaluation sample for the 58.4-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
