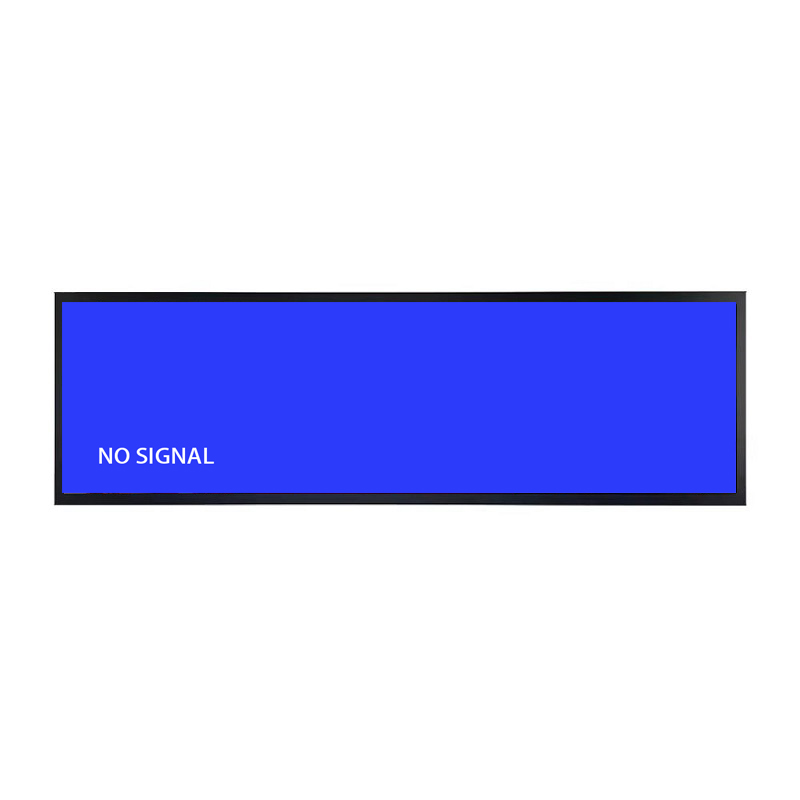

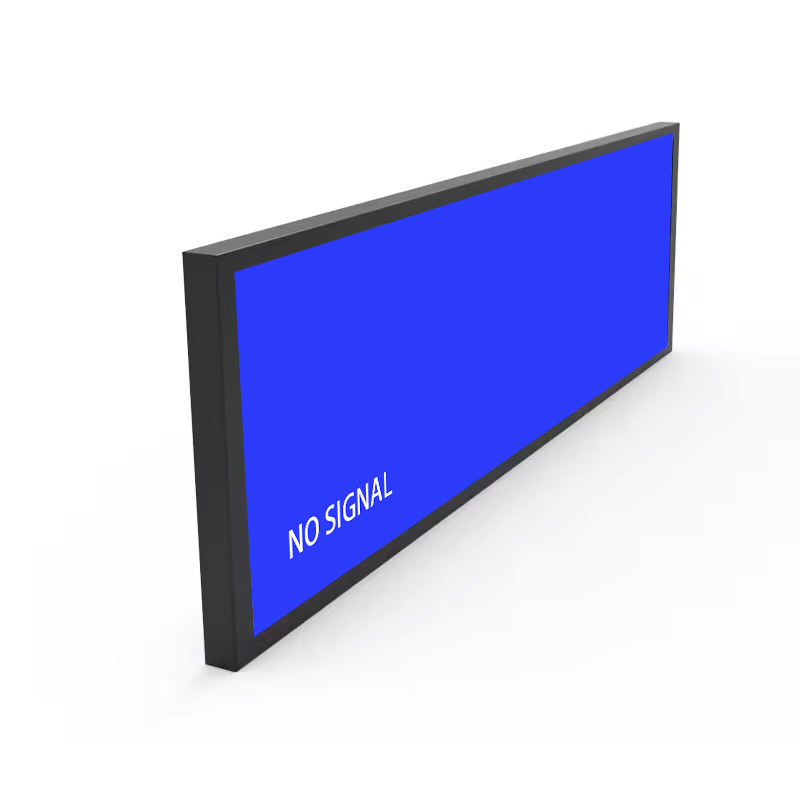

Large Stretched Bar Monitor – 58.4 Inch Ultra-Wide Commercial Display
Commercial-grade 58.4 inch industrial sheet metal bar monitor delivering 3840*1080/1920*540 resolution and 300~700 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 58.4 Inch
- Resolution
- 1920*540/3840*1080
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA
58.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 58.4 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Perimeter Optimization: Converting Dormant Edge Margins into Dynamic Visuals
A common challenge in digital signage deployment is the inability to install dynamic video displays in narrow horizontal margins. Conventional 16:9 monitors demand substantial vertical clearance, making them unusable along supermarket gondola edges, bus door headers, and industrial machine consoles. The 58.4-inch cut-bar LCD screen bypasses these physical limits by adopting a specialized panoramic form factor delivering native 3840*1080/1920*540 resolution across an elongated 58.4-inch active diagonal. Venues can now present synchronized multi-zone promotional animations, dynamic price feeds, and essential directional signage right at the point of decision.
Commercial operators benefit from significant cost reductions in fixture fabrication. Because these stretched units install directly into standard shelving channels and door bulkheads, enterprise clients avoid expensive structural custom cabinet work.
The ultra-wide panoramic aspect ratio allows graphic designers to separate high-priority navigational alerts from continuous background advertising loops, ensuring that viewers immediately register essential updates without information overload.
Engineered Optics: High Pixel Density and Glare Suppression for Public Spaces
Equipped with an industrial-grade liquid crystal matrix, the 58.4-inch stretched monitor delivers native 3840*1080/1920*540 resolution and a luminous output of 300~700 cd/㎡. It provides crisp, high-contrast imagery backed by a 1200:1 contrast ratio, ensuring text and graphics remain readable under intense interior lighting. True IPS technology provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, while the backlight system is rated for over 60,000 hours of continuous 24/7 commercial duty of dependable operation.
Optical bonding technology minimizes internal air gaps between the cover glass and liquid crystal cell, virtually eliminating internal light refraction and delivering crisp, surface-printed visual clarity.
Fast liquid crystal transition times prevent image blurring and ghosting during high-speed promotional video animations, ensuring that fast-moving product footage appears fluid and natural.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Built with an industrial-grade steel housing, the 58.4-inch display provides robust mechanical protection for heavy machinery and transport consoles. The electro-galvanized cold-rolled metal construction ensures high rigidity and effective electromagnetic interference defense.
A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Controller Architecture: Seamless Audio-Video Synchronization and Native Scaling
The monitor features HDMI, VGA video inputs compatible with standard commercial and industrial video sources. Audio playback is supported through a 3.5mm Audio Socket. Operating on AC 100V~240V (50/60Hz) power with an efficient consumption of ≤ 120w, the unit functions dependably across temperatures from below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
High-efficiency switch-mode power supplies minimize wasted heat generation, allowing the display to operate comfortably within tight architectural cavities with restricted ventilation.
Dual video input provisions allow technicians to connect a primary media player alongside a secondary backup feed, providing redundant visual broadcasting capability for mission-critical transit wayfinding.
Plug-and-Play Multi-OS Freedom via Standard HDMI Input
Rather than forcing users into a proprietary, non-upgradeable smart OS, this display serves as a pure, high-performance visual surface ready for any external compute platform. Connect a Windows PC, Android media box, or Linux controller via HDMI to immediately drive dynamic promotional banners, automated menu boards, or plant monitoring telemetry with complete operating system freedom.
Strategic Venues: Airport Information Systems, Fast-Food Menus, and Factory Lines
With its specialized panoramic form factor, the 58.4-inch display serves diverse commercial sectors. It enhances retail product displays with dynamic video loops, informs public transit commuters with real-time route updates, monitors server rack metrics in data centers, and displays panoramic menus in restaurant chains.
Specialty pharmacy and health retail stores install this monitor along vitamin and personal care shelving. Nutritional information, product usage guides, and promotional discounts are presented at eye level to support informed customer purchasing decisions.
Commuter rail stations report smoother passenger boarding flows when deploying this display along platform boarding gates. Passengers waiting along platform edges can verify carriage layouts and arrival times at a single glance.
Direct Manufacturer Partnership: Eliminating Intermediary Markups and Delays
Choosing ZXT as your hardware manufacturing partner provides direct access to high-precision display engineering at true source-factory pricing. Our Shenzhen manufacturing facility houses specialized production lines backed by nearly a decade of commercial display expertise. Because we maintain extensive inventories of standard extrusion profiles and tooling dies, our clients avoid costly tooling fees and long tooling lead times, enabling rapid prototype evaluation with standard sample turnaround in just three business days. We understand international logistics and tariff structures. To help overseas integrators and distributors minimize shipping volume and customs duties, we supply displays in multiple production states: fully assembled plug-and-play monitors, drop-in open-frame modules, or semi-knocked-down (SKD) kits for local assembly. Every sub-assembly undergoes rigorous factory testing before shipment to ensure high out-of-the-box yield rates. Our in-house technical department supports your project from initial design to site deployment.
Our in-house mechanical design team collaborates directly with client engineers to develop customized mounting brackets, specialized cable harnesses, and branded bezel silkscreening tailored to specific project needs.
Procurement & Technical Verification FAQ
**Q1: Can this display be integrated into third-party kiosk cabinetry?**
Yes. The compact enclosure profile, standardized VESA mounting holes, and optional open-frame mounting ears make it exceptionally straightforward to integrate into self-service kiosks, vending machines, and ATMs.
**Q2: How does ZXT support overseas localized assembly?**
Through our established SKD/CKD programs, we provide tested sub-assemblies, detailed assembly process documentation, and technical support to assist overseas partners in establishing localized production.
**Q3: How do we initiate an engineering consultation for custom specifications?**
Simply contact our technical sales department with your target installation parameters, dimensional constraints, and order volumes, and our engineering team will provide a comprehensive proposal within two hours.
Direct Commercial Inquiry and Specification Review
Initiate your project consultation for the 58.4-inch stretched bar display by contacting our international technical sales team. We are prepared to provide 2D/3D mechanical drawings, verify electrical interfaces, and expedite 3-day evaluation samples for your team. Submit your project scope and quantities today for a prompt factory quotation within two business hours.
