Non-touchscreen
High-Brightness 58.4 Inch Rack Mount Stretched Monitor, 800 Nits
Commercial 58.4 inch standard ultra-wide bar display with 3840*1080 native resolution and 800 cd/㎡ brightness. Built for continuous operation across transport networks, retail aisles, and industrial facilities. Rapid global fulfillment from Shenzhen.
Specifications
- Screen Size
- 58.4 Inch
- Resolution
- 3840*1080
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA
58.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 58.4 inch | |
Resolution | 3840*1080 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
The Architectural Case for Stretched Displays: Minimizing Dead Visual Zones
Eliminating physical clutter while delivering high-impact visual data is the central purpose of the 58.4-inch stretched display. Rather than forcing oversized standard screens into narrow architectural margins, operators can install this sleek 58.4-inch unit delivering native 3840*1080 resolution. It converts dormant shelf headers and transit door transoms into valuable digital real estate without requiring structural renovations.
Facilities running round-the-clock public operations require signage hardware that operates reliably with minimal human intervention. These stretched screens provide consistent, continuous operation, ensuring uninterrupted visual communication.
Operating within restricted physical envelopes without generating localized heat pockets is critical for equipment longevity. The streamlined geometry facilitates natural airflow across rear thermal conduction planes.
True IPS Technology: Wide Symmetrical Viewing Angles Without Chromatic Drift
Engineered for clarity and longevity, the 58.4-inch panoramic display features a native resolution of 3840*1080 and a brightness rating of 800 cd/㎡. The anti-glare surface minimizes ambient reflections, while the 1200:1 contrast ratio and IPS symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angles ensure optimal image quality from all perspectives. The backlight is rated for over 60,000+ operational hours of 24/7 commercial performance.
The LED backlight system incorporates premium phosphor coatings that deliver a broad, balanced color spectrum, ensuring that dynamic video sequences render with lifelike warmth and accurate saturation.
The IPS alignment layer ensures that contrast and color saturation remain virtually identical across the entire 178-degree viewing cone, allowing passersby approaching from sharp angles to read information effortlessly.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Featuring a streamlined metallic casing, the 58.4-inch monitor provides dependable physical protection and contemporary styling. Precision mounting slots enable fast, accurate alignment in commercial display fixtures.

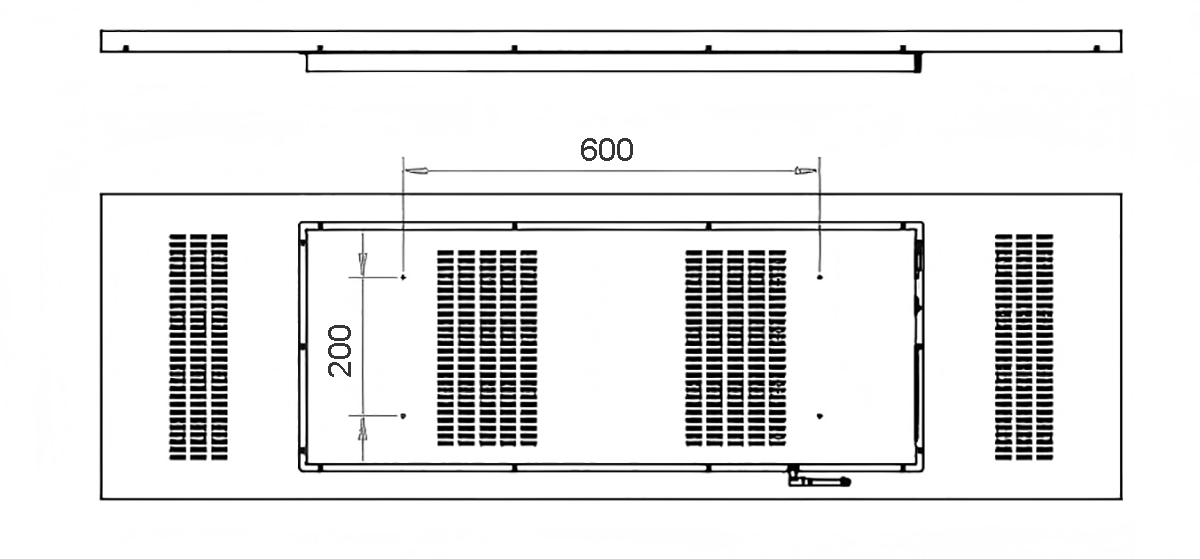

A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Electrical Efficiency: Low-Ripple DC Regulation and Thermal Load Reduction
Engineered with HDMI, VGA inputs, the monitor connects effortlessly to commercial media players and industrial computing devices. Audio output is routed through a Audio Socket (3.5mm). The power module supports universal standard 110V to 240V AC power input inputs with an efficient power draw of ≤ 120w, while environmental resilience is rated for below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
The internal power regulation subsystem maintains steady direct current output even during sudden commercial utility voltage fluctuations, ensuring uninterrupted screen operation during peak hours.
The motherboard includes native EDID emulation that automatically communicates the display's custom panoramic resolution to connected PCs, simplifying operating system display setup and driver configuration.
Open Hardware Standards: Seamless Windows, Android, and Linux Support

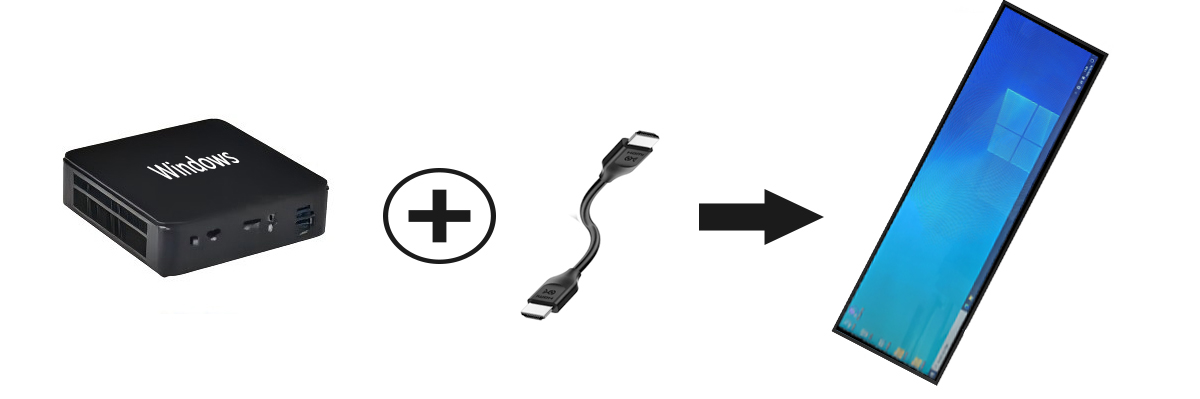

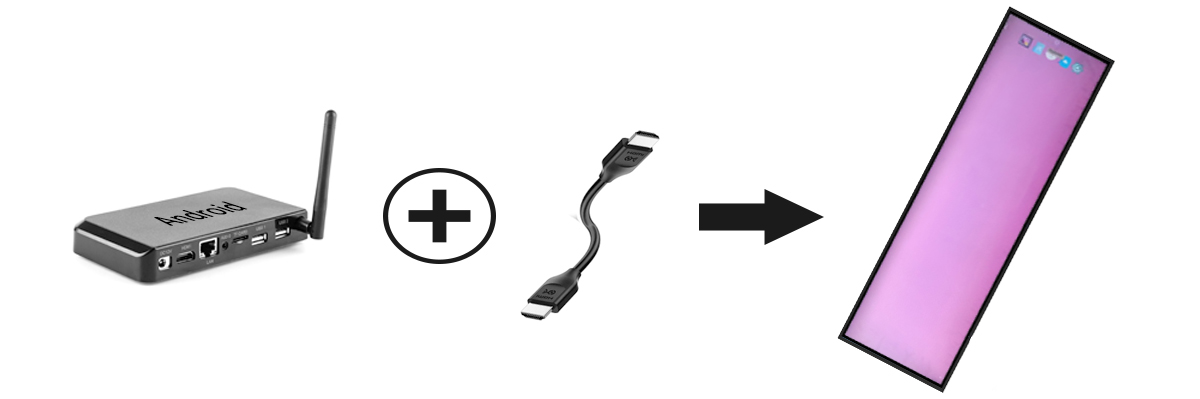

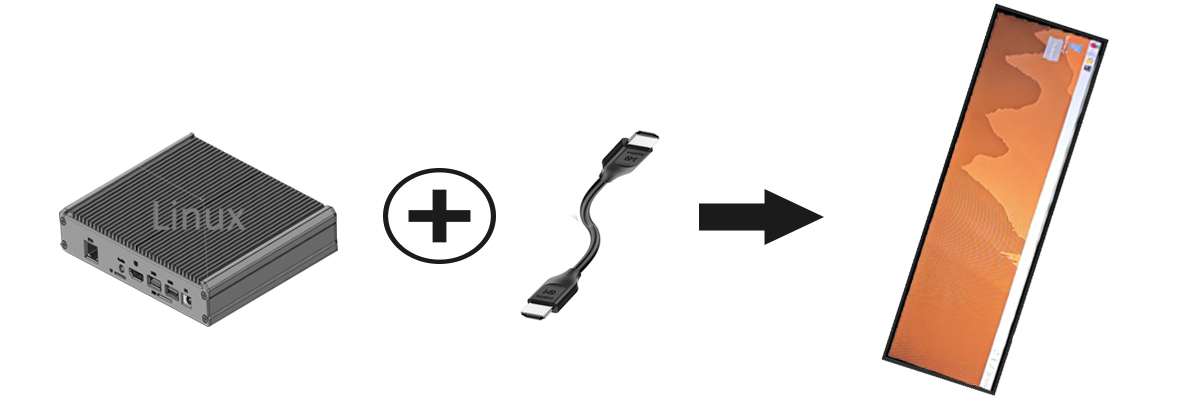

By adhering strictly to open commercial hardware standards, this monitor ensures effortless multi-OS synchronization via standard HDMI connections. System architects can freely pair the screen with external Windows computing hardware, cost-effective Android digital signage units, or robust Linux industrial microcontrollers, ensuring seamless compatibility with any enterprise software platform.
Deployment Analysis: Where Panoramic Display Form Factors Deliver Peak Value
Deploying the 58.4-inch panoramic display enables venues to present dynamic video messaging in previously inaccessible spaces. Key applications include retail grocery shelf signage, commuter train door route maps, corporate elevator transom directories, and manufacturing facility production status banners.
Corporate office towers mount this screen across elevator door lintels and common hallway corridors. Building managers broadcast tenant announcements, weather alerts, and corporate communications in an unobtrusive, contemporary format.
Museum curators praise the display's ability to deliver rich historical context alongside delicate artifacts. The low-profile screen fits neatly into exhibit vitrines and pedestals without distracting visitors from the physical collection.
B2B Production Excellence: 100% Factory Burn-In Testing and Direct Support
Direct factory procurement from ZXT ensures competitive pricing and reliable hardware delivery. We maintain in-stock extrusion tooling, offer 3-day sample dispatch, and support international partners with flexible delivery formats from finished displays to modular SKD kits.
Long-term component lifecycle management ensures that key panel models, driver boards, and mechanical dimensions remain stable across multi-year enterprise rollout phases, preventing unexpected redesigns.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
Connect with ZXT Technical Sales Specialists

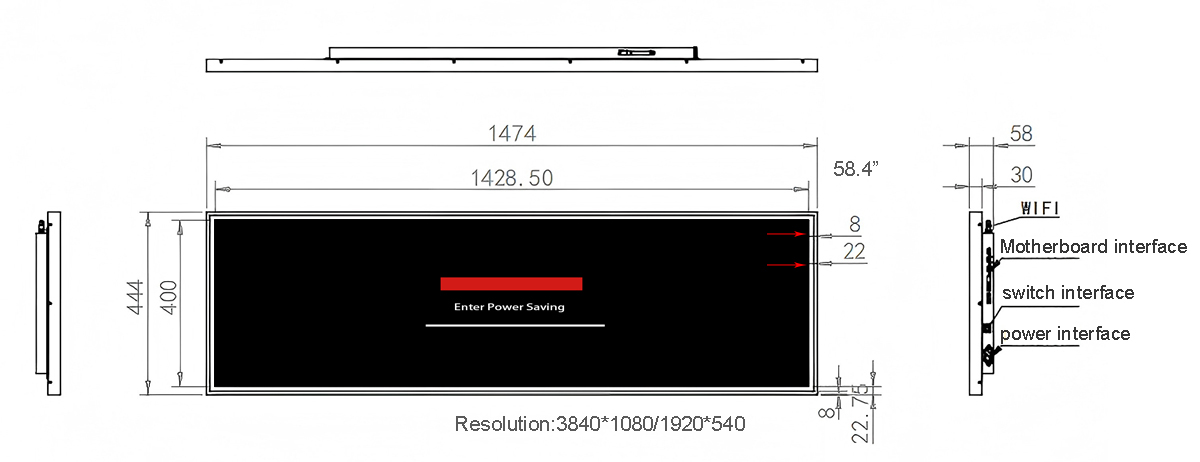

Contact our technical sales group to receive 2D dimensional drawings, 3D CAD files, and competitive factory-direct pricing for the 58.4-inch stretched bar LCD monitor. We provide rapid responses within two business hours.
