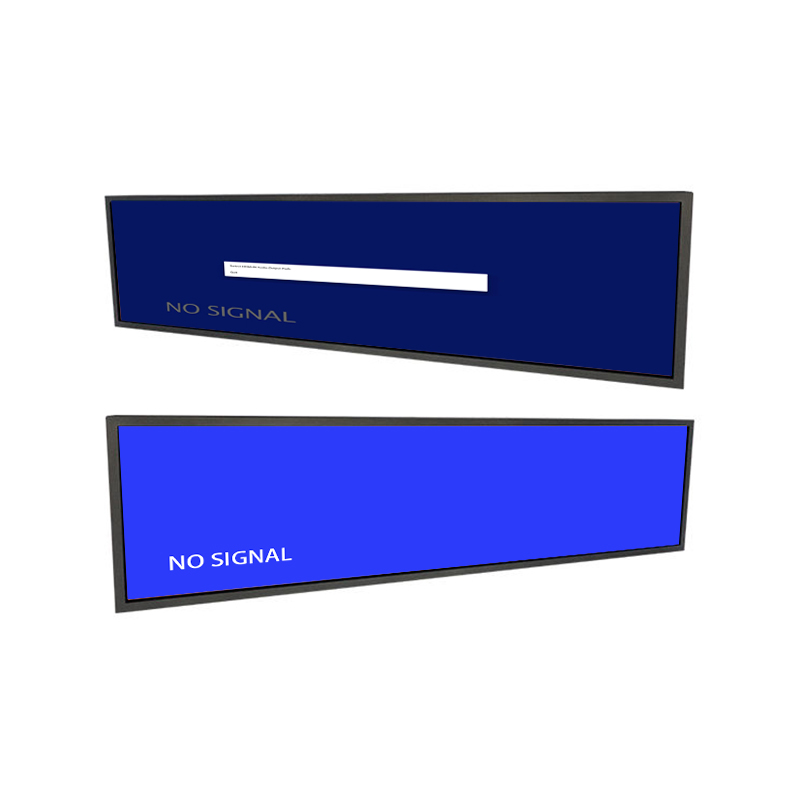

High-Impact 57 Inch Wall-Mounted Bar LCD Screen for Airport & Hubs
High-resolution 57 inch industrial sheet metal bar monitor with 1920*356/3840*712 active matrix and 800 cd/㎡ brightness. Designed for smart retail, rolling stock transit, and industrial server racks. Backed by 9+ years of specialized display manufacturing.
Specifications
- Screen Size
- 57 Inch
- Resolution
- 1920*356/3840*712
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA
57 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 57 inch | |
Resolution | 1920*356/3840*712 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Perimeter Optimization: Converting Dormant Edge Margins into Dynamic Visuals
A common challenge in digital signage deployment is the inability to install dynamic video displays in narrow horizontal margins. Conventional 16:9 monitors demand substantial vertical clearance, making them unusable along supermarket gondola edges, bus door headers, and industrial machine consoles. The 57-inch cut-bar LCD screen bypasses these physical limits by adopting a specialized panoramic form factor delivering native 1920*356/3840*712 resolution across an elongated 57-inch active diagonal. Venues can now present synchronized multi-zone promotional animations, dynamic price feeds, and essential directional signage right at the point of decision.
Commercial operators benefit from significant cost reductions in fixture fabrication. Because these stretched units install directly into standard shelving channels and door bulkheads, enterprise clients avoid expensive structural custom cabinet work.
The ultra-wide panoramic aspect ratio allows graphic designers to separate high-priority navigational alerts from continuous background advertising loops, ensuring that viewers immediately register essential updates without information overload.
Display Quality: Sharp Typography, Fine Graphic Detail, and Vibrant Colors
The 57-inch ultra-wide display offers 1920*356/3840*712 native resolution, paired with a 800 cd/㎡ brightness output and a 1200:1 contrast ratio. The IPS optical layer provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, ensuring consistent visual clarity for viewers positioned at various angles, while the commercial backlight is rated for over 60,000 hours of continuous 24/7 commercial duty of duty.
The display's wide viewing angle architecture ensures that passenger information tickers and pricing tables remain clearly legible to pedestrians walking past at rapid speeds from various approach vectors.
Carefully tuned gamma correction curves produce balanced shadow detail and smooth color gradations, allowing intricate advertising graphics and photographic assets to reproduce with true-to-life vibrancy.
Mechanical Integrity: Extrusion Tolerances and Fanless Thermal Management
Built for demanding industrial and transportation applications, the 57-inch sheet metal housing is formed from heavy-gauge cold-rolled electro-galvanized steel. The ruggedized enclosure provides superior mechanical shock absorption, structural stiffness, and excellent electromagnetic shielding (EMC), safeguarding internal timing and driving electronics from harsh factory floor vibration, motor noise, and vehicle chassis dynamics.
Thermal management relies on a purely passive, fanless conduction architecture. High-efficiency internal thermal heat-spreaders route heat away from the liquid crystal cell and driving chipsets directly into the external metallic chassis. By eliminating motorized fans, the monitor avoids internal dust accumulation, eliminates mechanical motor failure points, and operates in absolute acoustic silence—critical for quiet luxury retail and public service desks. Mounting versatility is integral to the enclosure design, featuring standard VESA mounting patterns alongside lateral slide-track channels.

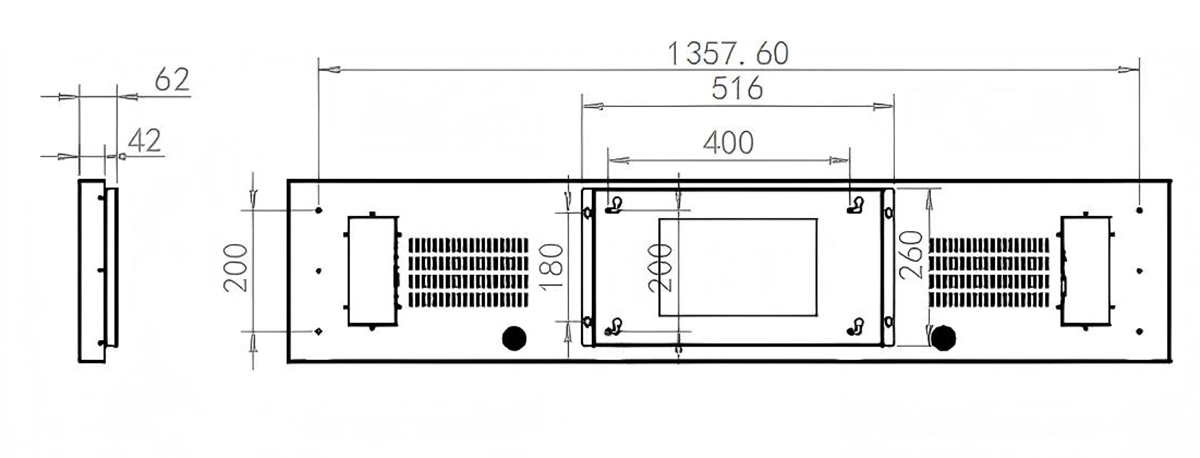

Mechanical installation flexibility is ensured through standardized VESA 75x75 and 100x100 mounting patterns integrated directly into the rear chassis plate. In addition, continuous lateral T-slot channels allow technicians to slide and lock mounting brackets into exact position, simplifying alignment across long multi-display shelf runs or vehicle interior bulkheads.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a 3.5mm Audio Socket, while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 120w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Universal OS Flexibility for Turnkey Commercial Integration
Tailor your visual display precisely to your software workflow. Equipped with standard HDMI inputs, this commercial monitor effortlessly displays output from external Windows workstations, Android media players, and Linux industrial engines. Integrators enjoy the complete freedom to deploy preferred signage CMS engines, custom interactive kiosk scripts, or real-time data visualizers without proprietary barriers.
Field Deployment Breakdown: Retail Aisles, Train Doorways, and Datacenter Racks
The 57-inch stretched screen delivers valuable visual communication in linear spaces. Common deployment scenarios include supermarket shelf merchandising, bus and train passenger guidance, industrial machine tool telemetry, and corporate entrance architectural signage.
Automotive manufacturing plants and cleanroom testing facilities mount this display along inspection stations. Quality control technicians verify real-time tolerance data, assembly checklists, and defect alerts on a clean, wipe-down screen.
Pharmacy retail chains utilize the screen along personal care aisles to deliver educational health tips and seasonal promotions, assisting shoppers in making informed healthcare purchasing decisions right at the shelf.
Global Logistics Optimization: SKD/CKD Deliveries and Import Tariff Savings
By establishing a direct factory relationship with ZXT, your company secures factory-direct commercial terms backed by genuine industrial engineering capability. With over nine years of dedicated experience and hundreds of deployed projects worldwide, we keep standard extrusion dies and tooling components permanently in stock. This eliminates upfront tooling charges on standard sizes while enabling rapid sample shipping within 72 hours of project sign-off. We cater to international contractors and volume resellers by offering flexible packaging formats. Order fully assembled turnkey commercial monitors, frameless open-cell modules, or CKD/SKD modular kits designed to optimize sea and air container utilization and lower local import tariffs. Our dedicated engineering team assists with every phase of mechanical and electronic integration, providing full CAD support and factory testing.
Flexible packaging options—from individual retail-ready cartons to high-density bulk export pallets—are engineered to maximize container space utilization and protect hardware during long ocean transit.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 57-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
