Non-touchscreen
57.9 Inch Panoramic Bar LCD Display for Control Rooms & Boardrooms
Source-factory 57.9 inch industrial sheet metal bar monitor delivering native 1920*466/3840*932 resolution and 800 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 57.9 Inch
- Resolution
- 1920*466/3840*932
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA
57.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 57.9 inch | |
Resolution | 1920*466/3840*932 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Rethinking Linear Spaces: The Rise of Specialized Stretched Bar Displays
Spatial efficiency is a defining metric in contemporary commercial architecture. High-throughput railway stations, supermarket aisles, and manufacturing cleanrooms require real-time information delivery, but lack the physical height required for conventional computer screens. The 57.9-inch ultra-wide bar monitor represents a targeted hardware solution to this dilemma. Delivering 1920*466/3840*932 native resolution across an active 57.9-inch area, this display integrates flush into narrow headers, shelf channels, and equipment fascias, providing vibrant high-definition media without altering interior structural boundaries.
Deploying digital signage along narrow architectural boundaries transforms passive building surfaces into interactive communication channels. From commercial banking counters to hospital triage halls, panoramic displays streamline public traffic flow and enhance customer service delivery.
In demanding transit and retail venues, space optimization is both an aesthetic and functional necessity. By converting narrow wall headers and shelf fronts into active information zones, facility managers maximize commercial utility per square meter.
Long-Term Optical Durability: Solid-State LED Backlight Lifespan Engineering
Featuring an industrial A-grade LCD panel, the 57.9-inch stretched monitor delivers 1920*466/3840*932 resolution and 800 cd/㎡ brightness. The optical stack achieves a 1200:1 contrast ratio for sharp text and vibrant color saturation. Wide-angle IPS technology ensures true IPS 178-degree wide visual cone visibility, supported by an energy-efficient LED backlight system rated for an industrial service life exceeding 60,000 hours of continuous service.
A durable surface polariser repels static dust accumulation and resists surface scratches, preserving pristine optical transparency in busy public environments with heavy foot traffic.
Solid-state LED backlights utilize efficient thermal conductive substrates, keeping diode junction temperatures low to prevent premature luminous decay and chromatic drift over extended commercial service.
Installation Engineering: Lateral Slide-Tracks and Universal Mounting Provisions

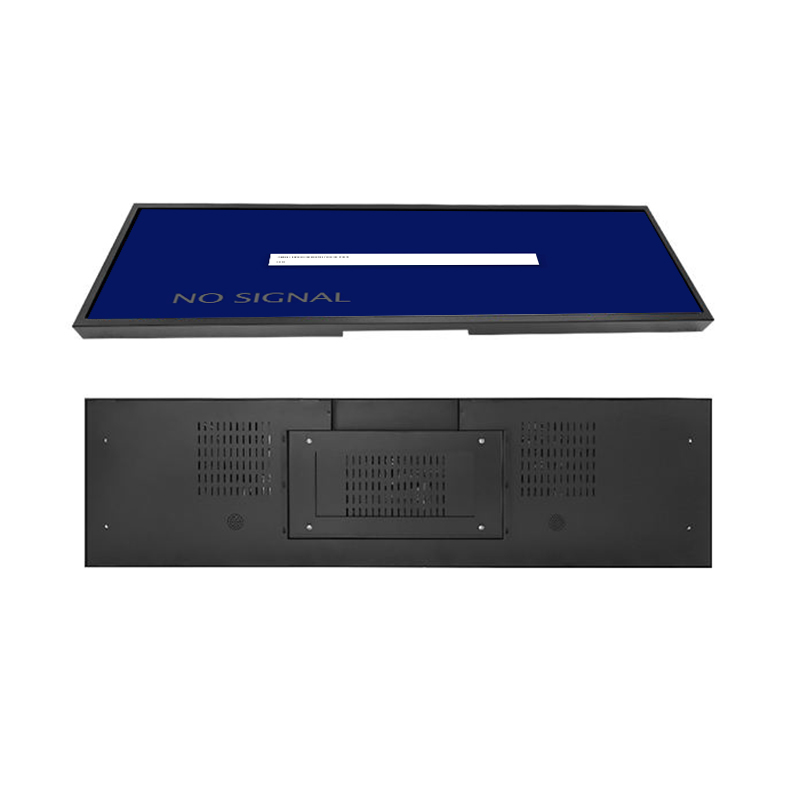

The 57.9-inch sheet metal housing is constructed from precision-formed galvanized steel plates, offering superior structural stiffness and impact defense. The robust chassis protects display electronics from mechanical shocks in harsh industrial and transit deployments.
Passive thermal dissipation through the metallic housing ensures stable operating temperatures without the need for mechanical cooling fans. The enclosure includes standardized VESA mounting provisions and lateral slide channels for straightforward installation.
Flexible mounting hardware options include top-suspension hanging brackets, recessed cabinet clips, and articulated wall mounts. All structural fasteners are fabricated from stainless steel to resist atmospheric corrosion in semi-outdoor venues.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated 3.5mm Audio Socket supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 120w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.
Decoupled Open-Architecture Display for Multi-OS Environments

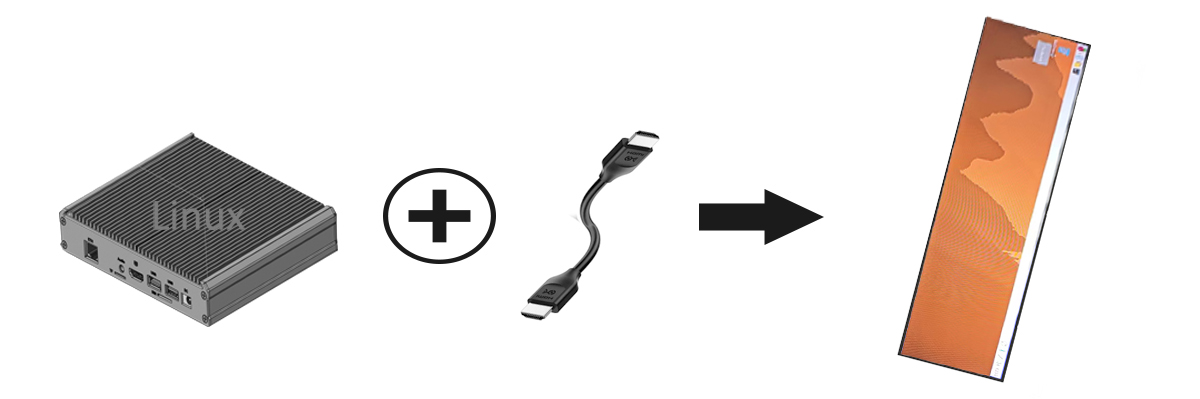

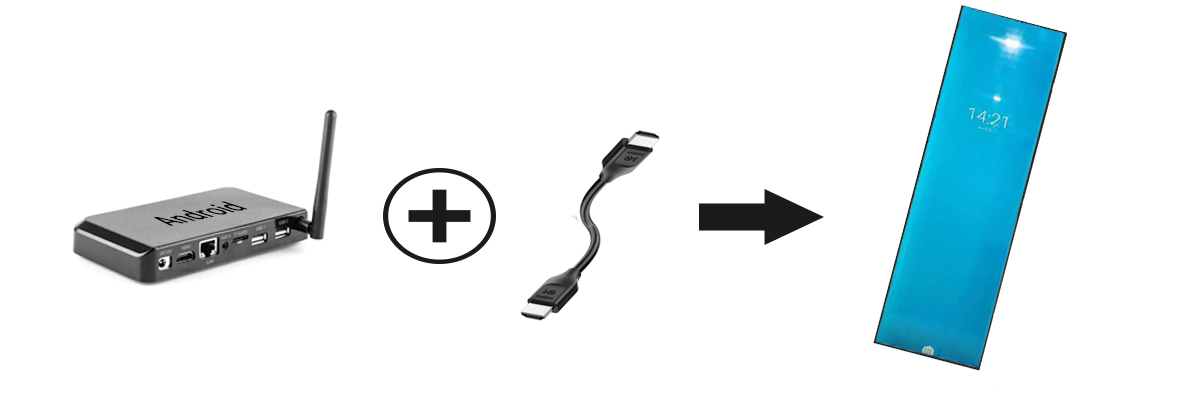

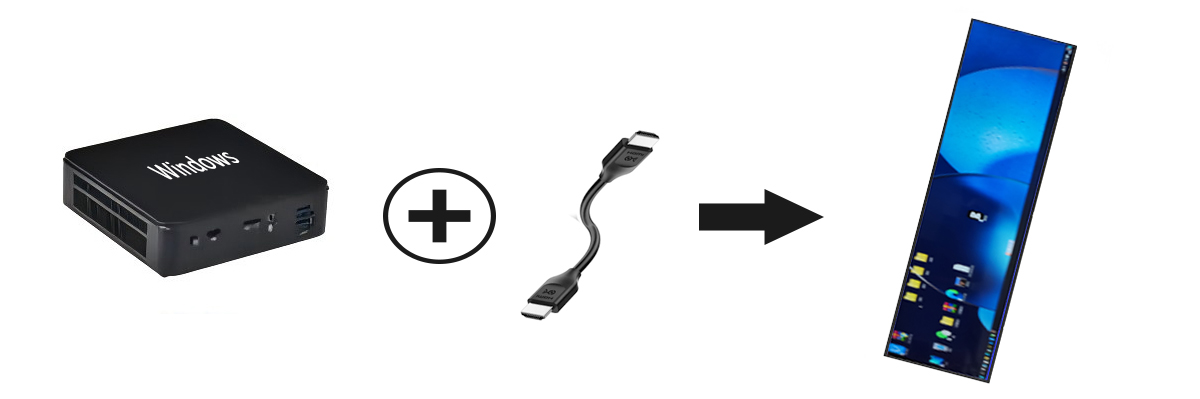

Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Venue Integration: Enhancing Customer Navigation and Merchandise Turnover
Engineered for versatile commercial use, the 57.9-inch stretched display provides panoramic visual delivery in space-constrained settings. Retailers utilize it for shelf-edge advertising, transit operators install it for passenger wayfinding, and industrial engineers use it for equipment monitoring.
In sports arenas and stadium concourse passages, the display functions as a continuous digital ribbon above concession stands. Live match scores, sponsor logos, and beverage menu specials keep spectators engaged throughout tournament games.
Cleanroom pharmaceutical facilities rely on the display's sealed, wipe-clean housing to monitor batch processing parameters. Quality control operators verify real-time environmental data without compromising sterile room protocols.
Manufacturing Agility: 3-Day Sample Turnaround and Custom Enclosure Tooling
Working with ZXT ensures direct access to manufacturing authority and extensive production capacity. With nearly a decade of display manufacturing experience and more than 300 international commercial deployments, we maintain comprehensive inventories of standard extrusion casings and chassis stampings. This established infrastructure allows our clients to initiate volume rollouts without tooling delays or custom mold expenses, supported by fast 3-day sample dispatch. We offer flexible supply models tailored to your supply chain requirements. Whether you require complete retail-ready monitors in custom packaging, open-frame chassis for integration into self-service kiosks, or CKD/SKD component kits for domestic final assembly, ZXT delivers fully tested, quality-certified hardware. Our engineering team provides comprehensive technical documentation, including 2D dimensional drawings, 3D STEP models, connector wiring schematics, and firmware customization.
We offer complete technical documentation, including 3D STEP mechanical models, connector pinout diagrams, and power dissipation tables, enabling mechanical and electrical engineers to integrate our hardware seamlessly.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Request 2D/3D CAD Blueprints and Sample Testing
Contact ZXT today to request CAD mounting blueprints, verify electrical interfaces, or order a 3-day evaluation sample of the 57.9-inch stretched bar monitor. Our sales engineers deliver detailed proposals within two hours.
