Non-touchscreen

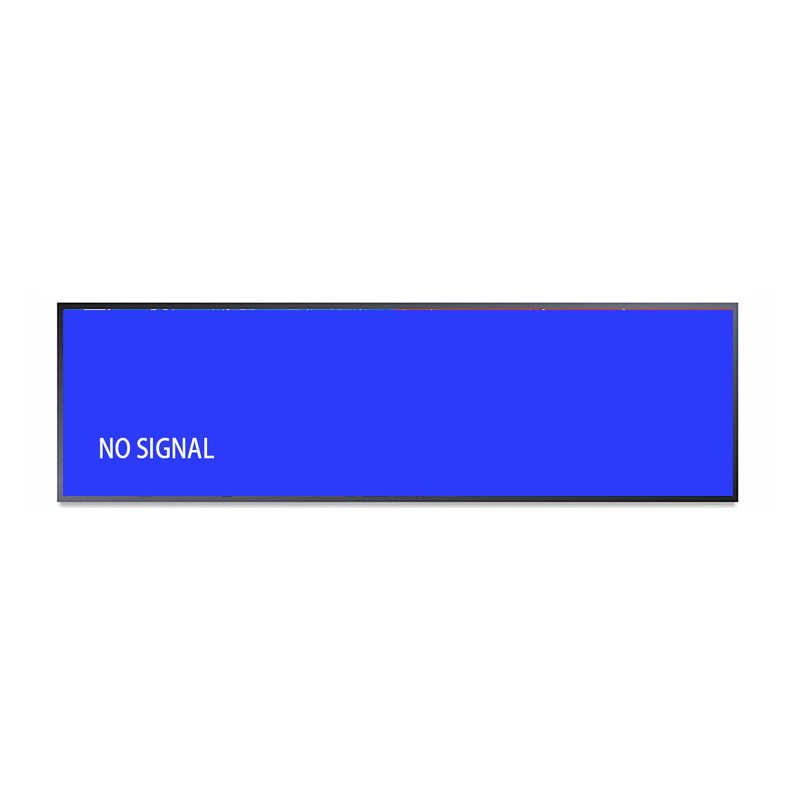

Rack Mount Stretched Monitor (57.3 Inch) for Surveillance & Command
Wholesale commercial 57.3 inch industrial sheet metal bar monitor (1920*753/3840*1506, 800 cd/㎡). Engineered for high-traffic public infrastructure and space-constrained architectural fixtures. Direct engineering collaboration and transparent factory pricing.
Specifications
- Screen Size
- 57.3 Inch
- Resolution
- 1920*753/3840*1506
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA
57.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 57.3 inch | |
Resolution | 1920*753/3840*1506 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Dilemma: Why Conventional 16:9 Displays Obstruct Modern Fixtures
Commercial fixture design increasingly demands high-density visual communication without sacrificing vertical clearance. Standard square monitors take up too much vertical space, making them impractical for horizontal shelf rails, transit headers, and industrial control consoles. Engineered specifically for these horizontal perimeters, the 57.3-inch panoramic display establishes a clean balance between compact dimensions and wide-format visual presence. With a native raster of 1920*753/3840*1506, it allows multi-column split-screen graphics and automated status alerts to operate seamlessly within narrow spaces previously deemed unusable for dynamic digital media.
The streamlined horizontal geometry enables store architects to maintain cohesive interior sightlines. Customers browsing retail aisles enjoy unimpeded views of premium product displays while receiving relevant pricing and promotional information directly at eye level.
Eliminating the need for structural redesigns translates to substantial capital savings for project contractors. Installation teams can utilize existing retail track extrusions or vehicle bulkheads without commissioning expensive custom millwork or heavy mechanical brackets.
True IPS Technology: Wide Symmetrical Viewing Angles Without Chromatic Drift
Engineered for clarity and longevity, the 57.3-inch panoramic display features a native resolution of 1920*753/3840*1506 and a brightness rating of 800 cd/㎡. The anti-glare surface minimizes ambient reflections, while the 1200:1 contrast ratio and IPS symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angles ensure optimal image quality from all perspectives. The backlight is rated for over 60,000+ operational hours of 24/7 commercial performance.
The LED backlight system incorporates premium phosphor coatings that deliver a broad, balanced color spectrum, ensuring that dynamic video sequences render with lifelike warmth and accurate saturation.
The IPS alignment layer ensures that contrast and color saturation remain virtually identical across the entire 178-degree viewing cone, allowing passersby approaching from sharp angles to read information effortlessly.
Enclosure Dynamics: Balancing Sleek Commercial Styling with Factory Hardening
Housed in a rugged cold-rolled steel enclosure, the 57.3-inch monitor is built to withstand mechanical stress and vibration. The electro-galvanized metal structure ensures lasting durability and reliable internal circuit shielding in demanding field installations.
The fanless mechanical design ensures silent operation and prevents dust and airborne particles from accumulating inside the casing. Heat is transferred naturally through the metal enclosure, while standard VESA patterns and lateral channels support flexible mounting.
The mechanical frame incorporates internal structural stiffeners that prevent panel warping across wide temperature fluctuations. Standardized rear VESA mounting patterns provide instant compatibility with commercial display brackets.
Electrical Reliability: Transient Surge Defense and Clean Signal Routing
Connecting the display into enterprise IT and AV networks is completely frictionless thanks to onboard HDMI, VGA video ports. The display interfaces smoothly with commercial media players, industrial embedded controllers, and split-screen video processors, supporting native resolution mapping without image distortion. An integrated 3.5mm Audio Socket simplifies connection to external speakers, allowing venues to combine panoramic promotional visuals with directional sound reinforcement. Designed for global commercial deployment, the power converter accepts universal universal 100-240V commercial electrical mains electrical mains. Operating power is capped at an efficient ≤ 120w, delivering significant energy savings. The display delivers robust environmental resilience, operating reliably across ambient temperatures of below10℃ ~ +50℃ and humidity ranges up to ≤ 85%RH.
Conformal protective varnishing applied across printed circuit boards protects copper traces and solder joints against airborne moisture condensation, oil vapors, and conductive dust particles.
Conformal protective varnishing applied across the printed circuit boards forms a durable barrier against ambient humidity condensation, airborne grease vapors, and fine industrial dust particulates.

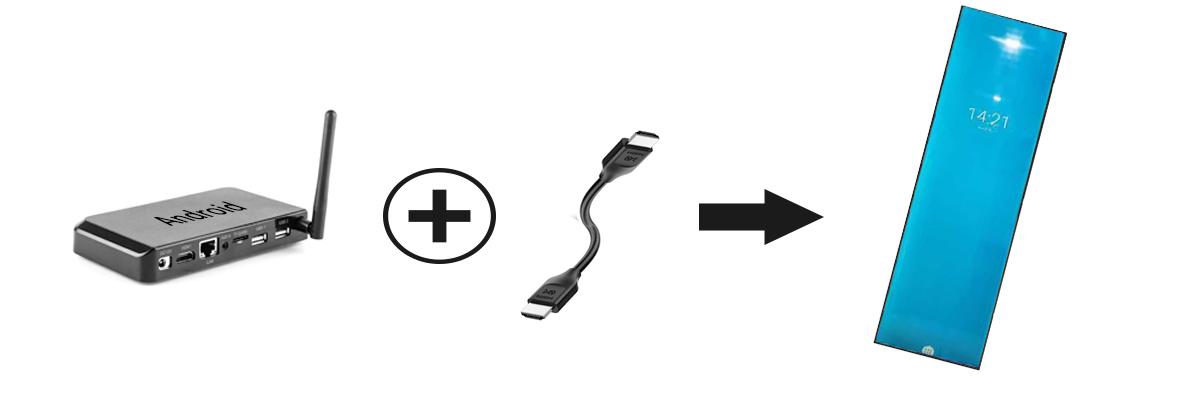

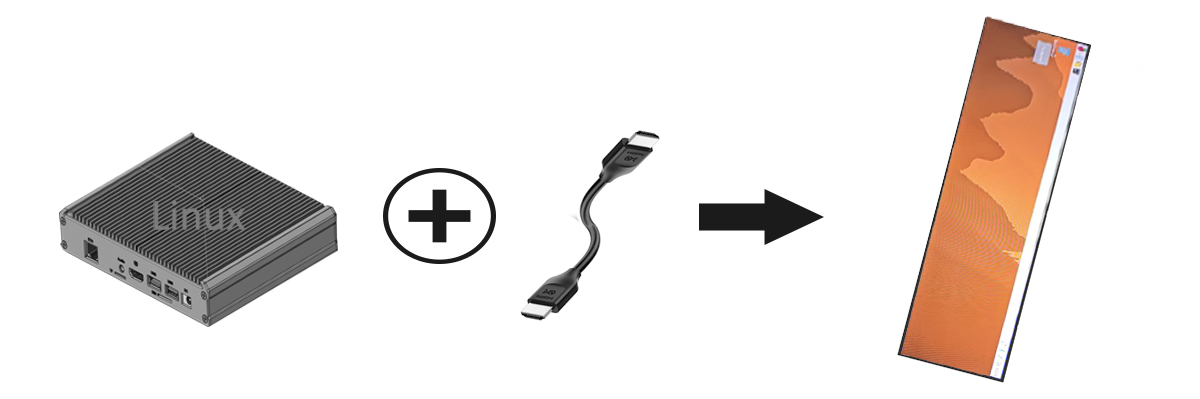

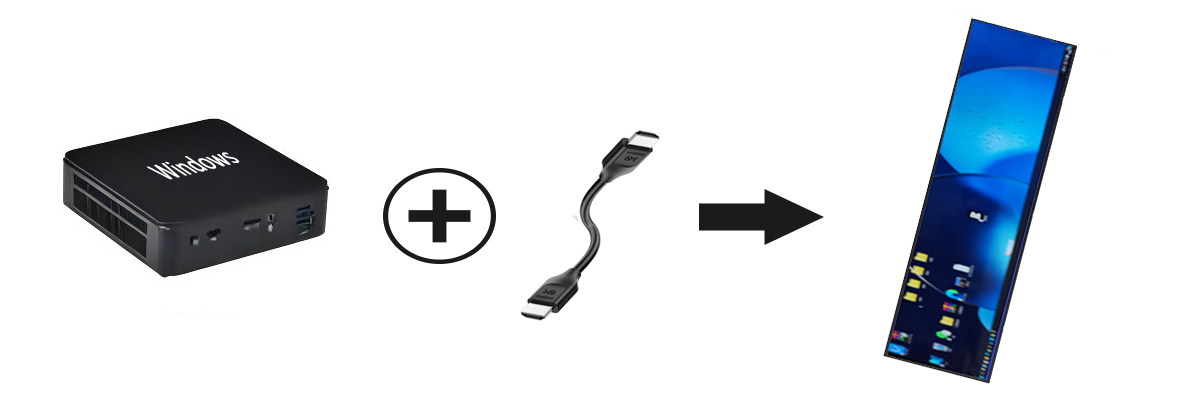

Plug-and-Play Multi-OS Freedom via Standard HDMI Input
Rather than forcing users into a proprietary, non-upgradeable smart OS, this display serves as a pure, high-performance visual surface ready for any external compute platform. Connect a Windows PC, Android media box, or Linux controller via HDMI to immediately drive dynamic promotional banners, automated menu boards, or plant monitoring telemetry with complete operating system freedom.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 57.3-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
Factory Direct Capabilities: Rapid Prototyping and Modular Assembly Formats
ZXT operates as an authentic source manufacturer of industrial commercial displays, eliminating third-party trading intermediaries to provide direct engineering collaboration and transparent factory pricing. Over nine years of research, development, and production have yielded an extensive library of proven tooling designs. For our clients, this means zero tooling costs on standard sizes and expedited sample delivery within three business days. To accommodate diverse global import regulations and assembly preferences, we deliver hardware in turnkey finished packages or modular SKD/CKD formats. Supplying matched panel cells, pre-configured driver motherboards, wiring harnesses, and chassis components allows international partners to assemble locally, dramatically cutting air freight expenses and tariff burdens. Our design engineers work directly with your technical personnel, providing 3D CAD modeling files, structural tolerance consultations, and customized interface configurations.
Maintaining extensive raw glass cell inventories and pre-machined aluminum extrusions enables our factory to fulfill volume orders with rapid turnaround, minimizing project schedule risks for international contractors.
Technical Selection & System Integration FAQ
**Q1: How do we switch between different operating systems on this display?**
Switching operating systems is frictionless: simply connect your chosen host computer (Windows PC, Android box, or Linux controller) via HDMI. The display adapts instantly without requiring internal firmware reconfiguration.
**Q2: What is the expected backlight service lifespan?**
The industrial-grade solid-state LED backlight is rated for an operational lifespan exceeding 60,000 hours, ensuring consistent chromatic performance and high luminance across multi-year commercial deployments.

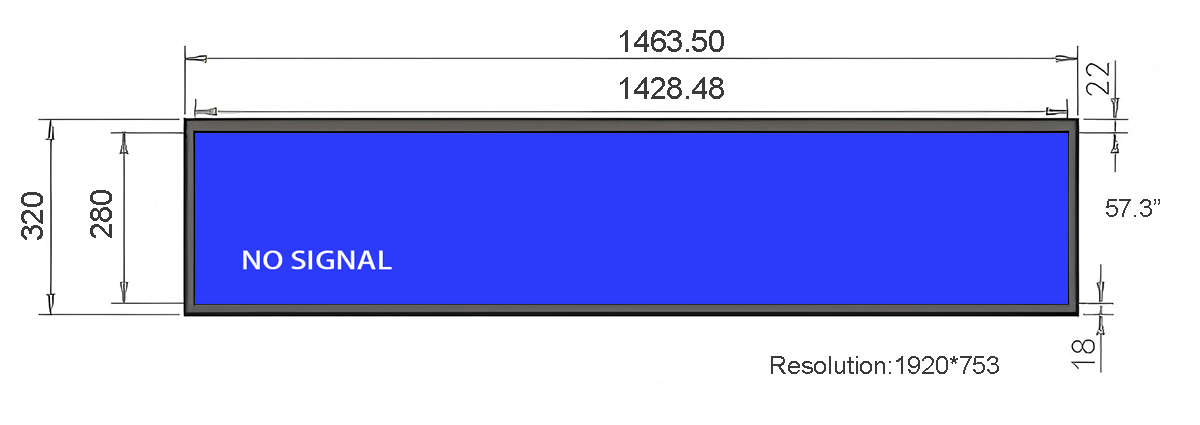

**Q3: Does ZXT provide 2D and 3D CAD models for pre-engineering?**
Yes. Our engineering department supplies comprehensive 2D dimensional PDF drawings and 3D STEP CAD files to assist your mechanical team with structural fixture and cabinet integration.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 57.3-inch stretched display. We provide fast technical responses and official quotes.
