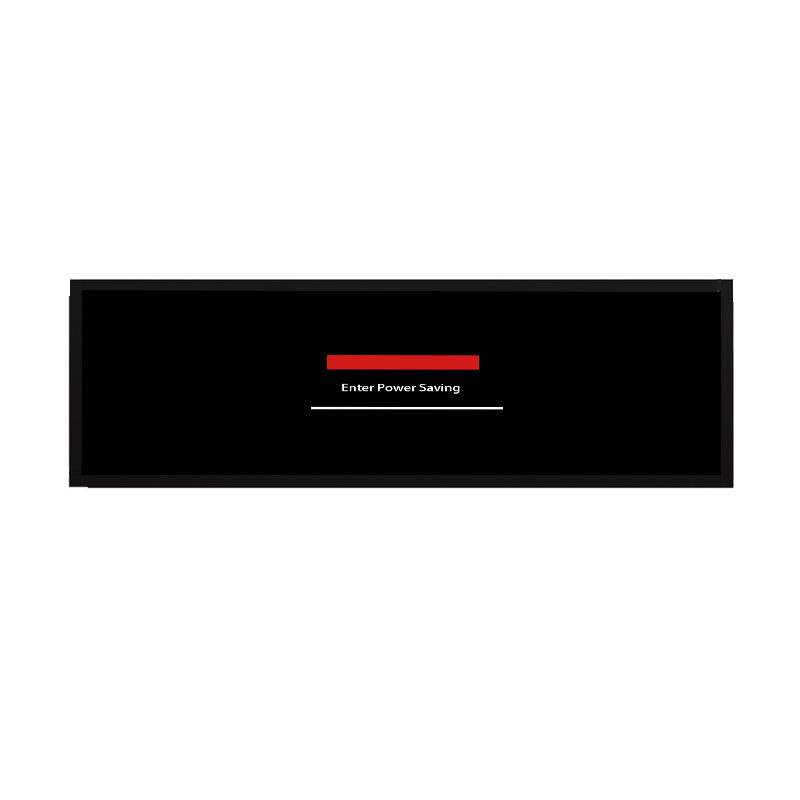

High-Impact 57.2 Inch Wall-Mounted Bar LCD Screen for Airport & Hubs
Factory-direct 57.2 inch industrial sheet metal bar monitor with 3840*720/1920*360 panoramic display and 300~700 cd/㎡ luminance. Designed for linear spaces with zero vertical waste. Available in assembled units or modular SKD/CKD formats with 3-day sample lead time.
Specifications
- Screen Size
- 57.2 Inch
- Resolution
- 3840*720/1920*360
- Brightness
- 300~700 cd/㎡
- Interface
- HDMI / VGA
57.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 57.2 inch | |
Resolution | 3840*720/1920*360 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Rethinking Linear Spaces: The Rise of Specialized Stretched Bar Displays
Spatial efficiency is a defining metric in contemporary commercial architecture. High-throughput railway stations, supermarket aisles, and manufacturing cleanrooms require real-time information delivery, but lack the physical height required for conventional computer screens. The 57.2-inch ultra-wide bar monitor represents a targeted hardware solution to this dilemma. Delivering 3840*720/1920*360 native resolution across an active 57.2-inch area, this display integrates flush into narrow headers, shelf channels, and equipment fascias, providing vibrant high-definition media without altering interior structural boundaries.
Deploying digital signage along narrow architectural boundaries transforms passive building surfaces into interactive communication channels. From commercial banking counters to hospital triage halls, panoramic displays streamline public traffic flow and enhance customer service delivery.
In demanding transit and retail venues, space optimization is both an aesthetic and functional necessity. By converting narrow wall headers and shelf fronts into active information zones, facility managers maximize commercial utility per square meter.
Panel Specifications: Industrial-Grade Backlight Reliability and Luminous Stability
Delivering high visual fidelity across an ultra-wide active area, the 57.2-inch stretched display features an industrial LCD panel with native 3840*720/1920*360 resolution. This elongated aspect ratio provides ample screen real estate for split-screen layouts, dynamic tickers, and multi-media video banners without graphical distortion or letterboxing. With a factory-calibrated luminance output of 300~700 cd/㎡, the display ensures consistent optical clarity in bright interior commercial environments. Supported by a native contrast ratio of 1200:1, it renders crisp text, rich graphics, and deep blacks. Equipped with IPS wide-viewing technology, the display delivers a symmetrical true IPS 178-degree wide visual cone viewing cone, while the LED backlight module is rated for more than an industrial service life exceeding 60,000 hours of continuous operation.
The active matrix substrate features uniform pixel pitch alignment that eliminates distracting moiré patterns and visual banding, ensuring smooth photographic gradients in commercial advertising loops.
Precision factory color profiling guarantees that multi-screen video ribbon installations display identical color temperatures and white points, presenting a seamless visual narrative across extended architectural runs.
Enclosure Versatility: Fast Snap-in Mounting and Articulated Bracket Anchoring
The 57.2-inch sheet metal framework is precision-manufactured from high-strength galvanized steel plates. The ruggedized body shields internal electronic components against mechanical shocks, high-frequency vibration, and harsh environmental contaminants.
The monitor's fanless thermal design utilizes high-conductivity internal heat spreaders to transfer thermal energy directly to the exterior metal enclosure. This eliminates moving parts and dust accumulation, ensuring reliable 24/7 operation. Mounting flexibility is provided by standard VESA patterns and lateral mounting channels.
The mechanical chassis features a specialized snap-in bracket profile that clips securely into commercial supermarket gondola price channels. Front-accessible release tabs allow store personnel to service or reposition displays without dismantling shelf merchandise.
Signal Integrity: Preventing Line Noise and Video Jitter in Industrial Plants
Onboard HDMI, VGA video ports provide flexible connectivity with external media players and embedded systems. Audio output is supported via a 3.5mm Audio Socket. The display operates on universal global 100~240V line voltage at 50/60Hz power with a maximum consumption of ≤ 120w, performing reliably across ambient temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Hardware-level EDID emulation ensures that connected host computers immediately recognize the custom stretched display resolution, streamlining remote software management and automated reboots.
Efficient passive thermal dissipation paths conduct heat away from the internal power module directly to the metal casing, preventing internal thermal buildup and maximizing component longevity.
Open Architecture HDMI Connectivity: Freedom to Choose Your OS
Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Field Deployment Breakdown: Retail Aisles, Train Doorways, and Datacenter Racks
The 57.2-inch stretched screen delivers valuable visual communication in linear spaces. Common deployment scenarios include supermarket shelf merchandising, bus and train passenger guidance, industrial machine tool telemetry, and corporate entrance architectural signage.
Automotive manufacturing plants and cleanroom testing facilities mount this display along inspection stations. Quality control technicians verify real-time tolerance data, assembly checklists, and defect alerts on a clean, wipe-down screen.
Pharmacy retail chains utilize the screen along personal care aisles to deliver educational health tips and seasonal promotions, assisting shoppers in making informed healthcare purchasing decisions right at the shelf.
Source Factory Authority: In-Stock Tooling, SKD Export, and Zero NRE Costs
Partnering directly with ZXT connects your project team straight to our manufacturing floor, bypassing intermediary markups and communication delays. With over nine years of dedicated display engineering and 300+ commercial projects worldwide, we maintain permanent in-stock inventories of standard aluminum extrusion profiles and stamping molds. This in-stock tooling advantage allows our clients to deploy custom stretched hardware without expensive initial NRE tooling charges, backed by fast 3-day sample dispatch for standard configurations. To support overseas display brands, repair facilities, and volume contractors seeking to optimize import tariffs and international shipping costs, we offer complete flexibility in delivery formats. Choose from fully assembled turnkey displays, open-frame kits for cabinet integration, or modular SKD/CKD component bundles including factory-tested LCD glass, matched A/D driver boards, and precision-stamped chassis hardware. Our engineering team provides comprehensive design support, delivering 2D engineering blueprints, 3D STEP CAD files, and connector pinout schematics.
Every production unit undergoes comprehensive factory burn-in testing under elevated temperature and humidity conditions, ensuring exceptional out-of-the-box reliability for overseas project deployments.
Display Sourcing & Engineering FAQ
**Q1: Does the display produce electromagnetic interference with nearby equipment?**
No. Internal electronics are enclosed within a grounded metallic chassis with integrated EMI filtering circuitry, complying with commercial Class A and Class B electromagnetic compatibility standards.
**Q2: Can we test sample units before placing a volume project order?**
Yes. We strongly encourage evaluation testing and provide sample units complete with power supplies, video cables, and CAD mounting guides, ready for dispatch within three working days.
**Q3: What optical surface treatments are applied to the screen?**
The display panel features an industrial-grade anti-glare (AG) polarized surface treatment with hard-coat scratch resistance, minimizing reflections while repelling dust and environmental smudges.
Initiate Custom Hardware Scoping and Sample Dispatch
Request a quote or order an evaluation sample for the 57.2-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
