Non-touchscreen

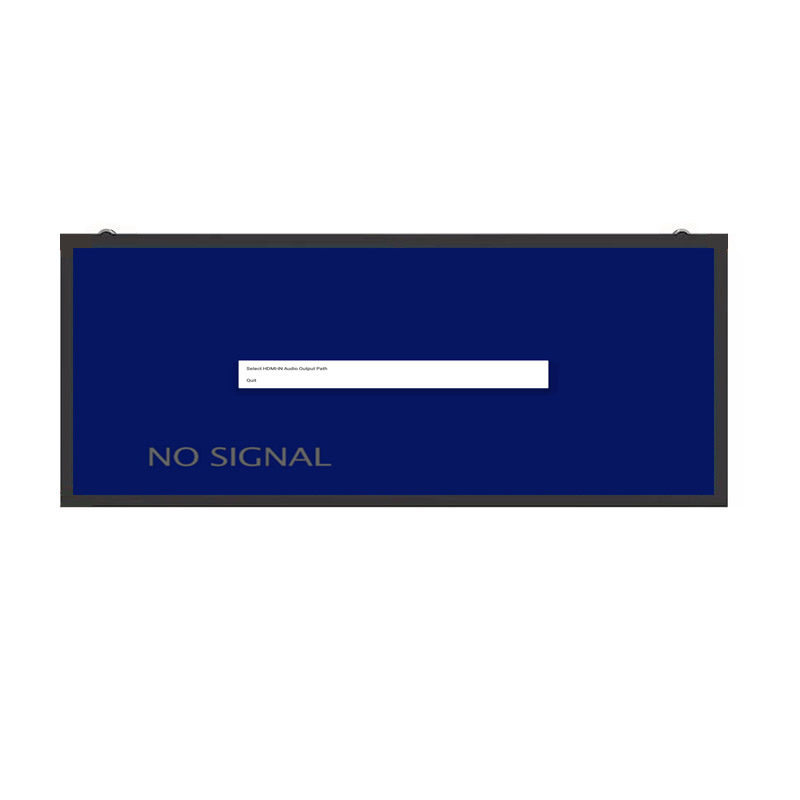

Custom Double-Sided Bar LCD Display (57.2 Inch) for Retail Wayfinding
Source factory supply of 57.2 inch double-sided stretched display with 1920*360/3840*720 resolution and 350~700 cd/㎡ luminous output. Engineered for continuous commercial duty in retail gondolas, vehicle headers, and control rooms. Fast 72-hour sample dispatch and modular SKD export kits.
Specifications
- Screen Size
- 57.2 Inch
- Resolution
- 1920*360/3840*720
- Brightness
- 350~700 cd/㎡
- Interface
- HDMI / VGA
57.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 57.2 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 350~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Rethinking Linear Spaces: The Rise of Specialized Stretched Bar Displays
Spatial efficiency is a defining metric in contemporary commercial architecture. High-throughput railway stations, supermarket aisles, and manufacturing cleanrooms require real-time information delivery, but lack the physical height required for conventional computer screens. The 57.2-inch ultra-wide bar monitor represents a targeted hardware solution to this dilemma. Delivering 1920*360/3840*720 native resolution across an active 57.2-inch area, this display integrates flush into narrow headers, shelf channels, and equipment fascias, providing vibrant high-definition media without altering interior structural boundaries.
Deploying digital signage along narrow architectural boundaries transforms passive building surfaces into interactive communication channels. From commercial banking counters to hospital triage halls, panoramic displays streamline public traffic flow and enhance customer service delivery.
In demanding transit and retail venues, space optimization is both an aesthetic and functional necessity. By converting narrow wall headers and shelf fronts into active information zones, facility managers maximize commercial utility per square meter.
High-Definition Visual Delivery: Color Purity, Contrast, and Viewing Geometry
The 57.2-inch display is powered by an industrial-grade LCD panel designed for high-resolution panoramic visualization. With a native resolution of 1920*360/3840*720, it presents sharp, detailed imagery that ensures promotional campaigns, digital price updates, and public transport schedules are legible and visually compelling at all times. Luminance is calibrated at 350~700 cd/㎡, delivering clear, crisp visuals in well-lit commercial spaces without generating uncomfortable glare for nearby customers. Backed by a 1200:1 contrast ratio, the display produces rich color tones, clean white highlights, and deep shadows. True IPS wide-angle technology provides an expansive symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angle, while the solid-state LED backlight system is rated for an industrial-grade operational life of 60,000+ operational hours.
High panel transmission efficiency allows the display to achieve striking luminous output while maintaining low internal thermal dissipation, safeguarding delicate electronic components from excessive heat aging.
A resilient anti-glare surface treatment diffuses incoming light rays at microscopic angles, preventing harsh specular reflections from blinding nearby shoppers or transit operators under overhead LED lighting.
Chassis Robustness: Built to Endure High-Footfall Public and Industrial Wear

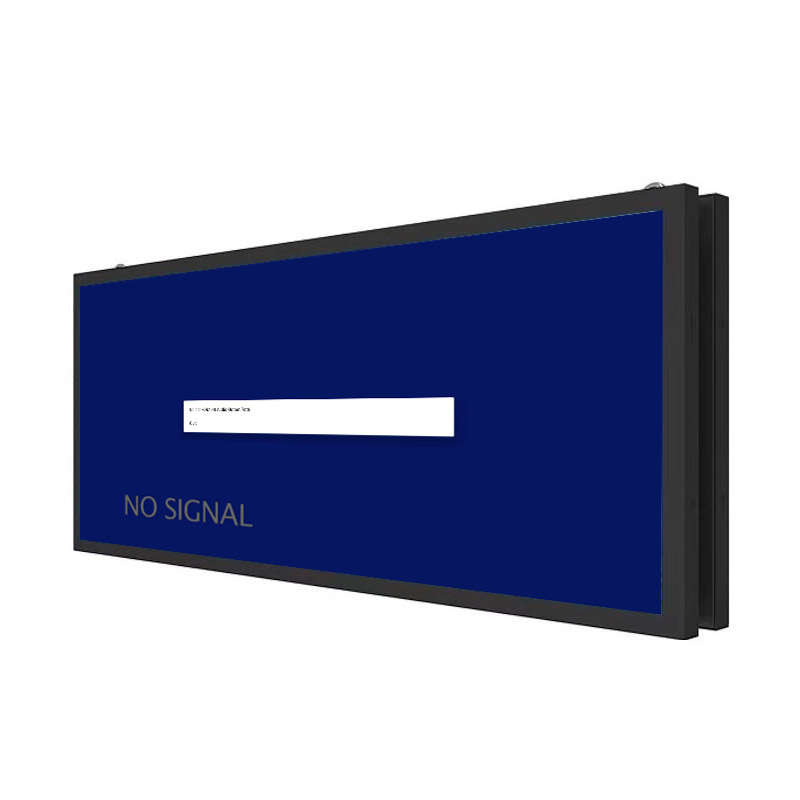

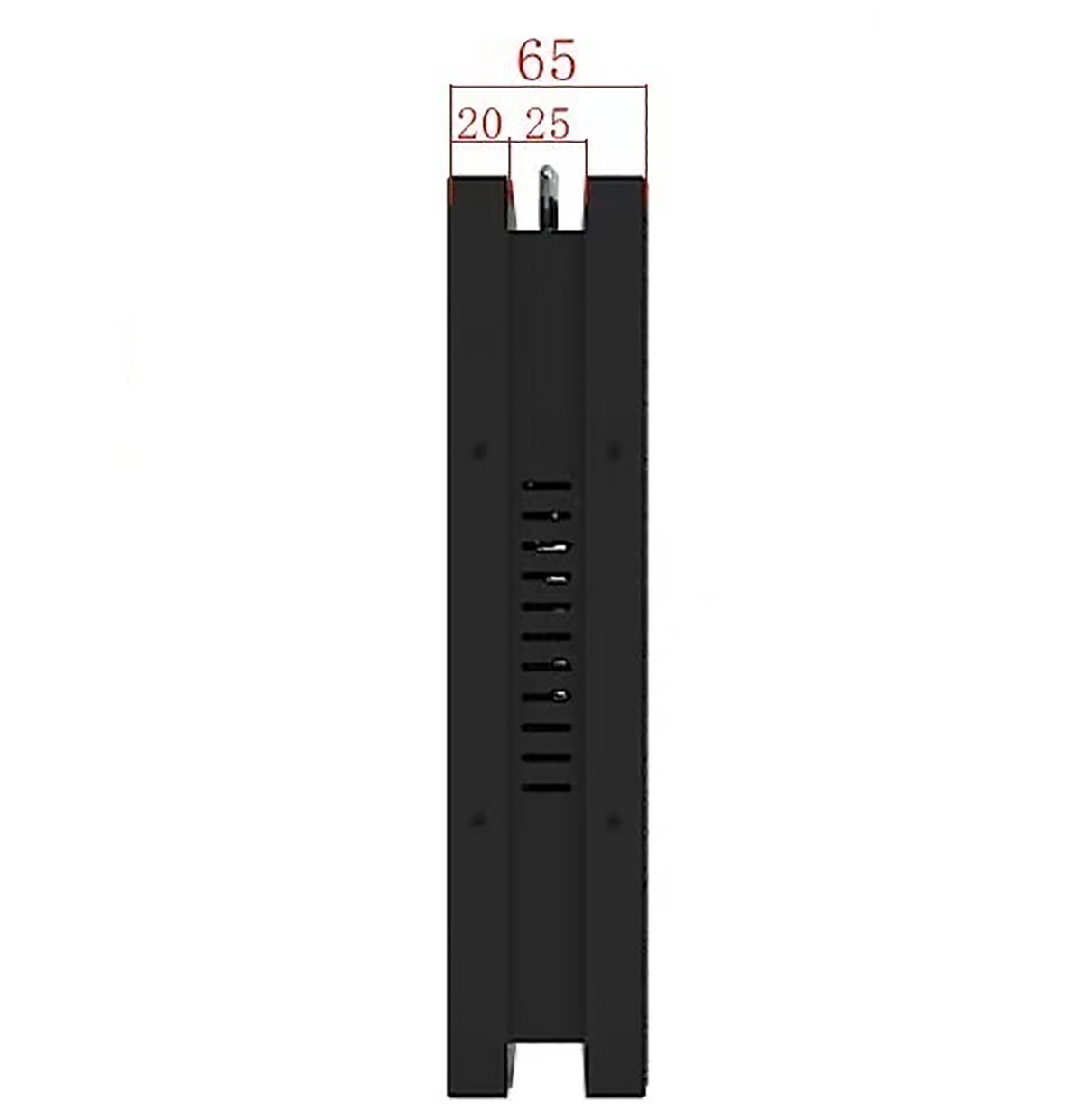

The 57.2-inch dual-panel stretched monitor provides symmetrical visual delivery across high-footfall passenger corridors. The slim double-sided enclosure features robust overhead suspension points, enabling quick mechanical attachment to structural ceiling beams.
Passive thermal engineering ensures dependable heat dissipation without noisy mechanical fans, preventing airborne contaminants from entering the chassis. The enclosure includes standard VESA mounting patterns and lateral adjustment tracks to facilitate quick, secure mechanical integration into commercial cabinetry or transit headers.
Precision-stamped mounting ears allow the unit to drop directly into standard 19-inch equipment racks and instrument control panels. Secure front-fastening screws ensure the monitor remains firmly locked in place during transport and factory operation.
Electronics Hardening: Conformal Coating Protection Against Humidity and Dust
Built with standard HDMI, VGA ports, the monitor interfaces smoothly with commercial media players, PCs, and video controllers. Audio integration is enabled via a 3.5mm Audio Socket. The internal power supply operates from AC 100V~240V (50/60Hz), drawing ≤ 120w during active operation. The hardware is certified for continuous operation across below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Energy-efficient backlight drivers regulate power flow dynamically based on content brightness, trimming power consumption while maintaining peak visual punch for advertising assets.
Energy-conserving standby modes reduce power consumption to less than one watt during off-hours, allowing automated facility management systems to power down screens overnight effortlessly.
Hardware-Agnostic Display Architecture via High-Definition Video

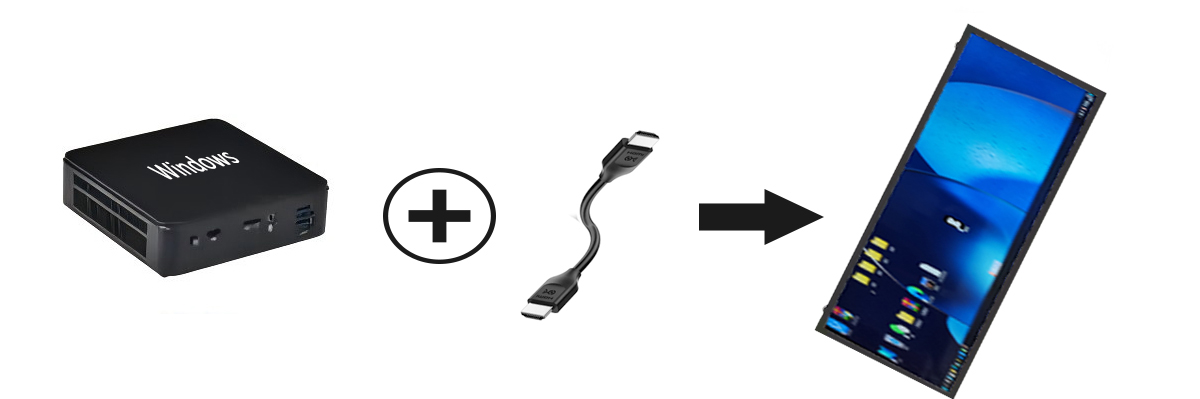

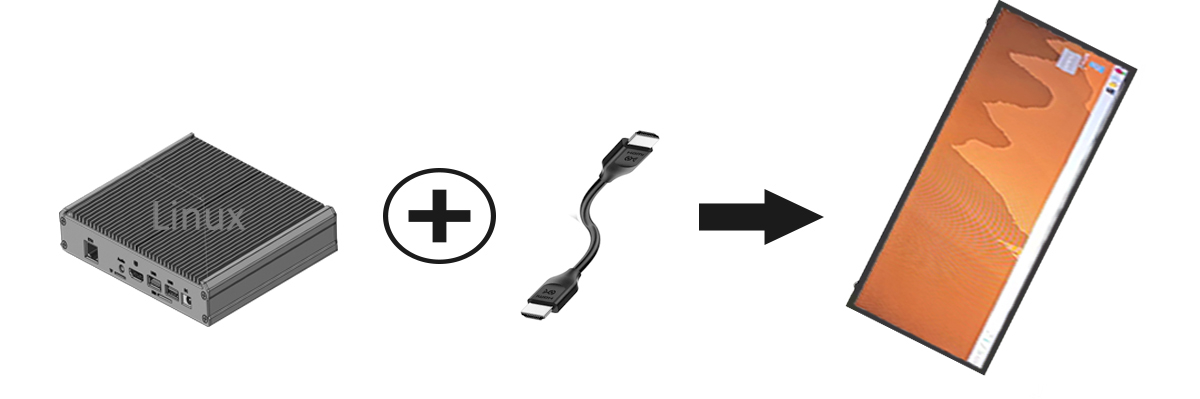

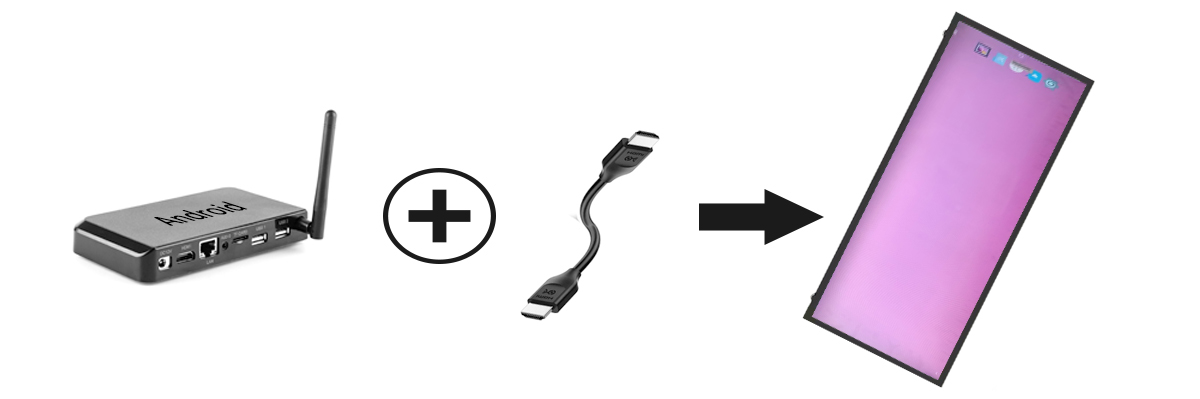

Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Sector Implementation: Passenger Route Displays and Shelf-Edge Video Banners
The 57.2-inch stretched monitor delivers high visual authority in narrow mounting footprints. It is widely utilized for supermarket shelf-edge branding, rail transit passenger information systems, server room equipment monitoring, and QSR restaurant menu displays, providing reliable performance across demanding commercial settings.
Interactive self-service kiosks and automated parcel lockers embed this horizontal display in top fascias. Intuitive visual prompts and animated status bars guide users through transaction steps, speeding up user checkout and package pickup cycles.
Commercial office towers utilizing panoramic displays above elevator transoms report positive tenant feedback. Dynamic building notices, public transit alerts, and local weather updates are broadcast in an unobtrusive, contemporary format.
B2B Production Excellence: 100% Factory Burn-In Testing and Direct Support
Direct factory procurement from ZXT ensures competitive pricing and reliable hardware delivery. We maintain in-stock extrusion tooling, offer 3-day sample dispatch, and support international partners with flexible delivery formats from finished displays to modular SKD kits.
Long-term component lifecycle management ensures that key panel models, driver boards, and mechanical dimensions remain stable across multi-year enterprise rollout phases, preventing unexpected redesigns.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 57.2-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
