Non-touchscreen
Panoramic Transit Signage: 50.5 Inch Large Format Stretched LCD Display
Commercial 50.5 inch industrial sheet metal bar monitor featuring 1920*676/3840*1353 ultra-wide display matrix and 400 cd/㎡ brightness. Built with in-stock tooling and ruggedized metallic housing for continuous public operation. Rapid 3-day sample dispatch worldwide.
Specifications
- Screen Size
- 50.5 Inch
- Resolution
- 1920*676/3840*1353
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
50.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 50.5 inch | |
Resolution | 1920*676/3840*1353 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 50.5-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 1920*676/3840*1353 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
Visual Integrity: Deep Black Levels, High Contrast, and Chromatic Consistency
The optical configuration of the 50.5-inch stretched screen combines 1920*676/3840*1353 resolution with 400 cd/㎡ calibrated brightness. Featuring a 1200:1 contrast ratio, the panel delivers rich colors and deep blacks. IPS wide-viewing optics ensure consistent CR≥10 wide-angle IPS optical alignment visibility without color shifting, while the commercial-grade LED backlight delivers an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
Factory color calibration ensures that multi-screen video ribbon installations display identical chromatic balance and brightness levels, creating a cohesive, professional appearance across extended display walls.
Optical clarity is maintained across years of continuous operation thanks to high-grade polarising films that resist ultraviolet degradation and discoloration caused by prolonged ambient exposure.
Solid-State Mechanical Layout: Preventing Dust Intake in Public Venues
The 50.5-inch industrial display features a heavy-gauge sheet steel chassis designed for challenging operating conditions. Its rigid galvanized steel body provides high shock tolerance and electromagnetic shielding for factory automation consoles.
Engineered for durability, the unit features a passive cooling design that eliminates internal fans and associated maintenance requirements. The chassis provides standard VESA rear mounting points and lateral mounting channels for rapid integration into retail and transit fixtures.
For cleanroom and pharmaceutical applications, the enclosure features smooth, screw-less front surfaces and non-porous powder coatings that withstand daily wipe-down with sanitizing alcohol and chemical detergents.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated Audio Socket (3.5mm) provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 100w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Open Architecture HDMI Connectivity: Freedom to Choose Your OS

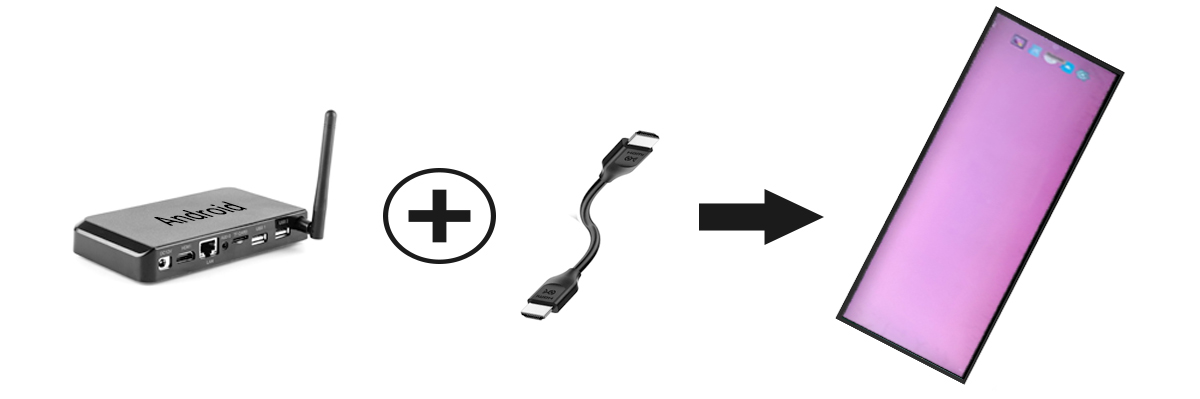

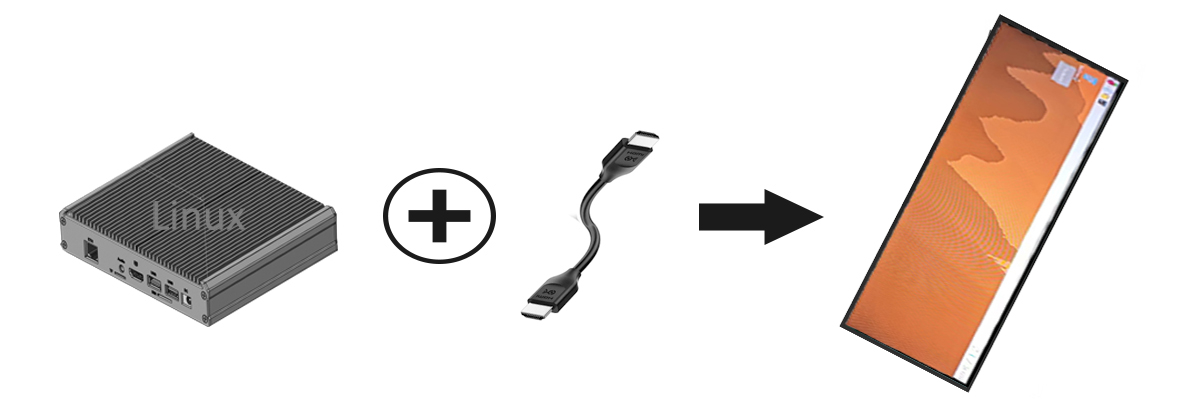

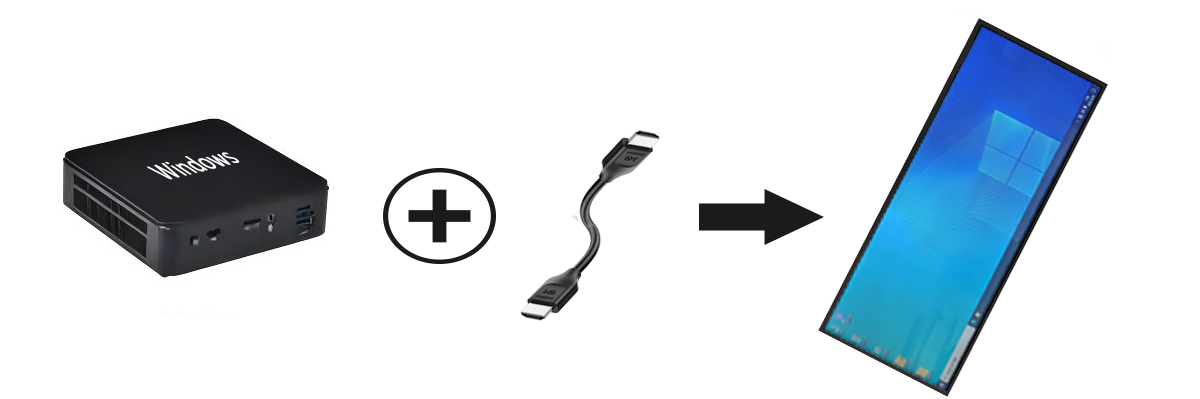

Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Deployment Analysis: Where Panoramic Display Form Factors Deliver Peak Value
Deploying the 50.5-inch panoramic display enables venues to present dynamic video messaging in previously inaccessible spaces. Key applications include retail grocery shelf signage, commuter train door route maps, corporate elevator transom directories, and manufacturing facility production status banners.
Corporate office towers mount this screen across elevator door lintels and common hallway corridors. Building managers broadcast tenant announcements, weather alerts, and corporate communications in an unobtrusive, contemporary format.
Museum curators praise the display's ability to deliver rich historical context alongside delicate artifacts. The low-profile screen fits neatly into exhibit vitrines and pedestals without distracting visitors from the physical collection.
Direct Manufacturer Partnership: Eliminating Intermediary Markups and Delays
Choosing ZXT as your hardware manufacturing partner provides direct access to high-precision display engineering at true source-factory pricing. Our Shenzhen manufacturing facility houses specialized production lines backed by nearly a decade of commercial display expertise. Because we maintain extensive inventories of standard extrusion profiles and tooling dies, our clients avoid costly tooling fees and long tooling lead times, enabling rapid prototype evaluation with standard sample turnaround in just three business days. We understand international logistics and tariff structures. To help overseas integrators and distributors minimize shipping volume and customs duties, we supply displays in multiple production states: fully assembled plug-and-play monitors, drop-in open-frame modules, or semi-knocked-down (SKD) kits for local assembly. Every sub-assembly undergoes rigorous factory testing before shipment to ensure high out-of-the-box yield rates. Our in-house technical department supports your project from initial design to site deployment.
Our in-house mechanical design team collaborates directly with client engineers to develop customized mounting brackets, specialized cable harnesses, and branded bezel silkscreening tailored to specific project needs.
Procurement & Integration FAQ
**Q1: Does this display generate fan noise during operation?**
No. The monitor utilizes a 100% passive fanless conduction cooling architecture that dissipates heat naturally through the metallic chassis, operating in total acoustic silence while preventing internal dust accumulation.
**Q2: Are touch screen options available for this stretched format?**
Yes. We offer optional projected capacitive (PCAP) 10-point multi-touch overlays with Morse 7 explosion-proof tempered glass and optical bonding, as well as infrared (IR) touch frames for specialized kiosk builds.
**Q3: Can overseas partners order this monitor in SKD or CKD format?**
Yes. To help international contractors reduce customs tariffs and air freight expenses, ZXT supplies complete knocked-down (CKD) or semi-knocked-down (SKD) kits including tested LCD panels, driver boards, and raw casings.
Technical Consultation and Custom Bracket Inquiries
Inquire today for factory-direct pricing, 3D STEP CAD models, or evaluation sample units of the 50.5-inch commercial stretched bar display. Our engineering staff is ready to assist with custom hardware scoping within two hours.
