Non-touchscreen

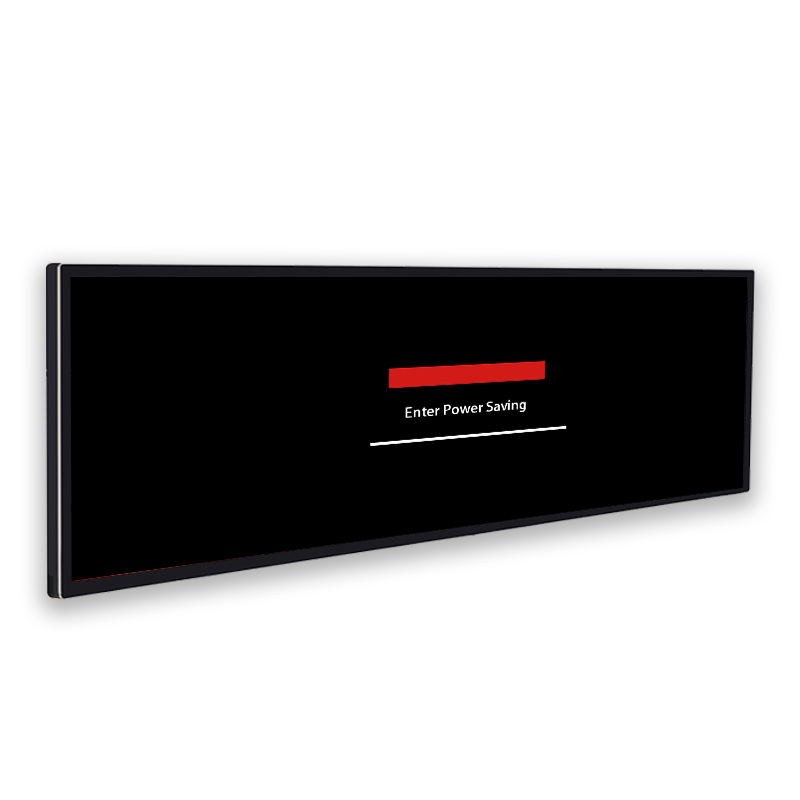

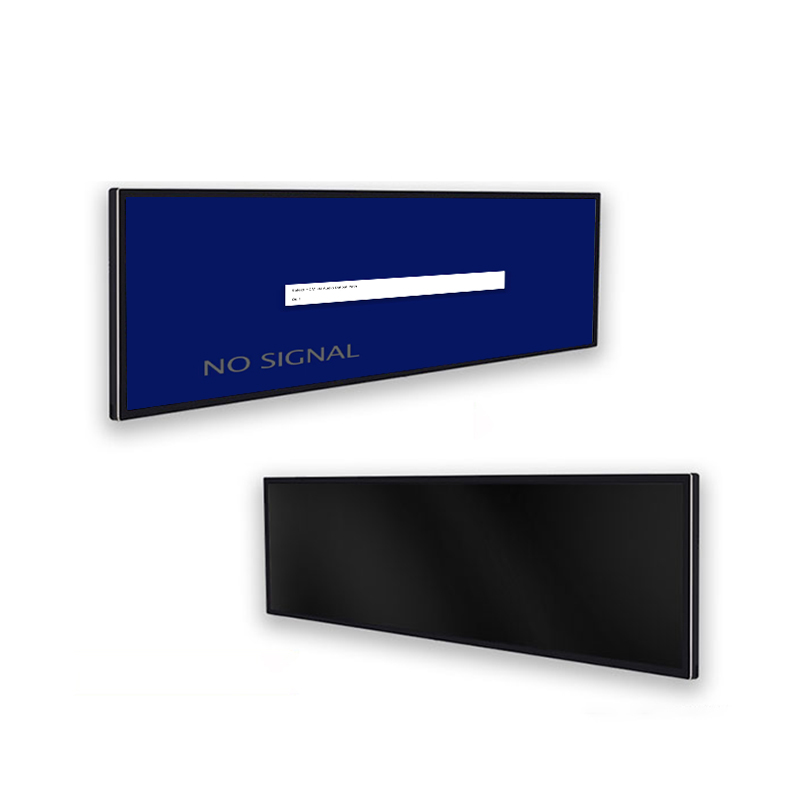

Large Stretched Bar Monitor – 50.2 Inch Ultra-Wide Commercial Display
Source manufacturer supply of 50.2 inch aluminum profile stretched display with 1920*636/3840*1270 resolution and 400 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- 50.2 Inch
- Resolution
- 1920*636/3840*1270
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
50.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 50.2 inch | |
Resolution | 1920*636/3840*1270 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Panoramic Engineering: Delivering Wide Visual Feeds in Restricted Vertical Slots
Engineered for installations where standard 16:9 monitors are too tall, the 50.2-inch stretched display delivers 1920*636/3840*1270 resolution across an active 50.2-inch diagonal. It allows commercial operators to deploy vibrant promotional content and operational alerts along narrow horizontal headers with zero space waste.
By turning dormant perimeter spaces into dynamic visual assets, venues maximize the commercial value of their existing architecture. Every square inch of wall or shelf space contributes actively to customer engagement.
Enterprise clients benefit from a consistent hardware aesthetic across diverse venue locations. The standardized linear enclosure provides a cohesive visual signature whether installed in boutique shops or transit hubs.
Panel Specifications: Industrial-Grade Backlight Reliability and Luminous Stability
Delivering high visual fidelity across an ultra-wide active area, the 50.2-inch stretched display features an industrial LCD panel with native 1920*636/3840*1270 resolution. This elongated aspect ratio provides ample screen real estate for split-screen layouts, dynamic tickers, and multi-media video banners without graphical distortion or letterboxing. With a factory-calibrated luminance output of 400 cd/㎡, the display ensures consistent optical clarity in bright interior commercial environments. Supported by a native contrast ratio of 1200:1, it renders crisp text, rich graphics, and deep blacks. Equipped with IPS wide-viewing technology, the display delivers a symmetrical true IPS 178-degree wide visual cone viewing cone, while the LED backlight module is rated for more than an industrial service life exceeding 60,000 hours of continuous operation.
The active matrix substrate features uniform pixel pitch alignment that eliminates distracting moiré patterns and visual banding, ensuring smooth photographic gradients in commercial advertising loops.
Precision factory color profiling guarantees that multi-screen video ribbon installations display identical color temperatures and white points, presenting a seamless visual narrative across extended architectural runs.
Mechanical Design: Protecting Internal Electronics in Demanding Environments

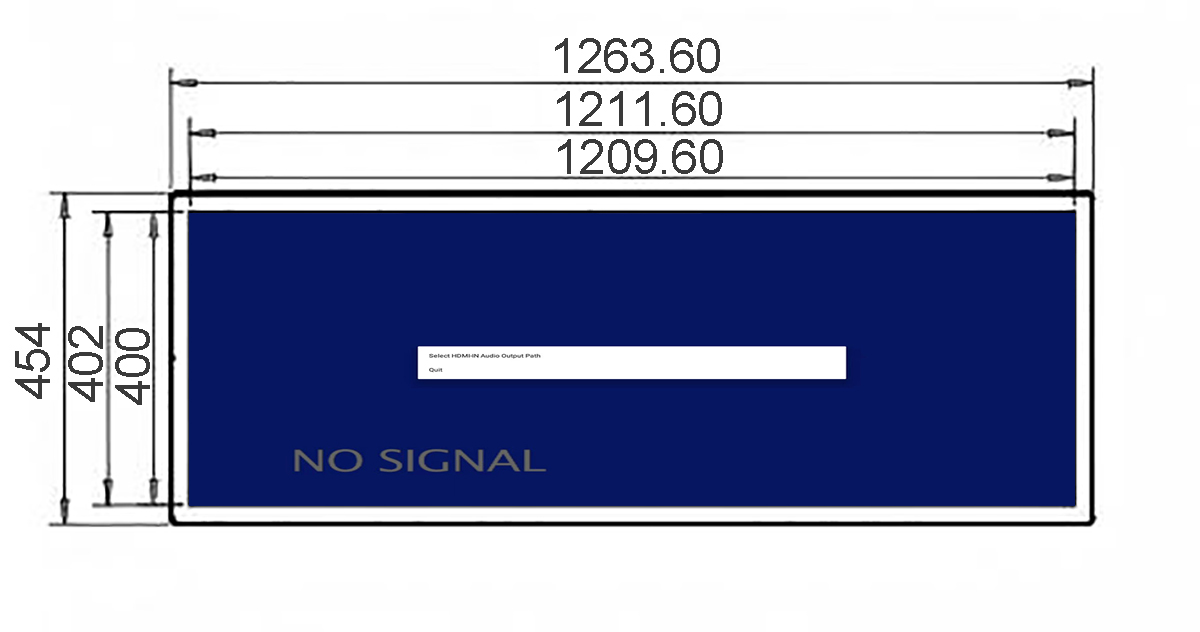

The 50.2-inch display is housed in a slim aluminum profile extrusion engineered for commercial shelf headers. Its narrow-bezel design and lightweight construction simplify installation across extensive supermarket shelf rows.

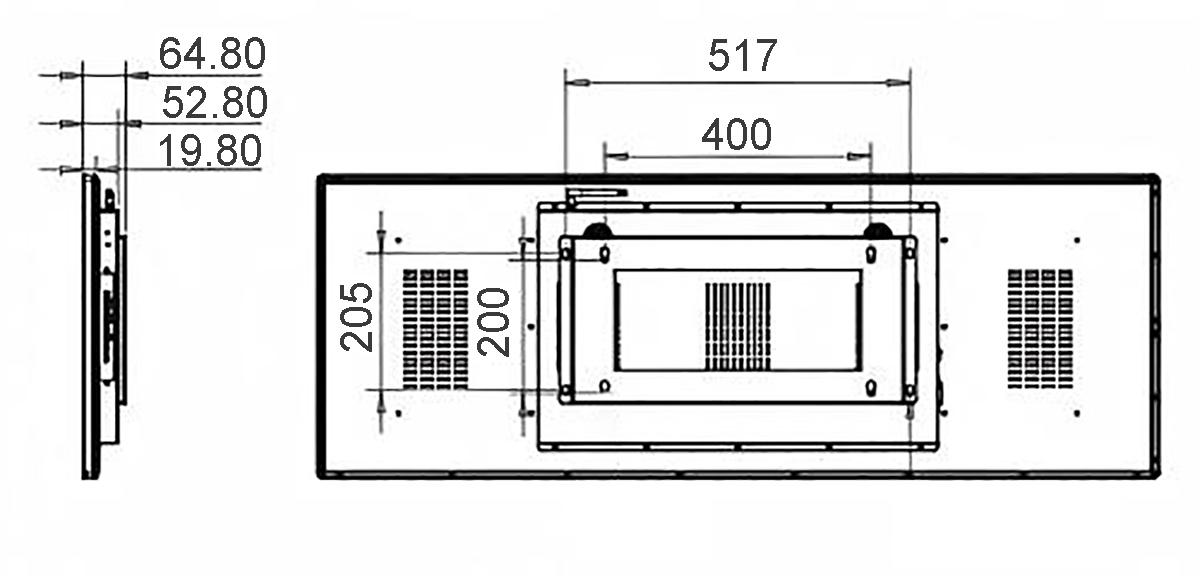

Solid-state thermal engineering allows the display to operate continuously without internal cooling fans, preventing dust accumulation and eliminating acoustic noise. The mechanical chassis features standardized VESA rear mounting patterns alongside adjustable lateral slide grooves for easy integration.
Architectural integration is streamlined by an ultra-low-profile mounting depth that complies with international building code corridor protrusion limits. Flush-mount wall brackets allow the display to integrate smoothly into elevator lobbies and narrow hallways.
Electronic Interfacing: Video Signal Paths and Automated Raster Scaling
Seamless electronic integration into existing computing infrastructures is achieved through versatile signal interface provisions. The monitor motherboard incorporates standard HDMI, VGA video inputs, allowing immediate plug-and-play communication with standard digital signage media players, x86 industrial PCs, Android embedded compute sticks, and programmable logic controller output boards. Video signal scaling circuitry automatically synchronizes with custom ultra-wide timings, ensuring proper native scaling without horizontal image squeezing or letterboxing artifacts. Audio playback is supported via an integrated Audio Socket (3.5mm), facilitating straightforward connection to external sound bars, shelf-mounted directional audio speakers, or centralized PA amplification equipment. Operating from a universal switch-mode power supply accepting AC 100V~240V (50/60Hz), the internal power converter delivers stable low-ripple direct current to sensitive driver ICs while providing resilient protection against electrical surges and line fluctuations commonly encountered in industrial complexes. Energy efficiency remains a central engineering priority: overall operational power consumption is constrained to ≤ 100w, minimizing thermal loading and dramatically reducing total operational utility costs across large-scale multi-screen installations. The hardware is qualified for continuous operation across an ambient operating temperature range of below10℃ ~ +50℃ alongside non-condensing relative humidity levels of ≤ 85%RH.
Internal power conversion circuitry incorporates multi-stage surge suppression and electromagnetic interference filtering, shielding sensitive driver chips from electrical spikes and voltage sag on noisy commercial circuits.
Industrial-grade signal conditioning chips filter incoming video inputs to eliminate pixel jitter and timing mismatch, guaranteeing rock-solid graphical synchronization when driven by commercial digital signage players.
Frictionless Cross-Platform Operation (Windows, Android, Linux)
Avoid the hidden costs and vendor lock-in associated with closed smart screen ecosystems. Featuring standard high-definition HDMI video interfacing, the display supports immediate cross-platform compatibility across Windows workstations, Android compute sticks, and industrial Linux appliances. Operators can switch host operating systems in seconds to match evolving CMS software, passenger information engines, or automated factory monitoring frameworks.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 50.2-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
B2B Production Excellence: 100% Factory Burn-In Testing and Direct Support
Direct factory procurement from ZXT ensures competitive pricing and reliable hardware delivery. We maintain in-stock extrusion tooling, offer 3-day sample dispatch, and support international partners with flexible delivery formats from finished displays to modular SKD kits.
Long-term component lifecycle management ensures that key panel models, driver boards, and mechanical dimensions remain stable across multi-year enterprise rollout phases, preventing unexpected redesigns.
Field Application & Installation FAQ
**Q1: How does this monitor connect to external audio systems?**
The display extracts audio from the incoming HDMI stream and routes it through an onboard 3.5mm audio socket, allowing installers to link external sound systems for synchronized promotional announcements.
**Q2: What mounting standards are supported on the rear chassis?**
The rear casing incorporates industry-standard VESA mounting patterns alongside adjustable lateral slide-nut tracks, supporting wall brackets, ceiling drop-poles, articulated arms, and custom cabinet cutouts.
**Q3: Can ZXT adjust panel brightness for semi-outdoor or sunlit storefronts?**
Yes. In addition to standard commercial luminance ratings, we offer custom high-brightness LED backlight configurations reaching up to 1000+ nits, equipped with automatic ambient light dimming sensors.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 50.2-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
