Non-touchscreen
49.5 Inch Intelligent Coverage Dynamic Navigation Backlit Stretched Bar LCD Display

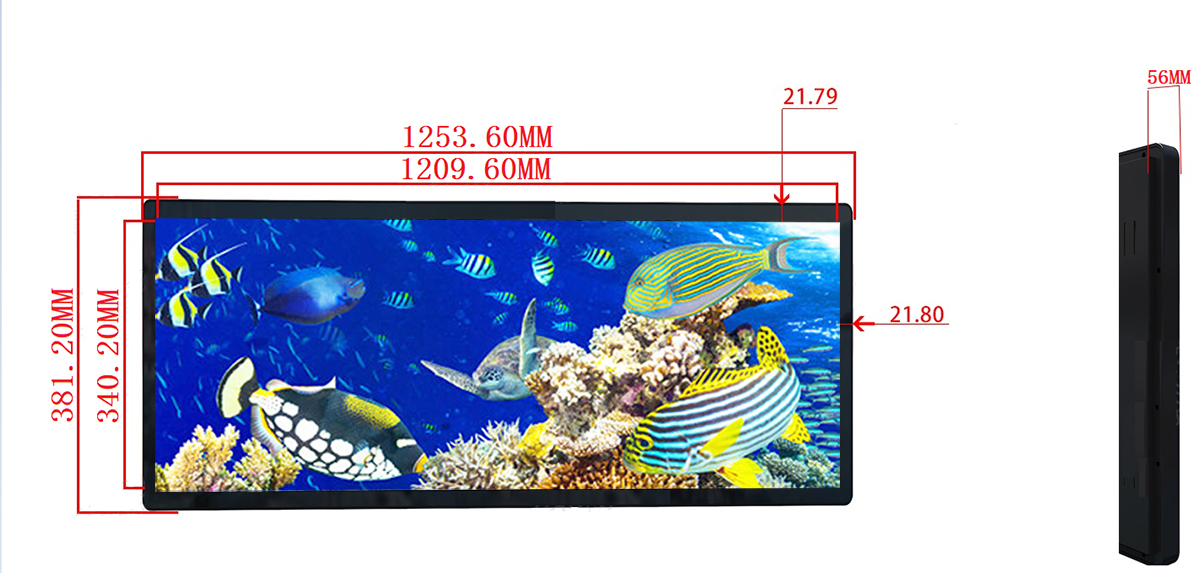

49.5 Inch Aluminum Stretched LCD Display Display area:1209.60*340.20mm Resolution:1920*540/3840*1080 Material:Aluminum
Specifications
- Screen Size
- 49.5 inch
- Resolution
- 1920*540/3840*1080
- Display area
- 1209.60*340.20mm
49.5 Inch Intelligent Coverage Dynamic Navigation Backlit Stretched Bar LCD Display
Smart 49.5 Inch Dynamic Navigation Stretched LCD Display for Modern Public Spaces
As shopping malls, airports, hospitals, transportation hubs, and commercial buildings become increasingly intelligent, traditional static signage is rapidly being replaced by Dynamic Navigation Displays that provide real-time guidance and digital communication.
The 49.5 Inch Intelligent Backlit Stretched Bar LCD Display is designed for continuous operation in public environments where clear navigation, advertising, and information delivery are essential. Its ultra-wide design allows businesses and facility managers to install digital signage in narrow architectural spaces without compromising aesthetics or visibility.
As a factory-direct stretched LCD display manufacturer, ZXTLCD develops customized digital signage solutions for global system integrators, distributors, engineering contractors, and commercial display brands through comprehensive OEM and ODM manufacturing services.
49.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49.5 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Intelligent Navigation Display for Smart Buildings
Unlike conventional digital screens, this 49.5 Inch Wayfinding Display combines an ultra-wide commercial LCD panel with intelligent content management, allowing organizations to publish dynamic navigation information, floor directories, emergency notices, promotional campaigns, and public announcements from a centralized platform.
The display is an ideal solution for:
- Shopping mall navigation
- Building directories
- Airport passenger guidance
- Railway station information
- Hospital department navigation
- University campus guidance
- Corporate office directories
- Exhibition hall navigation
- Convention centers
- Smart city information systems
Commercial stretched displays in this size category are commonly used for wayfinding, passenger information, and retail advertising thanks to their wide viewing angles, high brightness, and support for continuous operation.
Commercial-Grade Performance Built for 24/7 Operation
Designed specifically for commercial environments, this Backlit Stretched Bar LCD Display delivers stable performance with exceptional image quality and long service life.
Key features include:
- Ultra-wide commercial LCD panel
- High brightness LED backlight
- Full HD stretched resolution
- Wide viewing angle
- 24/7 continuous operation
- Android or Windows operating system
- Remote cloud CMS
- Split-screen multimedia playback
- USB automatic playback
- HDMI, LAN and WiFi connectivity
- Landscape installation
- Optional capacitive multi-touch
- Low power consumption
- Industrial-grade metal enclosure
Modern stretched displays are widely deployed in transportation, retail, and public information systems because they support centralized content management, long operating hours, and flexible installation options.
Wide Commercial Applications
The 49.5 Inch Intelligent Navigation LCD Display is suitable for a wide range of commercial environments, including:
- Shopping malls
- Airports
- Railway stations
- Metro stations
- Hospitals
- Universities
- Office buildings
- Government service centers
- Museums
- Hotels
- Convention centers
- Exhibition venues
- Smart communities
- Public transportation terminals
- Retail chain stores
Besides digital navigation, the display can also be used for advertising, queue management, visitor guidance, public notices, emergency messaging, and brand communication.
Why Choose ZXTLCD as Your Manufacturing Partner?
ZXTLCD has extensive experience in the research, development, and production of commercial stretched LCD displays for customers worldwide.
Our advantages include:
- Factory Direct Manufacturing
- Professional OEM & ODM Services
- Experienced Engineering Team
- Strict Quality Control
- Flexible Low MOQ
- Fast Production Schedule
- Stable Supply Chain
- Customized Hardware & Software
- International Shipping Support
- One-Year Warranty
- Responsive Technical Assistance
- Long-Term After-Sales Service
Every display undergoes comprehensive functional and aging tests before shipment to ensure dependable operation in demanding commercial applications.
