Non-touchscreen

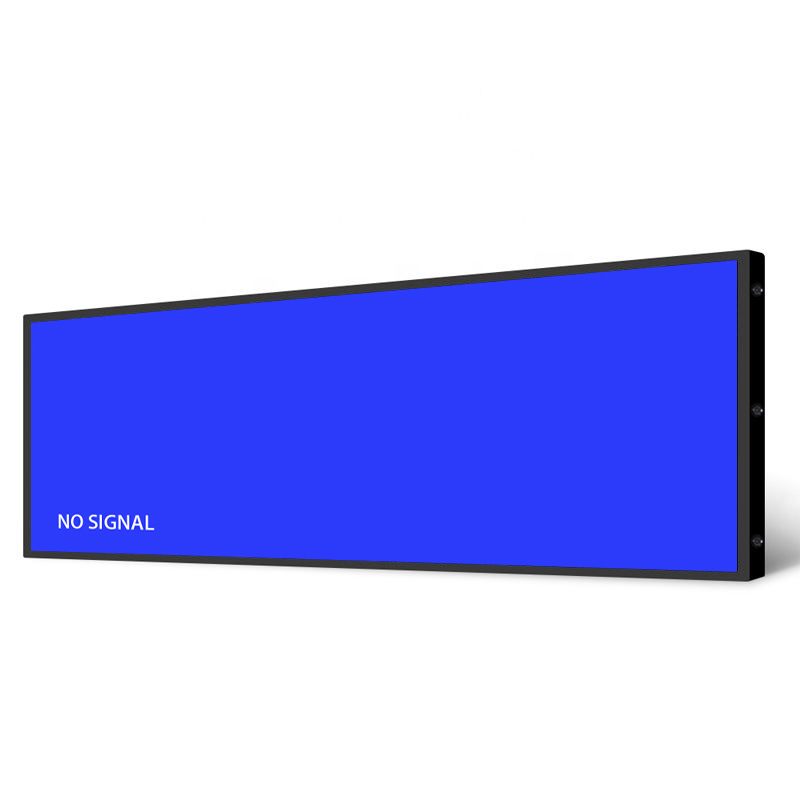

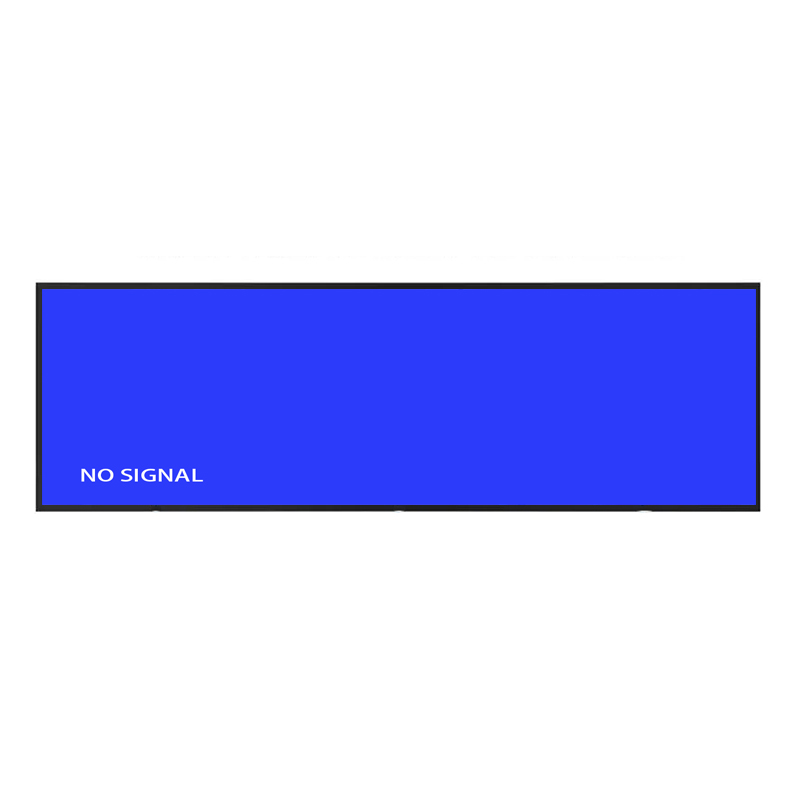

Industrial 49 Inch Bar Type Monitor Display with Rugged Sheet Metal
Wholesale 49 inch industrial sheet metal bar monitor featuring 3840*1080 resolution and 400 cd/㎡ calibrated luminance. True IPS full-viewing optics and low-power electrical design for large retail and transit deployments. Factory direct terms.
Specifications
- Screen Size
- 49 Inch
- Resolution
- 3840*1080
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
49 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49 inch | |
Resolution | 3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Space-Constrained Visual Architecture: Engineering Displays for Narrow Margins
In modern commercial architecture, horizontal margins represent prime visual real estate that traditional monitors cannot utilize. The 49-inch stretched bar LCD monitor unlocks these spaces, delivering native 3840*1080 resolution across an elongated 49-inch active diagonal to provide continuous digital messaging without consuming vertical room.
Enterprise IT managers appreciate the straightforward integration into centralized digital signage networks. The display links seamlessly with existing media players, supporting automated scheduling and remote device monitoring.
Modern supermarket merchandising strategies rely on dynamic motion graphics to stimulate shopper curiosity. Eye-level digital shelf headers deliver brand storytelling right where purchasing decisions are finalized.
High-Definition Visual Delivery: Color Purity, Contrast, and Viewing Geometry
The 49-inch display is powered by an industrial-grade LCD panel designed for high-resolution panoramic visualization. With a native resolution of 3840*1080, it presents sharp, detailed imagery that ensures promotional campaigns, digital price updates, and public transport schedules are legible and visually compelling at all times. Luminance is calibrated at 400 cd/㎡, delivering clear, crisp visuals in well-lit commercial spaces without generating uncomfortable glare for nearby customers. Backed by a 1200:1 contrast ratio, the display produces rich color tones, clean white highlights, and deep shadows. True IPS wide-angle technology provides an expansive symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angle, while the solid-state LED backlight system is rated for an industrial-grade operational life of 60,000+ operational hours.
High panel transmission efficiency allows the display to achieve striking luminous output while maintaining low internal thermal dissipation, safeguarding delicate electronic components from excessive heat aging.
A resilient anti-glare surface treatment diffuses incoming light rays at microscopic angles, preventing harsh specular reflections from blinding nearby shoppers or transit operators under overhead LED lighting.
Structural Framing: Rigid Metallic Construction with Flush Architectural Fit
The 49-inch monitor is enclosed in a durable cold-rolled steel chassis designed for continuous industrial use. Its reinforced metal frame absorbs physical impacts and track vibration, ensuring long-term operational stability in demanding public transit and factory settings.
The display enclosure is engineered for efficient passive heat dissipation, utilizing internal thermal spreaders and the outer metallic frame to cool internal components. This fanless design ensures silent, maintenance-free performance. Standard VESA mounting provisions and lateral channels provide versatile installation options.
The rear panel incorporates standardized VESA hole arrays with reinforced internal backing plates to support heavy articulated commercial wall arms. Lateral slide-nut channels provide additional anchoring points for custom security locks.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a 3.5mm Audio Socket. Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 100w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.
Open-Architecture Computing: Universal Operating System Flexibility
Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Target Environments: Commercial Display Strategies for Space-Limited Fixtures
Engineered for space-limited commercial installations, the 49-inch stretched bar screen delivers dynamic visual impact across diverse sectors. Supermarket chains deploy it along gondola shelf rails for real-time digital merchandising. Public transit operators utilize it for interior passenger route mapping. Financial institutions install it at teller counters for queue calling, and manufacturing plants use it for continuous assembly line status monitoring.
Municipal bus fleets deploy this low-profile screen along ceiling bulkheads to broadcast next-stop alerts, GPS route progress, and municipal announcements. The wide viewing angles ensure passengers seated throughout the vehicle can read journey details clearly without neck strain.
Hospitality venues report enhanced guest satisfaction when using panoramic displays for lobby wayfinding and conference schedules. The elegant linear form factor complements modern hotel interior architecture while delivering clear guest directions.
The ZXT Manufacturing Advantage: 9+ Years of Industrial Display Leadership
ZXT offers direct factory sourcing for commercial stretched bar displays, supported by nearly a decade of manufacturing experience. We provide zero-tooling-fee deployments on standard sizes, 3-day sample turnaround, and complete OEM/ODM engineering support including CAD files and custom bracket design.
We provide comprehensive sample evaluation packages complete with power supplies, video cables, and mounting hardware, allowing technical teams to conduct thorough bench testing prior to volume commitment.
Enterprise Signage & Procurement FAQ
**Q1: Does this display require proprietary cloud subscriptions?**
No. The monitor functions as an open commercial display without mandatory software licensing or ongoing platform fees, leaving you completely free to select any commercial or open-source digital signage CMS.
**Q2: What viewing angles does the display support?**
Equipped with true IPS wide-angle optical alignment, the screen delivers symmetrical 178-degree (89°/89°/89°/89°) viewing cones without color shifting, contrast degradation, or visual washout.
**Q3: Can this display be installed in both horizontal and vertical orientations?**
Yes. The commercial-grade liquid crystal panel and fanless thermal design support both landscape horizontal banners and portrait vertical totem installations with equal reliability.
Project Consultation and Custom Quotation Inquiries
To evaluate a test sample of the 49-inch ultra-wide stretched bar LCD monitor, request detailed 2D/3D CAD mounting blueprints, or discuss high-volume OEM/ODM pricing tiers for upcoming commercial deployments, please contact our international technical sales department. Provide your target installation environment, anticipated order volume, and specific interface requirements, and our engineering team will provide a tailored hardware proposal and commercial quotation within two business hours.
