Non-touchscreen

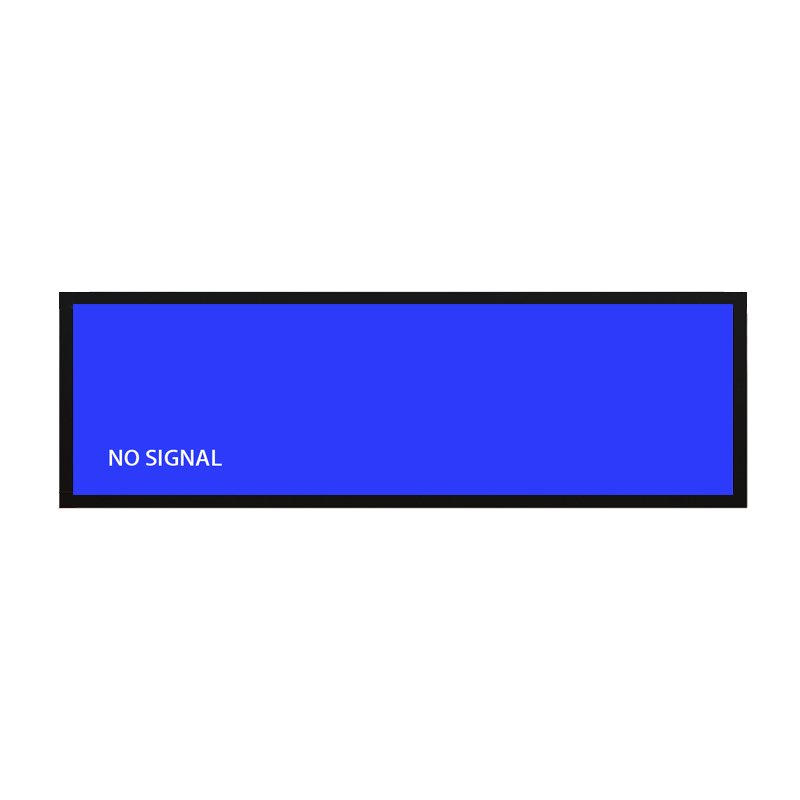

49.5 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Specialized 49.5 inch industrial sheet metal bar monitor (1920*540/3840*1080, 400 cd/㎡) direct from Shenzhen manufacturing facility. Engineered for space-limited commercial installations with robust metal housing. Fast 3-day evaluation samples available.
Specifications
- Screen Size
- 49.5 Inch
- Resolution
- 3840*1080/1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
49.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49.5 inch | |
Resolution | 3840*1080/1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Linear Digital Communication: Overcoming Traditional Screen Placement Barriers
Standard monitors often prove impractical when mounting displays along narrow retail shelves or vehicle door bulkheads. The 49.5-inch stretched display overcomes these geometric limitations, presenting 1920*540/3840*1080 resolution across an active 49.5-inch diagonal to deliver clear, uncompressed digital visuals in tight horizontal spaces.
Retailers can highlight high-margin products and limited-time offers directly where purchasing decisions occur. Eye-level digital animation captures customer attention far more effectively than static shelf tags.
In transit vehicle design, maintaining passenger headroom and complying with safety clearance standards is mandatory. The ultra-slim vertical depth of this display ensures compliance while maximizing information display area.
Visual Physics: Maintaining Sharp Image Definition Under Ambient Lighting
At the heart of this display is an industrial-grade A-grade liquid crystal cell engineered for continuous commercial duty. Featuring a native 1920*540/3840*1080 resolution, the 49.5-inch screen provides high-definition clarity that ensures intricate graphic assets, dynamic video commercials, and multi-line transit schedules remain razor-sharp from standard viewing distances. Boasting an engineered luminous output of 400 cd/㎡, the panel overcomes the visual washout typical of consumer screens in bright commercial lighting. Paired with a 1200:1 native contrast ratio, the optical stack produces deep black levels and vibrant chromatic saturation. The display's IPS panel structure ensures wide optical visibility with CR≥10 wide-angle IPS optical alignment viewing angles, while the solid-state LED backlight is rated for a continuous operational life of more than 60,000 hours of maintenance-free illumination.
An optimized polarising matrix prevents color inversion and contrast degradation when the screen is viewed from steep vertical or lateral perspectives, preserving image fidelity in tight corridor passages.
High static contrast performance ensures that deep blacks remain rich and text characters stand out sharply, maximizing legibility in low-light transit tunnels as well as brightly illuminated department stores.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Built with an industrial-grade steel housing, the 49.5-inch display provides robust mechanical protection for heavy machinery and transport consoles. The electro-galvanized cold-rolled metal construction ensures high rigidity and effective electromagnetic interference defense.
A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Electronic Longevity: High-Grade Industrial Capacitors and Protective Circuits
Featuring HDMI, VGA video connections, the monitor ensures broad compatibility with commercial computing hardware. An integrated Audio Socket (3.5mm) facilitates audio connectivity. The unit runs on universal global 100~240V line voltage at 50/60Hz power, drawing ≤ 100w, and operates stably across temperature ranges of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
The mainboard firmware includes intelligent watchdog monitoring that automatically recovers video synchronization in the event of external signal interruptions, eliminating manual service calls.
The display's low thermal footprint reduces the cooling burden in enclosed kiosk cabinets, allowing system builders to design tighter, more compact self-service enclosures without auxiliary fans.
Seamless Multi-OS Switching via HDMI (Windows / Android / Linux)
Engineered as an open-architecture commercial display without proprietary hardware lock-in. By simply connecting an external Windows PC box, Android media player, or Linux industrial controller via a standard HDMI cable, you can achieve effortless operating system switching tailored to your digital signage CMS, interactive software, or industrial monitoring platform.
Deployment Vectors: Retail Shelves, Passenger Transoms, and Control Consoles
The 49.5-inch panoramic display excels in spaces where horizontal information delivery enhances operational efficiency. In smart supermarket aisles, it provides eye-level pricing and product promotions. In transit hubs, it serves as an overhead route indicator above passenger boarding gates. In corporate headquarters, it functions as an elegant architectural directory, while in industrial server rooms, it provides clear rack-mount telemetry feeds.
In luxury cosmetics and high-end department store showcases, the display functions as an elegant digital riser that highlights brand prestige. Subtle video animations and product feature breakdowns complement the physical merchandise, elevating retail aesthetics and customer dwell time.
High-end fashion boutiques and cosmetics flagship stores utilize the display as a luxury architectural accent. Seamlessly integrated into glass shelving and perfume risers, the screen elevates brand perception while presenting subtle, cinematic promotional footage.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Hardware Deployment & Specification FAQ
**Q1: Can multiple displays be mounted side-by-side to form a continuous visual ribbon?**
Yes. The ultra-narrow bezel design and lateral slide-channel grooves allow multiple units to be installed horizontally in tight alignment, creating seamless digital merchandising ribbons along store shelf rows.
**Q2: Is audio output supported on this monitor?**
Yes. The motherboard includes an integrated 3.5mm stereo audio output jack, enabling direct connection to shelf-edge sound bars, directional speakers, or external public address amplification equipment.
**Q3: What is ZXT's minimum order quantity (MOQ) for standard models?**
Because we maintain permanent in-stock tooling and extrusion profiles, standard models have flexible, low MOQ requirements, allowing enterprise clients to begin with small evaluation batches before volume rollouts.
B2B Commercial Consultation and Engineering Support
Contact ZXT today to request 3D CAD blueprints, technical datasheets, or evaluation samples for the 49.5-inch stretched bar LCD monitor. Our technical sales team returns official factory proposals within two hours.
