Non-touchscreen
49.5 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
High-resolution 49.5 inch industrial sheet metal bar monitor with 3840*1080/1920*540 active matrix and 400 cd/㎡ brightness. Designed for smart retail, rolling stock transit, and industrial server racks. Backed by 9+ years of specialized display manufacturing.
Specifications
- Screen Size
- 49.5 Inch
- Resolution
- 1920*540/3840*1080
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
49.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49.5 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Dilemma: Why Conventional 16:9 Displays Obstruct Modern Fixtures
Commercial fixture design increasingly demands high-density visual communication without sacrificing vertical clearance. Standard square monitors take up too much vertical space, making them impractical for horizontal shelf rails, transit headers, and industrial control consoles. Engineered specifically for these horizontal perimeters, the 49.5-inch panoramic display establishes a clean balance between compact dimensions and wide-format visual presence. With a native raster of 3840*1080/1920*540, it allows multi-column split-screen graphics and automated status alerts to operate seamlessly within narrow spaces previously deemed unusable for dynamic digital media.
The streamlined horizontal geometry enables store architects to maintain cohesive interior sightlines. Customers browsing retail aisles enjoy unimpeded views of premium product displays while receiving relevant pricing and promotional information directly at eye level.
Eliminating the need for structural redesigns translates to substantial capital savings for project contractors. Installation teams can utilize existing retail track extrusions or vehicle bulkheads without commissioning expensive custom millwork or heavy mechanical brackets.
High-Definition Visual Delivery: Color Purity, Contrast, and Viewing Geometry
The 49.5-inch display is powered by an industrial-grade LCD panel designed for high-resolution panoramic visualization. With a native resolution of 3840*1080/1920*540, it presents sharp, detailed imagery that ensures promotional campaigns, digital price updates, and public transport schedules are legible and visually compelling at all times. Luminance is calibrated at 400 cd/㎡, delivering clear, crisp visuals in well-lit commercial spaces without generating uncomfortable glare for nearby customers. Backed by a 1200:1 contrast ratio, the display produces rich color tones, clean white highlights, and deep shadows. True IPS wide-angle technology provides an expansive symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angle, while the solid-state LED backlight system is rated for an industrial-grade operational life of 60,000+ operational hours.
High panel transmission efficiency allows the display to achieve striking luminous output while maintaining low internal thermal dissipation, safeguarding delicate electronic components from excessive heat aging.
A resilient anti-glare surface treatment diffuses incoming light rays at microscopic angles, preventing harsh specular reflections from blinding nearby shoppers or transit operators under overhead LED lighting.
Fanless Heat Spreading: Extending Electronic Lifespan Through Solid-State Cooling
Formed from heavy-duty cold-rolled steel, the 49.5-inch chassis is designed to survive demanding transport and control room environments. Its rigid metal construction delivers superior shock absorption and electromagnetic immunity, safeguarding driver circuits against industrial interference.

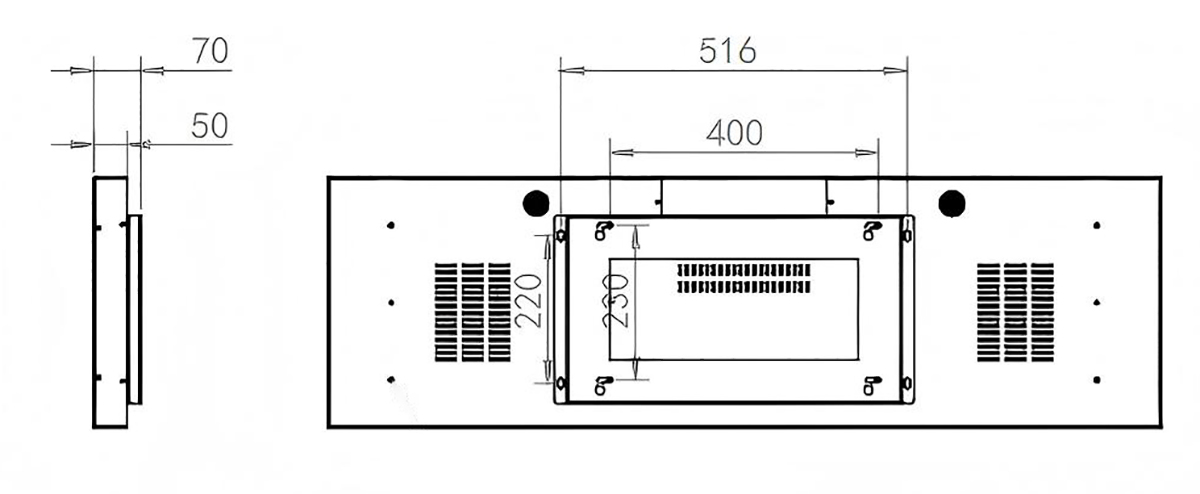

Built without mechanical cooling fans, the display relies on efficient conductive thermal paths through its metallic housing to maintain optimal operating temperatures. This silent, dust-free design maximizes operational longevity, while standardized rear VESA patterns and lateral slide channels support versatile installation.
Designed with multi-axis mounting versatility, the rear housing accommodates custom ceiling drop-poles, articulated wall brackets, and desktop tilt-stands. Heavy-duty internal mounting studs prevent thread stripping during repeated installation cycles.
Electrical Efficiency: Low-Ripple DC Regulation and Thermal Load Reduction
Engineered with HDMI, VGA inputs, the monitor connects effortlessly to commercial media players and industrial computing devices. Audio output is routed through a 3.5mm Audio Socket. The power module supports universal standard 110V to 240V AC power input inputs with an efficient power draw of ≤ 100w, while environmental resilience is rated for below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
The internal power regulation subsystem maintains steady direct current output even during sudden commercial utility voltage fluctuations, ensuring uninterrupted screen operation during peak hours.
The motherboard includes native EDID emulation that automatically communicates the display's custom panoramic resolution to connected PCs, simplifying operating system display setup and driver configuration.
Universal Video Ingestion Across Leading Operating Systems
This display adopts a clean, open hardware topology that welcomes external video input from Windows, Android, and Linux compute engines alike. A single HDMI connection delivers seamless pixel mapping and audio-video pass-through, giving digital signage operators and kiosk engineers the latitude to implement custom CMS platforms, automated queue software, or industrial SCADA consoles without artificial hardware constraints.
Venue Integration: Enhancing Customer Navigation and Merchandise Turnover
Engineered for versatile commercial use, the 49.5-inch stretched display provides panoramic visual delivery in space-constrained settings. Retailers utilize it for shelf-edge advertising, transit operators install it for passenger wayfinding, and industrial engineers use it for equipment monitoring.
In sports arenas and stadium concourse passages, the display functions as a continuous digital ribbon above concession stands. Live match scores, sponsor logos, and beverage menu specials keep spectators engaged throughout tournament games.
Cleanroom pharmaceutical facilities rely on the display's sealed, wipe-clean housing to monitor batch processing parameters. Quality control operators verify real-time environmental data without compromising sterile room protocols.
Turnkey and Modular Supply: Helping International Partners Scale Deployments
ZXT delivers factory-direct manufacturing for commercial stretched bar displays, offering competitive pricing, in-stock tooling, and 3-day sample turnaround. We provide complete technical support, including 2D/3D CAD models and modular SKD delivery to optimize international tariffs.
We partner with system integrators to build long-term commercial relationships, offering transparent volume-tiered pricing structures and dedicated account management for enterprise digital signage initiatives.
Commercial Rollout FAQ
**Q1: What cable lengths are supported for HDMI video feeds?**
Standard passive high-speed HDMI cables support connections up to 10 meters, while active optical HDMI cables or standard HDMI-over-CAT6 extenders can be utilized for long-distance media player placement.
**Q2: How does the display handle unexpected power outages?**
The monitor features automatic power-recovery logic. Once electrical power is restored, the display powers on instantly and resumes active video broadcasting without requiring manual button intervention.
**Q3: Can we schedule a factory technical video consultation with ZXT engineers?**
Yes. Our international technical sales team can coordinate direct video conferences with our hardware design engineers to review CAD drawings, project requirements, and customized production timelines.
Engineering Collaboration and Volume Pricing Assessment
Contact ZXT's international sales engineering group to discuss volume pricing, custom bracket options, or evaluation sample units for the 49.5-inch ultra-wide stretched display. Share your target installation parameters, interface needs, and expected delivery dates, and our technical specialists will prepare a comprehensive engineering proposal and quotation within two business hours.
