Non-touchscreen
48.8 Inch IPS High Resolution DIY Totem Ultra Wide Stretched Bar LCD Monitor
The 48.8 Inch Stretched Bar LCD Monitor supports customizable timed power-on/off functions, allowing users to set different times for weekdays and holidays. It automatically powers on at 8 AM to play breakfast advertisements and automatically powers off and enters sleep mode at 9 PM. With a built-in RTC clock, time information is not lost after power failure, truly achieving unattended intelligent operation.
Specifications
- Screen Size
- 48.8 Inch
- Resolution
- 1920*360/3840*720
- Display area
- 1209.6*226.5mm
48.8 Inch IPS High Resolution DIY Totem Ultra Wide Stretched Bar LCD Monitor
Factory Direct Ultra-Wide Display Solution for Modern Commercial Spaces
The 48.8 Inch IPS High Resolution DIY Totem Ultra Wide Stretched Bar LCD Monitor is designed for businesses that need a flexible, high-impact digital signage solution for retail, exhibitions, and commercial display environments. With its ultra-wide format and IPS commercial panel, it delivers clear, continuous visual presentation across a long horizontal screen—ideal for modern advertising and information delivery.
As a factory direct manufacturer, we provide stable supply, competitive pricing, and full technical support for global distributors, system integrators, and brand owners. Every unit is built under strict production standards to ensure reliability in long-term commercial use.
48.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48.8 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89(U/D/L/R) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Ultra-Wide IPS Display with Strong Visual Impact
The 48.8-inch stretched LCD panel uses IPS technology, offering wide viewing angles and consistent color performance. This ensures that content remains clear and visible even in bright retail environments or crowded public spaces.
The ultra-wide format is particularly effective for:
- Horizontal advertising content
- Multi-product promotion
- Brand storytelling
- Dynamic retail information display
Compared with standard 16:9 screens, this stretched design provides a more natural layout for shelving, walls, and linear display areas.
DIY Totem Design for Flexible Installation
One of the key advantages of this model is its DIY Totem structure support. Unlike fixed-installation displays, this system allows flexible assembly and customized display configurations.
It can be used in:
- Vertical totem installations
- Modular display systems
- Retail shelving structures
- Exhibition booth setups
- Custom brand display frames
This flexibility makes it especially valuable for commercial projects that require unique visual structures or branded environments.
Smart Content Management System
The display supports multiple content control options depending on project requirements. Users can manage content via USB, network connection, or optional cloud-based CMS platforms.
It supports a wide range of media formats, including:
- Video playback
- Image slideshows
- Text and promotional banners
- Scheduled advertising content
This allows businesses to update marketing materials quickly and efficiently across different locations.

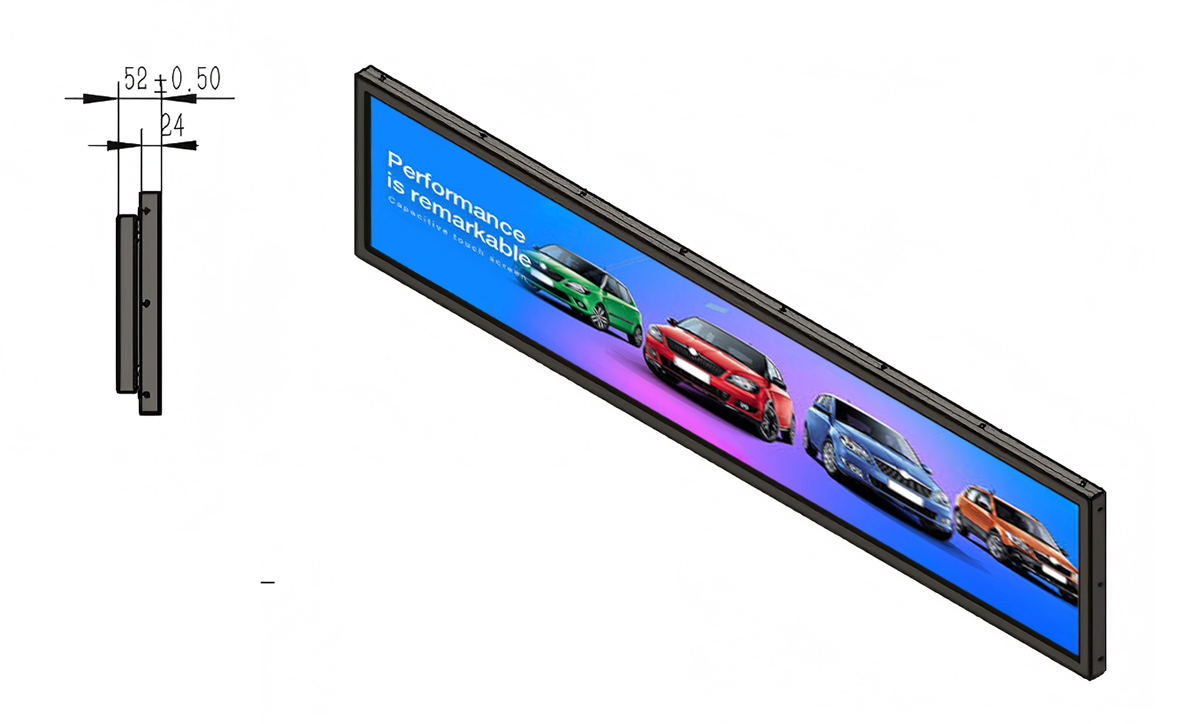

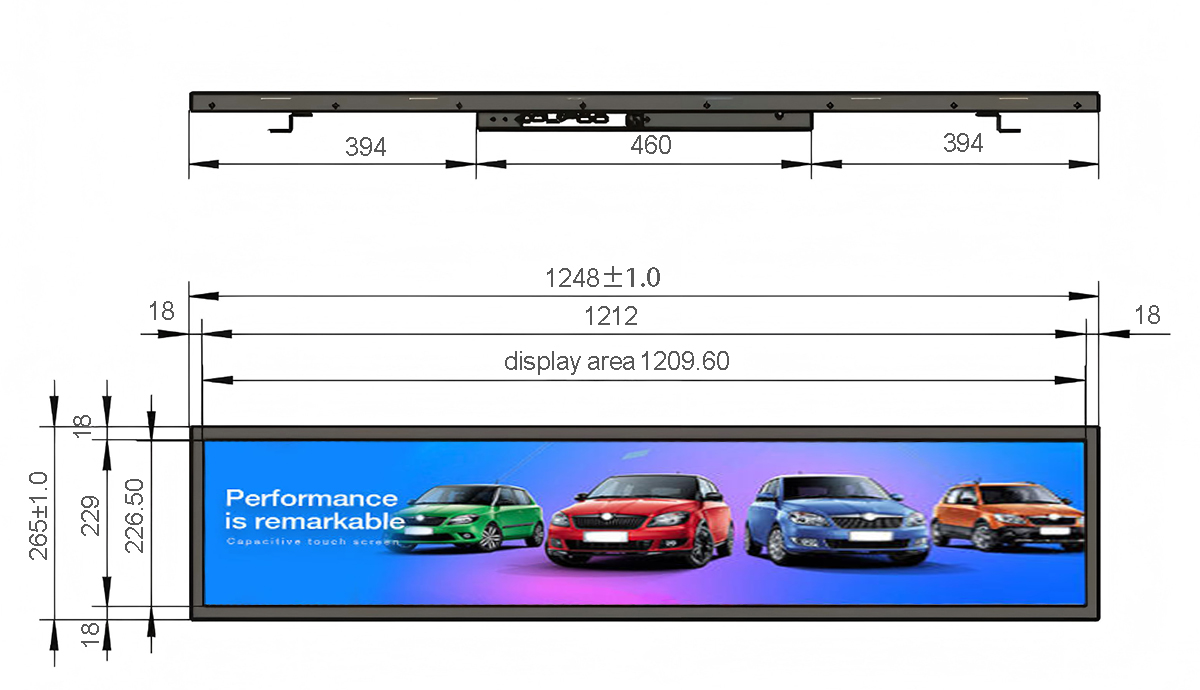

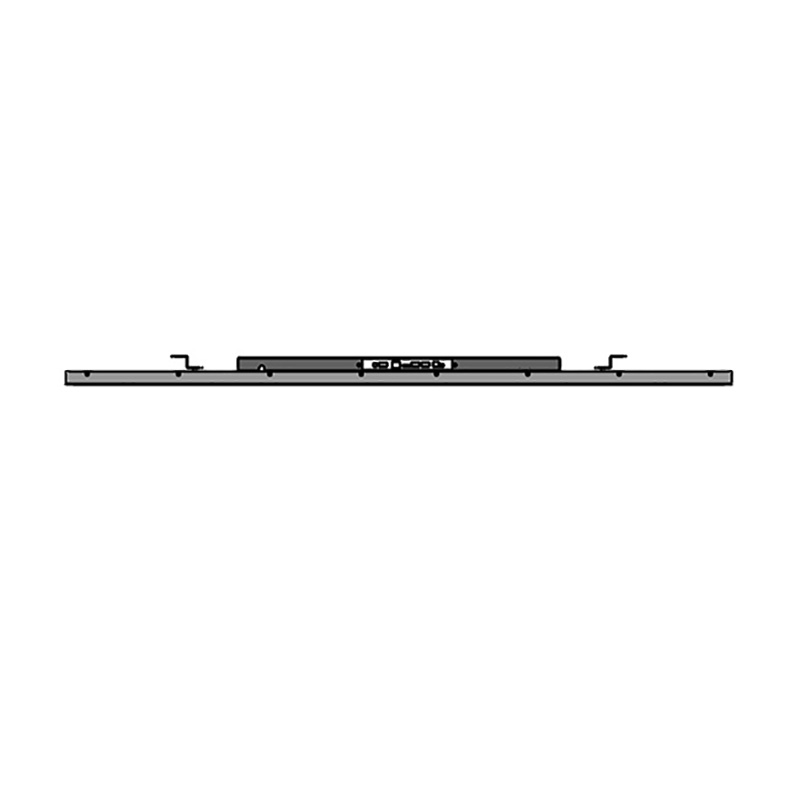

Product Dimension as follows:
Factory Direct Manufacturing Advantages
By working directly with our factory, customers benefit from a complete manufacturing and supply chain solution without unnecessary intermediaries. This ensures better cost control and faster communication throughout the project cycle.
Our factory advantages include:
- Competitive direct pricing
- Stable production capacity
- Strict quality inspection process
- Fast sample and bulk production
- Professional engineering support
We focus on long-term cooperation with distributors, OEM clients, and project-based customers worldwide.
Why Choose Us
As a professional manufacturer of commercial LCD signage, we combine engineering expertise with flexible production capability. Our focus is not only on hardware delivery but also on helping customers build scalable digital signage solutions.
If you are looking for a factory direct stretched LCD display supplier with OEM & ODM capability, this model provides a strong balance of performance, flexibility, and commercial reliability for global projects.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
